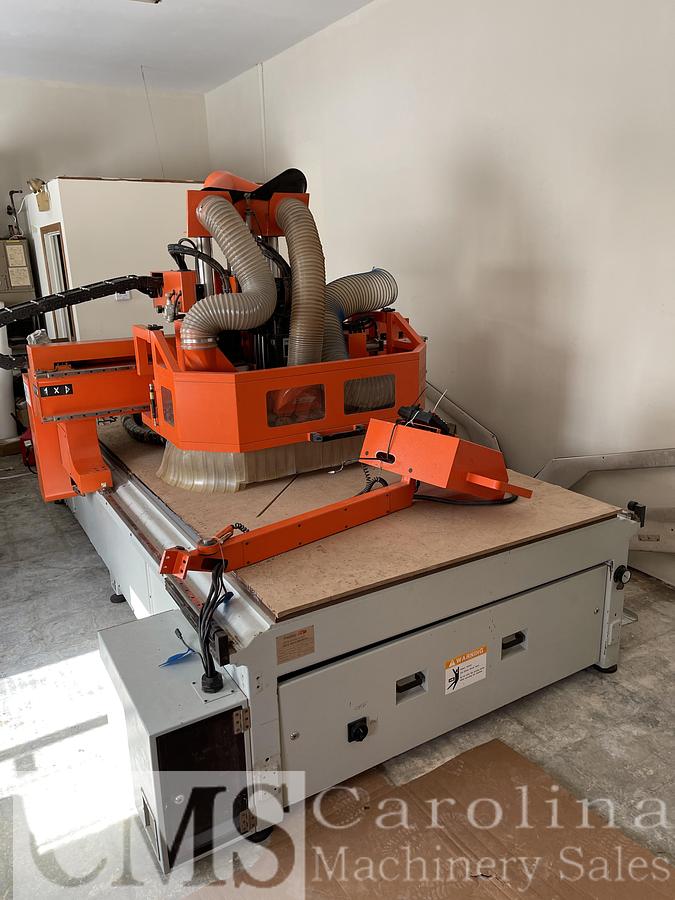

2006 Anderson / Omnitech Selexx PAL 5 X 10 CNC Router

The 2006 Anderson / Omnitech Selexx PAL 5 x 10 is a heavy-duty, 3-axis CNC nesting router built for high-speed cabinet, wood, plastic, and composite panel processing.

61" x 122" flat table

   Four (4) vacuum zones

   Suitable for nesting or use of pods or clamps

   Pneumatic reference pins and rails

Drill unit

•    2 HP
•    4,500 RPM
•    Nine (9) vertical spindles

Router

•    12 HP
•    Variable RPM, 1,000 - 22,000
•      Full torque at 9,000 RPM
•      Full HP at 12,000 RPM
•    HSK63F, quick-change
•    Air-cooled
•    Air blow-off nozzle

Automatic tool changer

•    Eight (8) position rotary

Tool length touch probe

PC control on mobile cart

•    Windows operating system
•    Standard keyboard and mouse
•    Color, flat-screen monitor
•    Fanuc OiM-F controller system

Hand-held controller

Fanuc drive system

•    Dual drive, dual support for X axis

Central lubrication system

Dust shroud

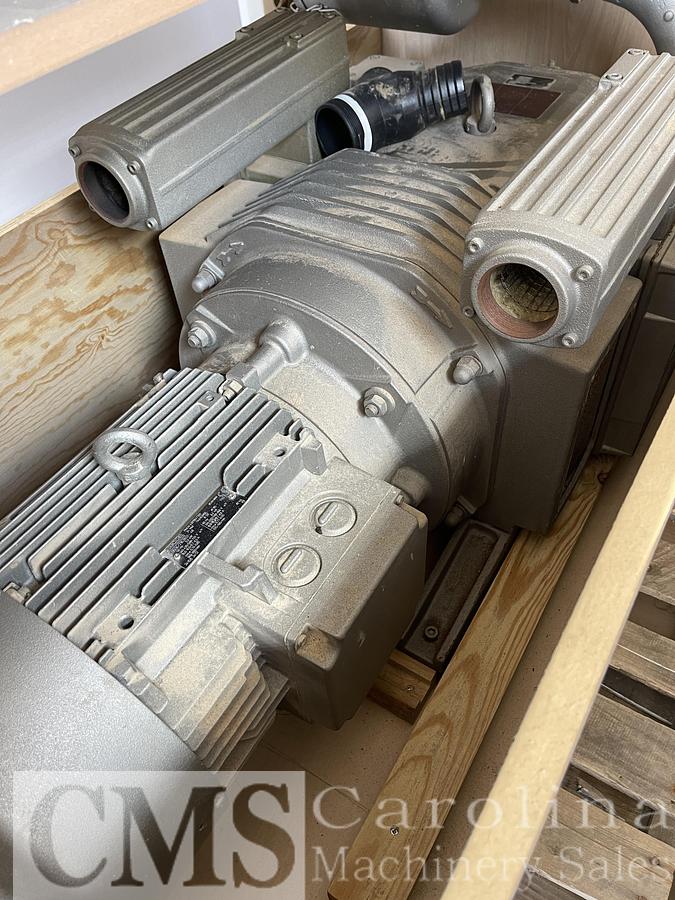

Two Vacuum Pumps
