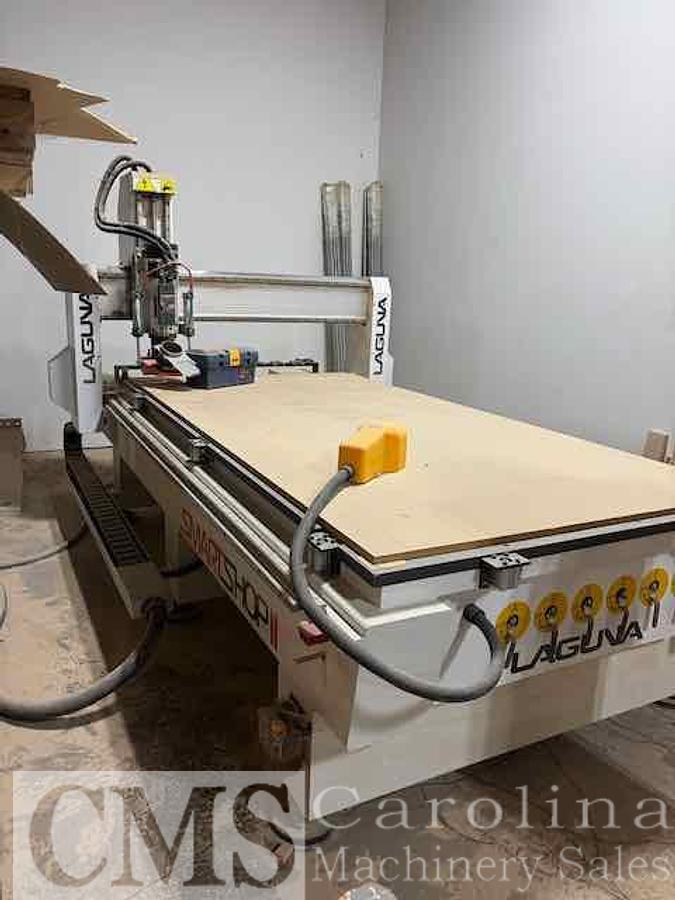

2024 Laguna Smartshop II Pro CNC Router

LAGUNA HSD SMARTSHOP 4 X 8 CNC ROUTER (MCNC SS 48X96 ATC)

4' X 8' CUTTING AREA

11 HP HSD ISO-30 ATC ELECTROSPINDLE (CERAMIC BEARINGS),

208-230V, 3 PHASE (24,000RPM)

EIGHT (8) POSITION AUTOMATIC TOOL CHANGER (4 TOOL HOLDERS INCLUDED)

TOOL CONE HOLDER - FOR EASY BIT CHANGING

4' X 8' (PHENOLIC) - UNIVERSAL GRID-TYPE VACUUM TABLE WITH T-SLOT FEATURE

SIX (6) INDEPENDENTLY CONTROLLED VACUUM ZONES

LAGUNA SMARTSHOP. DRIVE SYSTEM (PLUG-AND-PLAY MOTOR REPLACEMENT):

- X AXIS - HELICAL RACK-AND-PINION

- Y AXIS - DUAL HELICAL RACK-AND-PINION (DRIVES ON EACH END

OF GANTRY)

- Z AXIS - PRECISION GROUND BALL SCREW

PROGRAMMABLE DUST HOOD WITH M-CODE DRIVEN RETRACTION

E-STOP

LIMIT SWITCHES ON ALL AXES WITH SOFT LIMITS

RIGID, ALL-WELDED, STRUCTURAL STEEL FRAME (MACHINE WEIGHT

3500 LBS.)

B&R INDUSTRIAL CONTROLLER
