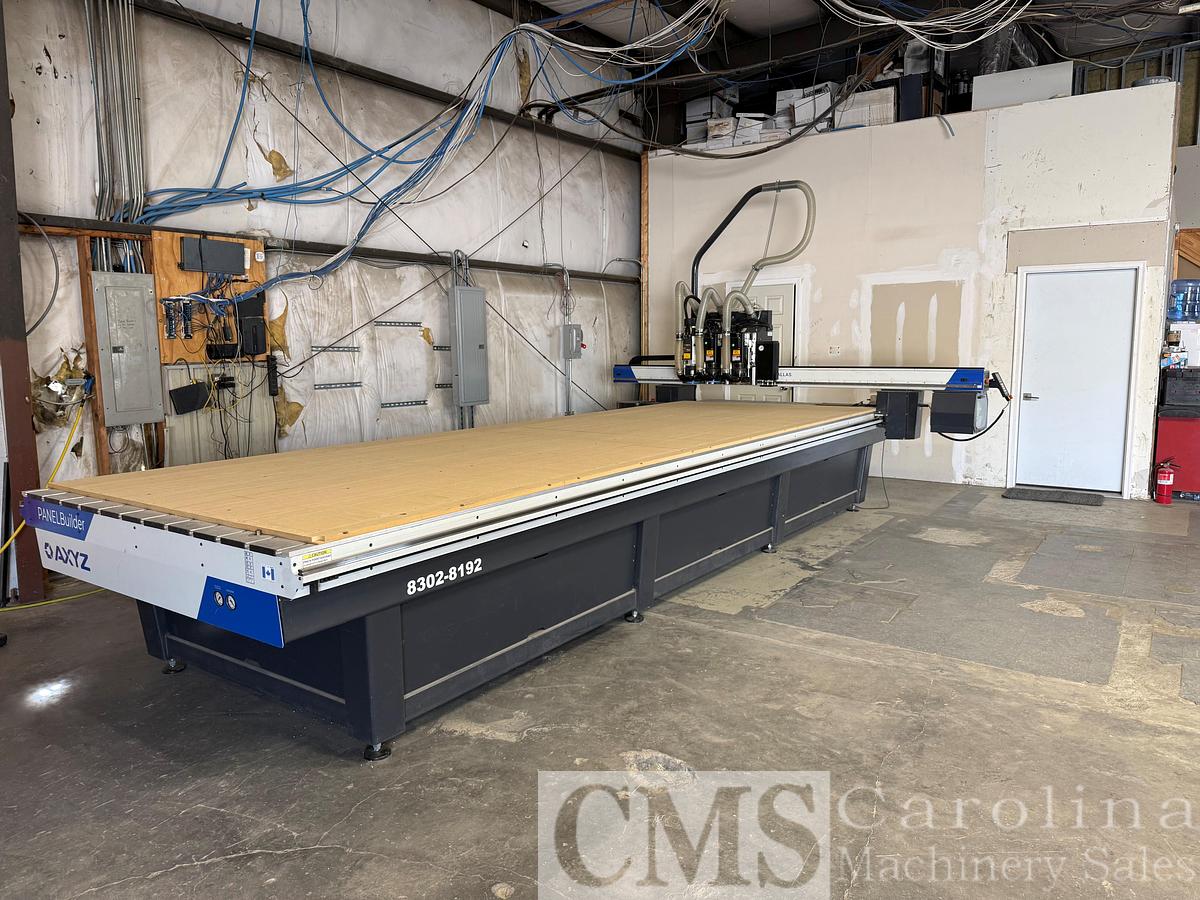

PanelBuilder 5018 Router Cutting System

1.0

1PanelBuilder 5018 Router Cutting System

72" x 216" process area, 6" Z axis clearance.

Single piece fully welded tubular steel base construction including leveling feet and caster wheels. Extruded aluminum table top with zoned vacuum and T slot clamping system. Dual rack & pinion drives on X axis with linear rails and bearings. Single rack & pinion on Y axis with dual profile linear slides and bearings. Z axis driven by ballscrew.

Tool Tip Sensor for fast and accurate setting of tool lengths. Machine toolbox with tools for basic machine maintenance.

2.0

1 Heavy duty steel gantry

For applications that may benefit from its greater mass, a heavy duty steel gantry provides improved rigidity and enhances cut quality by reducing the possibility of vibrations being transmitted through the gantry structure.

3.0

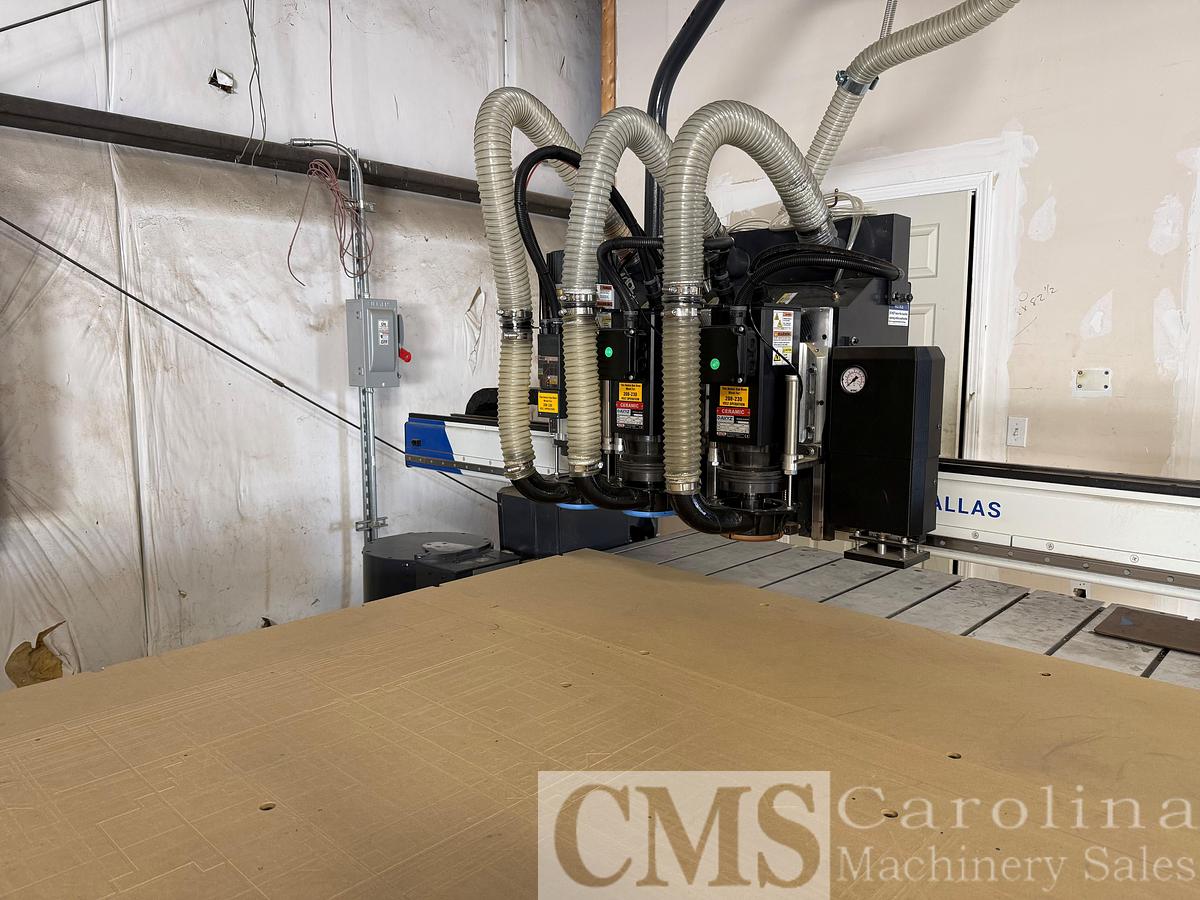

1 Single carriage with triple "Z" axis with 10 tool automatic tool changer

Single carriage with three "Z" axes with 10 tool automatic tool changer. The innovative AXYZ Automatic Tool Changer provides an effective solution to running jobs requiring multiple routing tools. Tools are loaded from below the surface of the table so it does not create interference with other tools mounted to the carriage of the machine. It is also capable of loading tools on multiple spindle machines from a single tool changer. Price includes extended length gantry.

Watch tool changer video

4.0

1 10.8 HP, 24,000 rpm HSD quick release spindle

The 10.8 HP HSD Quick Release spindle incorporates high speed ceramic bearings for quiet operation and 4 pole construction to improve power output at low spindle speeds. A pneumatic quick release allows it to be operated manually or in conjunction with the ATC automatic tool changer. Spindle speeds can be varied up to 24,000rpm and tooling up to 3/4" shank diameter can be fitted. Watch video

5.0

2 10 HP, 24,000 rpm Elte collet spindle

The 10HP Elte Collet spindle is precision balanced for fast, clean cutting and ultra-quiet operation. It can operate at variable speeds up to 24,000 rpm, can accommodate tools with shank sizes up to 3/4" and has high-speed sealed bearings for maintenance free operation. Watch video

6.0

10 HSD ISO30 ER32 Toolholder with covernut

Fully balanced ISO30 toolholder cone including covernut and pull stud

7.0

10 Standard length tool cup for all ATC systems

Tool cup for use with all AXYZ automatic toolchange systems

8.0

1 Automatic feed Sugino pneumatic drill ready kit

Automatic feed drills are fixture-mounted tools that combine linear feed and rotation for drilling operations. The pneumatic feed and drive on this unit operates on demand only. Feed rate and stroke are fully adjustable and the drill can operate at fixed speeds

Ready Kit includes: - Wiring

- Air fittings

Excludes:

- Pneumatic drill unit

10.0

1 Precision board planing tool kit

Tool for planing the precision spoil board. This kit includes: 107RL8-38 1.5" 2-Flute Spoilboard Planing Tool

11.0

1 Six Drive Servo (X, Y and Z)

The AXYZ Servo drive delivers high speed and high torque capacity with a planetary gearhead transmission assembly. For high volume applications where cycle times need to be kept to a minimum the servo drive can help to boost productivity. The helical rack included in this drive package offers superior high speed performance for quiet running, greater accuracy, smoother cutting and allows greater acceleration and feed rates to be used where required. Wear is reduced and life of the rack and pinion system is increased as a result of distributing the load over several gear teeth.

Technical Specifications:

- Servo Power = 500 W

- Acceleration = Up to 2.2m/s^2 - Direct-drive planetary gearbox

12.0

2 High capacity pressure foot with nose rider and blue glide donut

This is designed to be used on machines cutting ACM. It includes a high capacity pressure foot, nose rider collar and a blue glide donut. It provides an efficient method of chip extraction, perfect constant depth V grooving and smooth motion with no surface damage or paint pickup.

Watch video

13.0

1 Bellows seal for High Capacity or Universal 5Y pressure foot

The bellows seal works with the High Capacity or the Universal 5Y pressure foot to enhance extraction in high dust environments. It promotes the generation of a cyclonic vortex within the pressure foot chamber and is effective on all types of materials.

Watch video

14.0

1 High capacity pressure foot

The High Capacity Pressure Foot provides an efficient method of dust and swarf extraction to ensure a clean working environment. With reasonable suction, these pressure feet have been tested to remove most of the dust from MDF cut at production cutting speeds. The High Capacity foot can also be fitted with brushes as required.

Watch video

15.0

1 ALP - Automated Label Printer - Ready

The Automated Label Printer (ALP), is a fully integrated device, mounted on the machine's gantry and designed to automatically print and apply labels containing data onto individual parts as they are machined. When used with the Barcode Reader, this enables accurate production data to be easily collected for part tracking and management information systems. The Ready-kit, allows for quick future installation of the unit. The parts included in this kit:

- Wiring and connectors

16.0

1 ALP - Automated Label Printer

The Automated Label Printer (ALP), is a fully integrated device, mounted on the machine's gantry and designed to automatically print and apply labels containing data onto individual parts as they are machined. When used with the Barcode Reader, this enables accurate production data to be easily collected for part tracking and management information systems. Requires PANELBuilder Version 19 or higher

The labelling system utilizes 4"x4" labels

17.0

3 Unist Mister for cutting non ferrous metals

For cutting non-ferrous metals including Aluminum, Brass and Copper, the AXYZ / Unist Misters operate with more precision and reliability than any other dispensing system available. The pulse generator allows for automatic, infinite repeat cycling of the lubricant pump from a single air source. The result is a continuous output of a micro-fine lubricant mist providing longer tool life, better cut finish and higher cutting speeds of non-ferrous metals.

Watch video

18.0

1 The Vortex Cold Gun reduces heat generated by the cutting tool during the machining process

The cold air gun is a simple device that utilizes filtered, compressed air and a venturi effect expansion chamber to produce cold air for industrial spot cooling. This cost effective option reduces heat generated during the machining process of plastics and soft non- ferrous metals. This device provides better edge finish and longer tool bit life in a dry cutting process.

Watch video

Ready Kit Includes:

- Pneumatic components and airlines

Excludes:

- Cold Air Gun device

19.0

1 Designed to minimize the entry of dust, the machine body kit package wraps around the entire frame

Designed to minimize the entry of dust, the machine body kit package wraps around the entire frame. For machines of 4000, 5000 or 6000 type and of lengths 14' to 22'

20.0

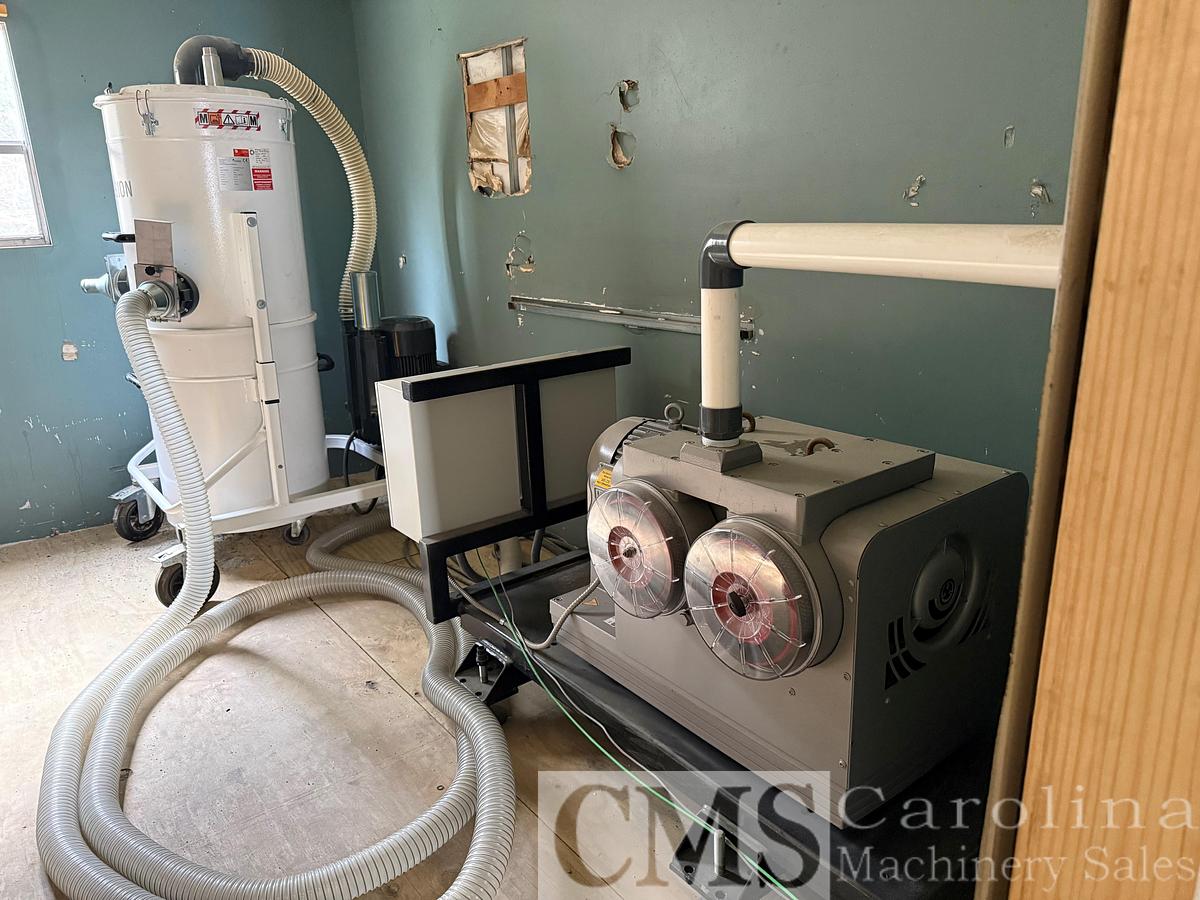

1 12 HP Becker Dry-Vane Pump with Auto-Start Device

The Becker VTLF 2.250/0-79 SK Rotary Vane pump, is a high quality source for vacuum hold down and is perfectly suited for all general purpose applications on AXYZ Routers. This pump is suitable for use on smaller cut parts as well as full size sheets. It is reliable in operation and is able to run continuously if required. This device includes an

auto start/stop feature which allows the pump to be automatically started through the machine's controller. Watch video

Model: VTLF2.250-79SK

Motor Power: 9KW (12.1HP) @60Hz Max Volume: 295m3/hr (173.6 CFM) Max Vacuum: 27 inHg

With Vacuum Protection

21.0

1 Software control system for vacuum zones

This is a unique and highly configurable option which allows the AXYZ zoned vacuum system to operate in Live Deck or independent switching modes of operation. Live Deck will automatically activate and deactivate zones according to the live position of the cutting head. This ensures the material is always held as securely as possible for best cutting results. For total manual control, individual zones can be switched through the zone manager.

Watch auto zones feature video

22.0

1 Precision 1" MDF Spoil Board

MDF spoil board which is mechanically fixed to the T slot bed to act as a sacrificial diffuser. It is 1" thick and can be skimmed to provide a stable and flat working surface which is user replaceable.

Quantity represents the number of panels necessary to cover the bed

23.0

3 Pop-up material locating pins

These hardened steel pins are pneumatically activated to allow fast, repeatable placement of your cutting materials onto the machine. Pop up pins are the most reliable method of ensuring your materials are on straight, and with the full pneumatic retraction, there is no fear of any cutting tool collision with the pin.

Note that when the pins are in use, the effective process width of the machine is reduced by 3"

Watch video

24.0

1 AXYZ Smart Console with E-Stop

The new AXYZ Smart Console brings unprecedented ease of use, context sensitive menus, realtime display of machine status and many more timesaving, useability and productivity features. It provides a graphical preview and current status of a running job and allows program feeds and speeds to be changed without pausing the program.

Watch video

25.0

1 A2MC Control System with 7 Segment motion profile

The A2MC Control system allows for much smoother and faster motion based on S-Curve (Seven Segment Velocity) trajectories. It is fully NC code compatible so it will work with virtually any known CAM package including Artcam, Type 3, Enroute, and more.

The A2MC connects to your existing network through TCP/IP protocols so file transfer is almost instantaneous from any workstation on your network.

26.0

1 PANELBuilder 2D software including true shape nesting

The AXYZ PANELBuilder 2D software includes 2D functionality as well as nesting and automatic ToolPath creation. It has been designed to significantly reduce the time that programmers require to create the large quantities of standard panels they have to design on a day to day basis. Once a panel has been drawn it can be saved with parametric values for recall at any time, change sizes to the panel and then save to be nested using AXYZ nesting solutions. Watch video

28.0

1 Includes 2 wireless barcode readers, 2 hours of on-line training and box of manual labels

Includes 2 wireless barcode readers, 2 hours of on-line training and box of manual labels.

29.0

1 An Industrial cable carrier fitted to manage 2.5" dust hose for machines 14ft to 28ft long.

The Dust Extraction Management system Size 1 is designed exclusively to carry cables and dust hose for machines 14ft to 28 ft long. The industrial cable carrier option maximizes the machine's overall footprint, allowing for greater floor space usage.

- 2.5" diameter pipe

30.0

1 High Pressure Dust Extraction System with Stand (208-480 Volt)

The AXYZ High Performance dust extraction system includes an 8.8 HP iVision dust collector, an electrical box stand compatible with vacuum hold down pump (pump not included) and includes a vacuum switching manifold mounted on the carriage.

A robust and efficient chip collection system is important in any chip- producing process. Keep the workplace clean and reduce the chances of chips re-welding onto your parts using the iVision iv3-8.8 high- efficiency, high-pressure dust collection system. This device is designed to work in an industrial environment and is compatible with a variety of materials such as plastics, non-ferrous metals and wood. The 8.8 HP unit is suitable for machines 16' to 40'

- 8.8 HP High-Pressure system - 160 liter collection tank

- 402 CFM (Airflow)

- 7.4 inHg

- Quick-Change dust bin

- Carriage dust manifold

- Includes 100' of dust hose

- Dust and vac starter box on stand (vac pump not included)

31.0

1 Hold-Down - 208V 3-Phase

32.0

1 220 Volts - 3 Phase

33.0

1 ESA / CSA Sticker for electrical certification

ESA / CSA Sticker for electrical certification
