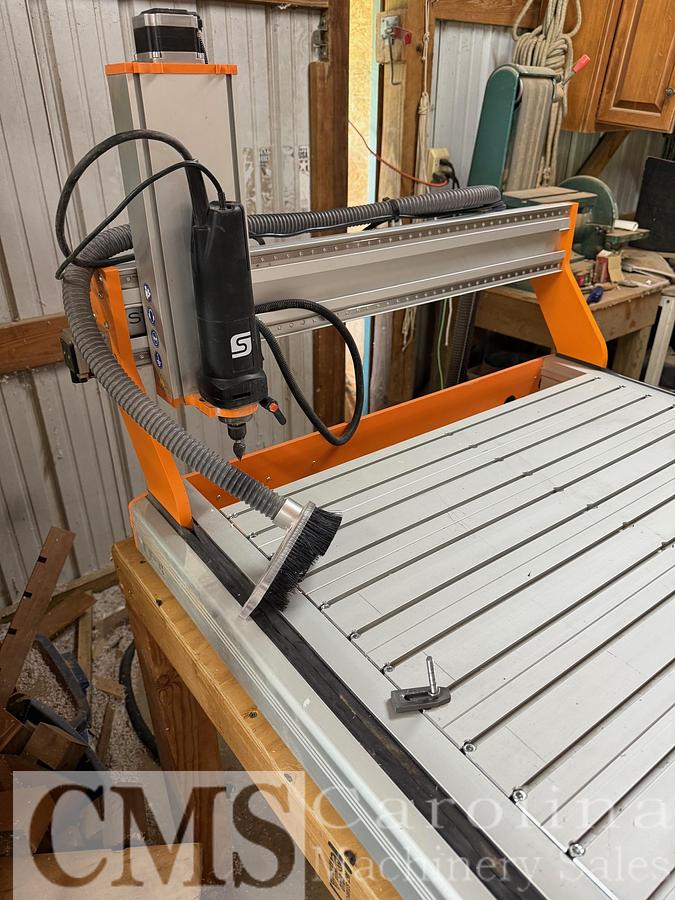

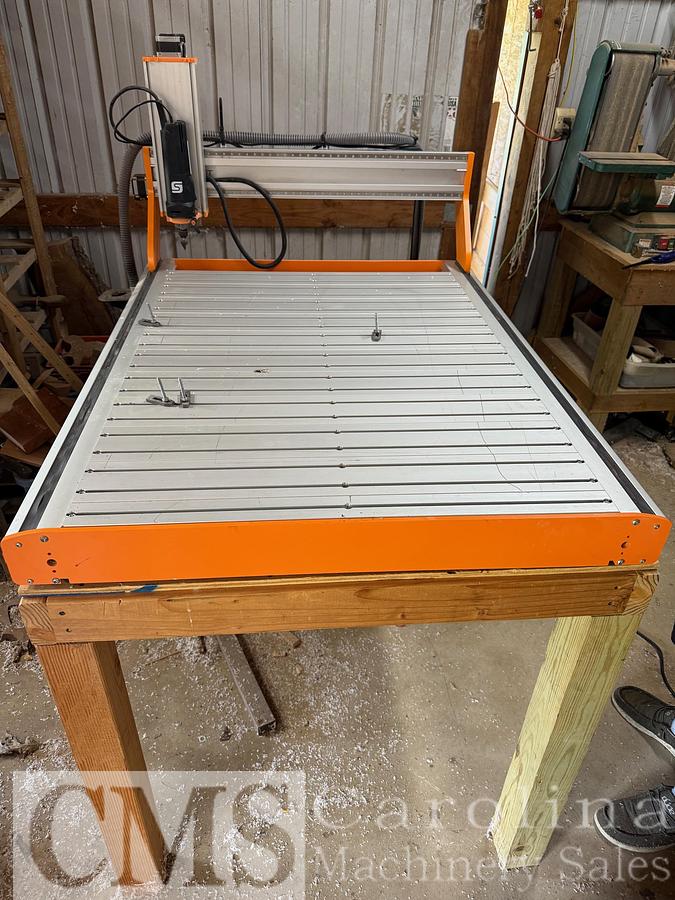

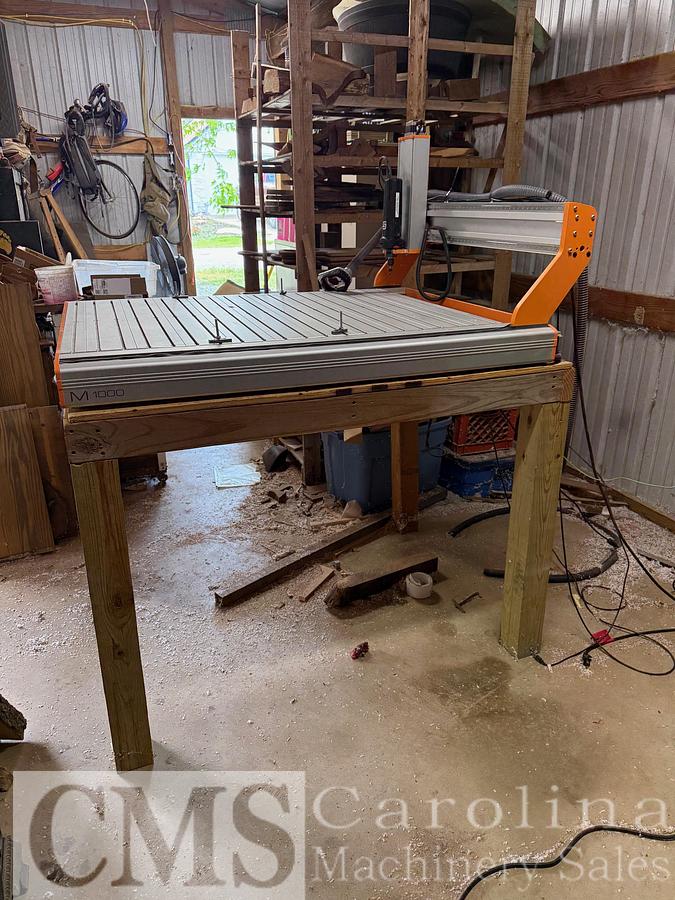

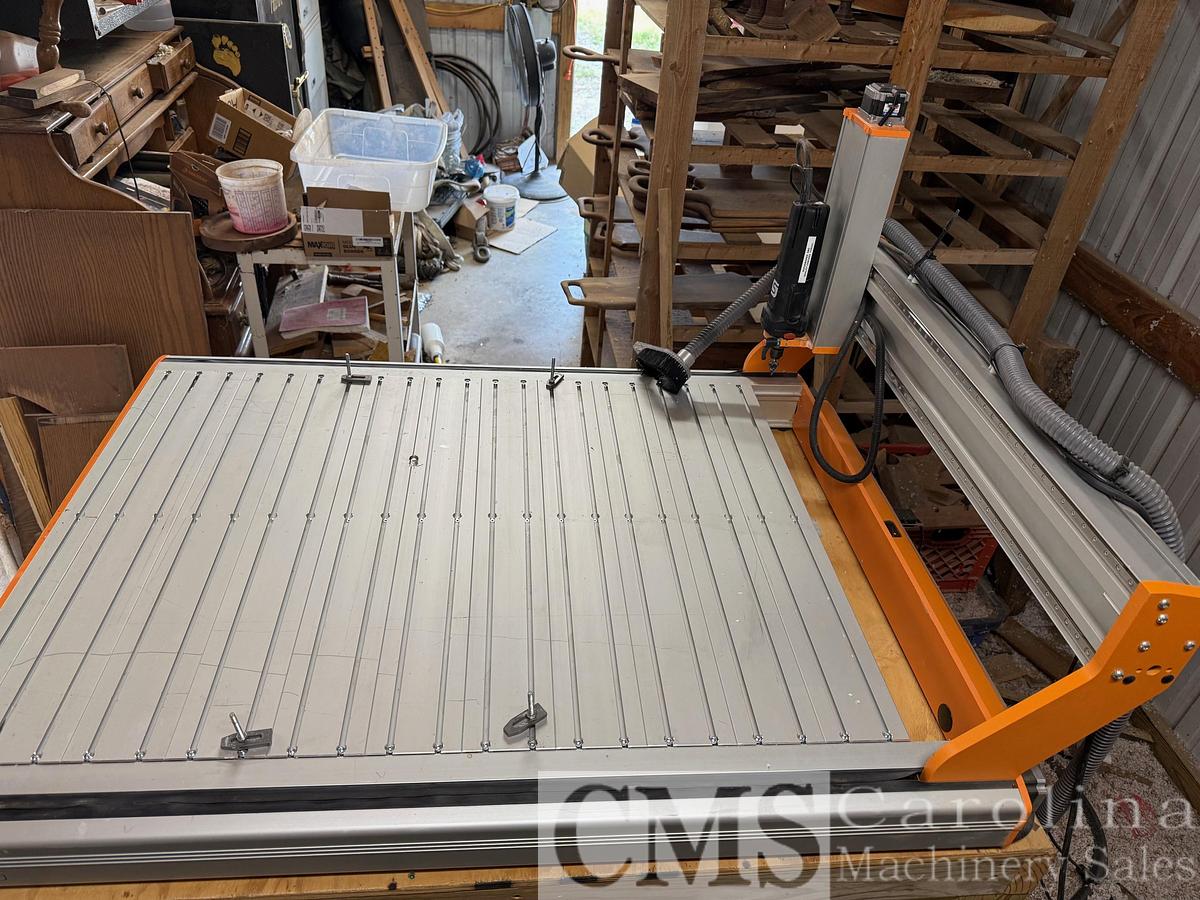

2023 Stepcraft M 1000 CNC ROUTER

Working area up to 38.5" x 56.8"  x 7.6"

Z Axis Clearance 5.21/8.07" (135/205 mm)

Repeatability+/- 0.0009" (0.025 mm) (with optional HIWIN® ball screws: +/- 0.0005"/0.015 mm)

Programmable Resolution0.0002" (0.00625 mm

Backlash0.0019 (0.05 mm) (with optional HIWIN® ball screws: ) 0.0012"/0.03 mm

Maximum Speed in Diagonal Travel X-Y284 in/min (120 mm/s)

Spindle (Lead Screw)igus® dryspin 12 x 5 mm (optional: HIWIN® ball screws 12 x 5 mm)

Linear GuideBosch Rexroth ball bearing guideDriveStepper motors:

Sanyo-Denki NEMA 23Tool Holder43 mm clamping diameter (Euro neck, optional smaller diameters)

Weight 92.3 lbs (42.0 kg)

Input Voltage110-240V (comes standard for 110V/60h)

Output Voltage24 - 30 VPower Consumption180 W

InterfaceUSB / Parallel (LPT1) / Network RJ-45
