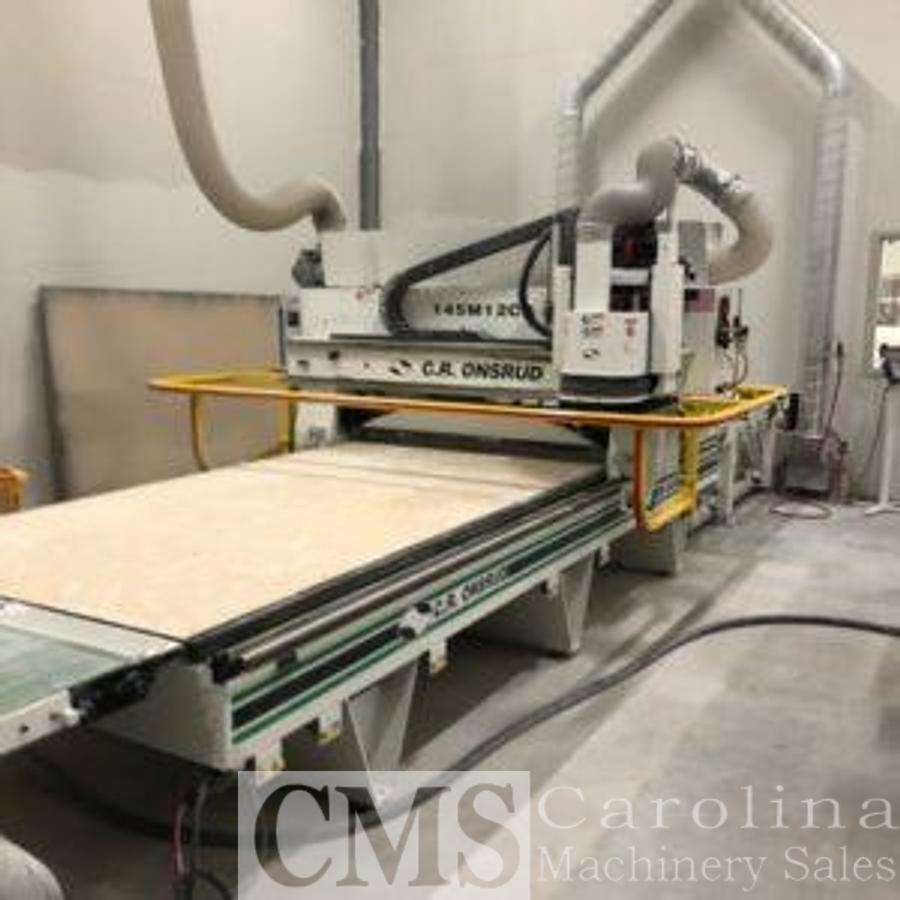

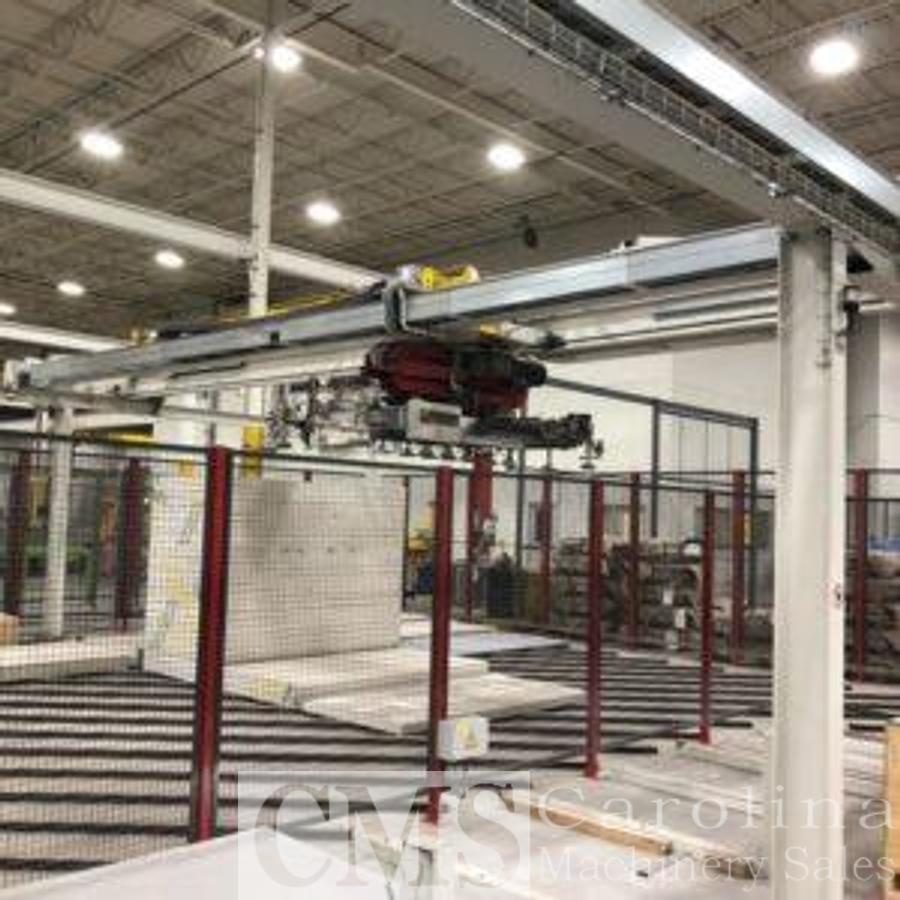

2020 Onsrud 145M12GA CNC Router with Panel Retrieval System

Designed, FEA Engineered, and Manufactured in America, utilizing steel construction.

-Dual supported gantry driven on both sides with independent servo motors and drives. This dual channel design enhances accuracy & rigidity. The moving gantry, fixed table, design allows for up to 2,000 ipm programmable feed rates.

-Control system comes standard with full 3D capability (multi-axis interpolation).

-Precision linear motion systems on all axes.

-Standard with Onsrud Universal High Flow Vacuum Table System suitable for flow-through spoil | boards, dedicated fixtures, or easily upgradable for pod systems.

CR ONSRUD High-Flow Universal Vacuum Table System

-Includes: oversized 4” intake manifold, high-capacity vacuum plumbing, high-flow 45mm grid waffle patterns, with Onsrud’s Unique High Flow Vacuum Inlets, to offer maximum vacuum airflow & absolutely minimal airflow restriction for excellent part holding.

-(4) High Flow Vacuum Zones – Pneumatic Ball Valve, Actuated via Push Button or PLC Controlled

-9-inches of Z stroke – 9” under bridge clearance & 11” Z axis stroke from spindle nose in retracted position to table

-5×12 – Flow-Through Spoil Board – LDF table top fo be used as replaceable sacrificial spoil board.

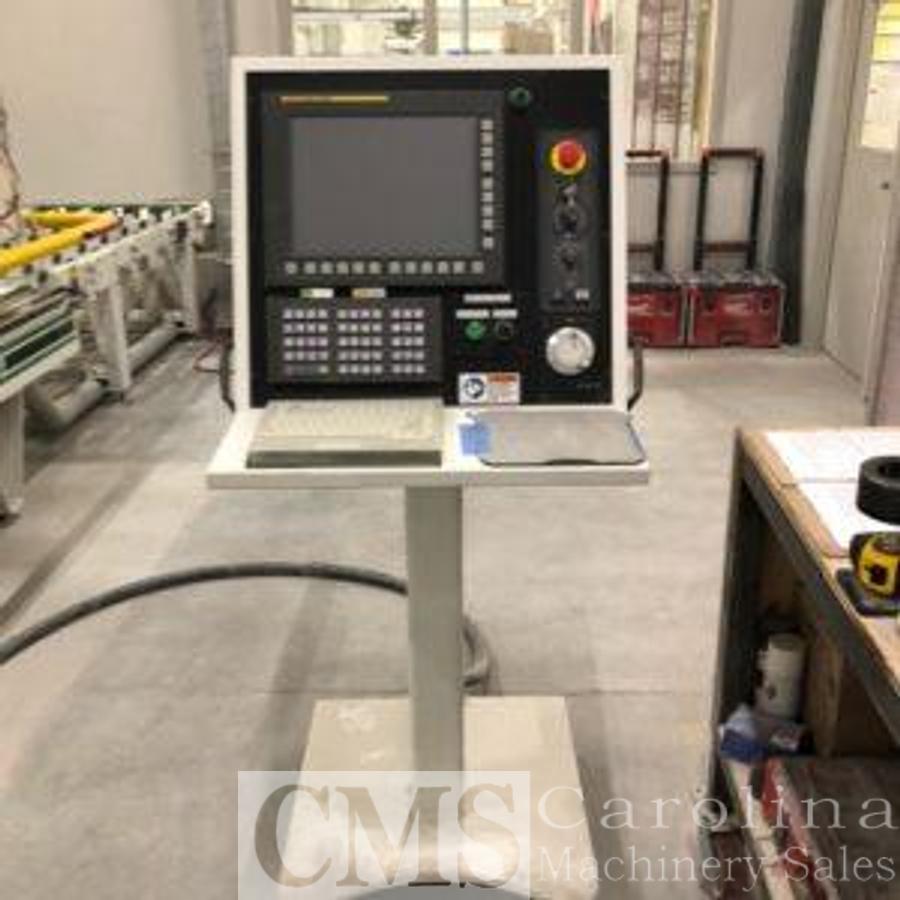

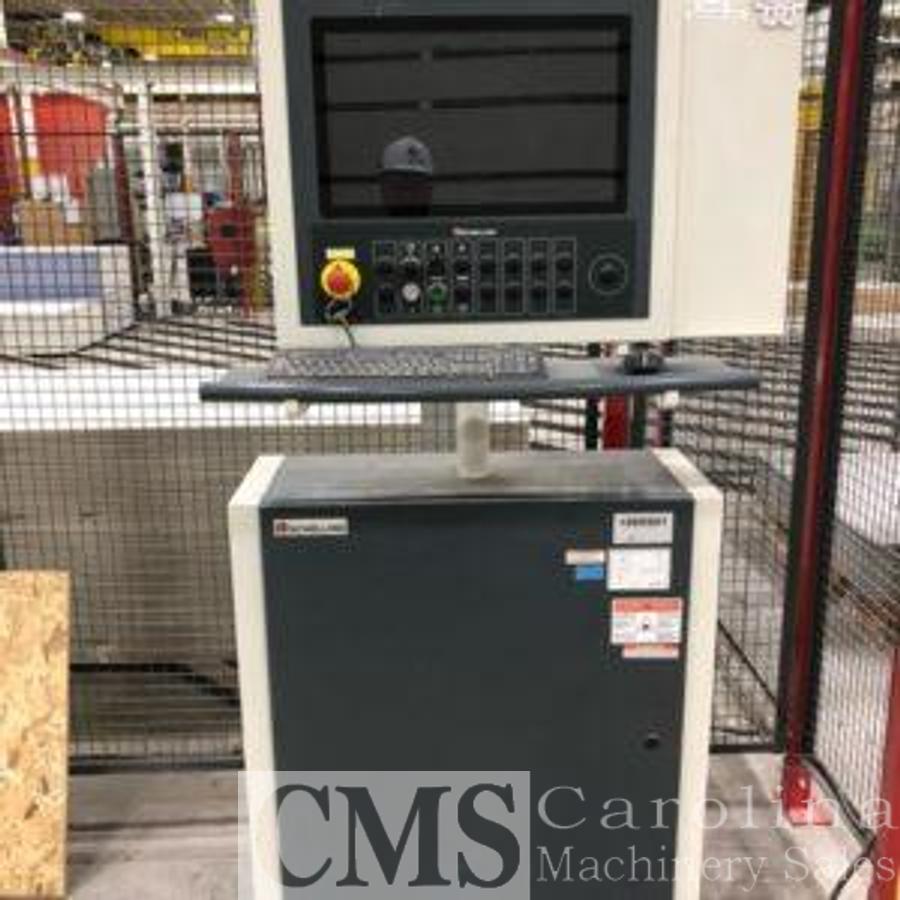

FANUC 0i Machine Controller System with Panel-i HMI

-Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High Res touch screen. Fanuc 0i is not a PC with a control card but is a dedicated Industrial PLC designed to control CNC motion, for maximum reliability and performance. includes: Network capability, adds Large FANUC Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. Adds m-code controlled vacuum zones. Provided with 4-port network hub .

12 HP Spindle

-4-Pole, 8Kw, 12HP, HSK-63F — 24,000 RPM fully programmable, variable speed, reversible, HSK 63F tool interface, quick-change cartridge style spindle; capable of routing & drilling, with programmable feed rates with override capability.

C-Axis Ability for Use With Aggregates

-Adds a continuous rotation, rotational C-axis to Aggregate Tool Changer & Capability.

Standard Manual Greased Lubrication

-Bearing Blocks and Ballscrews have standard zirk fittings for easy application of grease

10 Tool — Hide Away Rack Tool Changer

-Allows the Entire Rack tool changer Assembly to retract beneath the tables surface & adds a retracting cover to help protect tooling from dust &/or debris. Able to Store Aggregates. You may not be able to hold some larger or non-standard aggregates

(8) Extra HSK-63 Standard Tool Holders

-1” collet capacity (each with chuck nut)
