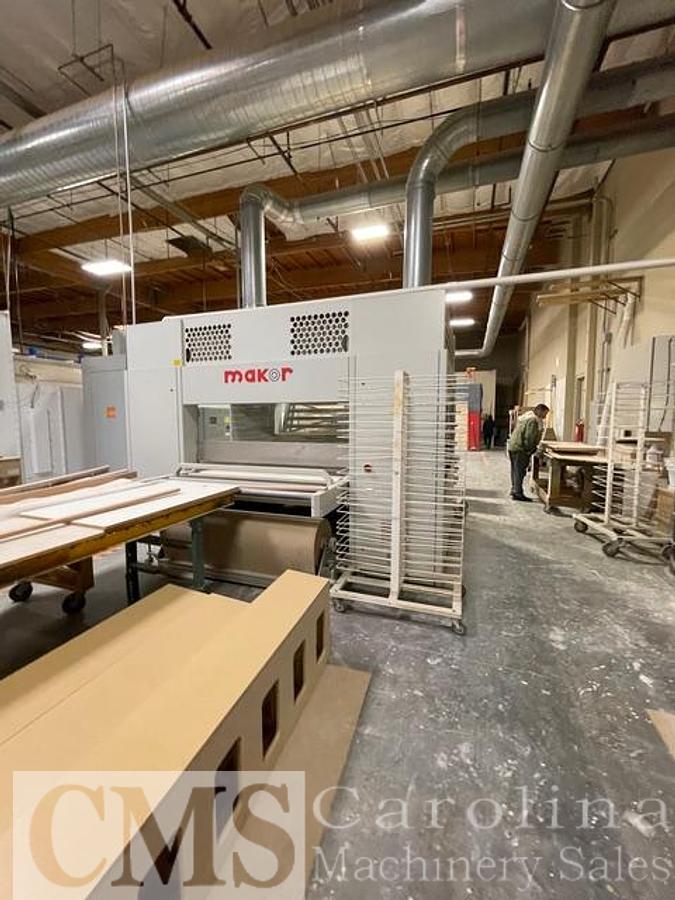

2017 Makor K-Two paperbelt machine

2017 Makor K-Two paper belt machine

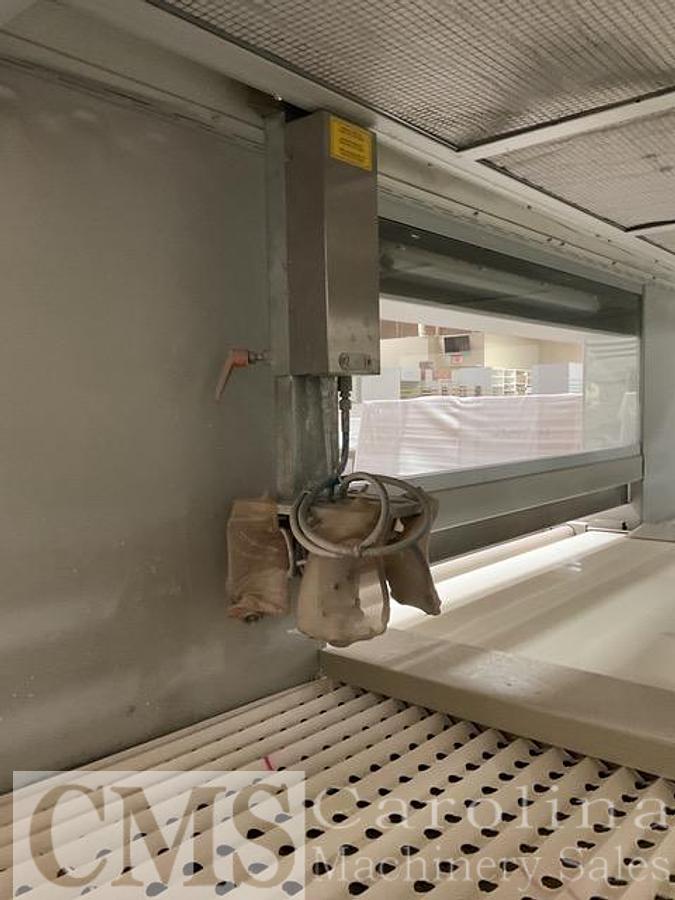

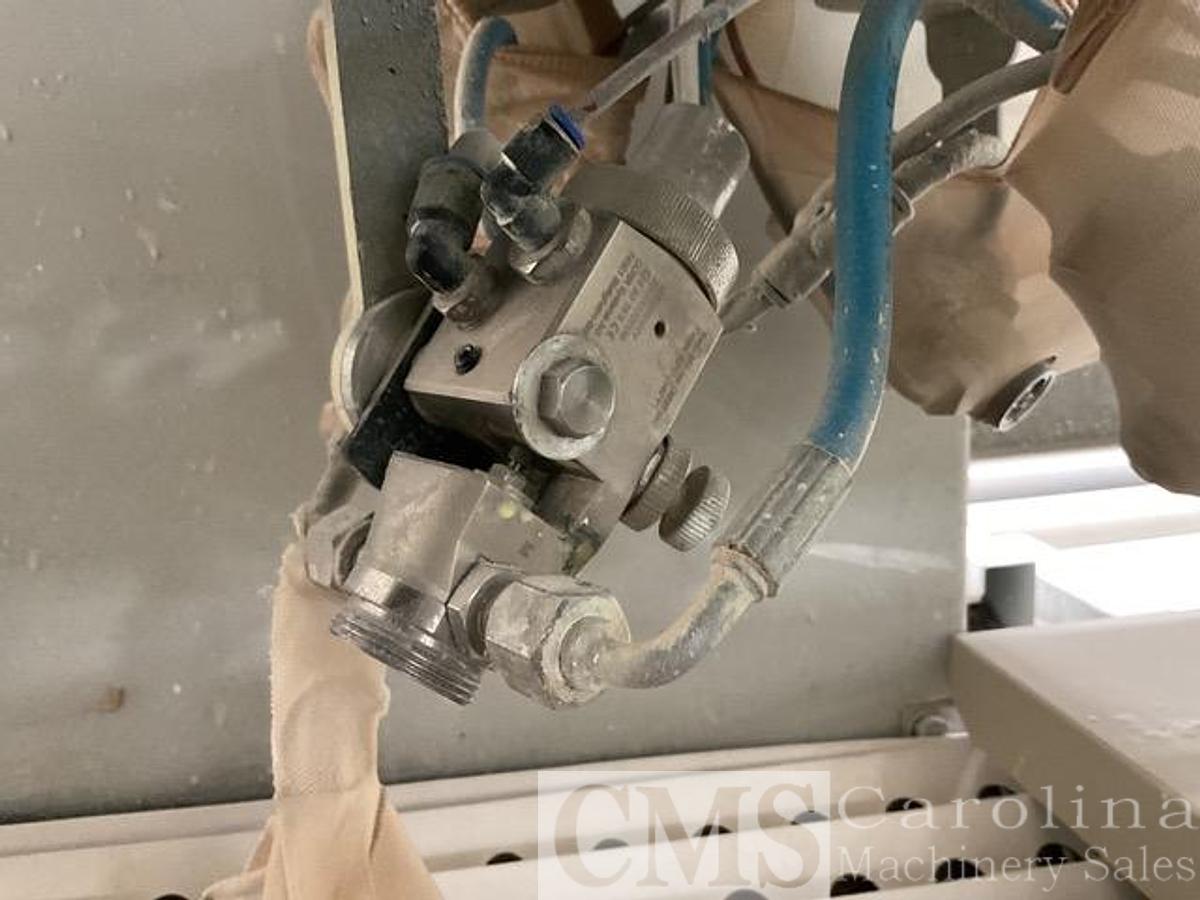

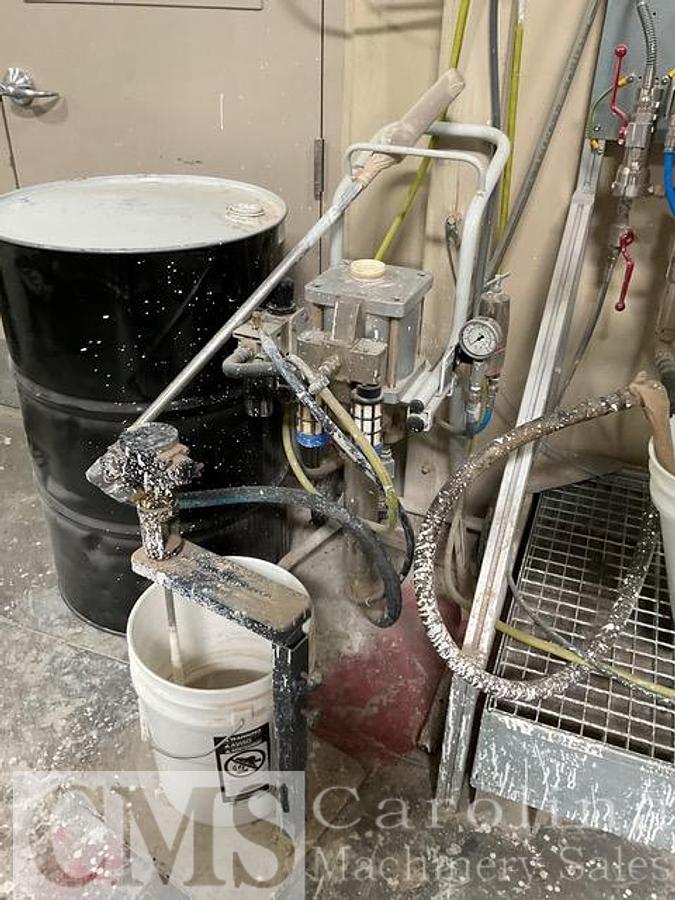

Reciprocating Spray Machine, cmes with 4 guns , no pumps ( pumps available upon request)

Like new condition , only been used a few times paper machine

can be used for automatic spraying of all types of paint and glue. In a very simple and effective way, it offers all the advantages of much more complex systems: 

- better utilization of coating materials (paint savings = $) 

- uniformity of application and consistent quality 

- increased productivity compared to a manual operator 

- cleaner and healthier work environment

- Carrier Trays transport of work pieces 

- product carrier trays are transported through the spray machine on two parallel chains equipped with a variable speed drive (inverter)

- carrier trays can be covered with paper or a similar protective material, which is periodically replaced/recovered as needed to extend functional life 

-

- carrier tray length and thickness can vary minimally, but width must be precise to enable proper transportation

-

- coating circuits have return hoses for quick circuit washing and for paint recirculation 

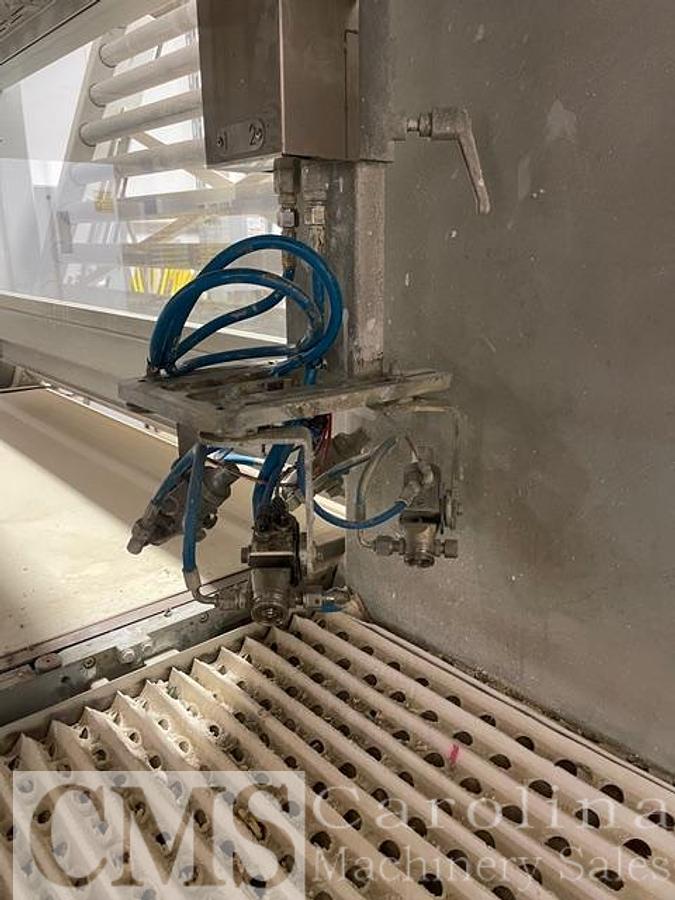

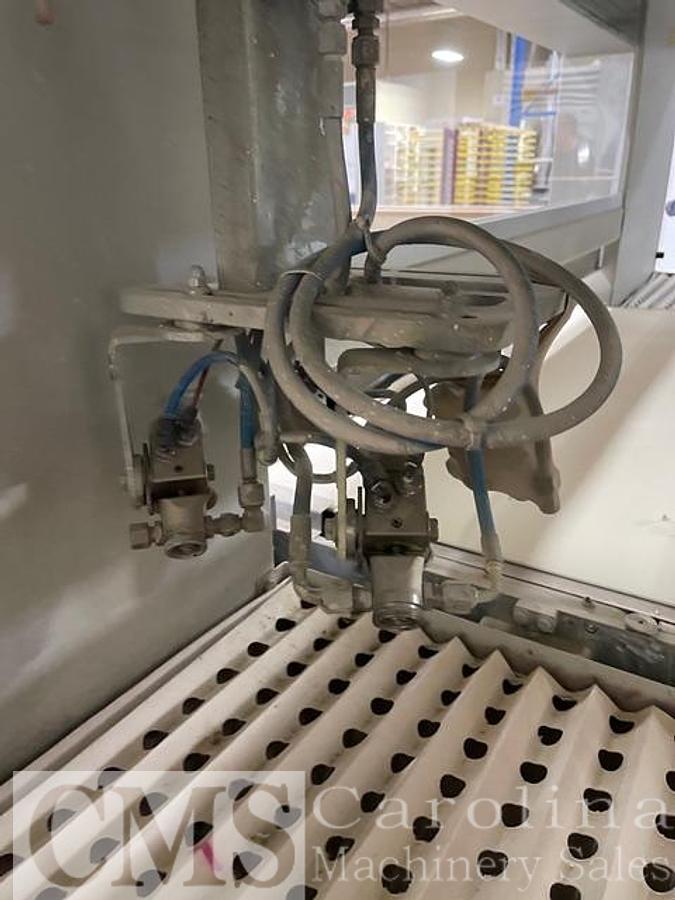

- standard supply includes two (2) gun holding plates with quick disconnection system to allow fast replacing of the spraying unit

- machine is managed by a PLC with a special user interface that displays and manages all functions and working parameters in an intuitive way 

-

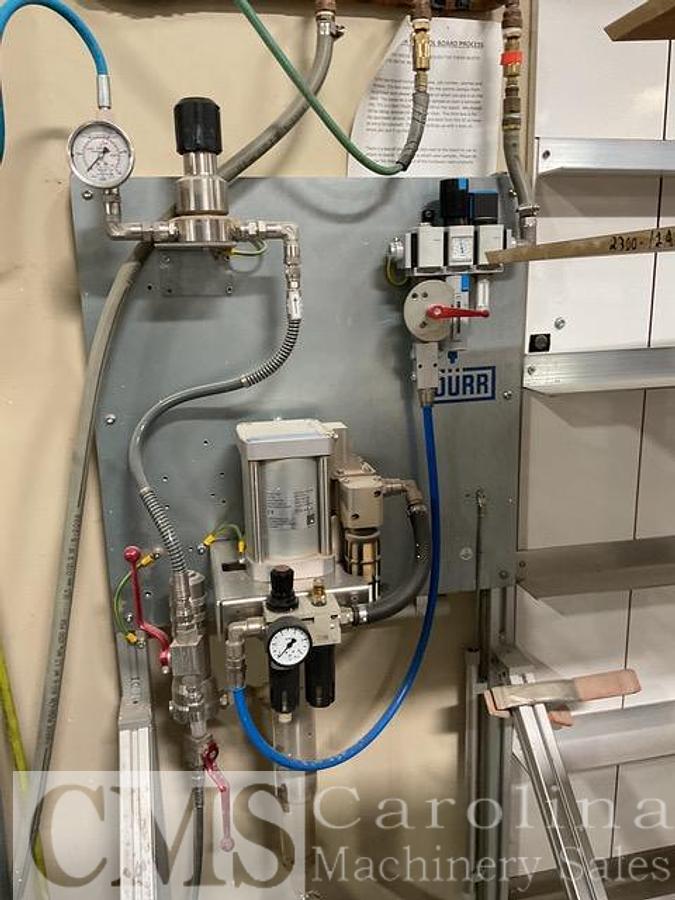

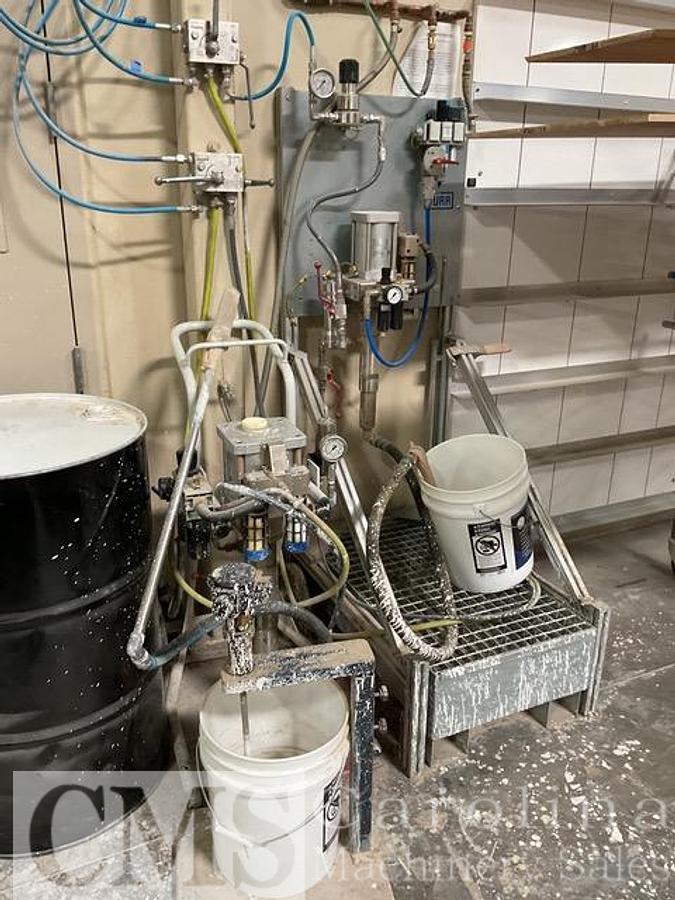

- three (3) high pressure circuits 

- rapid (manual) coating change-over system enables the operator to cease operation on active circuit, flush guns with solvent, activate the next circuit and then purge first circuit while machine is already in operation on the second circuit; composed of:  three (3) high pressure coating circuits with recycle (closed-loop)  one (1) high pressure circuit for solvent  one (1) 5-way manual valve for active circuit selection 

- pressurization unit complete with two (2) intake fans and removable filters to pressurize the spray booth
