Vantec 2-Head Resaw


Southeast USA

orCall 704-288-1904


Model2-Head Resaw
Stock Number009905

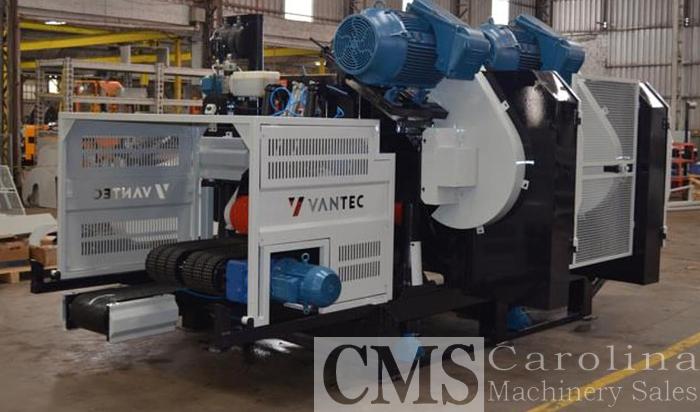

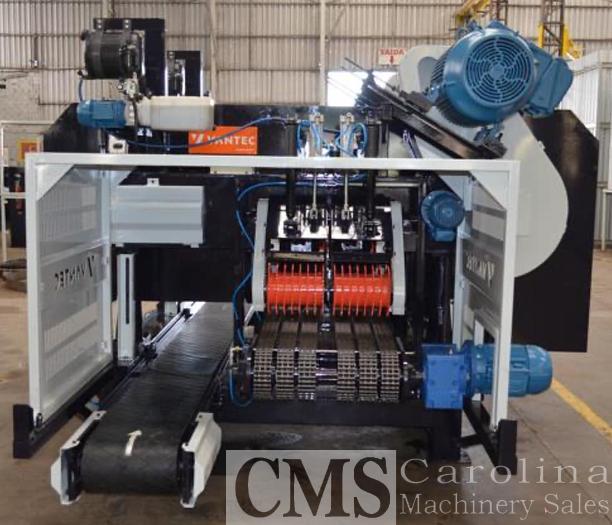

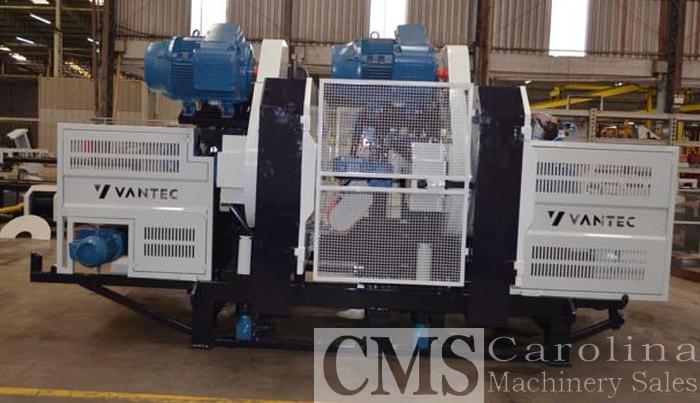

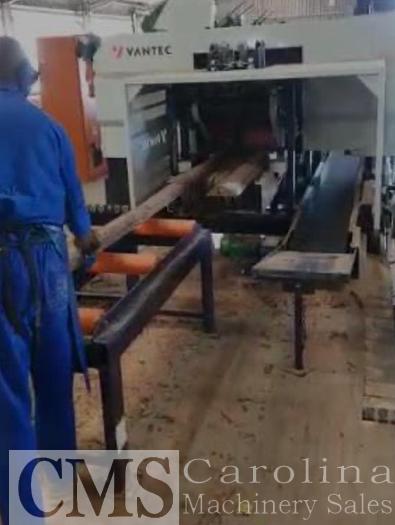

This is a Horizontal Band Saw Resaw Machine with Two saw heads. This is an ideal Machine for the recovery line, as it processes the slabs coming out of the Vertical Twin band saw machine “the resaw process”. It comes with an input chain conveyor, driven press rollers. Cutting Height and saw blade tensioning setting system. It also comes with main motor, motor drive panel, the Frequency inverter, gear motor drive panel. It does not include the saw blade.

  • Wheel blade: Ø1000mm;
  • Wheel blade width: 5";
  • Maximum wood width: 400 mm;
  • Maximum wood height: 380 mm;
  • Minimum length of wood: 1250 mm;
  • Single Input table/ conveyor width: 600 mm;
  • Motor press roller: 1 cv 4P (2x);
  • With two independent infeed rollers;
  • Forward speed: 45-50m / min for small logs;
  • Main motor indicated: 2 x 60 hp
  • Soft starter Drive panel: included;
  • Servo motor thickness setting system (INCLUDED);
  • Main transmission belt: 3 x Channel B; Length: 6.532mm;
  • Width: 2.220mm;
  • Weight: 7655kg.
