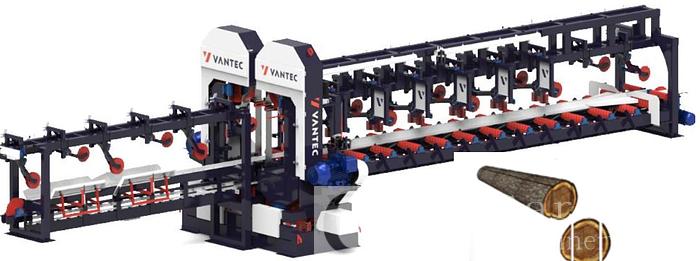

Vantec Twin Vertical Band Scragg Mill

Location

Southeast USA

orCall 704-288-1904

Specifications

ManufacturerVantec
ModelTwin Vertical Band Scragg Mill
Stock Number009903

Description

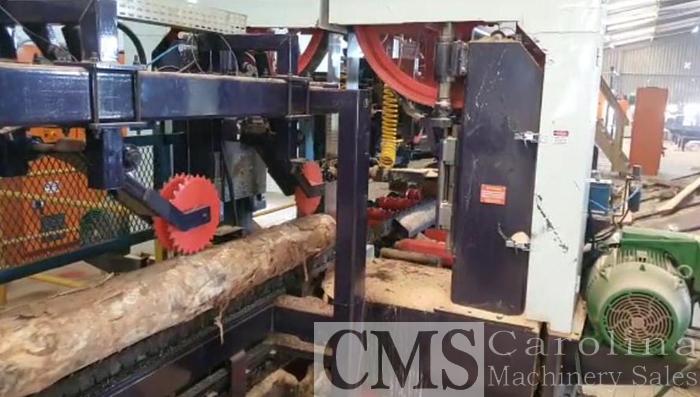

SFVG1200 twin vertical Band Saw 1200mm wheel blade size. Machine used for the log break down process in continuous flow sawmill layouts. Capacity to process logs up to 500mm in diameter and 3.000mm long. This machine is fitted with main motor, motor drive panel, servo motor thickness selection, adjustable saw guides, slabs pneumatic side pressers, special chain and hydropneumatic tensioning system to tension the Band saw.


  • Wheel blade width: 6”;
  • Minimum log Length: 1200mm;
  • Standard maximum log length: 3000mm
  • Minimum diameter: 120mm;
  • Maximum log diameter: 500mm;
  • Saw cut width: 70 to 300mm;
  • 4 set of pneumatic side pressing rollers for side boards;
  • Motor size: 2 x 75CV 4P 50hz (INCLUDED)
  • Drive Panel Included;
  • Central chain motor size: 7,5 HP 4P;
  • Linear Cutting speed: 30m/s;
  • Feed speed capacity: 48m/min;
  • Saw Blades are not included.
  • Infeed conveyor length: 4.000 mm included;
  • Outfeed conveyor length: 6.000 mm included;
  • Machine width: 5.000 mm;
  • Machine overall Length: 12.000mm
  • Servo motor thickness setting system (INCLUDED);
  • Approximate weight: 15.000 kg;
