2016 RFS Protech Slant Radio Frequency Gluer

Location

South

orCall 704-288-1904

Specifications

ManufacturerRFS Protech
ModelSlant Radio Frequency Gluer
Year2016
Stock Number009035

Description

RFS Protech Slant Radio Frequency Gluer


Notes from seller:

Curing area:  36 x 60 x 2 thick.

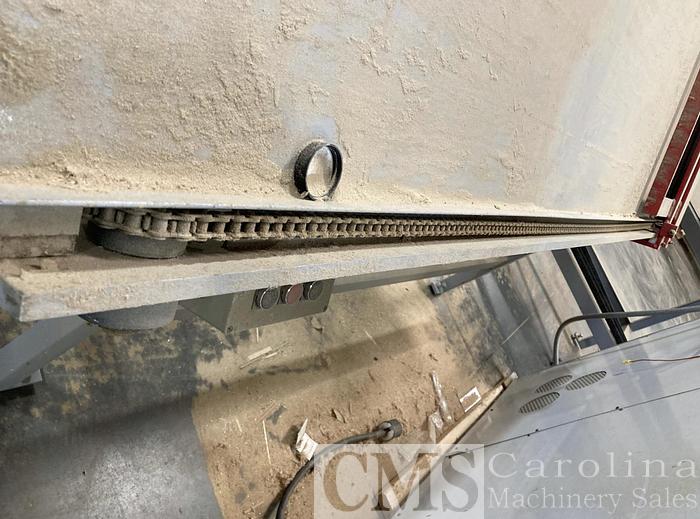

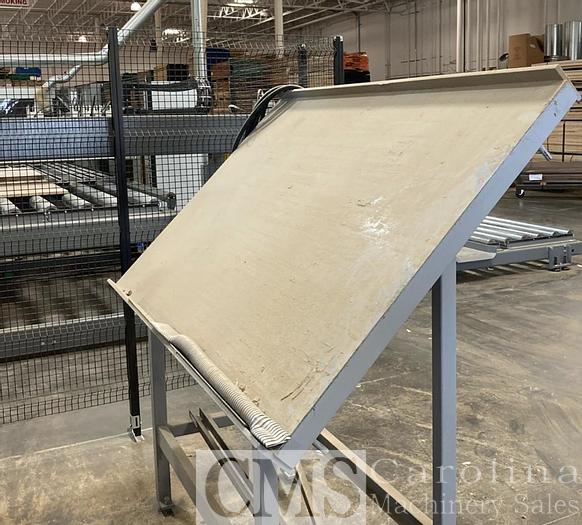

Powered infeed and and outfeed table support

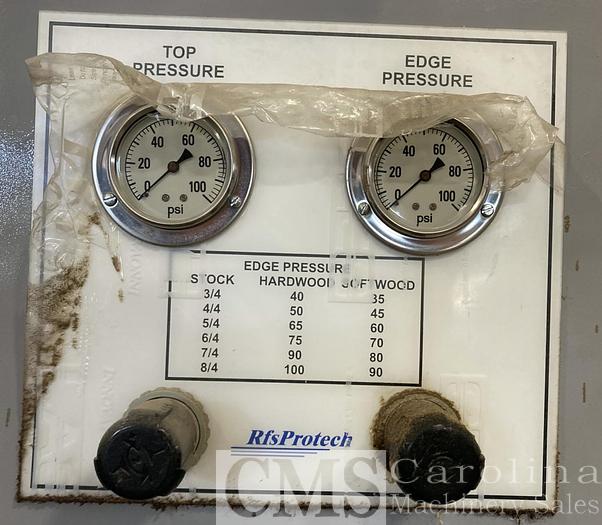

Edge pressure is applied by six (8) each pusher shoes, each with a 4 bore x 4 stroke twin-piston multipower pneumatic cylinder.

Top platen pressure is applied by two (2) 3-1/4" dia. x 20" stroke pneumatic cylinders that keeps the footprint to a minimum while still allowing the operator full access to the platen area.

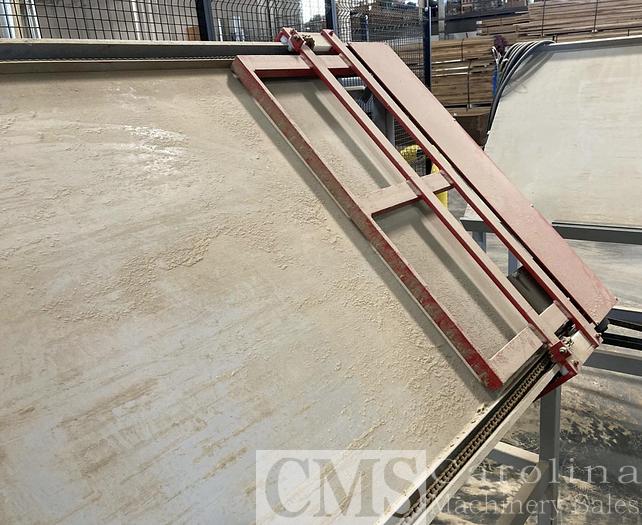

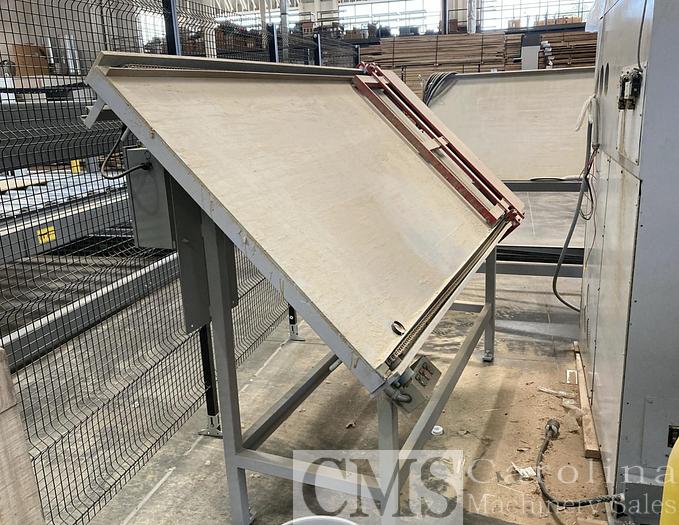

The platen is set at a 45 angle, and the top platen opens wide; allowing the operator to step inside the press for ergonomic and accurate parts placement.

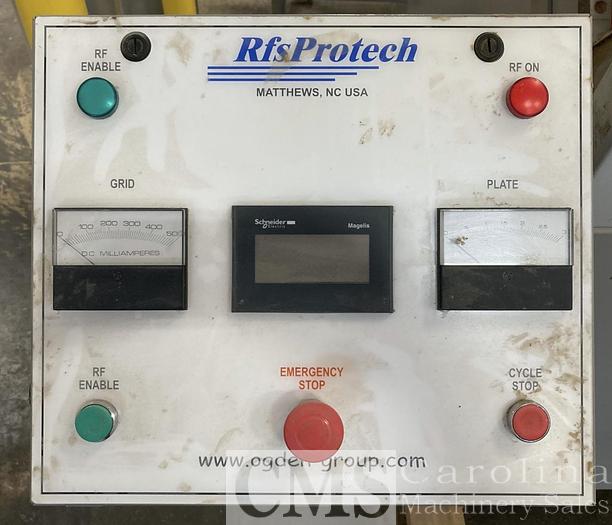

The internal solid state RfsProtech 6KW generator cures approximately 600 square inches of PVA glue line per minute.
