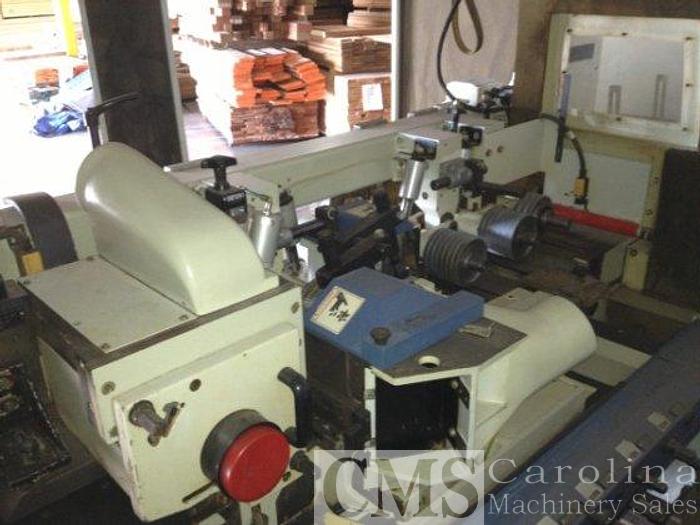

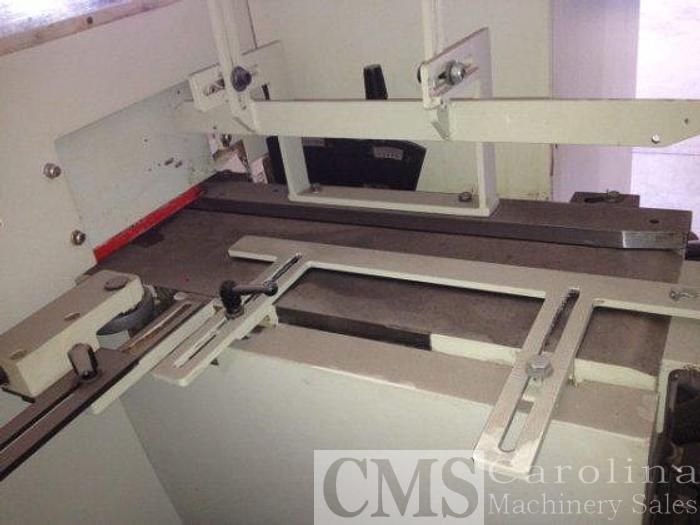

2007 Weinig Hydromat 1000 Moulder

Location

Southeast USA

orCall 704-288-1904

Specifications

ManufacturerWeinig
ModelHydromat 1000 Moulder
Year2007
Stock Number009031

Description

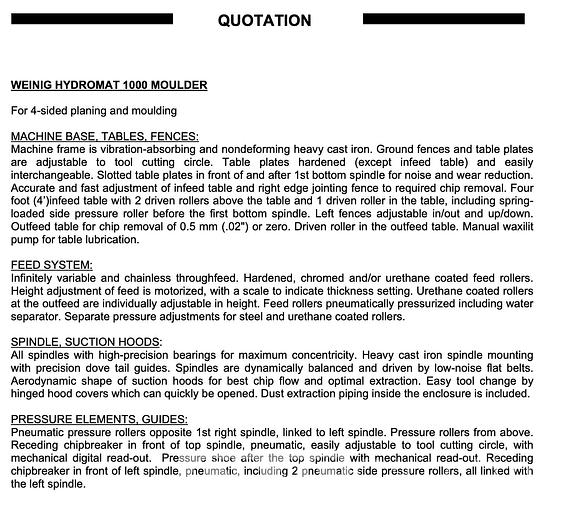

Weinig Hydromat 1000

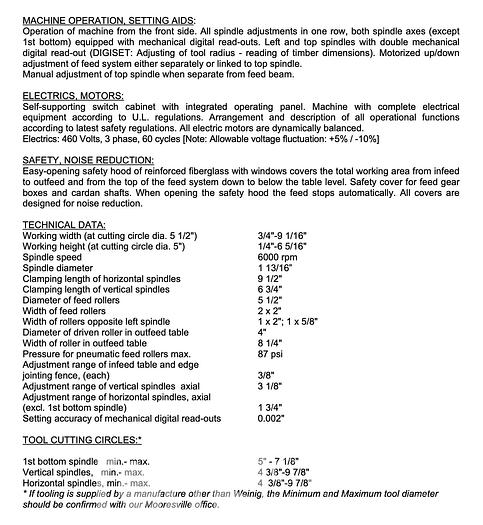

Standard Specifications:

- 3/4" x 9-1/16" working width (at cutting circle dia. 5-1/2")

- 1/4" x 6-5/16” working height (at cutting circle dia. 5")

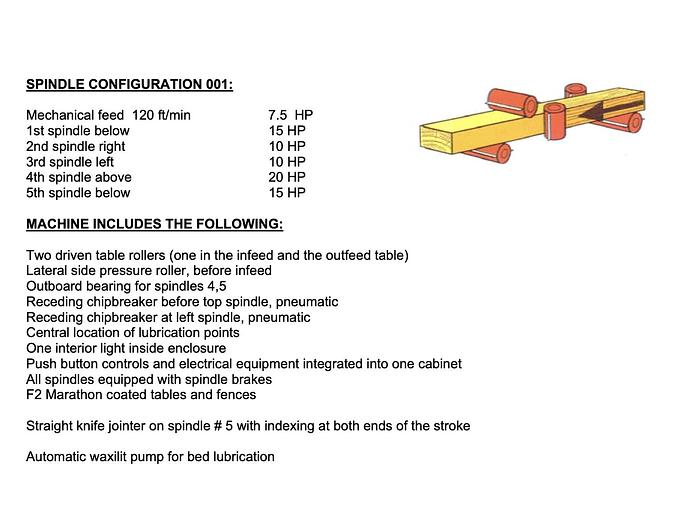

- 15 HP, 230/460/60/3 bottom horizontal spindle

- 10 HP, 460/60/3 right vertical spindle

- 10 HP, 460/60/3 left vertical spindle

- 20 HP, 460/60/3 top horizontal spindle

- 15 HP, 460/60/3 bottom horizontal spindle

- 7.5 HP, 460/60/3, (120 ft/min.) variable cardan-drive feed system

- 9-1/2" clamping length of horizontal spindles

- 6-3/4" clamping length of vertical spindles

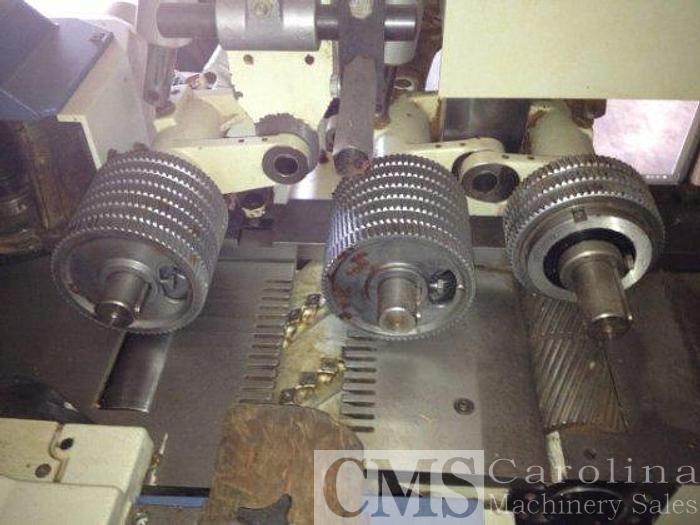

- Two driven table rollers (one in the infeed and the outfeed table)

- Lateral side pressure roller, before infeed

- Straight knife jointer on spindle # 5 with indexing at both ends of the stroke

- Outboard bearing for spindles 4,5

- 1-13/16" at 6,000 RPM spindles

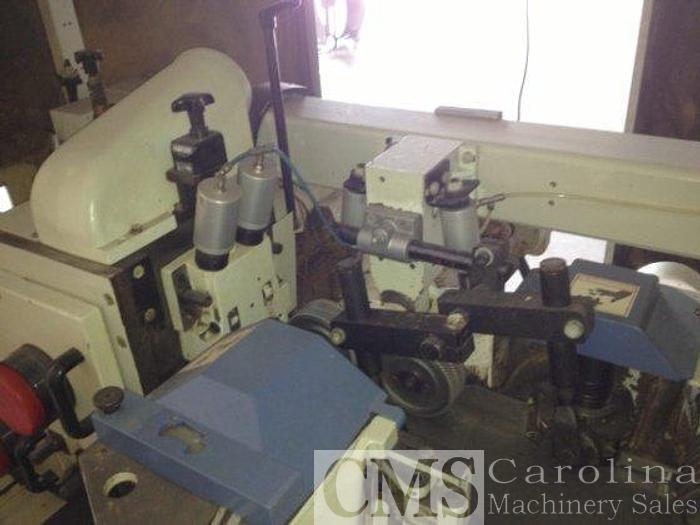

- Pneumatic chip-breakers and hold-down rollers

- All spindles equipped with spindle brakes

- Mechanical-digital readouts on spindle movements and hold-down shoes
