2014 Biele Light Weight Panel Line

Light Weight Board Line

The operation consists of 2 separate lines, a Stile and Rail Strip Preparation Line and a Lightweight Panel Line.  The Lightweight Panel Line consists of 3 distinct areas that are connected together via conveyors.  The Frame Assembly area can be operated independently from the Layup and Press/Cooling area if needed.

Overview:

1. Stile and Rail Strip Preparation Line

• Automated Sheet Feeder

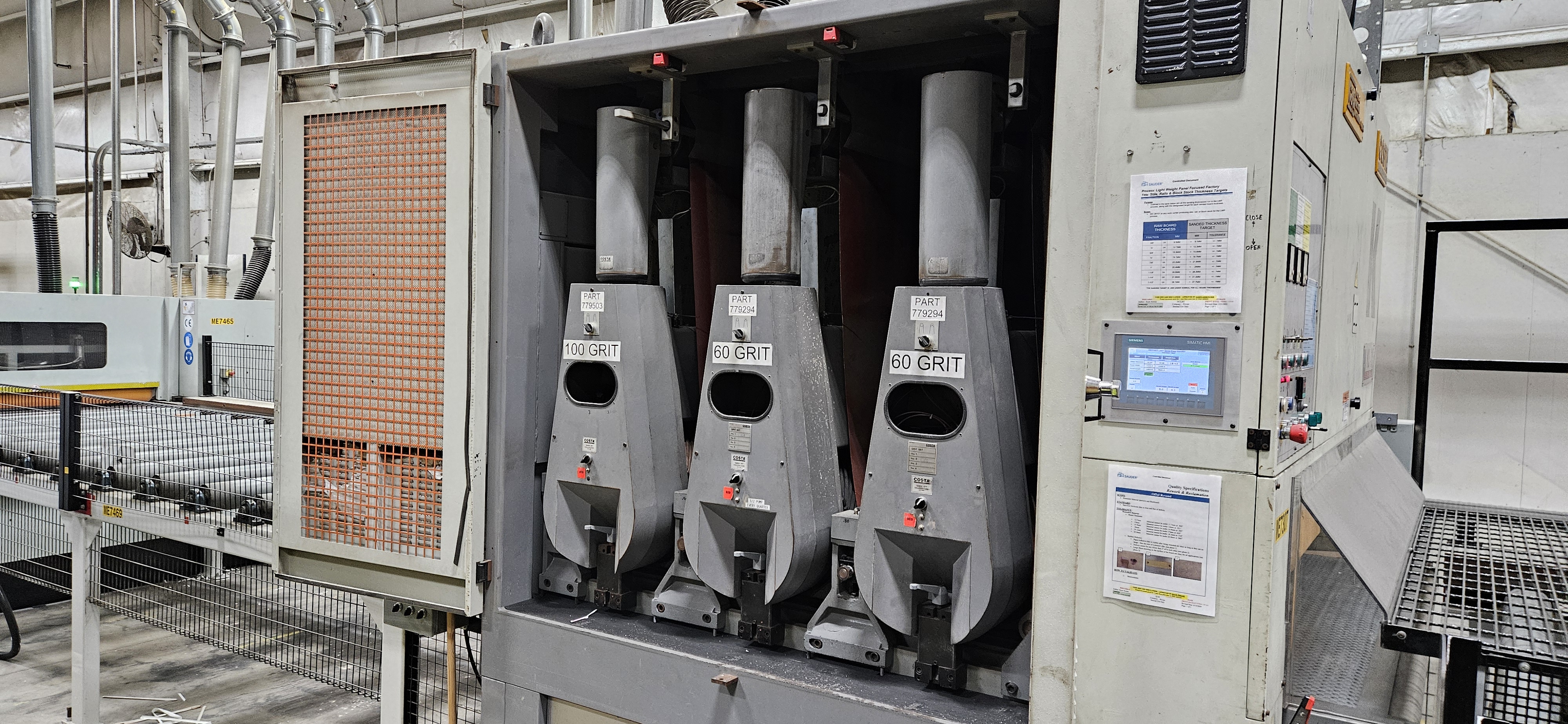

• Sander

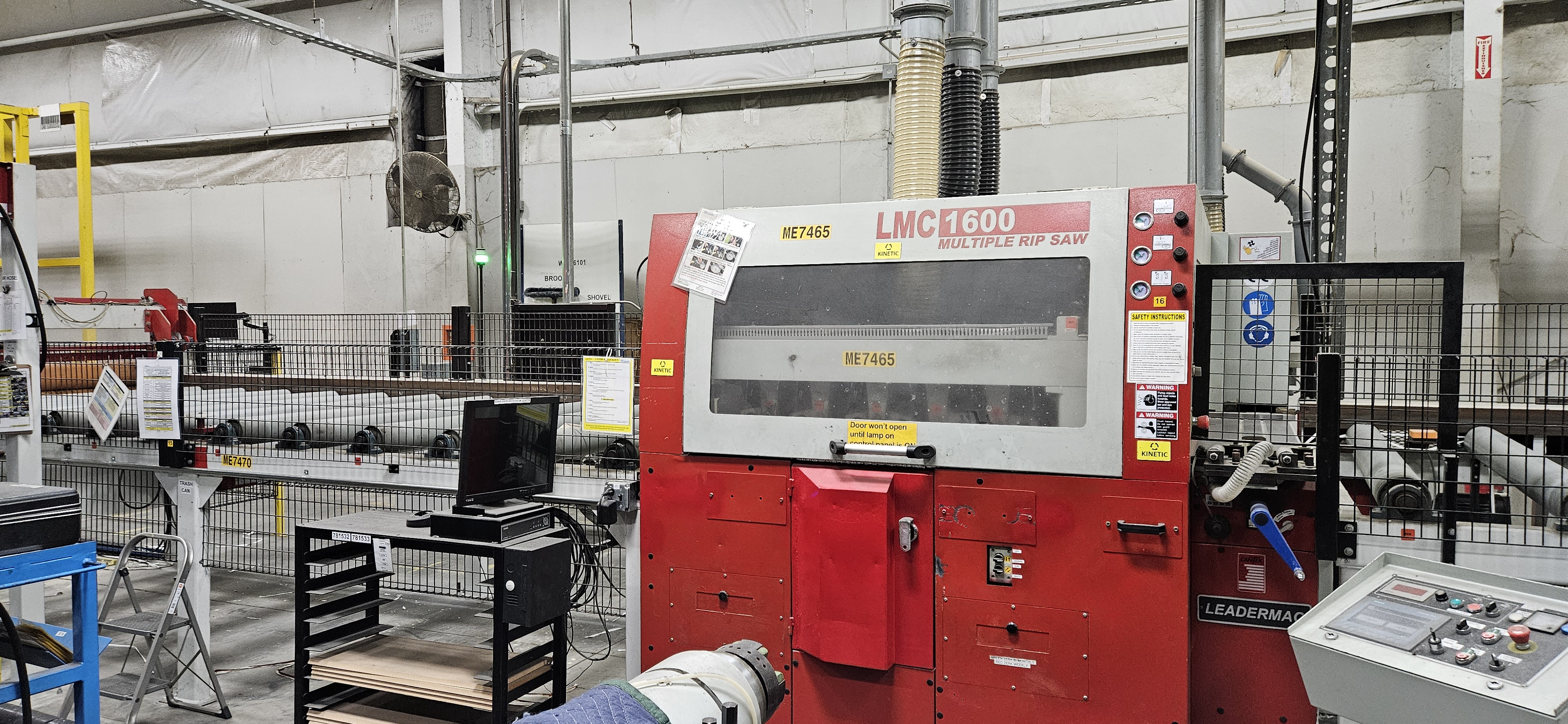

• Gang Rip Saw
• Automated Strip Stacking

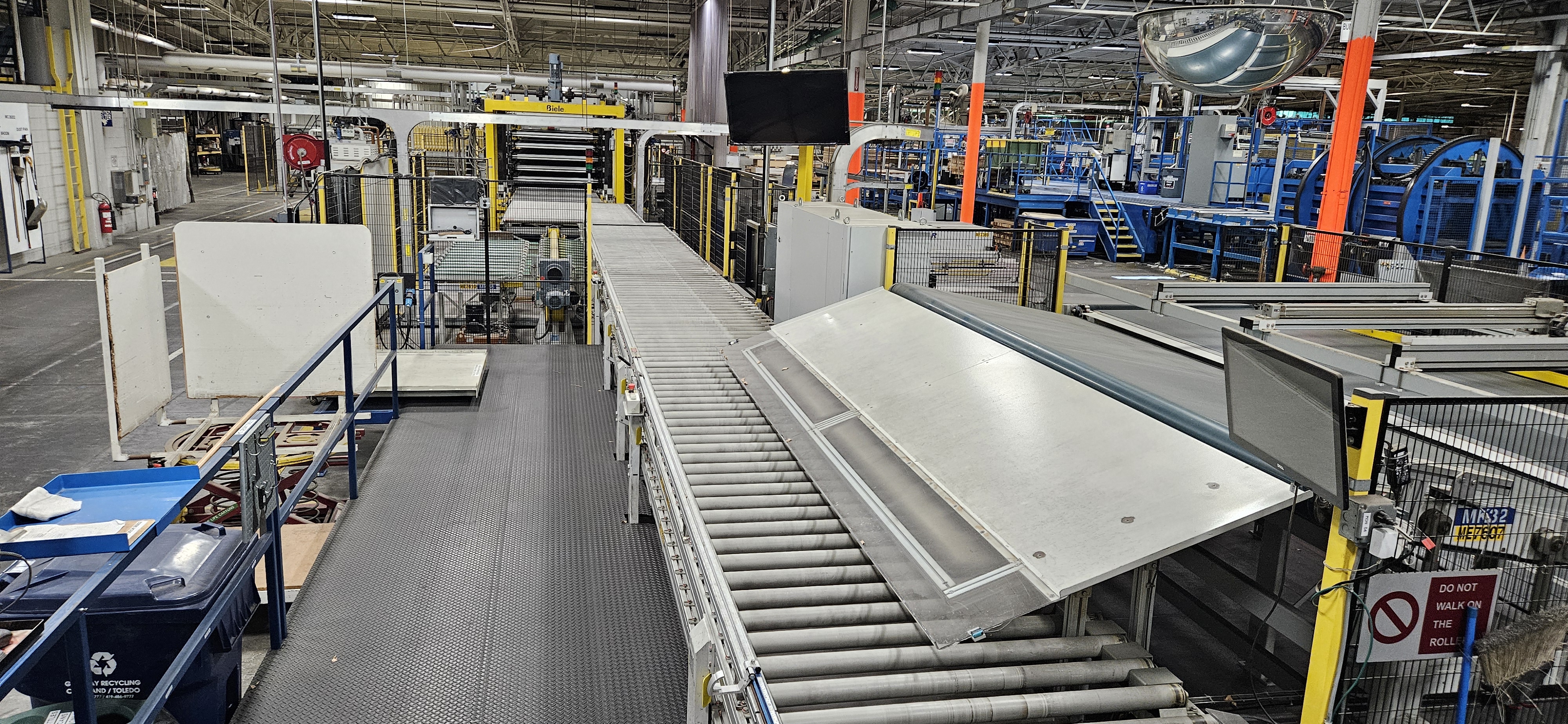

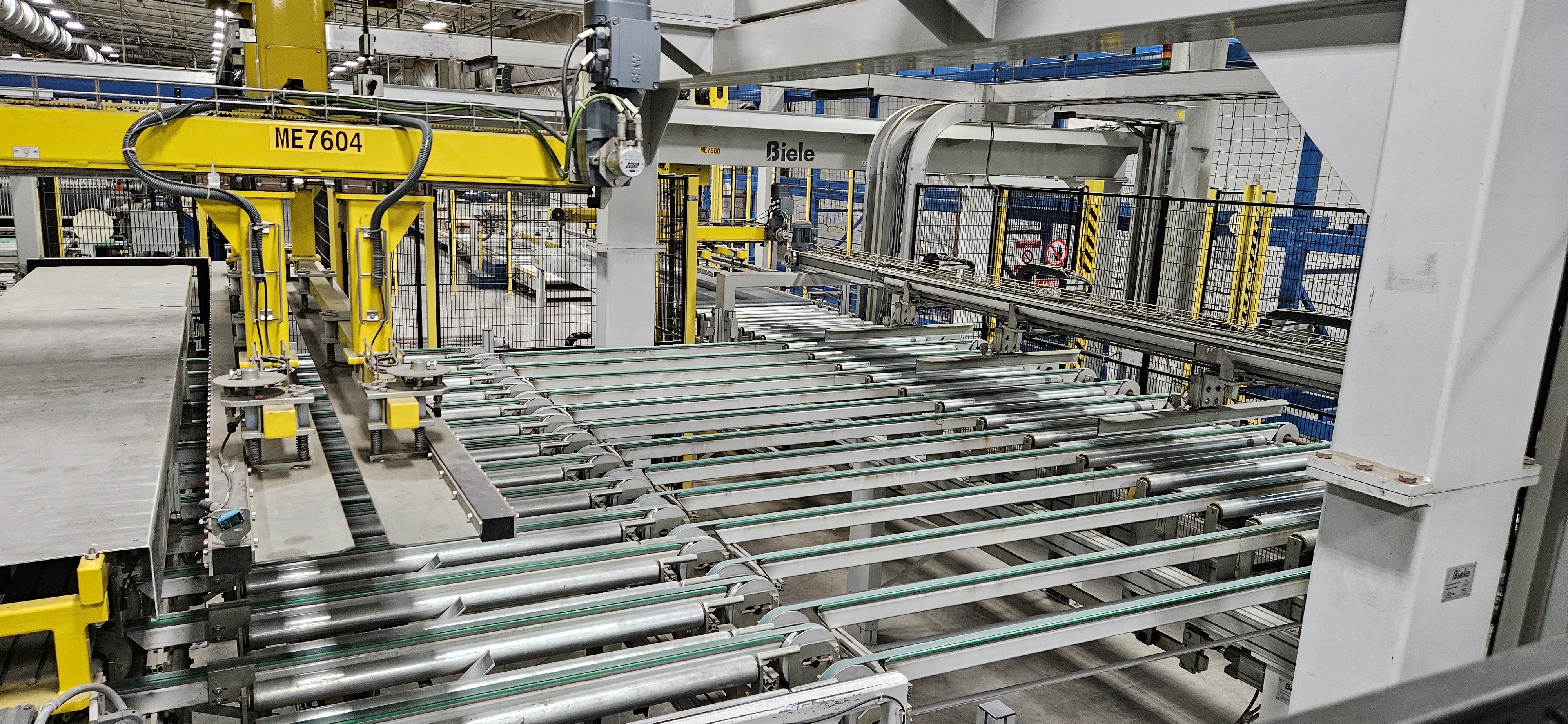

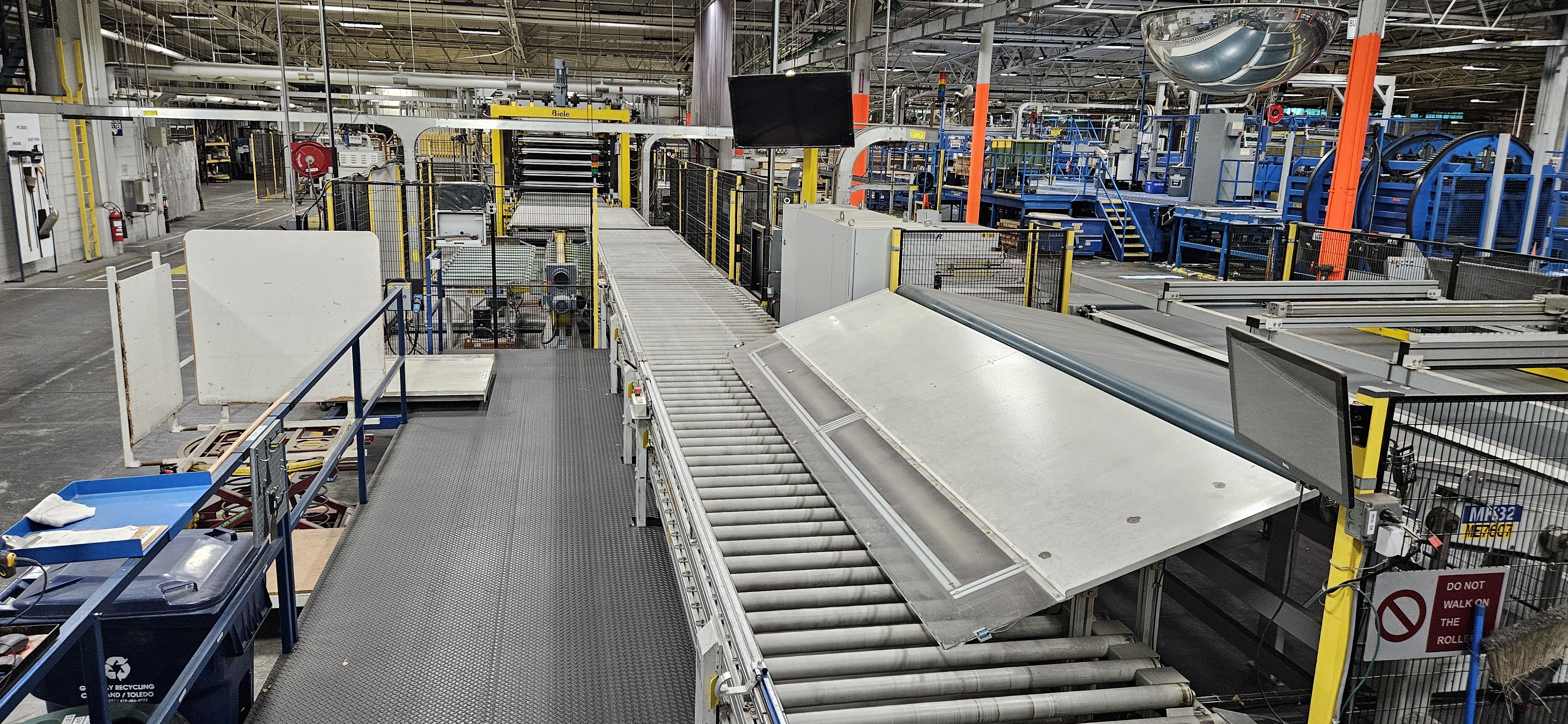

Lightweight Panel Line

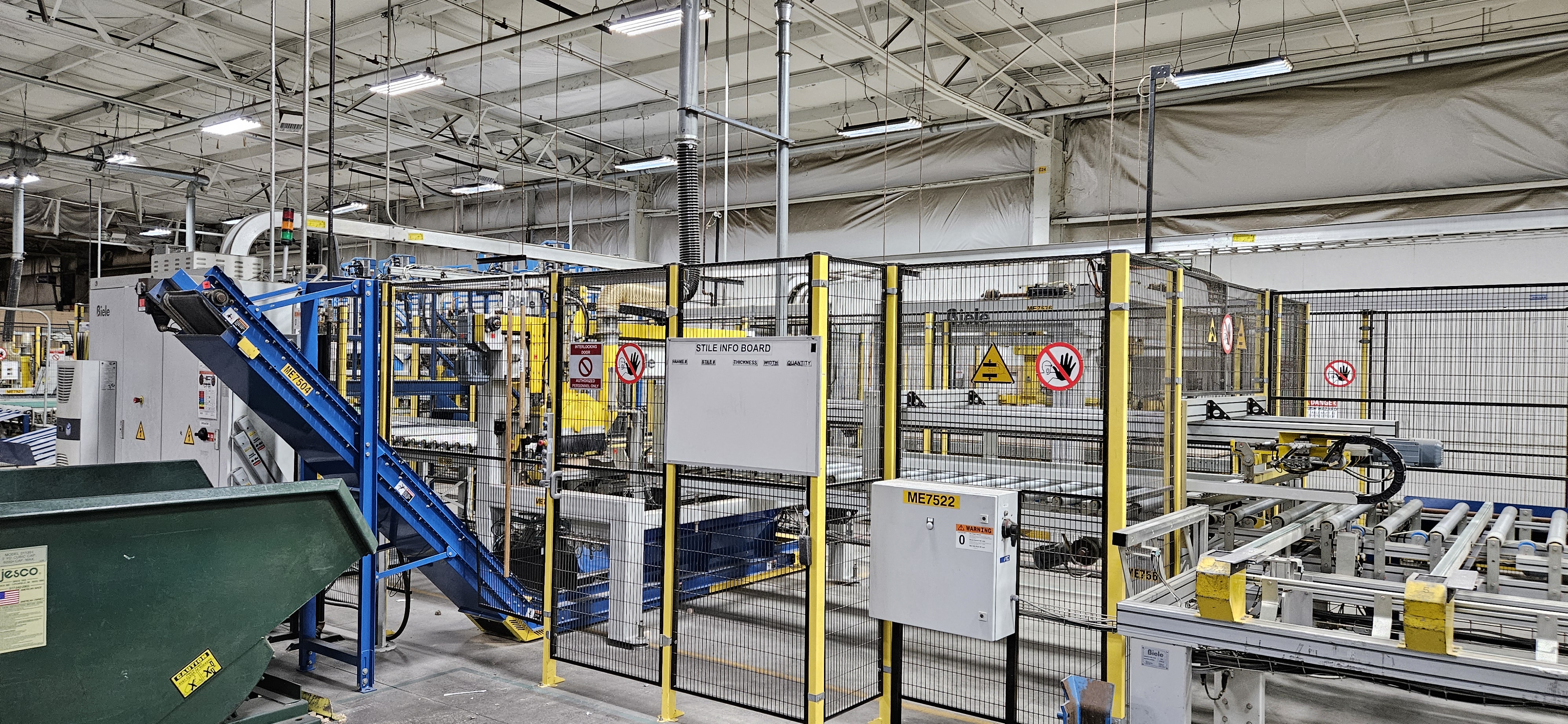

1. Frame Assembly Area

• Manual Stiles and Rails Feeding
• Stiles and Rails Length Cutting
• Dual Frame Assemblers
• Automated Frame Stacking
• Protective Sheet Management System

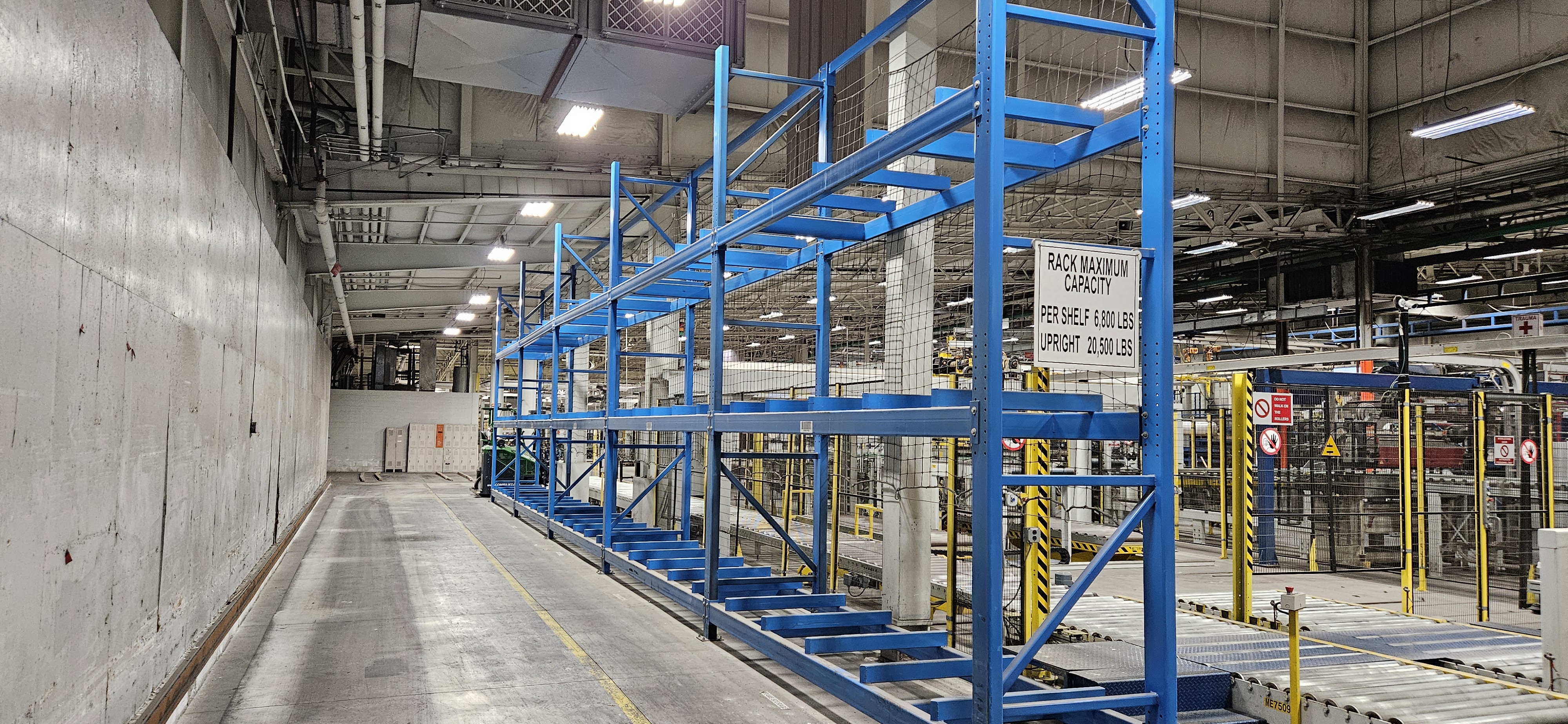

• Manual Frame Storage/Buffer Area

1. Layup Area

• Automated Feeding of Frames

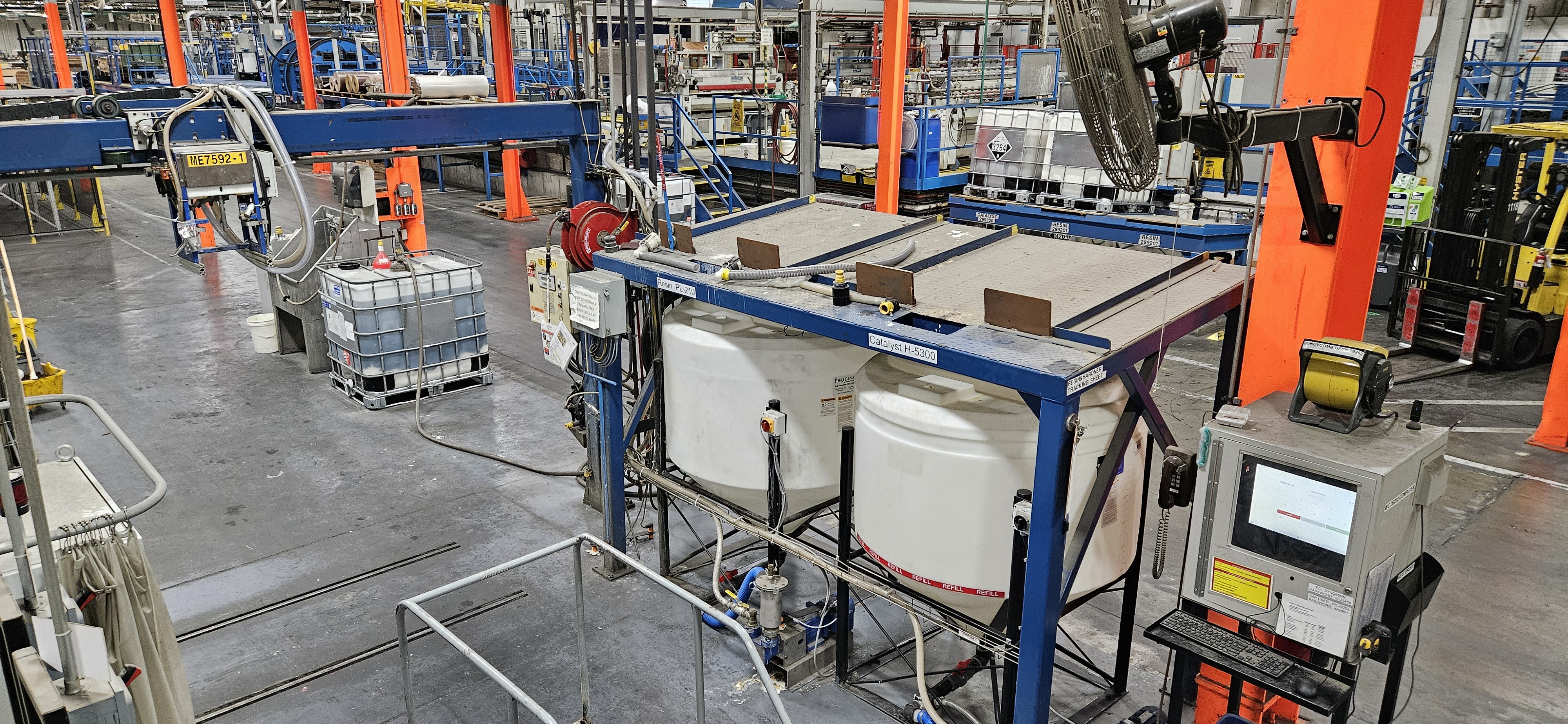

• Automated Feeding and Gluing of Skins
• Automated Layup of Frames and Skins

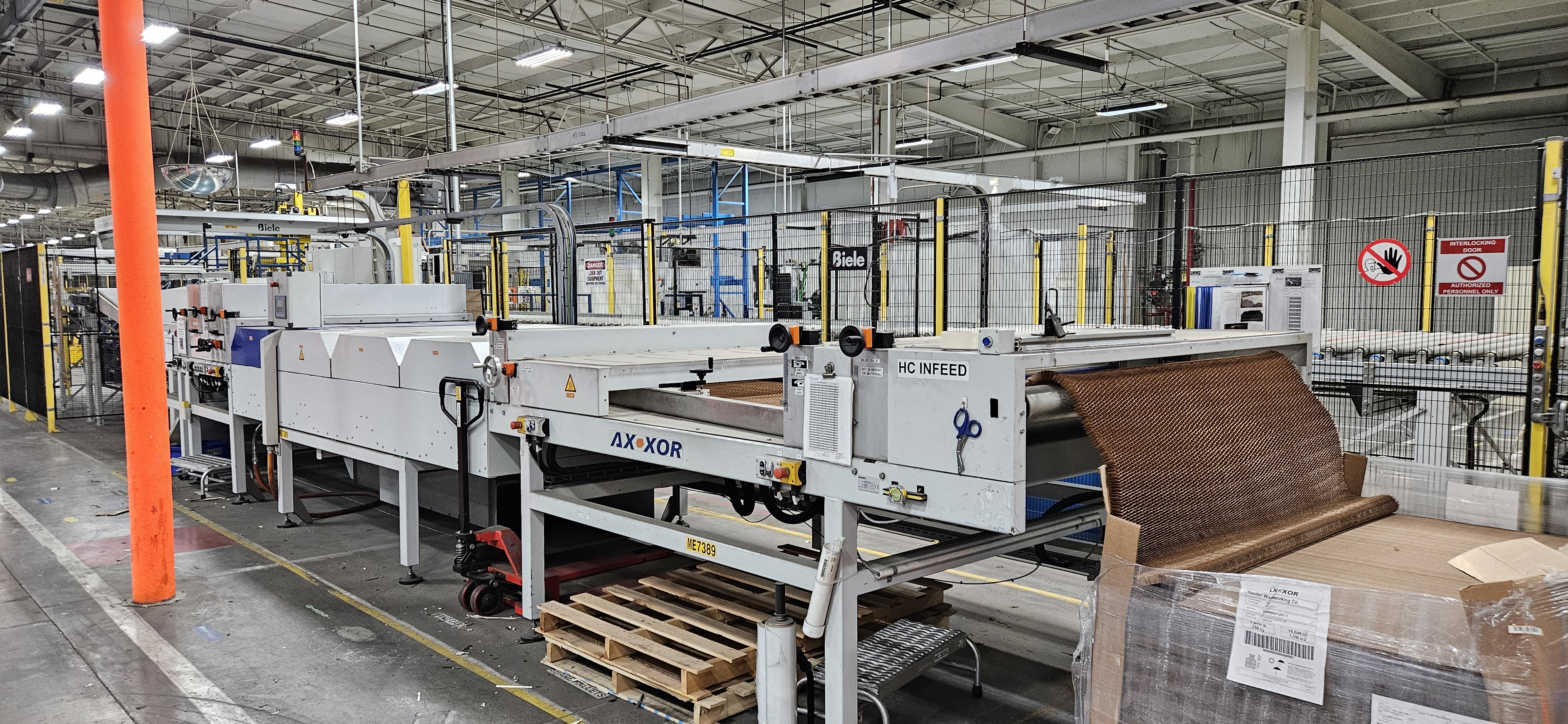

• Automated Honeycomb Expansion and Cutting
• Manual Insertion of Honeycomb

1. Press, Cooling, Stacking Area

• Automated Frame Accumulation

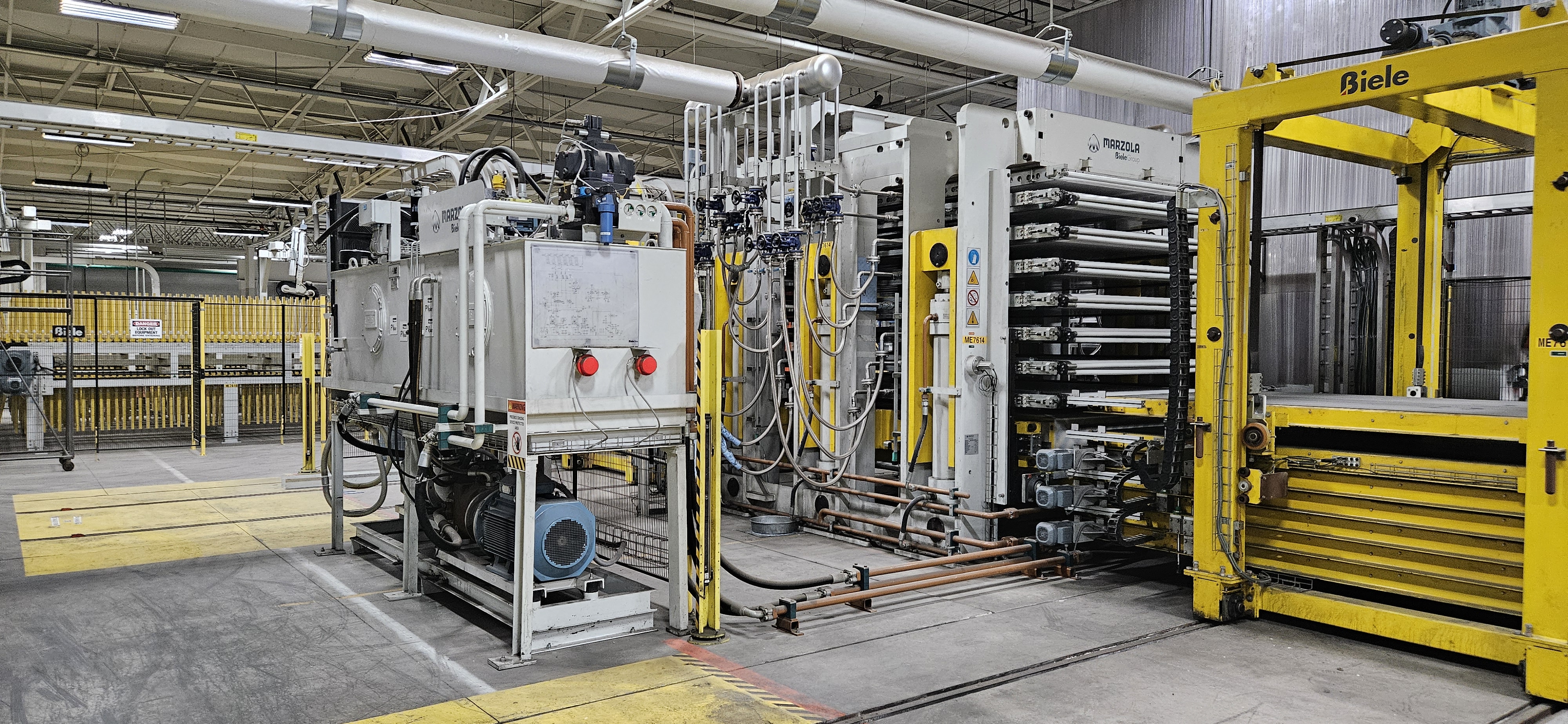

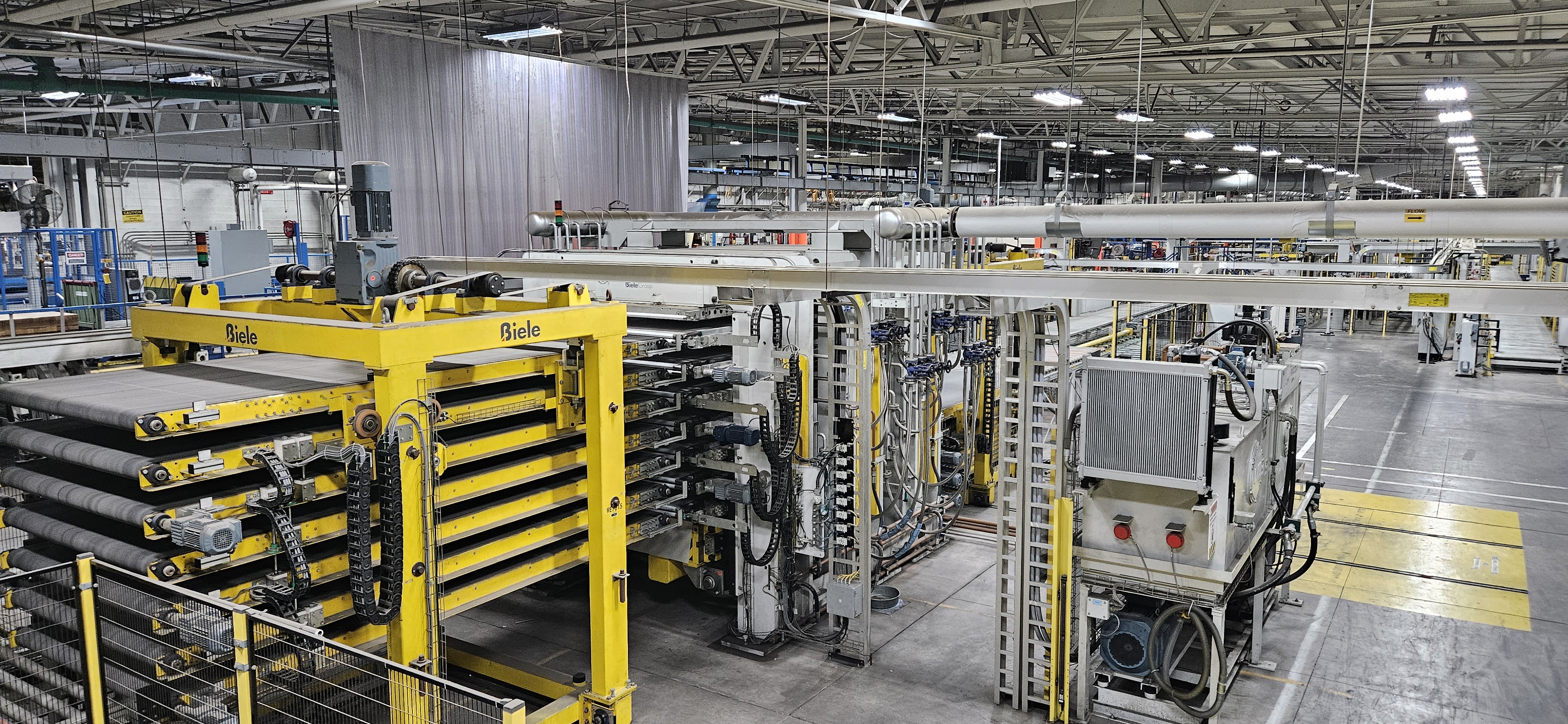

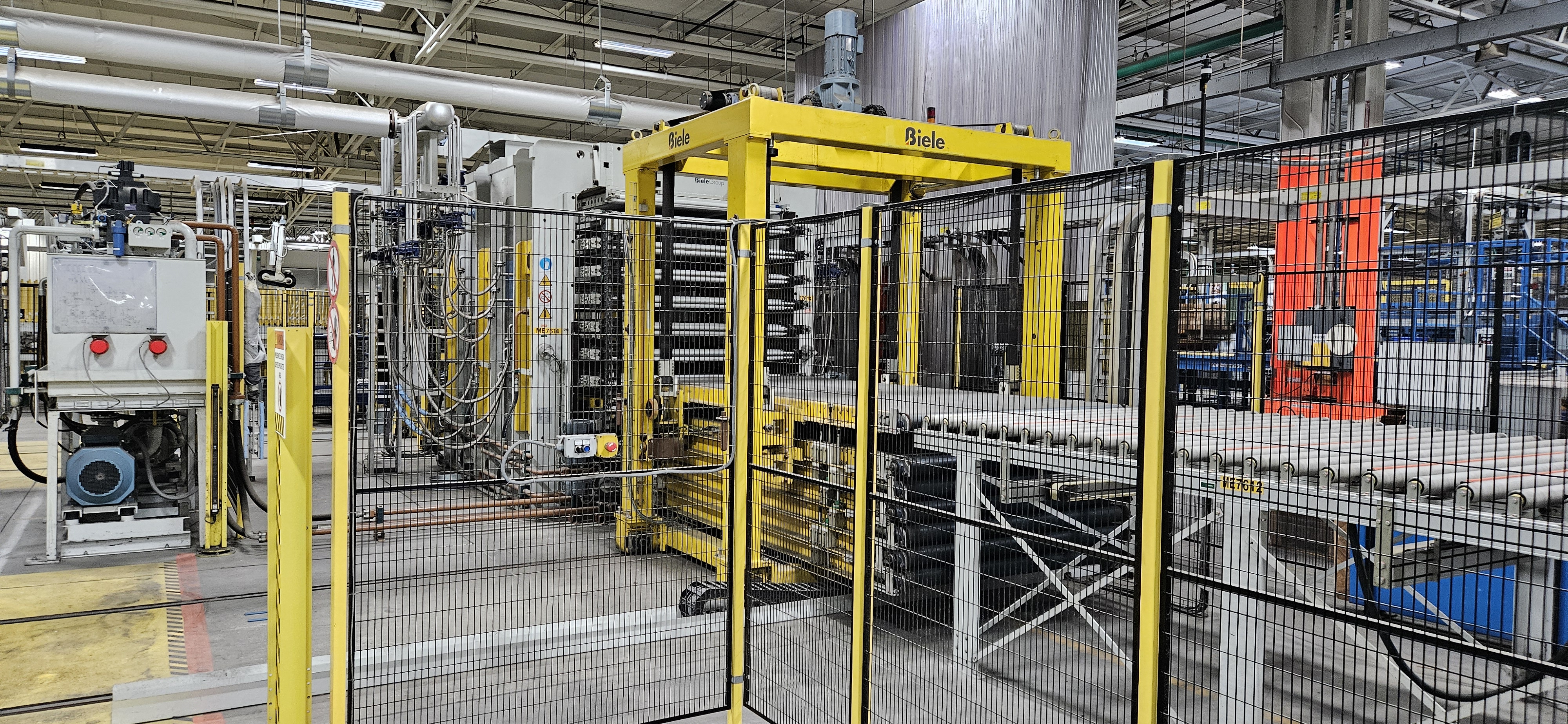

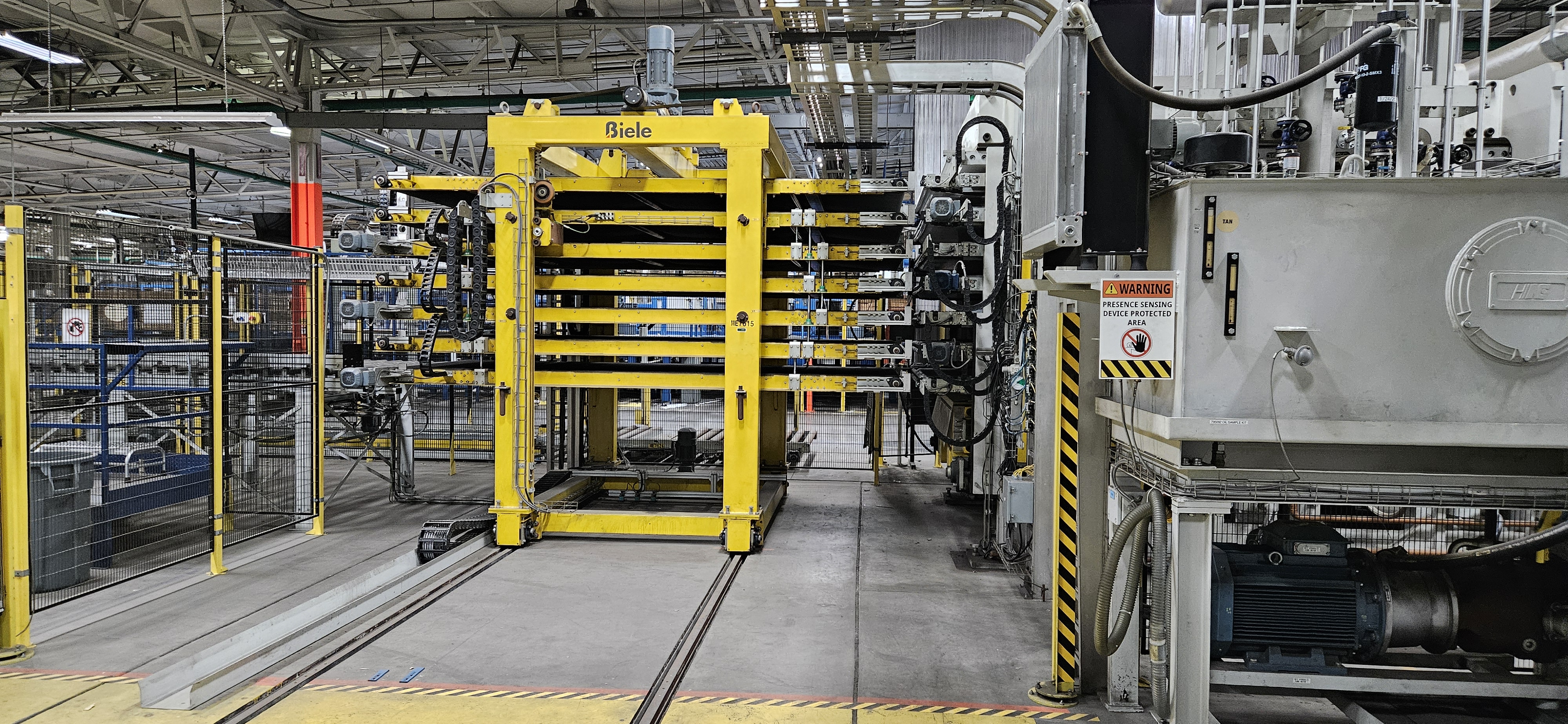

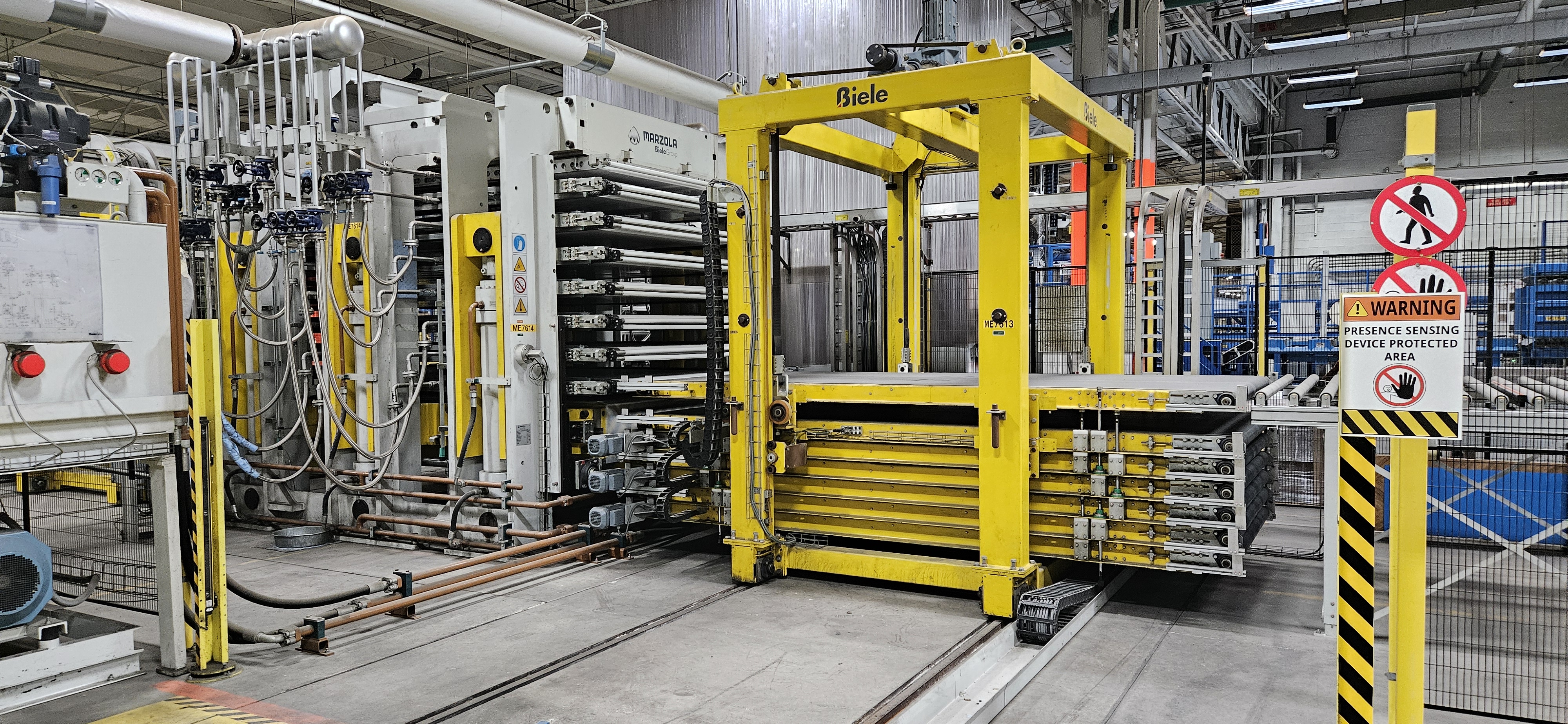

• 7 Opening Hot Press
• Frame Separation
• Cooling Zone
• Off-Specification Exit Mechanism
• Automated Stacking

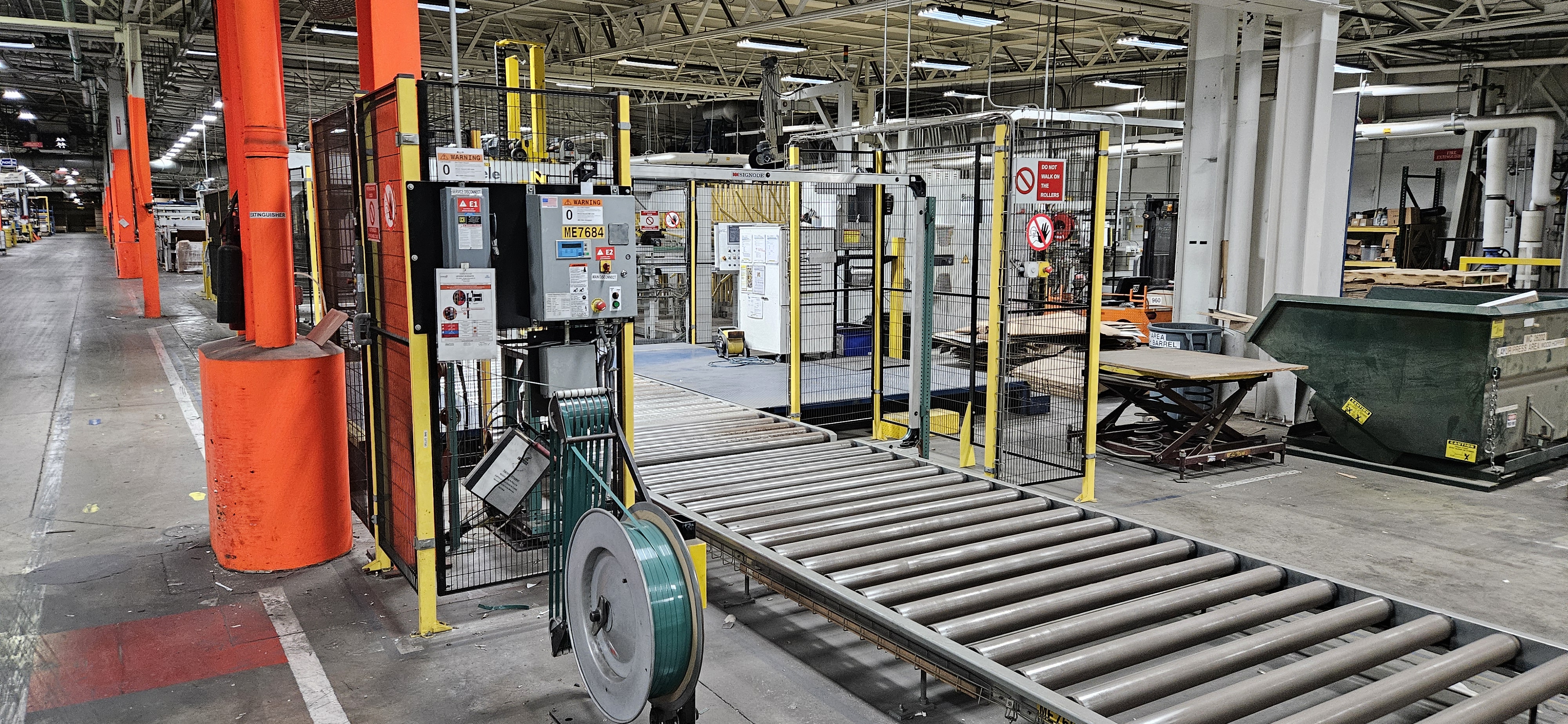

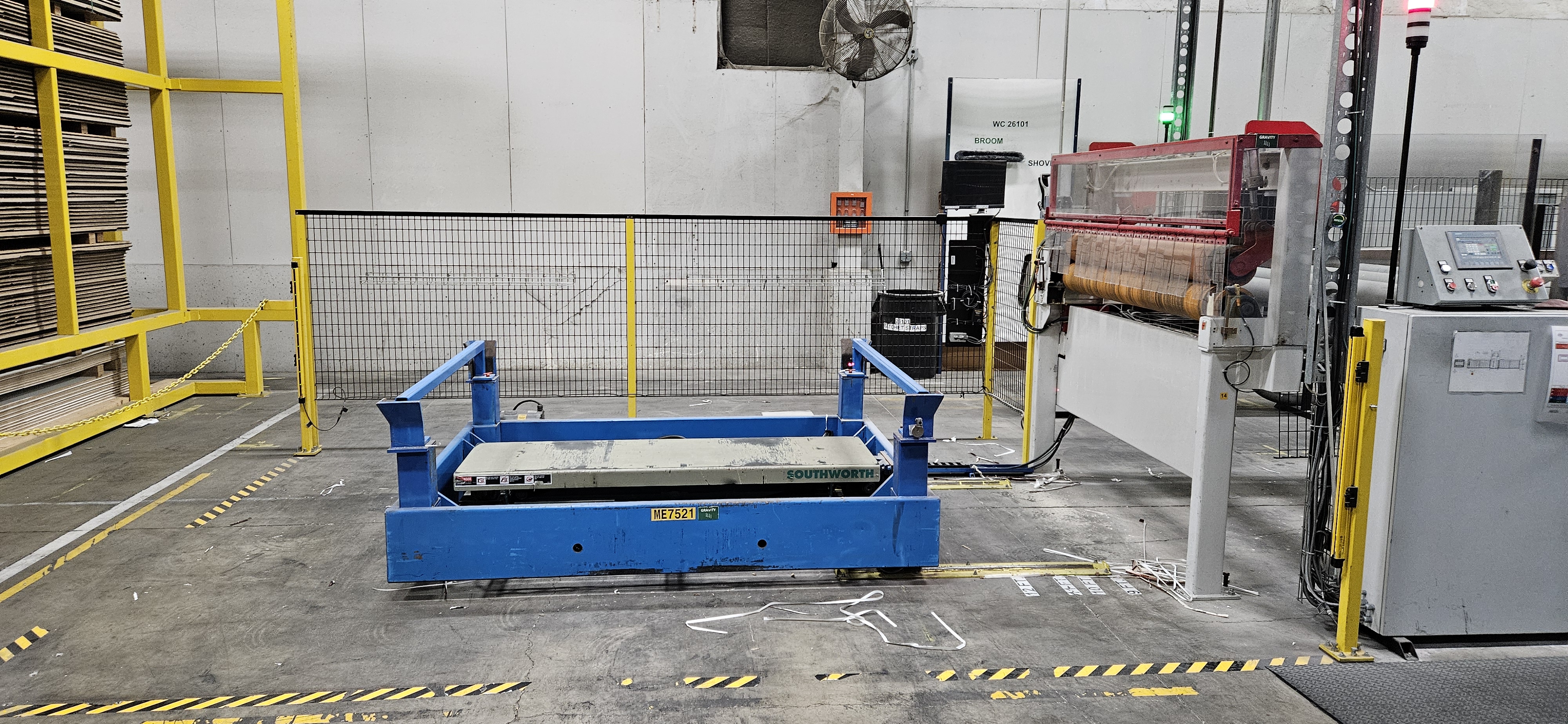

• Automated Strapping

 More Description is available
