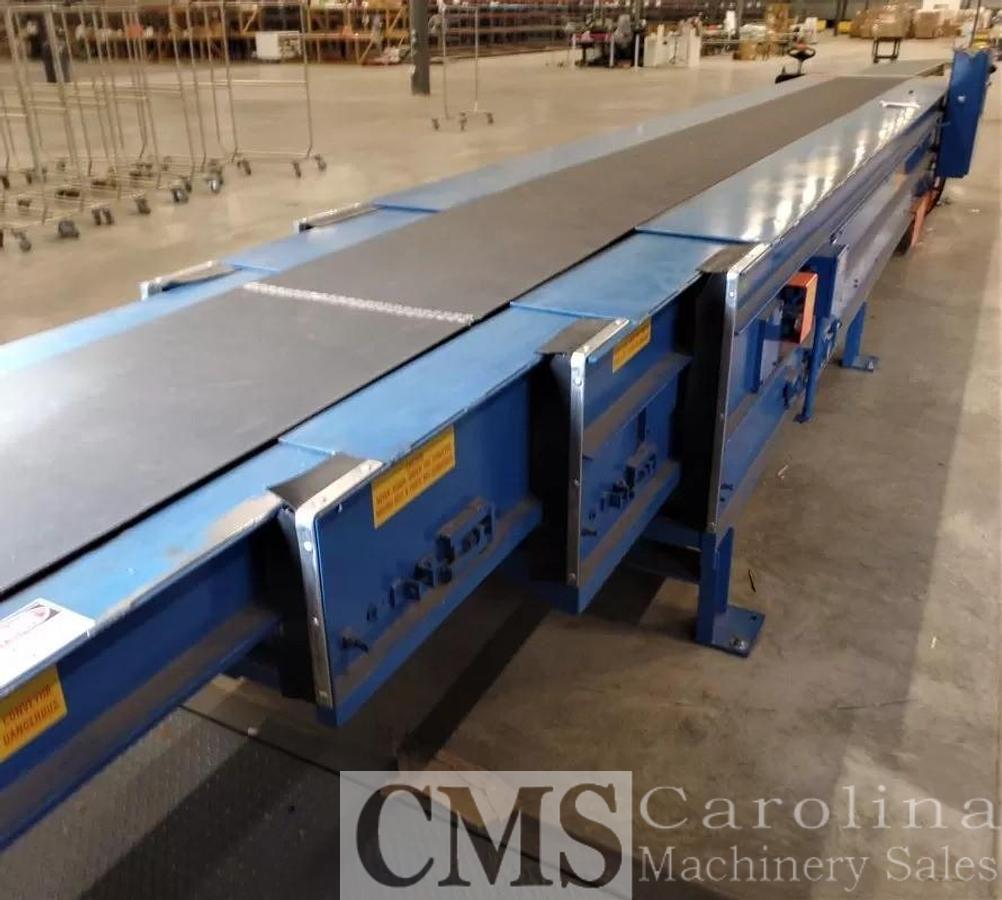

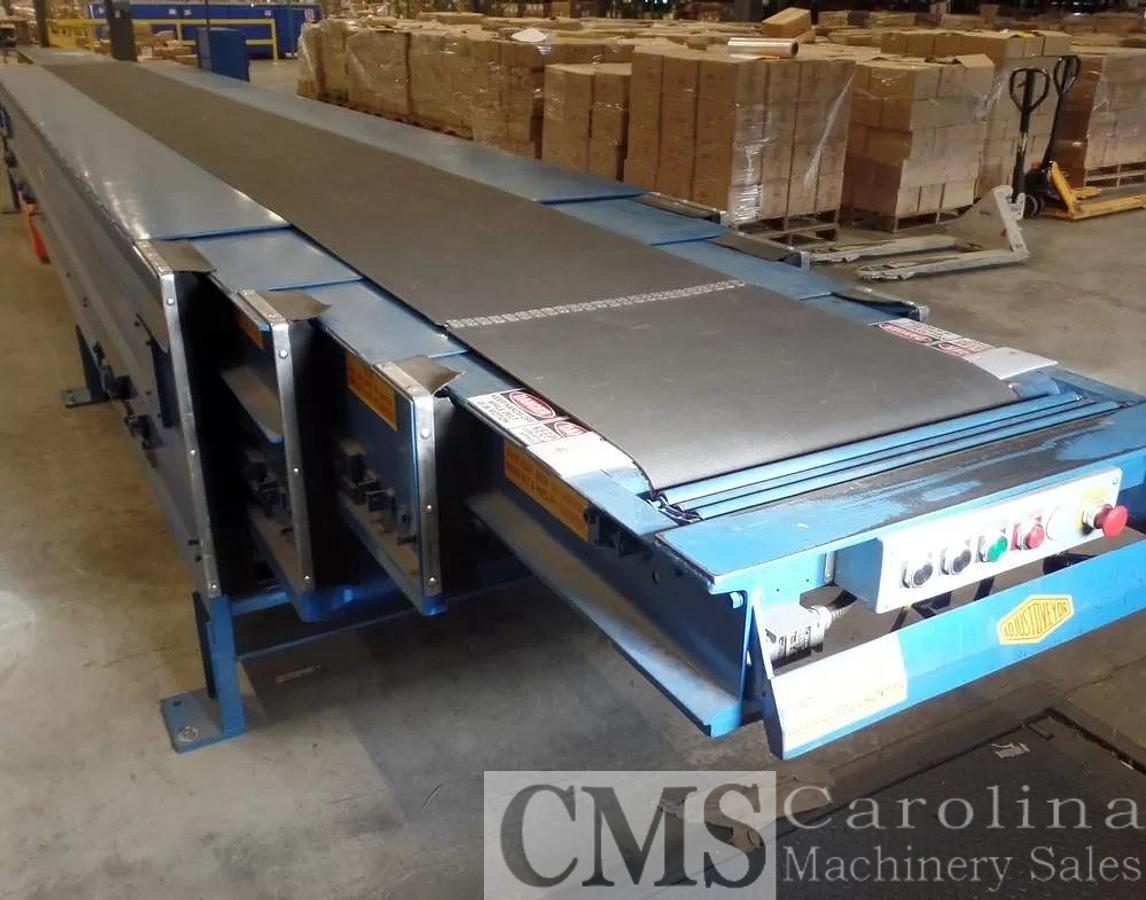

2017 Stewart Glapat Adjustoveyor Truck Loading Conveyor System

Location

Canada

or
Call 704-288-1904

Specifications

ManufacturerStewart Glapat
ModelAdjustoveyor Truck Loading Conveyor System
Year2017
Stock Number012788
Sales Rep NameRalph Viegelmann
Sales Rep Emailralph@carolinamachinerysales.com
Sales Rep Extension704-288-1904 x101

Description

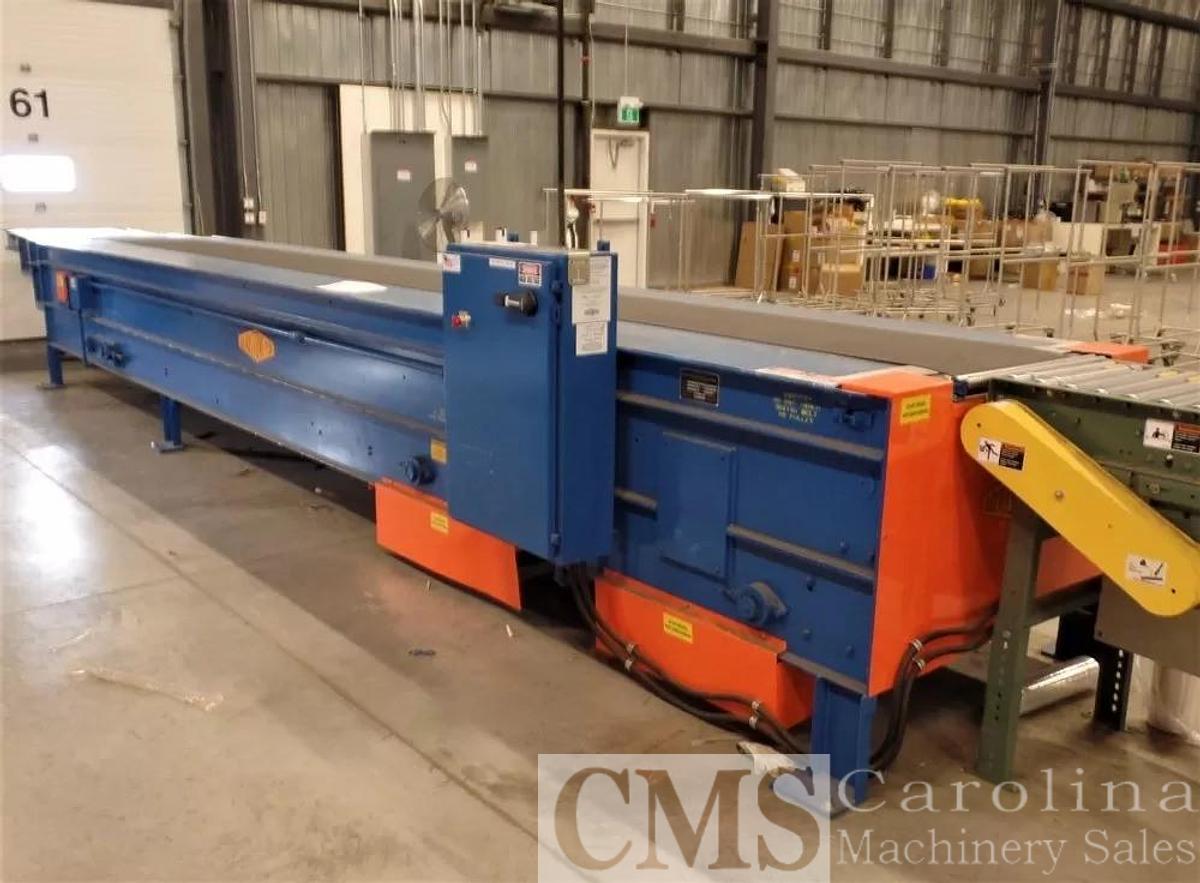

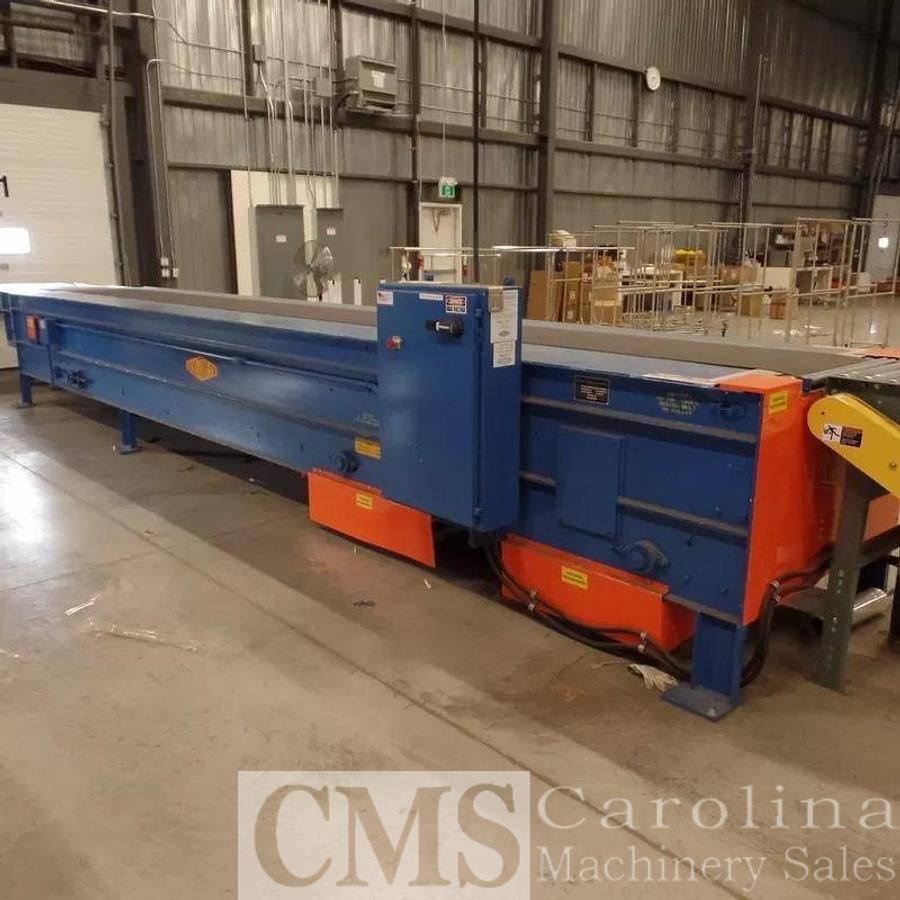

This system was purchased by the seller, installed and never put into production. It is ready to be removed and shipped. Photos are from the original installation. Current photos are coming.


Specifications

  • Manufacturer: Stewart Glapat Corporation, Zanesville, Ohio
  • Model: Adjustoveyor 2580T24FB-R
  • Serial No.: 1732400-1
  • Year: 2017 (nameplate date 10/17)
  • Type: telescoping belt conveyor, 3 sections (triple boom)
  • Closed length: 25 ft 3 in
  • Cantilevered extension: 54 ft 9 in
  • Overall extended length: 80 ft
  • Belt width: 24 in
  • Belt speed: 75 FPM
  • Structural load: 65 lb per lineal foot; belt full load: 35 lb per lineal foot
  • Includes: Hytrol powered roller conveyor in-feed, S/N 10TB22
