2019 Superfici 180 Degree Cross Transfer & Panel Turning System

This system was purchased used by the seller and never put into production. It is in storage and ready to be loaded out. Photos are from when the system was installed. We can provide current storage photos if needed.

Notes from seller:

• Manufacturer: Superfici (Italy) / Superfici America

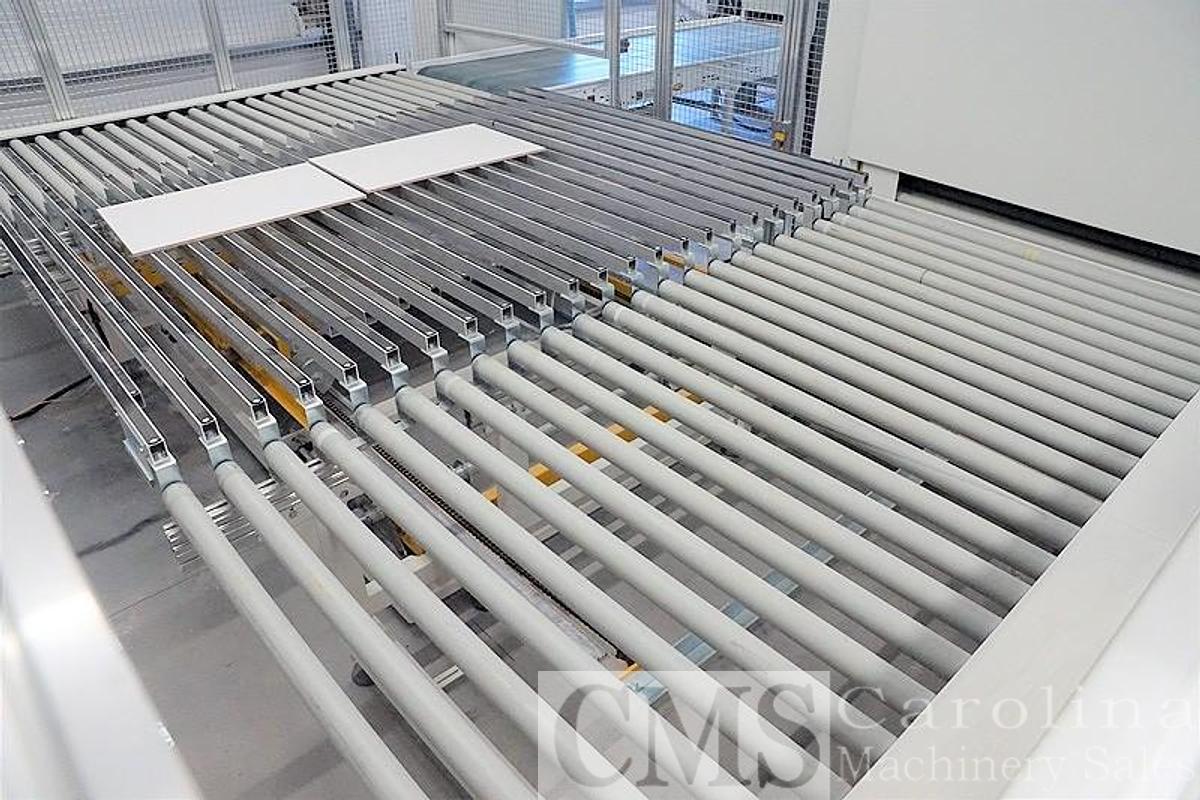

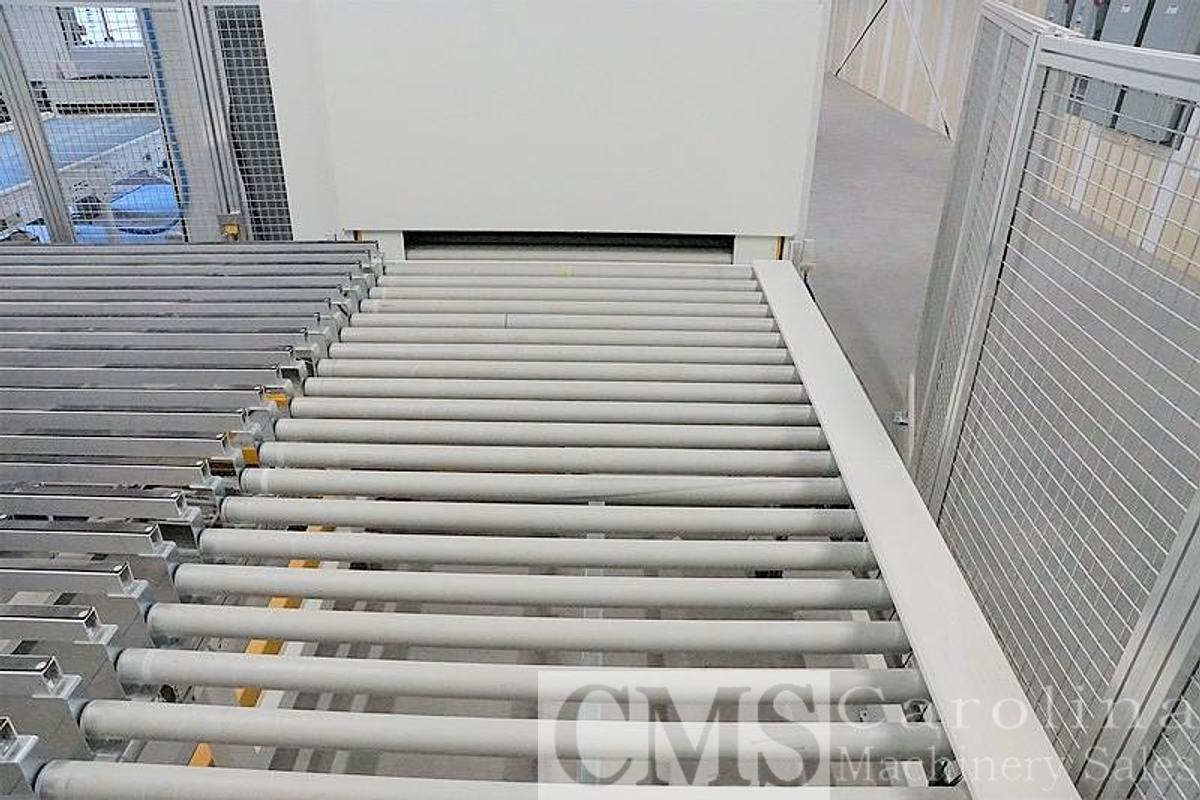

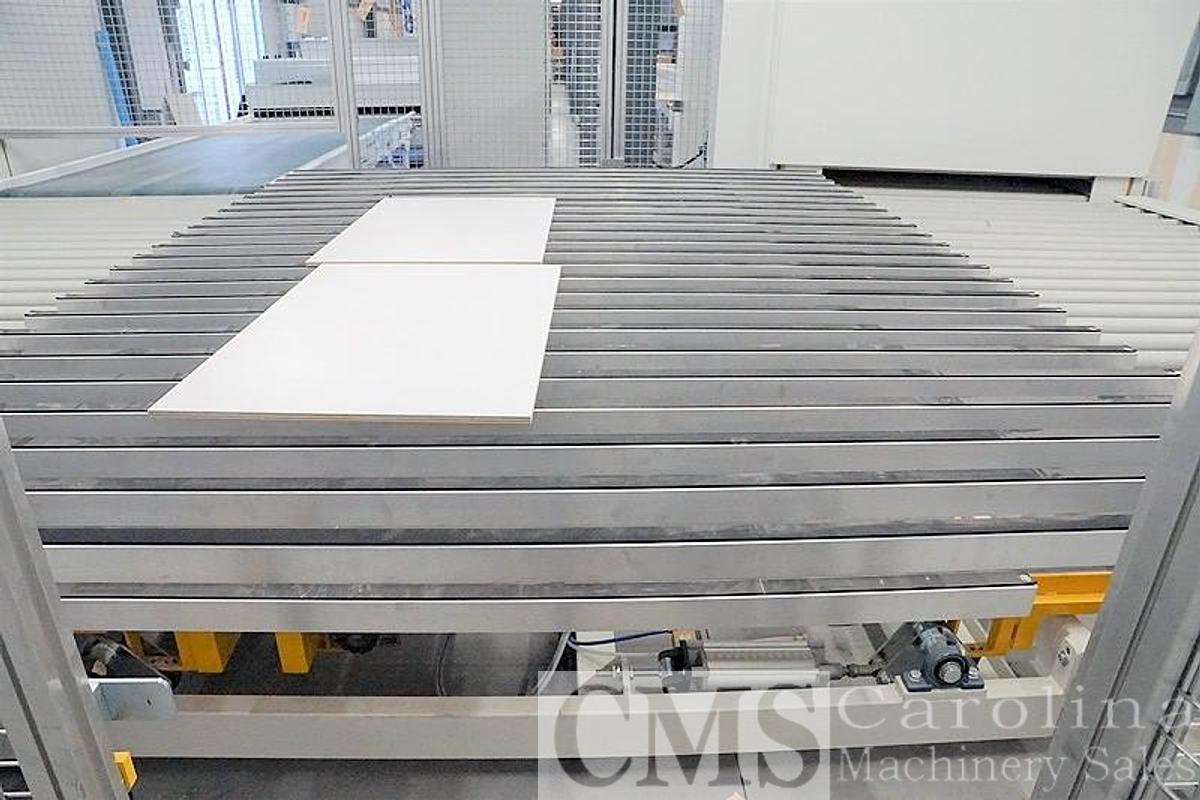

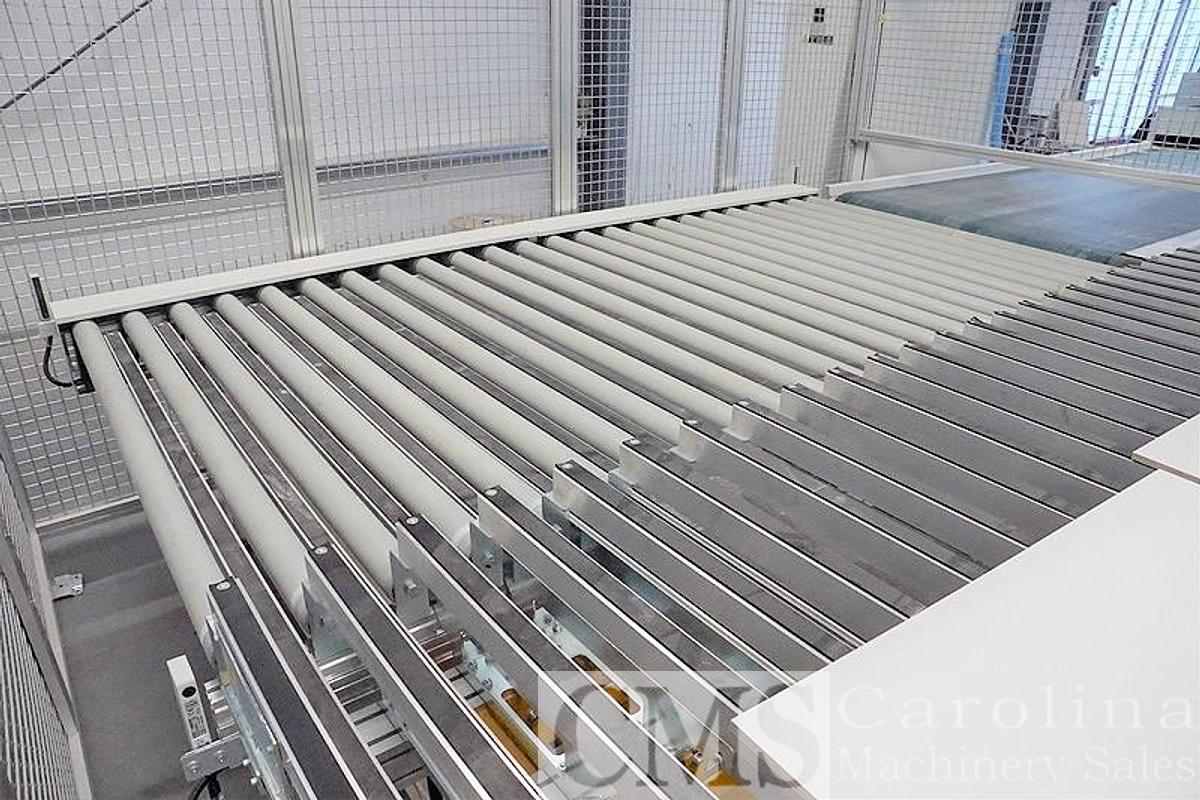

• Description: 180° conveyor turn table / cross transfer station with panel turning device (panel flipper)
• Model / Serial No.: [MODEL / SERIAL – not on the auction documents; Glenn to check nameplate]
• Year: 2019, installed new November 2020

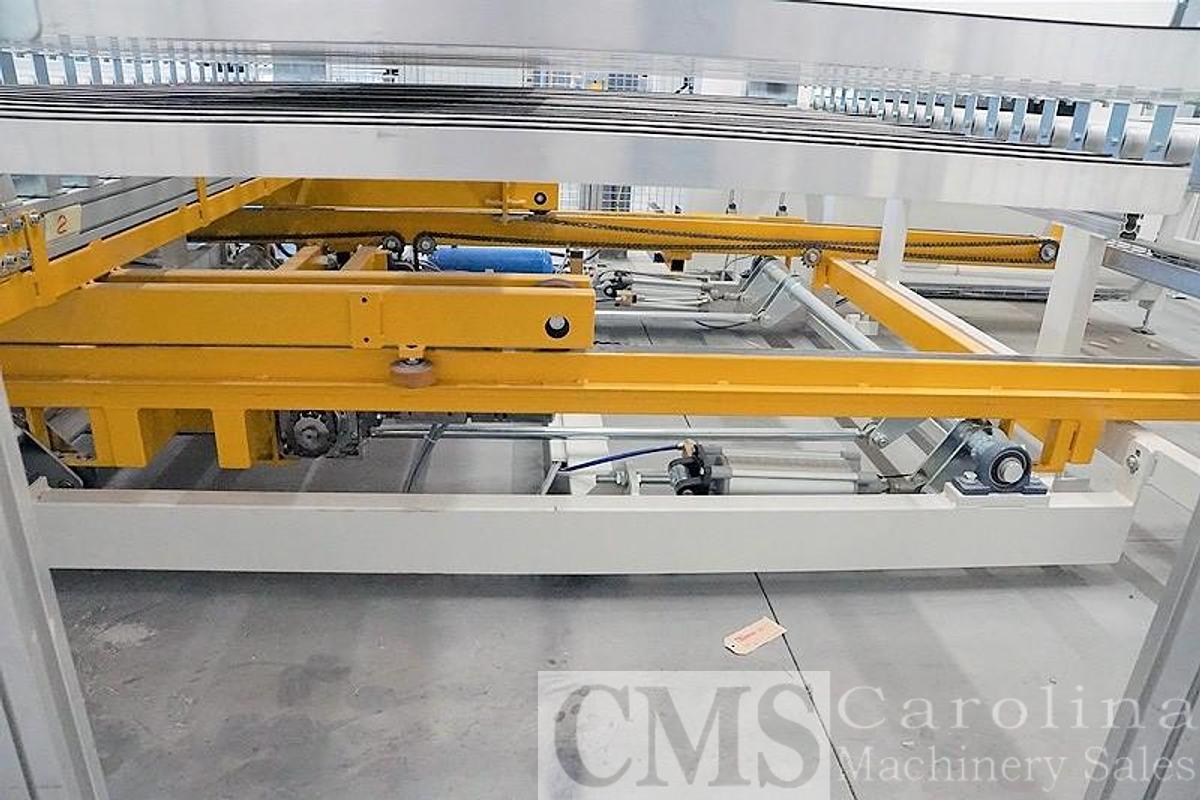

• Movement: lift-up and cross-over panel movement design
• Electrical: 480 V, 3-phase, 60 Hz
• Controls: right-hand master control station cabinet

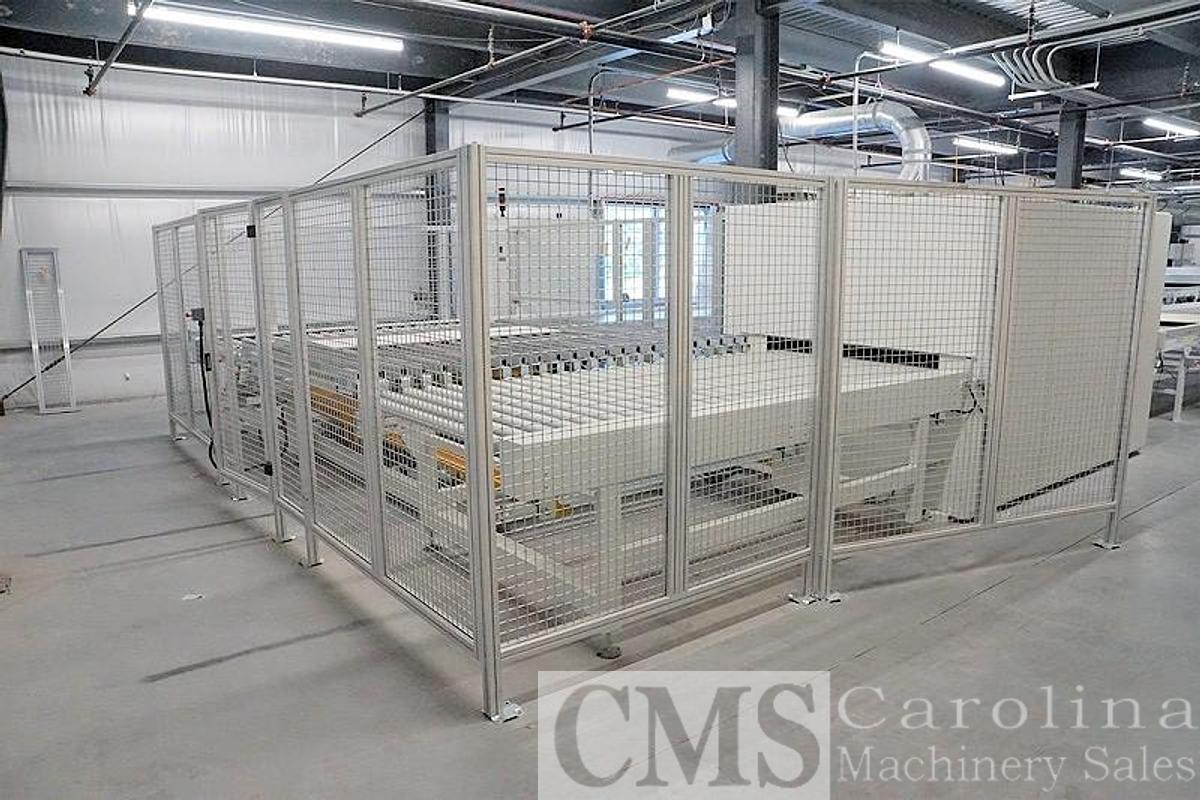

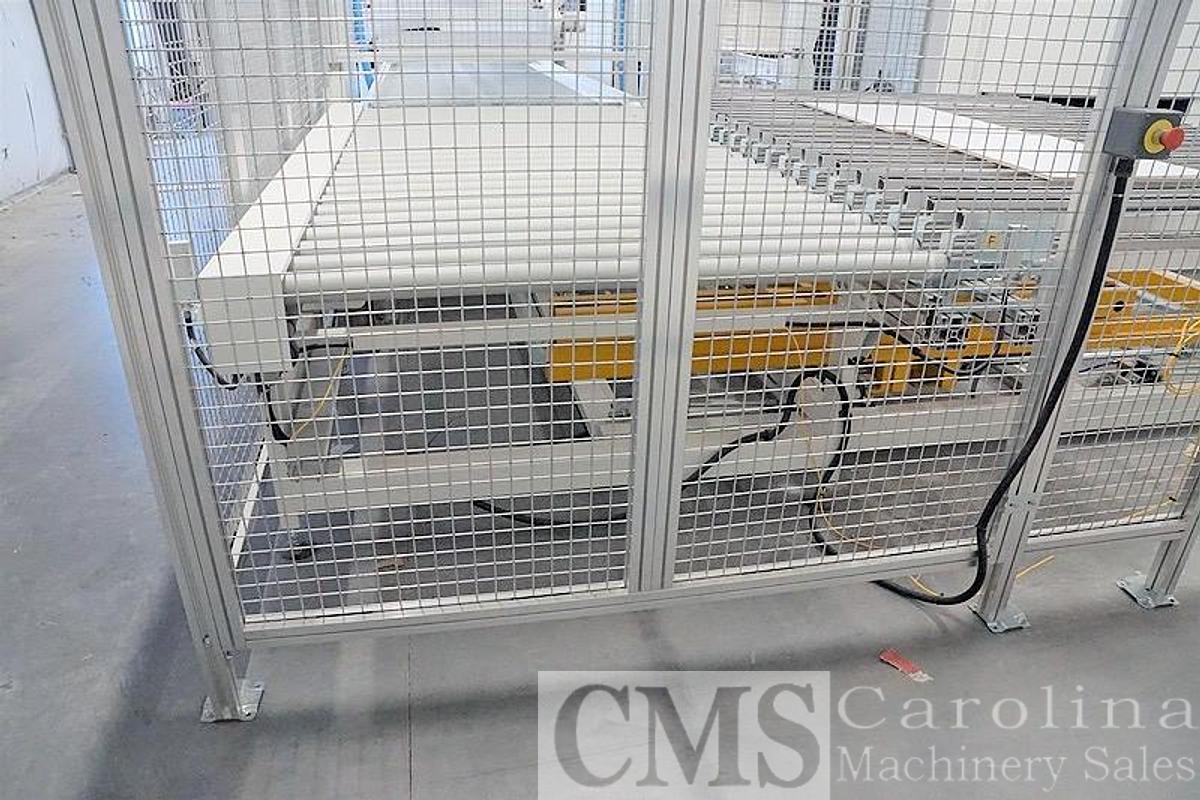

• Guarding: side and rear safety guard walls

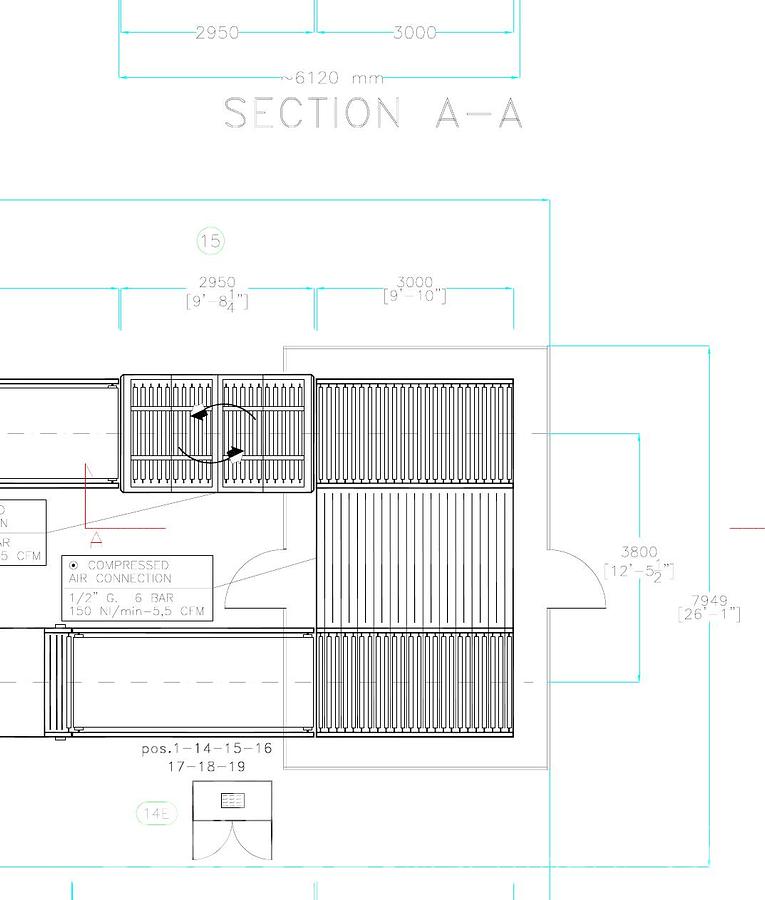

• Turning device approx. 2950 mm (9 ft 8-1/4 in) long; cross transfer approx. 3000 mm (9 ft 10 in) long (per original Superfici layout)
• Transfer distance approx. 3800 mm (12 ft 5-1/2 in) line centre to line centre; overall guarded width approx. 26 ft 1 in
• Compressed air: 1/2" G, 6 bar, 150 Nl/min (5.5 CFM)
• Built for panels up to 1300 mm (51 in) wide, 3–90 mm thick, 6–18 m/min line speed, 900 mm passline height
