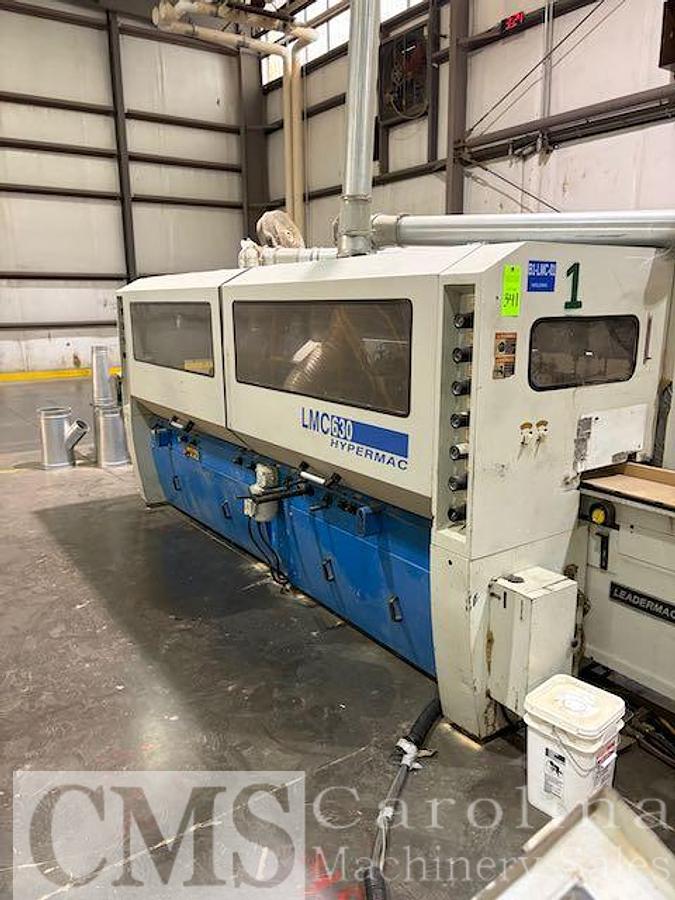

Leadermac LMC 630 Hypermac 12" Moulder 6 Heads

Leadermac Hypermac LMC-630H Moulder

6-Head Machinewith Outboard Bearings

MFG specs (to be confirmed):

HEAD HP CUTTERHEAD SWING HOOD SIZE

• 1) 1st Bottom Head 20 HP 4.9” to 7.1” (125 – 180 mm) 5.9” (150 mm)
• 2) Right Side Head 20 HP 4.4” to 9.1” (112 – 232 mm) 5.9” (150 mm)
• 3) Left Side Head 20 HP 4.4” to 9.1” (112 – 232 mm) 5.9” (150 mm)
• 4) 1st Top Head 25 HP 3.9” to 8.8” (100 – 225 mm) 5.9” (150 mm)
• 5) 2nd Top Head 25 HP 3.9” to 8.8” (100 – 225 mm) 5.9” (150 mm)
• 6) 2nd Bottom Head 25 HP 3.9” to 8.8” (100 – 225 mm) 5.9” (150 mm)

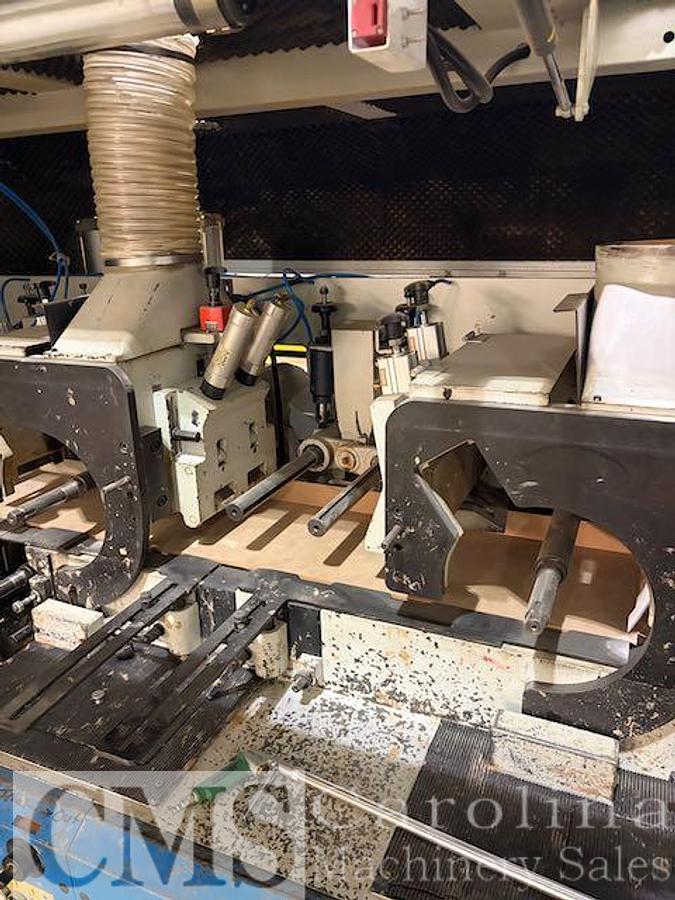

Directly Opposed Side Heads in lieu of staggered side heads

including Air/Hydraulic Quick secure Position Locking System

Increased spindle speeds to 8000 RPM in lieu of standard 6000-RPM

With 8000 rpm Spindles you will realize a 33% increase in productivity over std. 6,000 rpm

Hydro-Loc Quick Change Outboard Bearings

Timing belt (Poly Chain) Drives on 2 Top Heads & Last Bottom Head

2 part Sectional Pad Pressure Plates after 2nd Top Head with 2 separate pressures and fine adjustment to the outside shoe in lieu of single pressure plate

Pneumatically operated Auto Feed Table Lubrication System utilizing

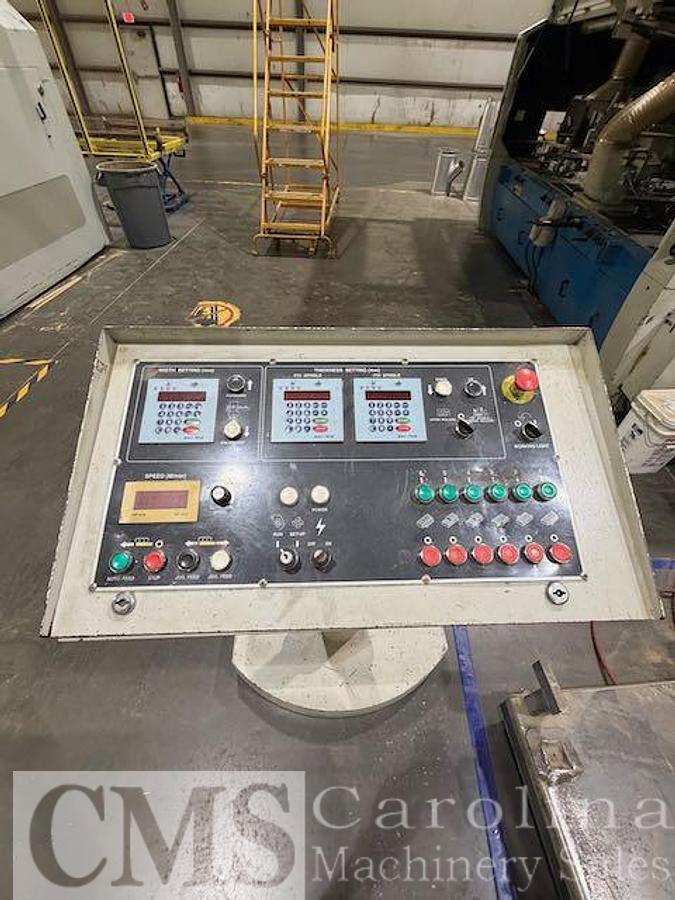

Stand Alone Operators Control Console on HD wheels w/1.6.5 ft of

Pneumatic Low Pressure Safety Control (if the air pressure drops below the

accepted run level the moulder will shut down or will not operate)
