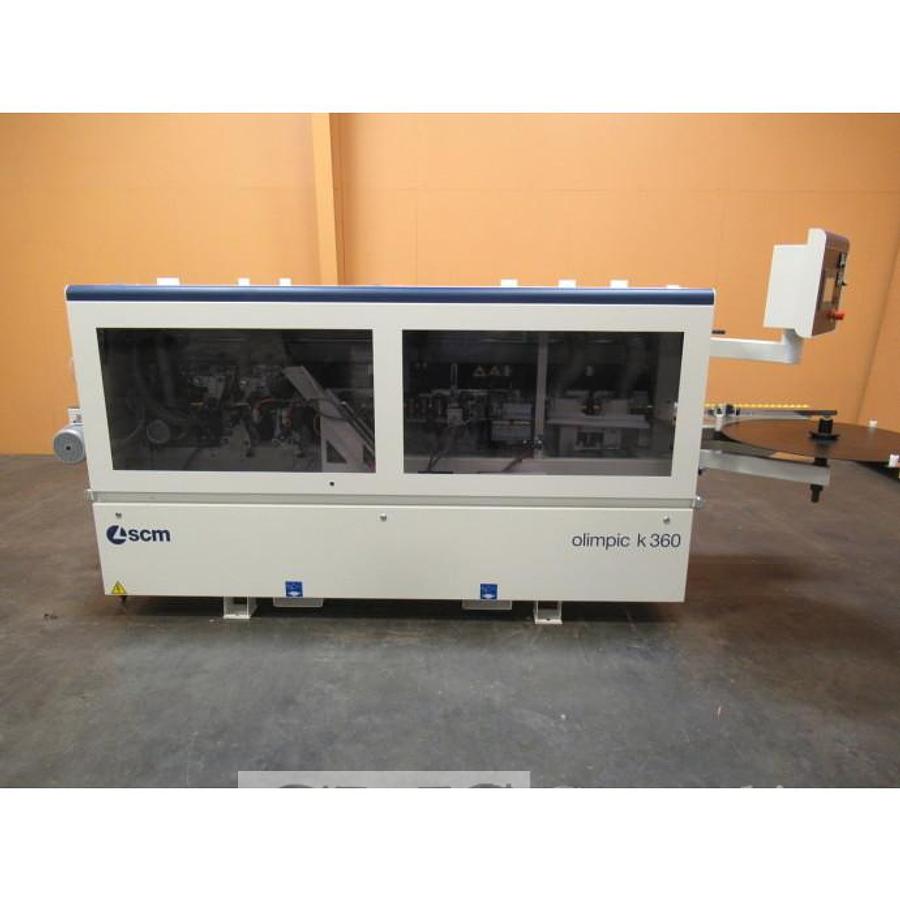

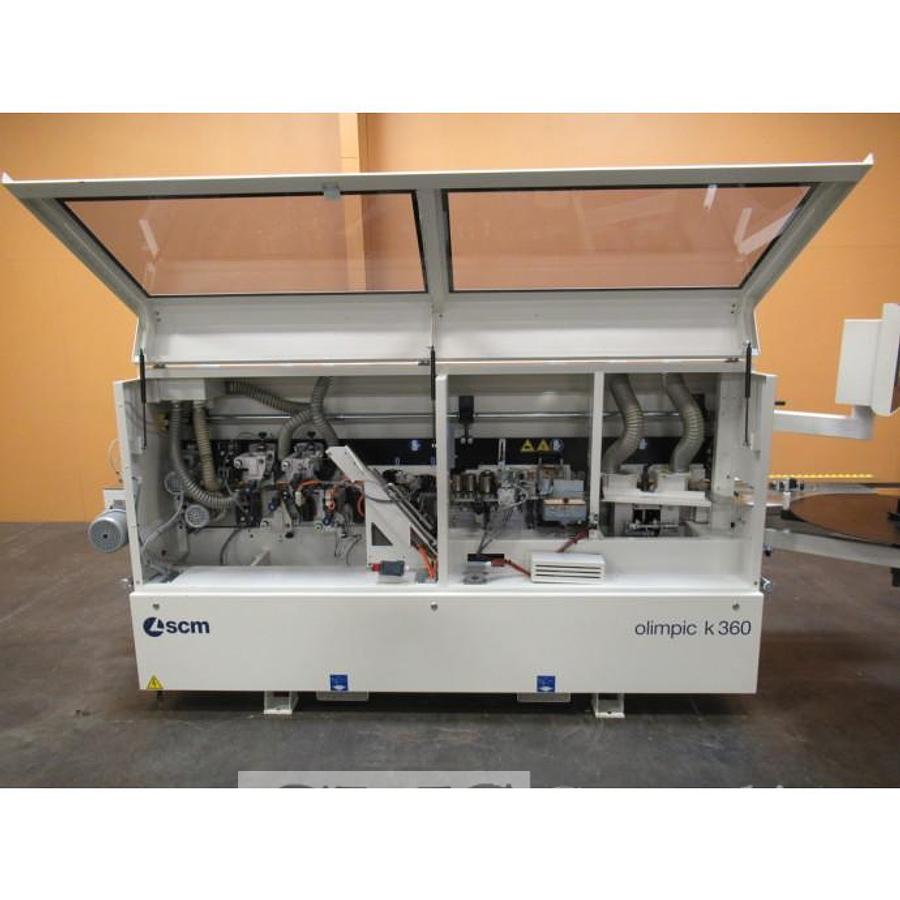

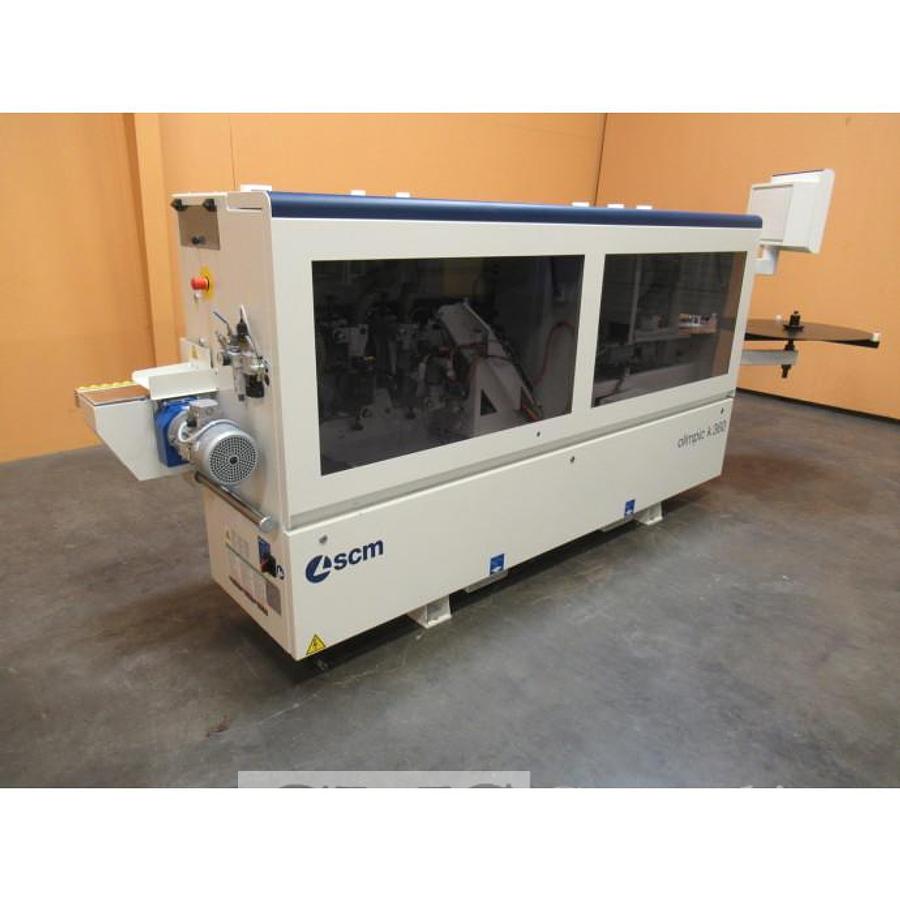

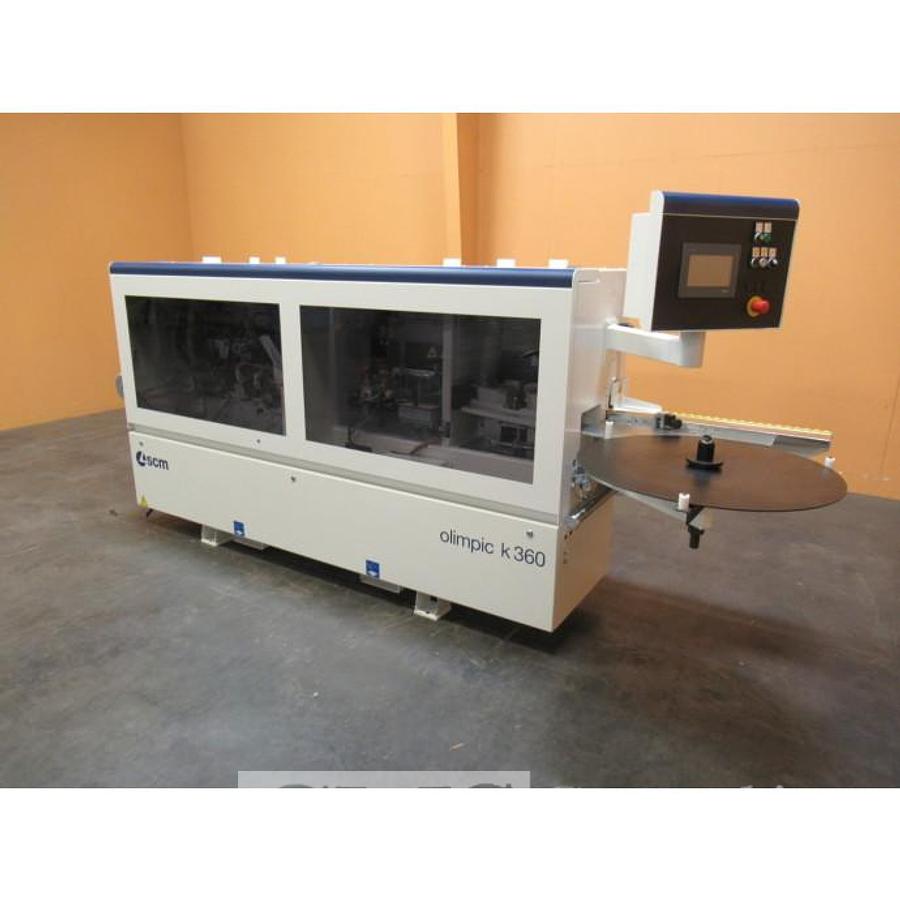

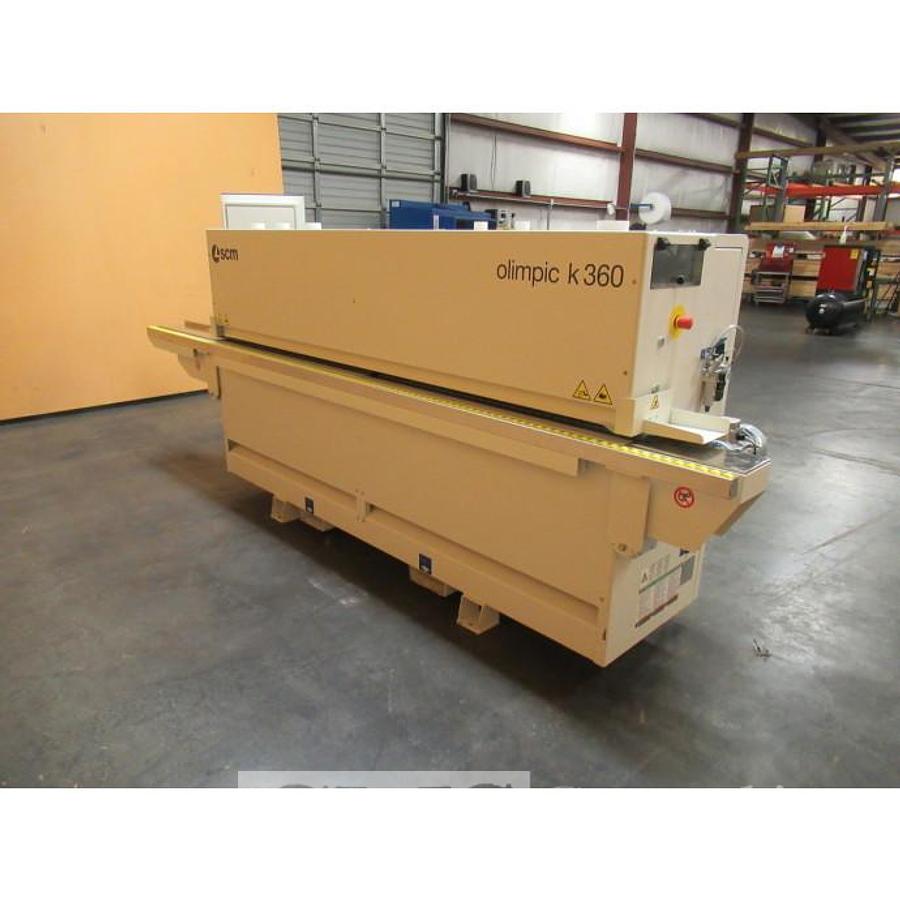

2022 SCM Olimpic K360 Edgebander with Pre-Milling
or
Call 704-288-1904
Specifications
| Manufacturer | SCM |
| Model | Olimpic K360 Edgebander with Pre-Milling |
| Year | 2022 |
| Stock Number | 012775 |
| Sales Rep Name | Mike Hawkins |
| Sales Rep Email | mike@carolinamachinerysales.com |
| Sales Rep Extension | 704-288-1904 ext 104 |
Description
- 0.4 to 6 mm Edgebanding thickness capacity
- 3 mm Guillotine capacity
- 3/8" to 2-1/2" Panel thickness capacity
- 5-1/2" Minimum panel length
- 2-3/8" Minumum Panel width
- 20" Minimum distance between panels
- Feed speed: 36 FPM

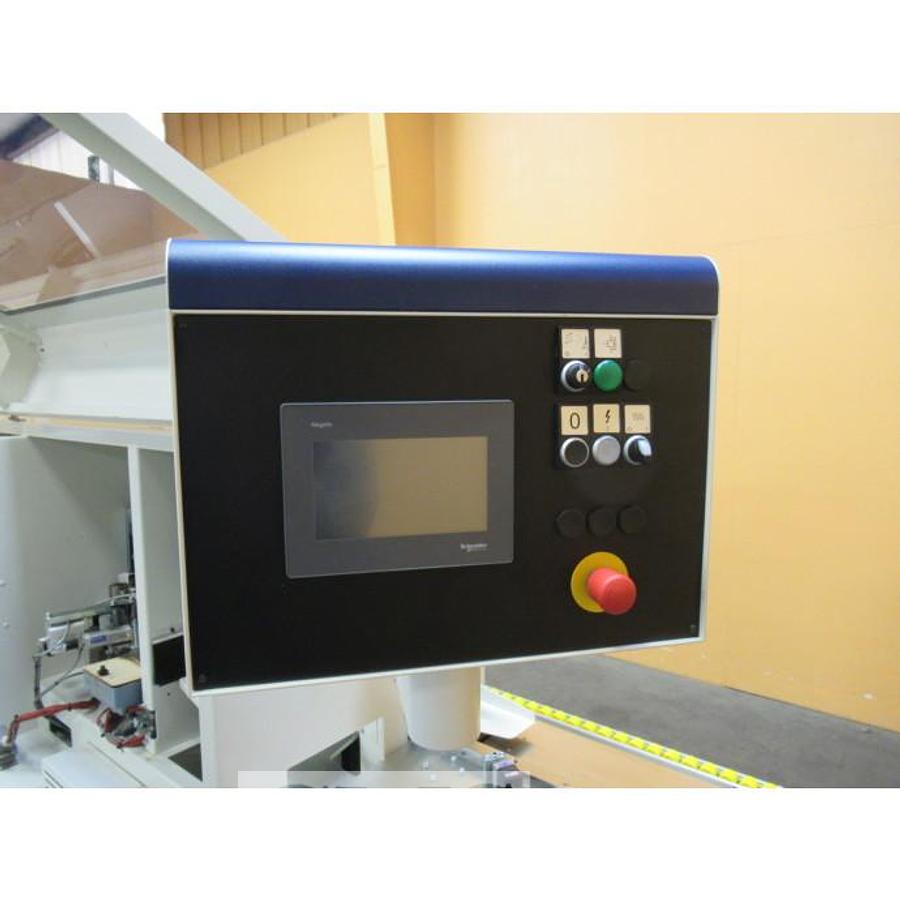

- "Touch 7" Controller with 7" touchscreen capable of storing up to 60 programs

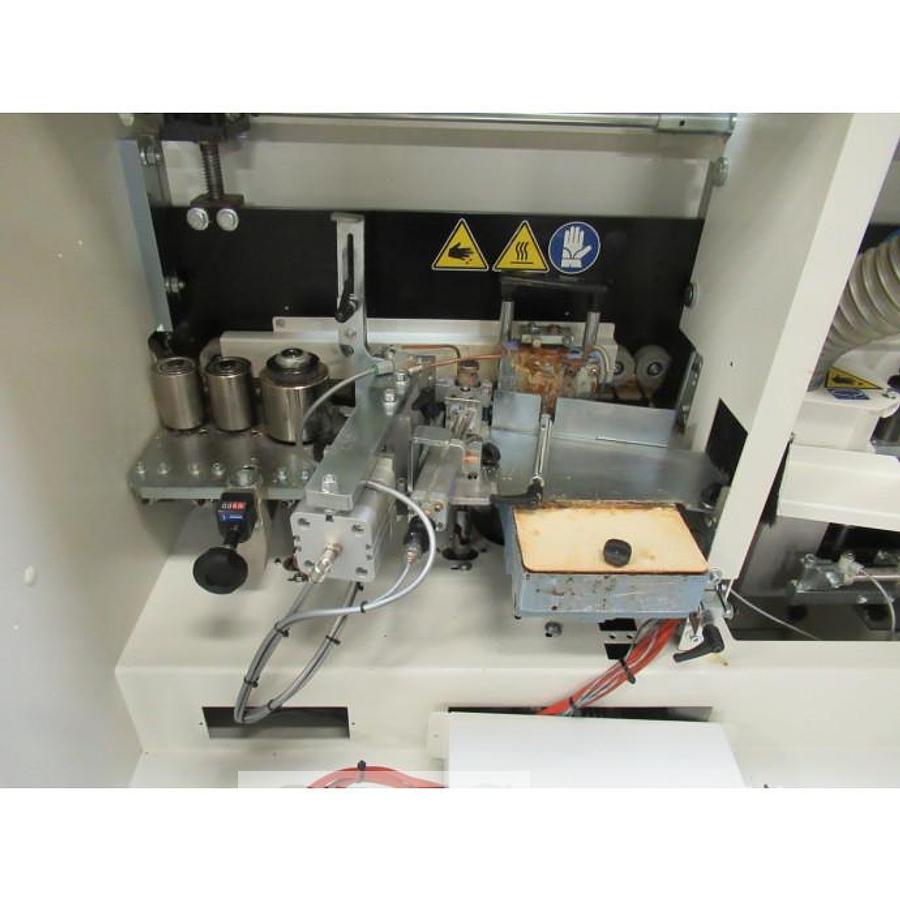

- Quick change/disconnect glue pot
- Automatic strip feed magazine
- 3-Roll pressure section (1 large driven roller, 2 idle rollers)

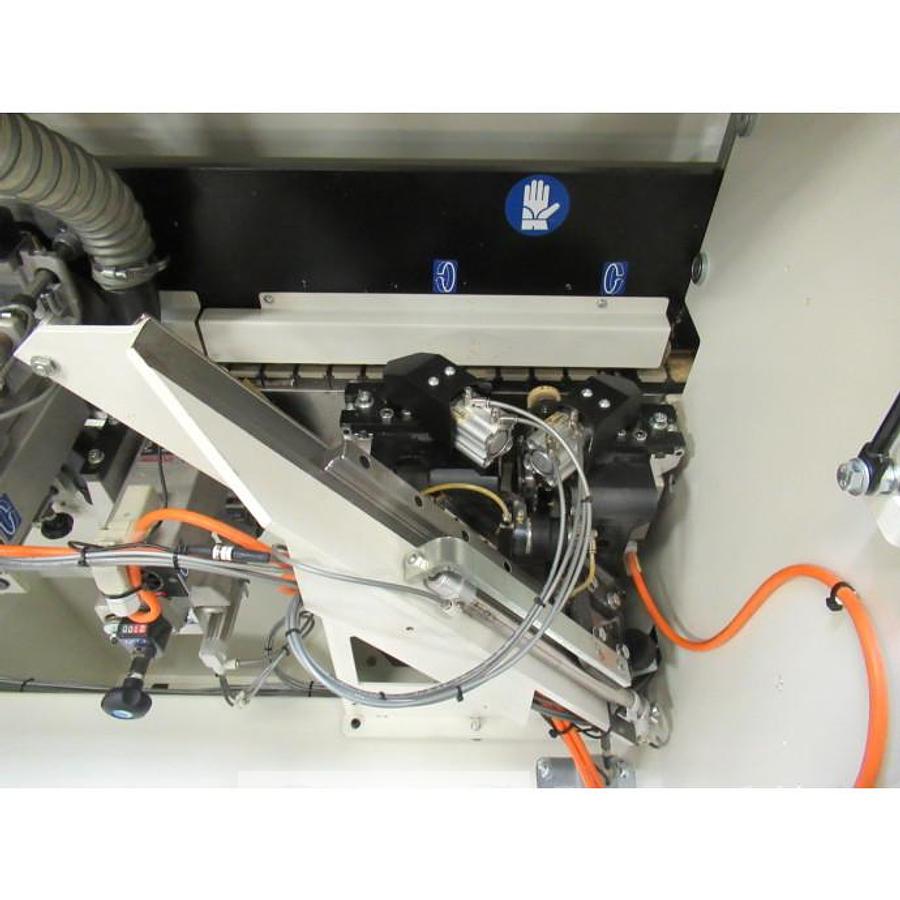

- Pre-milling station with (2) 2 hp high frequency motors with jumping action controlled through the PLC

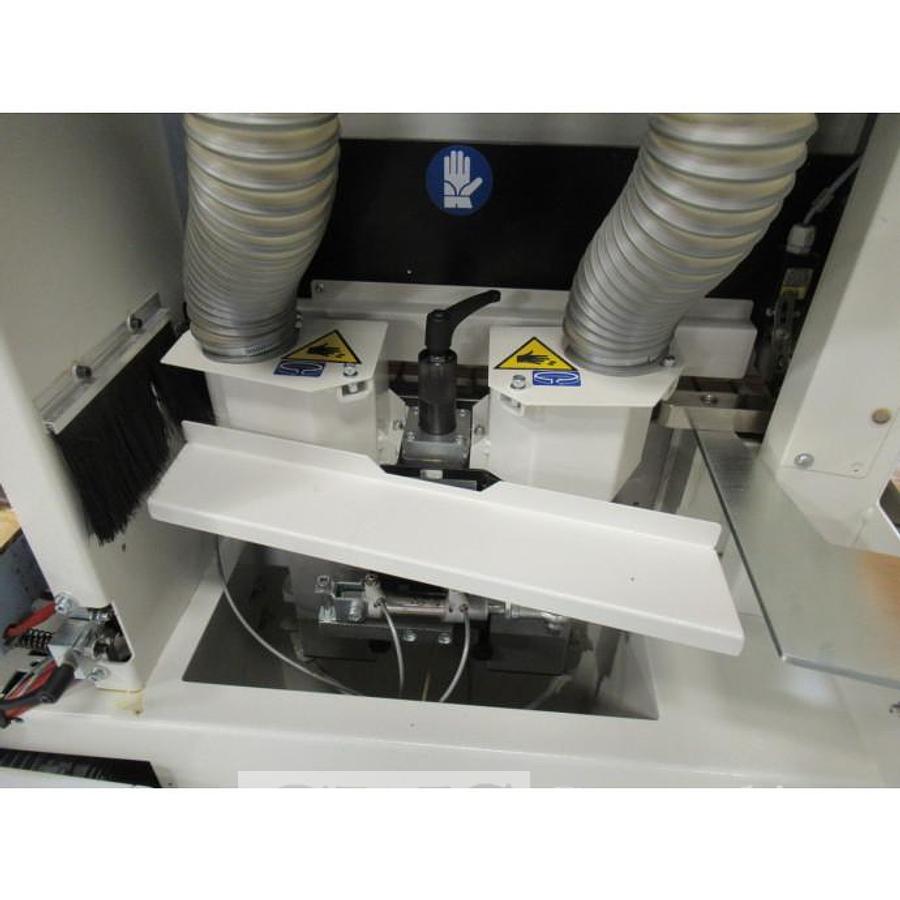

- (2) 0.25 HP motors for end trim with pneumatic tilt

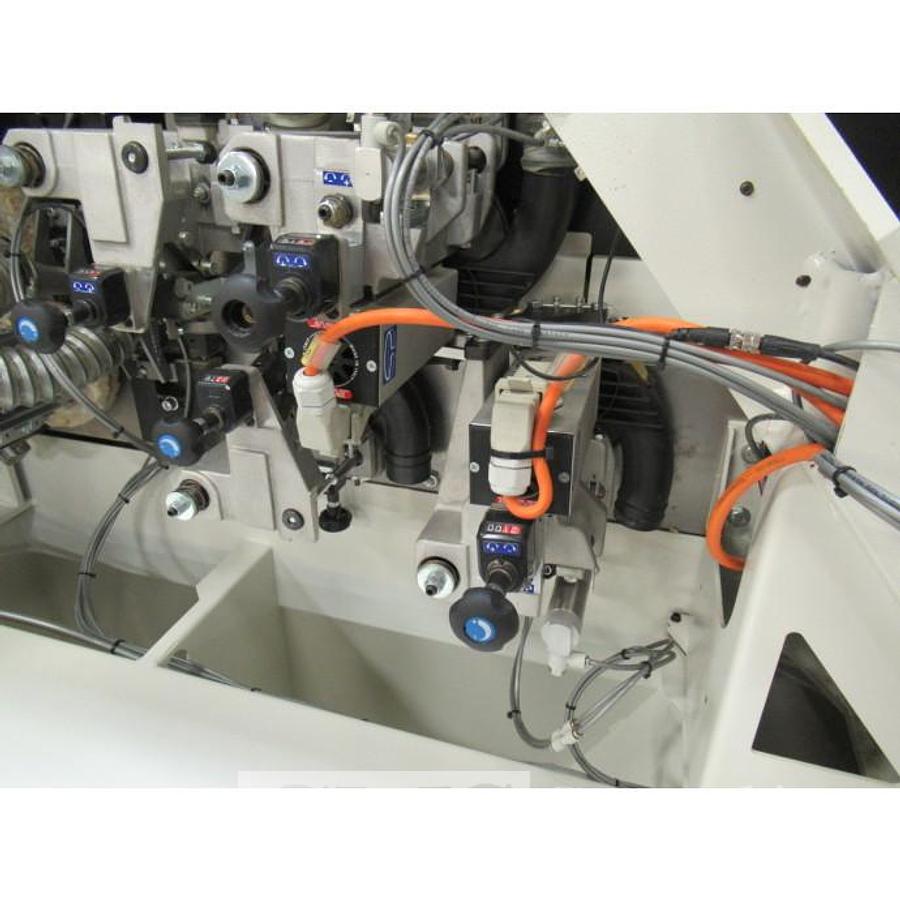

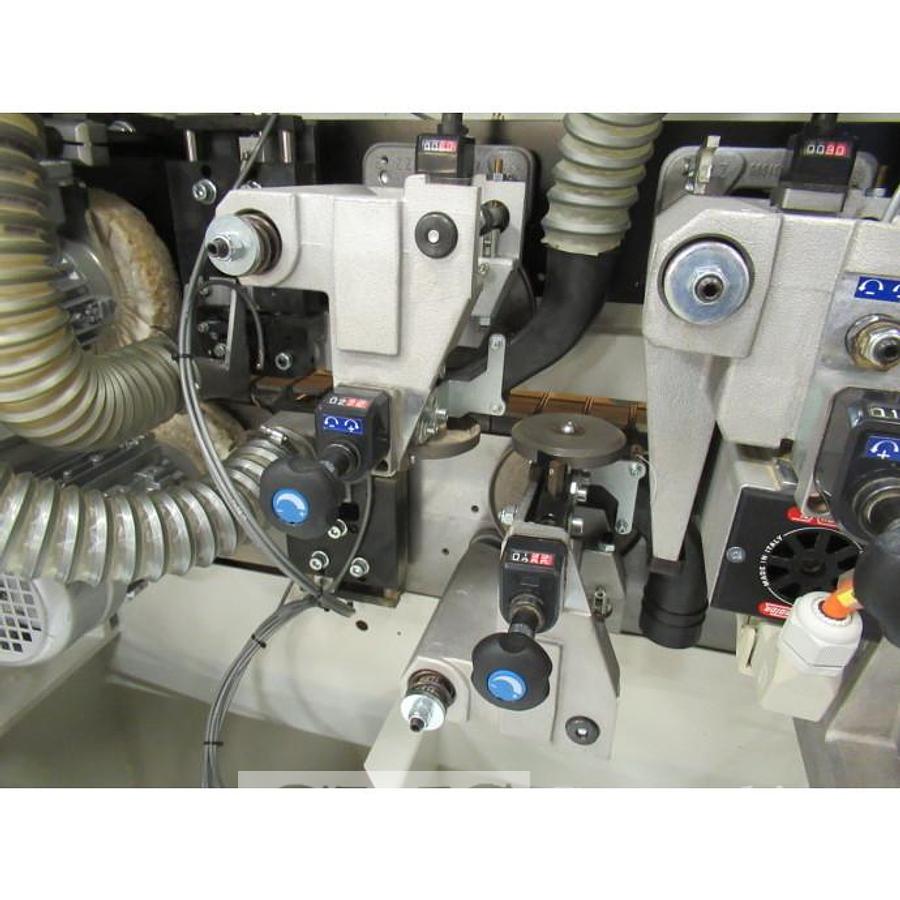

- (2) 0.7 HP motors for top and bottom trim with 3-position pneumatics to go from thin PVC, to 3mm, to solid wood; all through the controller
- Profile scraping station with pneumatic positioning
- Glue scraping station with pneumatic positioning

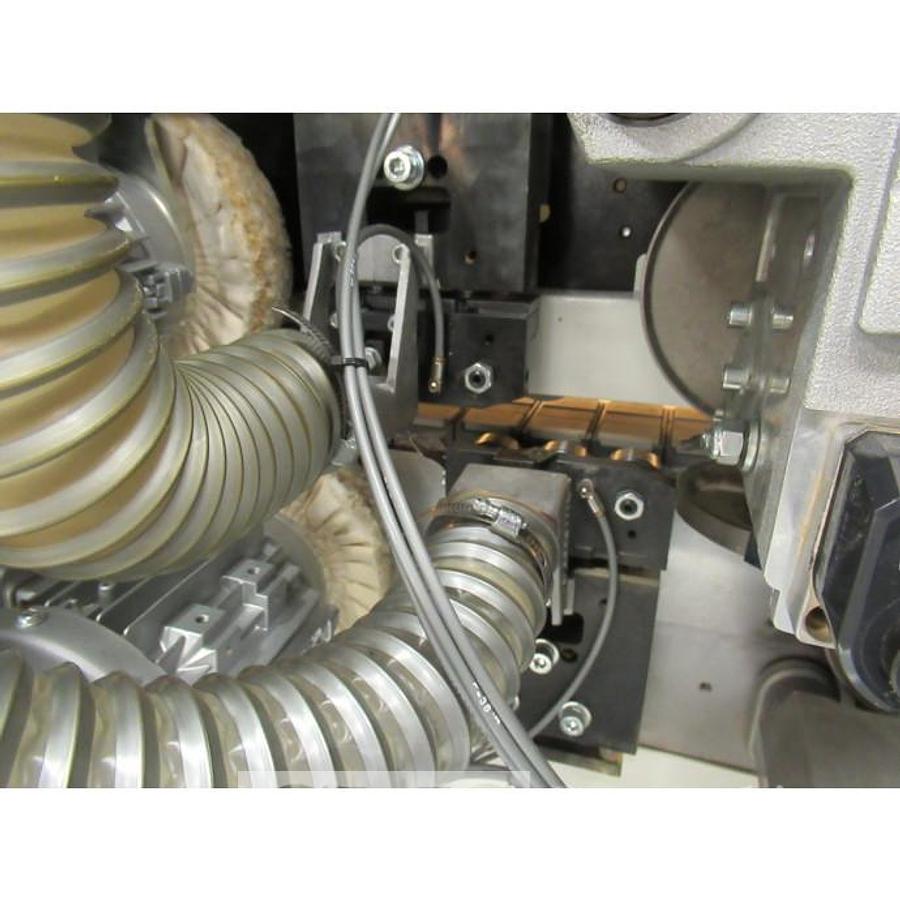

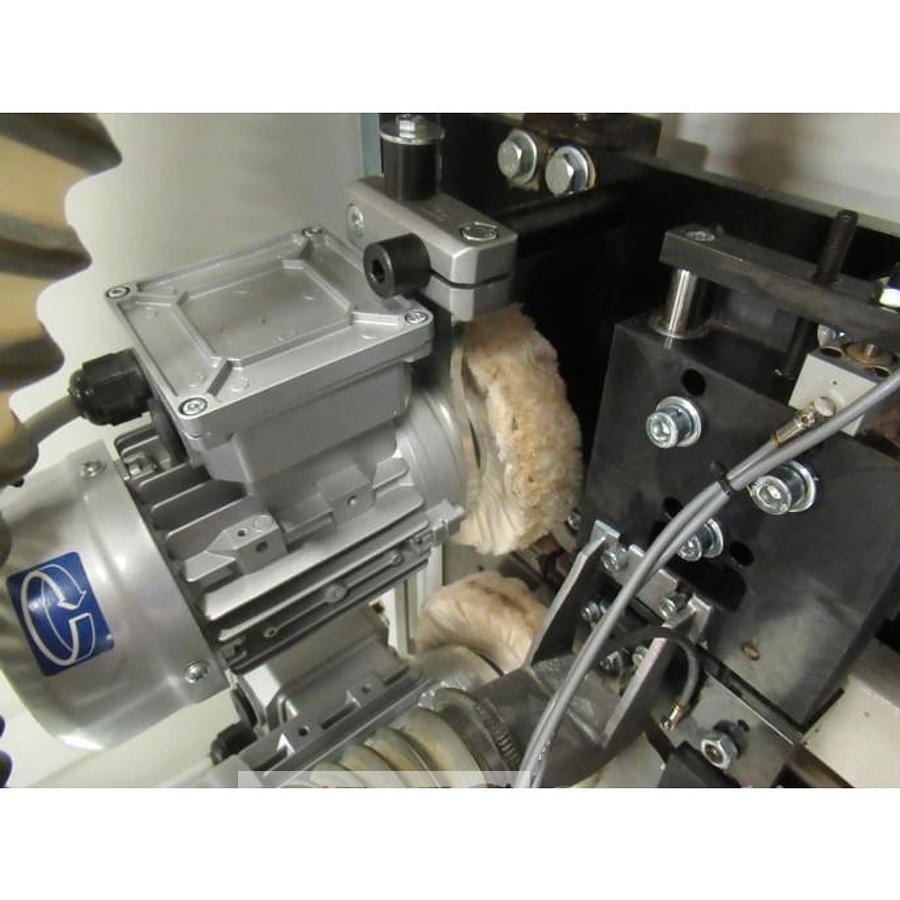

- (2) 0.25 HP top and bottom buffing, tiltable 0 to 15 deg.
- Acoustical safety enclosure
- Air requirements: 90 PSI
- Dust extraction: (2) 3” ports for premilling station, (2) 2” ports for the top and bottom trim station and (1) 3” ports for the 3 mm collection bin for extraction (recommend dust collector with 3000 cfm rating)
- Electrical requirements: 44 amps on 230 volt 3 phase
- Machine weight: 3,200 lbs.
