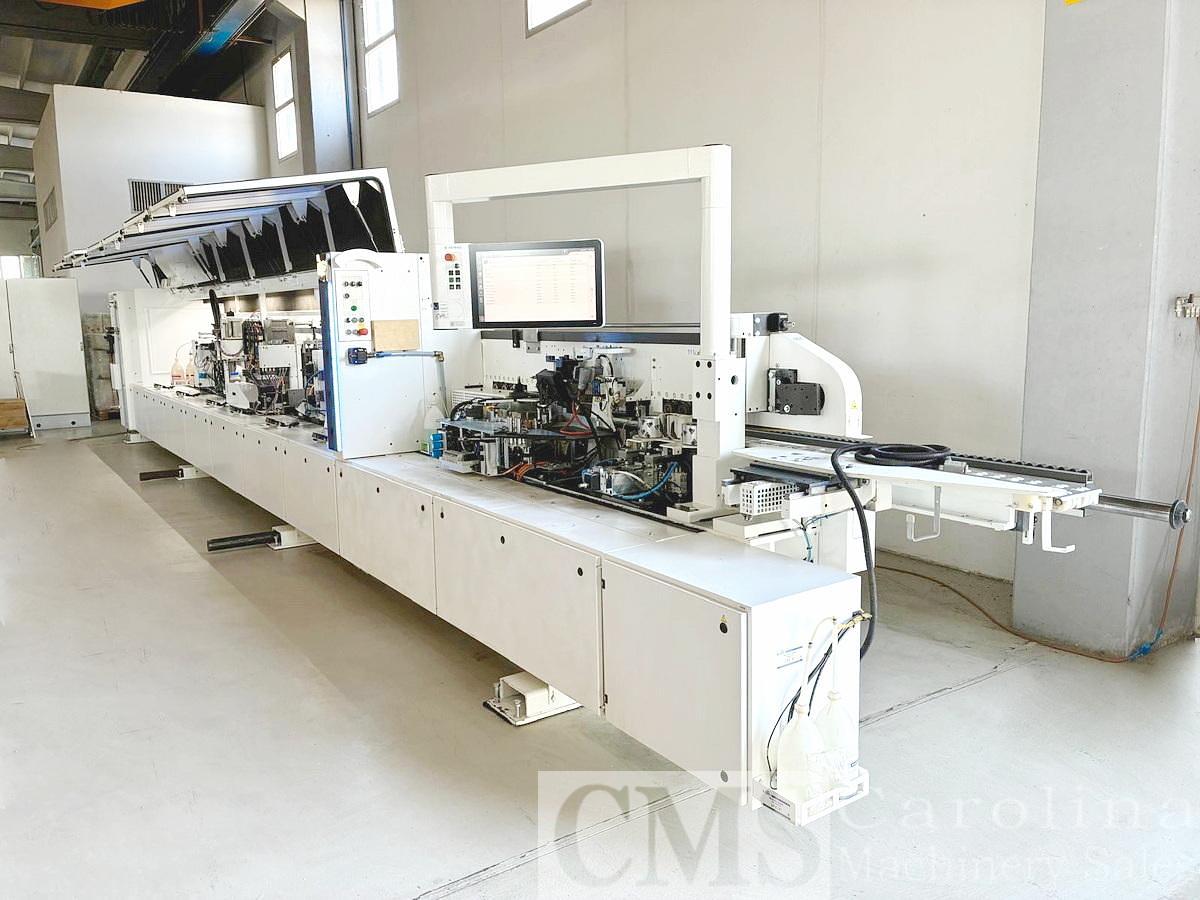

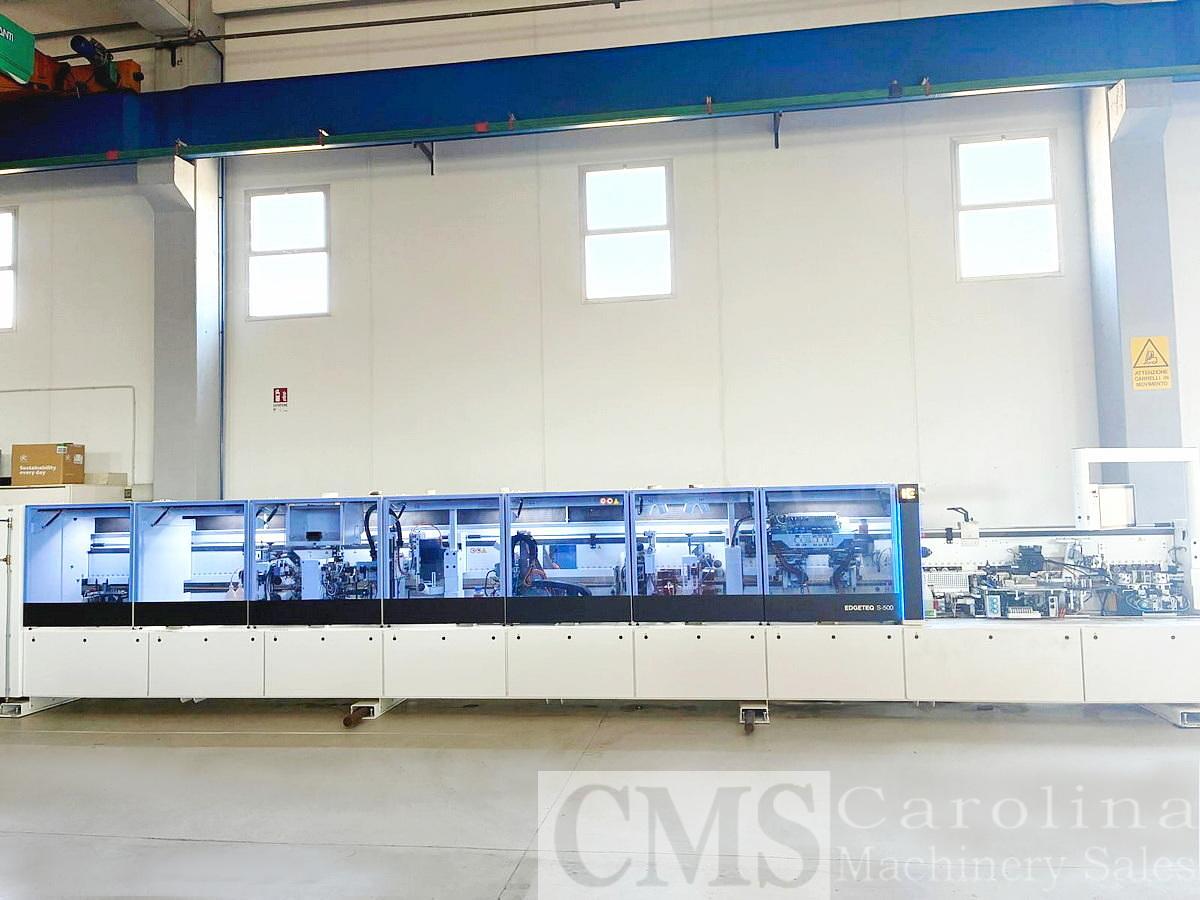

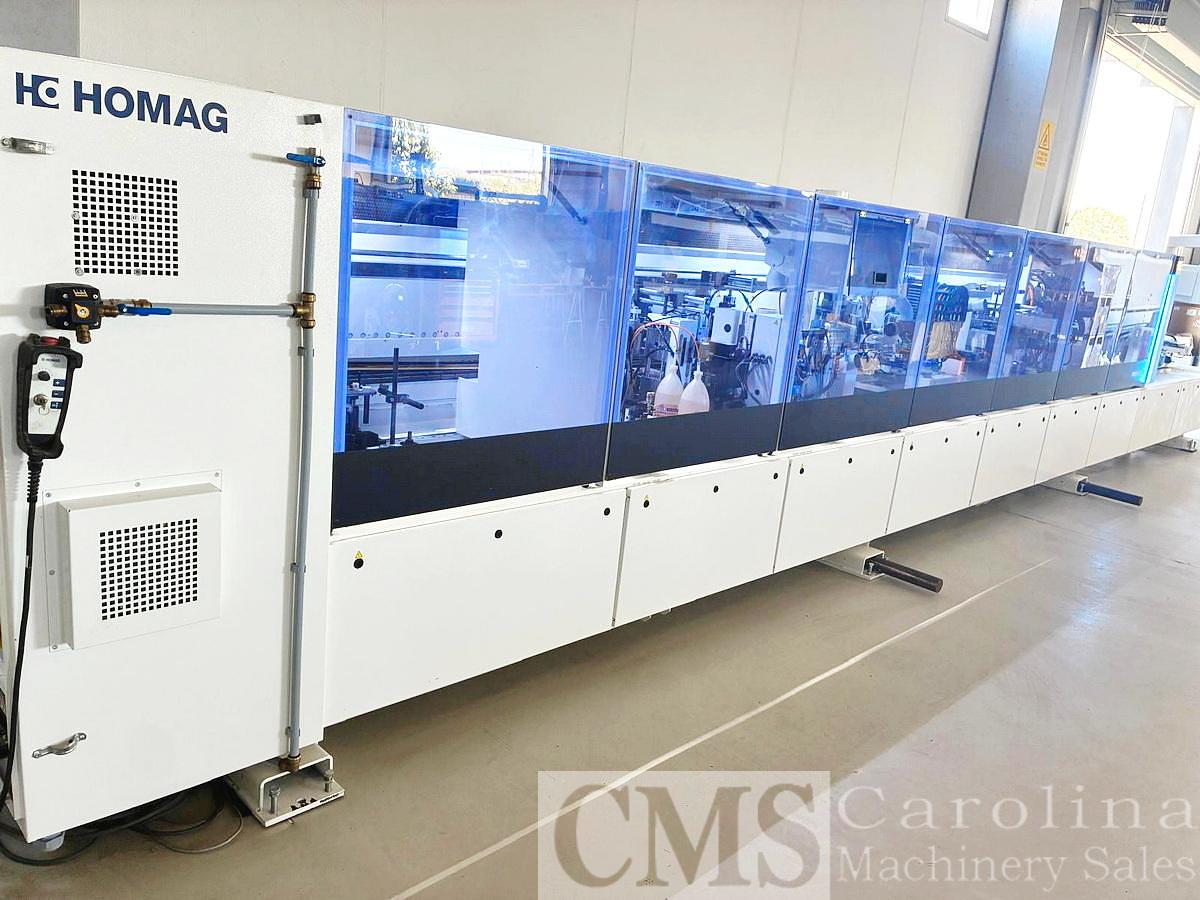

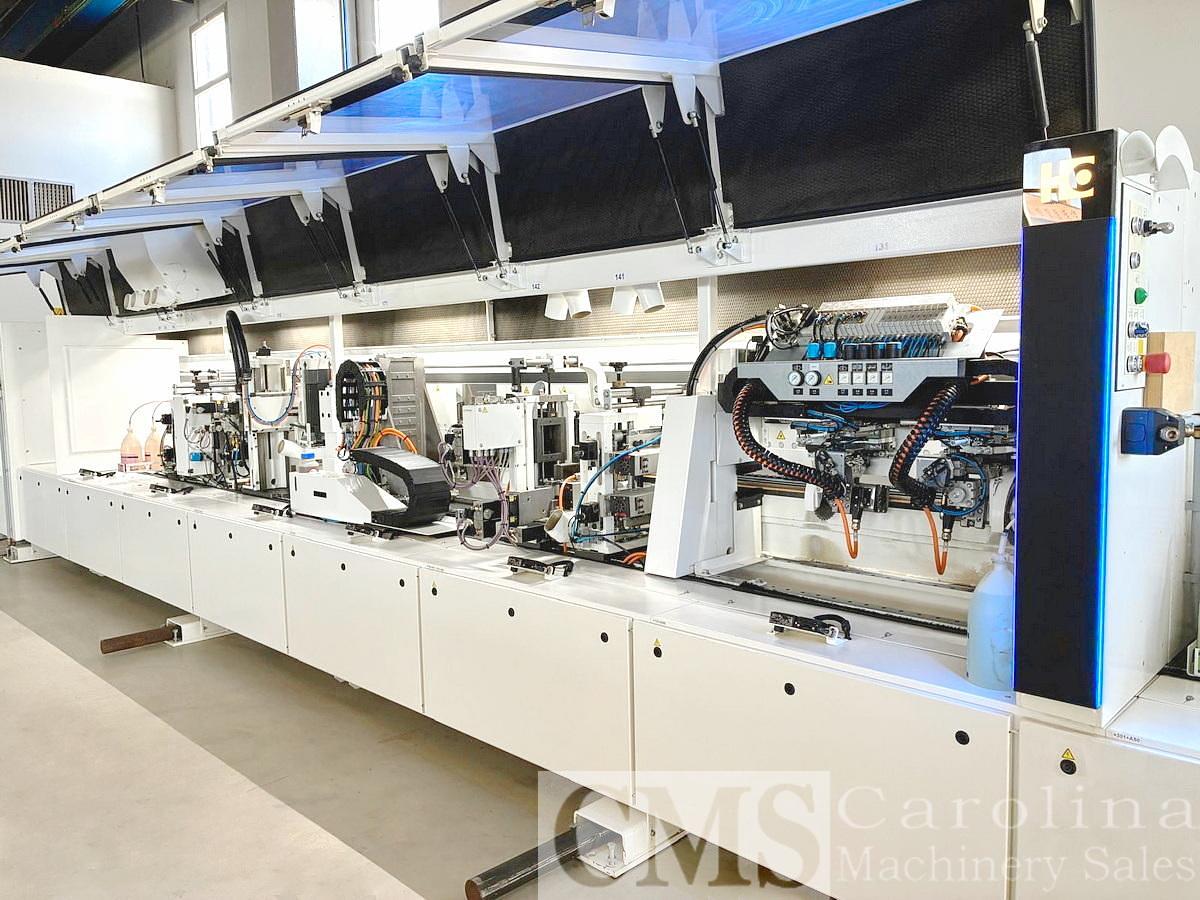

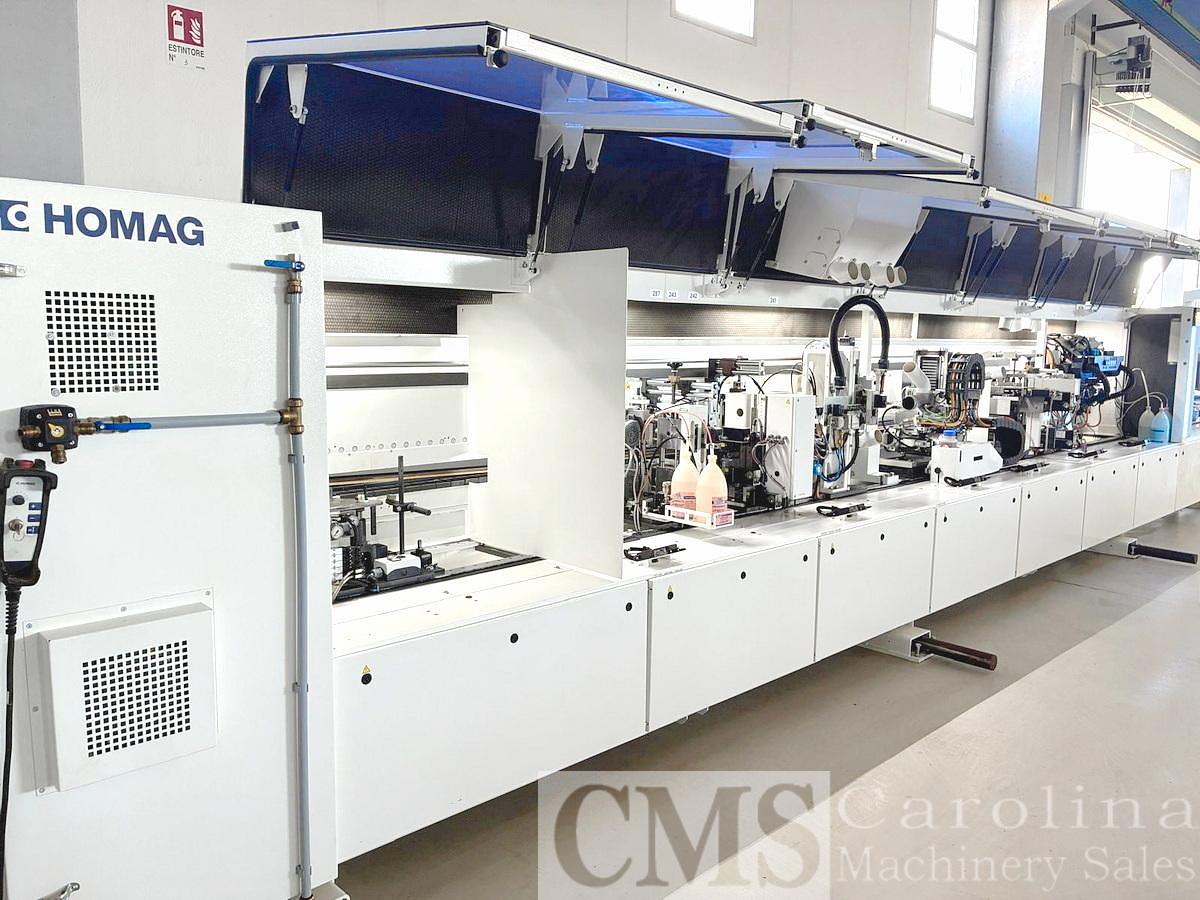

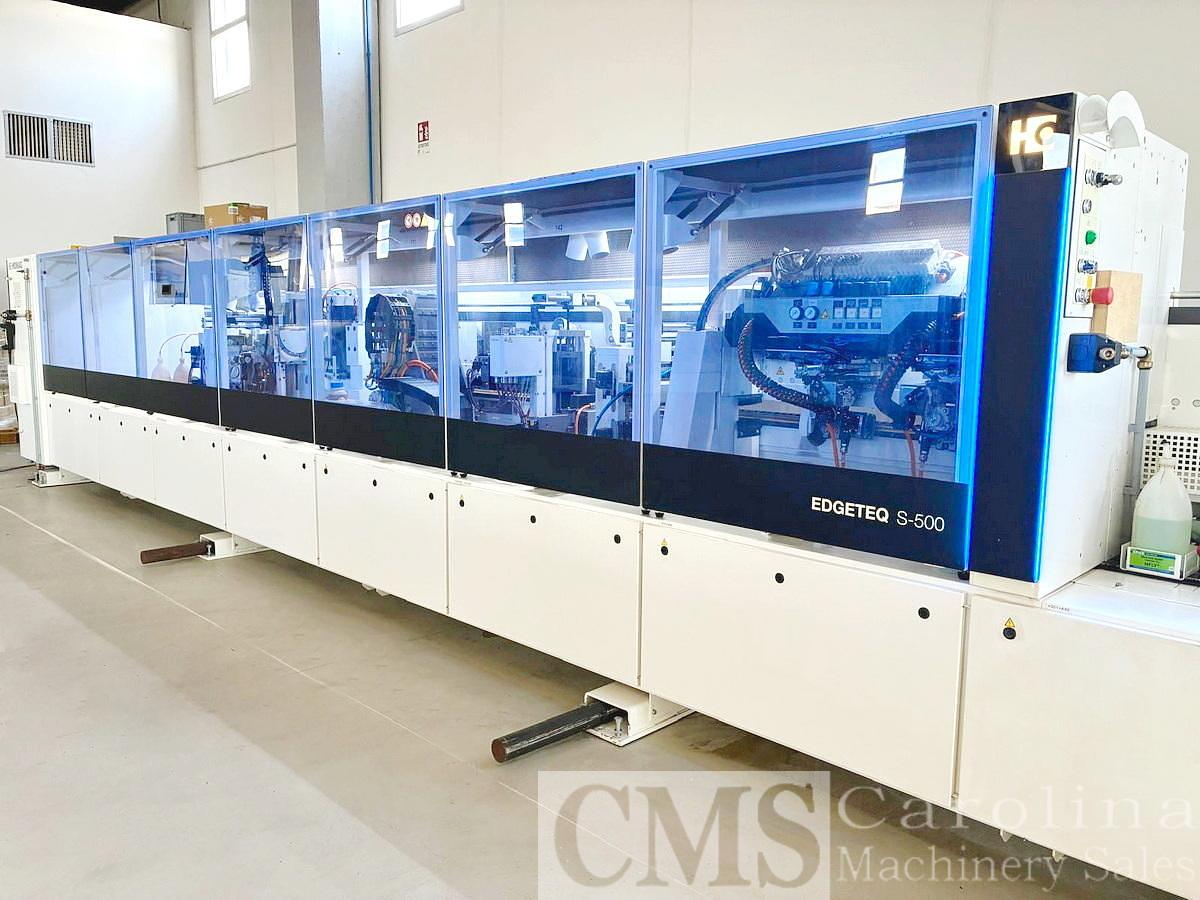

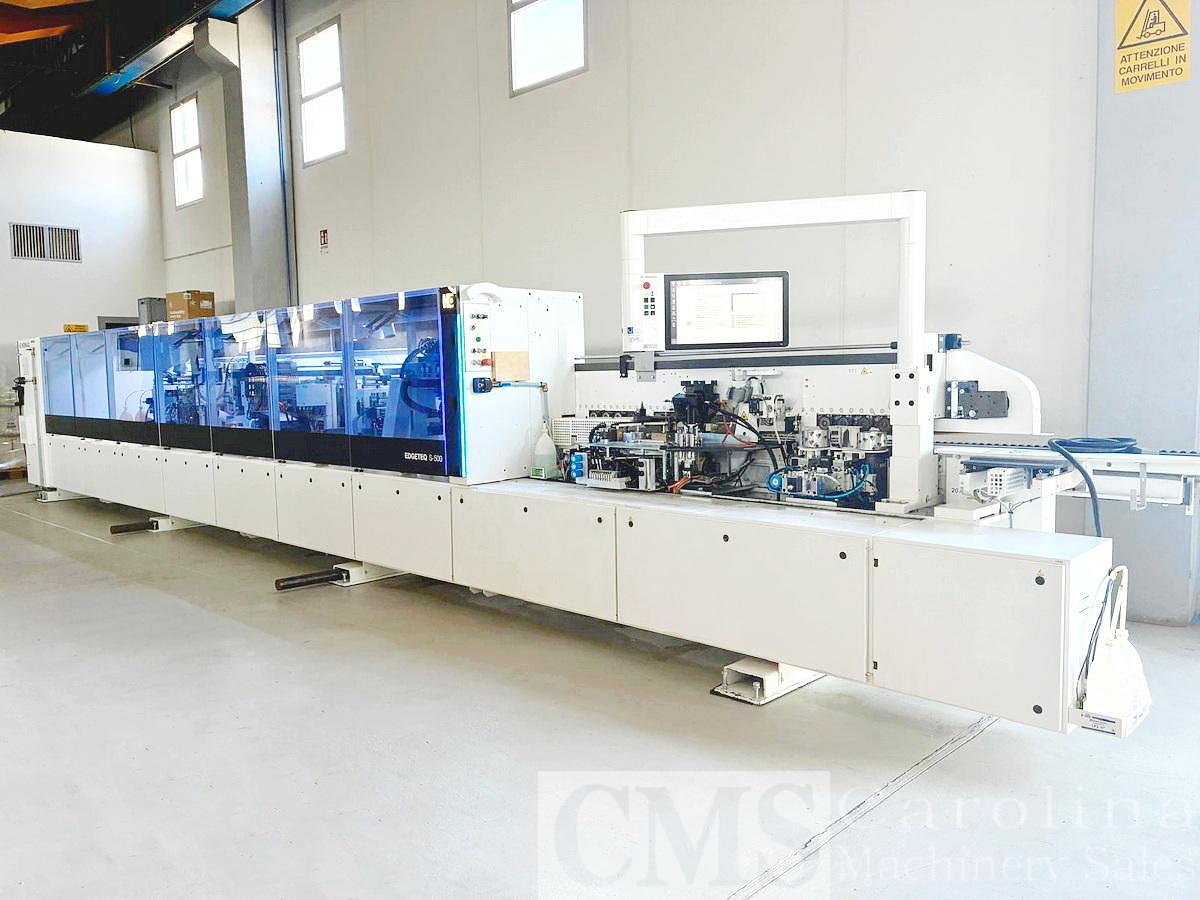

2019 Homag Edgeteq S 500 Single Sided Edgebander
or
Call 704-288-1904
Specifications
| Manufacturer | Homag |
| Model | Edgeteq S 500 Single Sided Edgebander |
| Year | 2019 |
| Stock Number | 012771 |
| Sales Rep Name | Mike Hawkins |
| Sales Rep Email | mike@carolionamachinerysales.com |
| Sales Rep Extension | 704-288-1904 ext 104 |
Description
SINGLE SIDE EDGE BANDER (Left)
- Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
- Edges thickness in strips / lippings (min/max) mm 0,4 / 20
- Panels thickness (min/max) mm 8 / 60

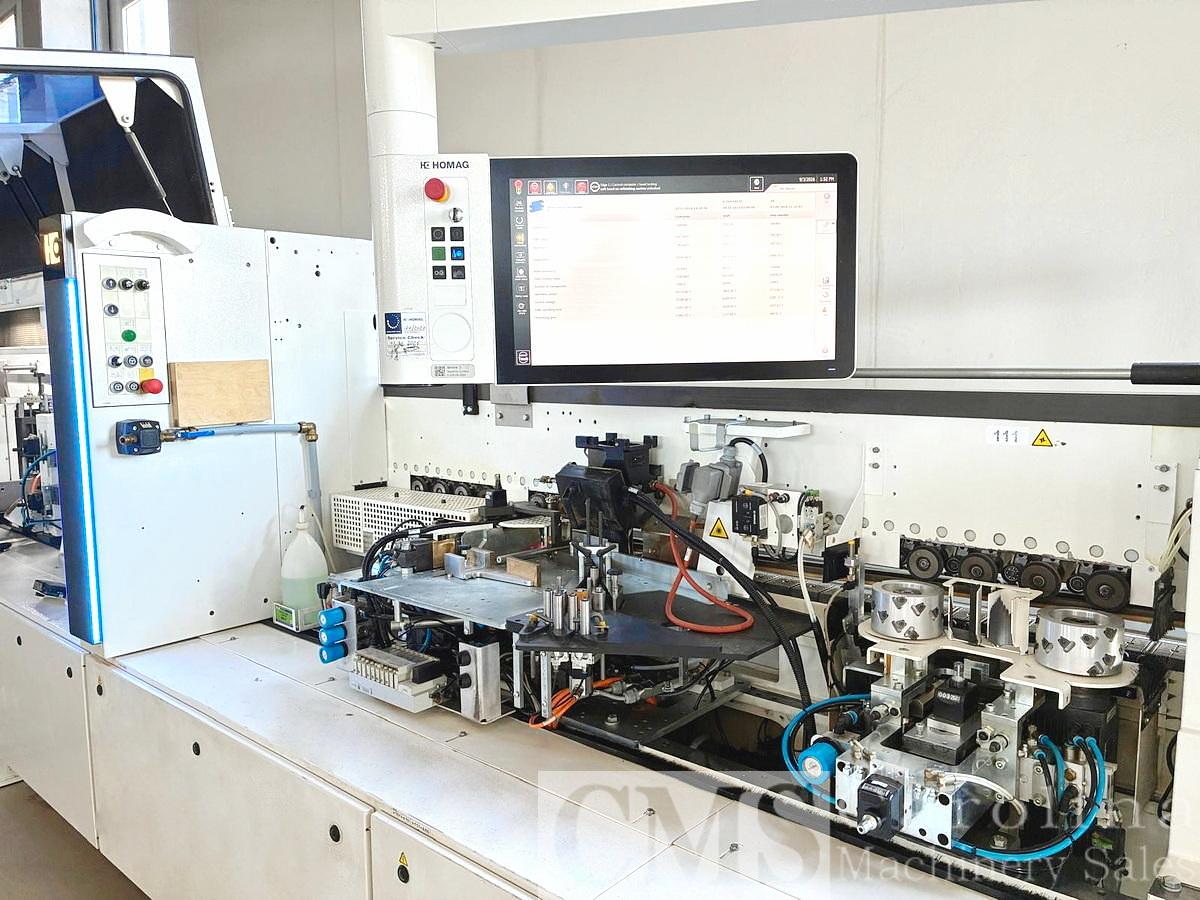

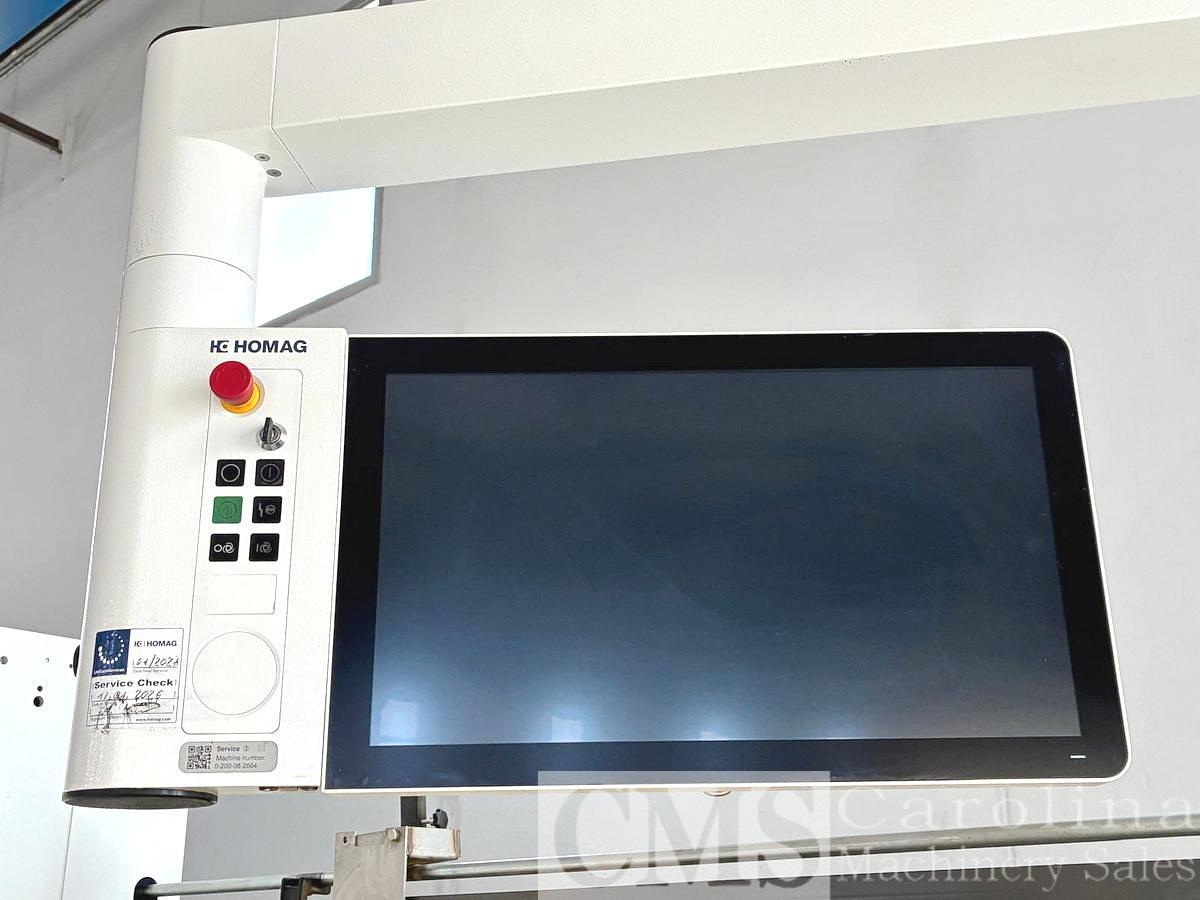

- Numerical Control POWER CONTROL PC23 Powertouch / WoodCommander (TAPIO Ready)
- Feeding speed m/min 16-25
- Top pressure system with rubber belt
- Spraying unit (Anti-sticking liquid)
- In-feed fence, adjustable by N.C.
- Pre-milling Unit (vertical joint trimmers) 2 x Kw 3
- Lamps to heat the workpieces side
- Glueing Unit (Hot Melt + Quick Melt Unit) FE-MA-TECH + QA/PU + PU65
- Band Pressure zone (N.C. adjustment) "C 7"
- Edge coils supporting unit (No. 2 reels) with SERVO-control edge feeding
- Snipping (end-cutting) unit PK 25 (2 x Kw 0,8) max 25 m/min
- Rough Trimming unit BF20 (2 x Kw 1,5)
- Fine Trimming unit (Multiprofile) MF21 (2 x Kw 0,55) swevelling 0°-20°
- Multi Function Unit (Profile contour Trimming unit) FK 30/V20 (1 x Kw 0,7) adjustable by NC
- Milling-grooving units SF 21 (1 x Kw 5) 0°-90°
- Profile edge scraping unit MN 21 (Multiprofile, by N.C.)
- Glue scraping Unit FA 20
- Buffing unit FA06 (2 x kW 0,18)
- Free Space
