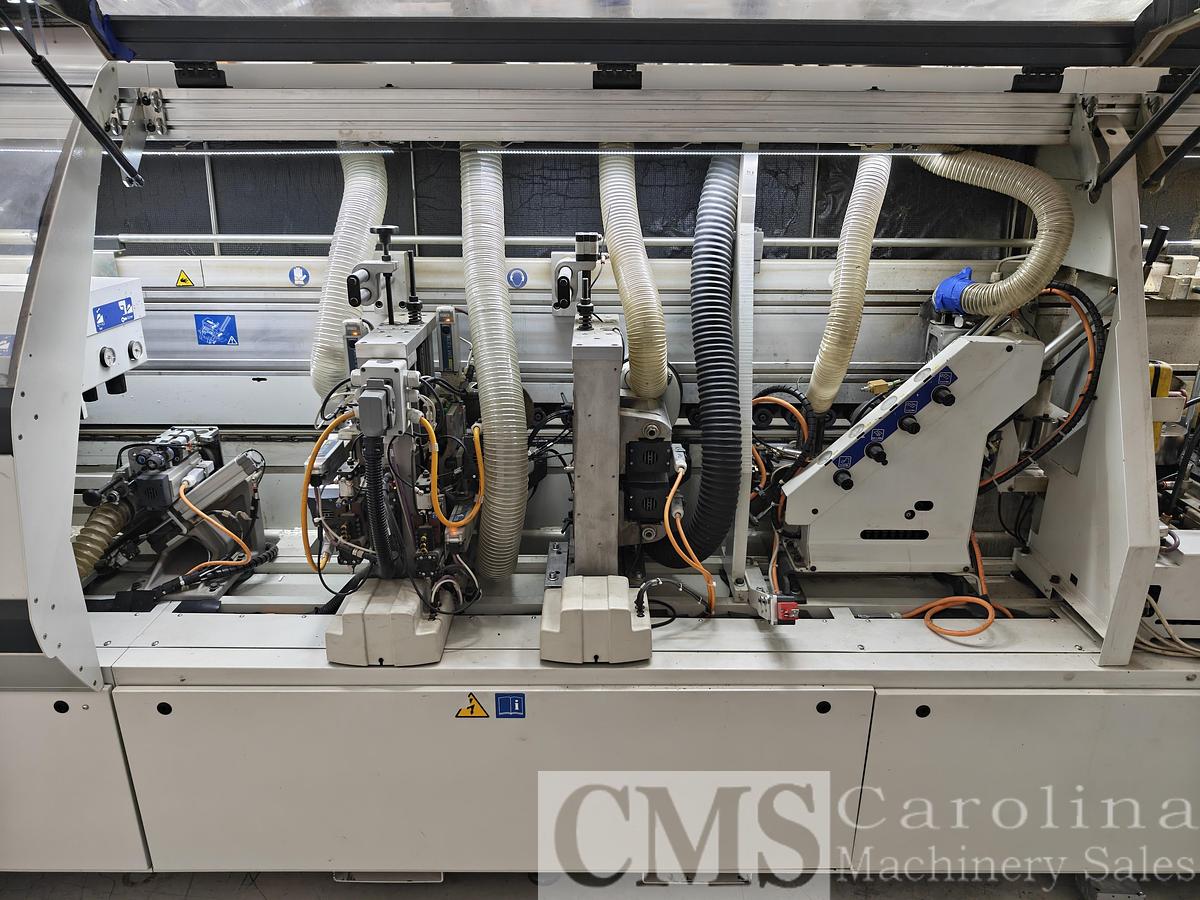

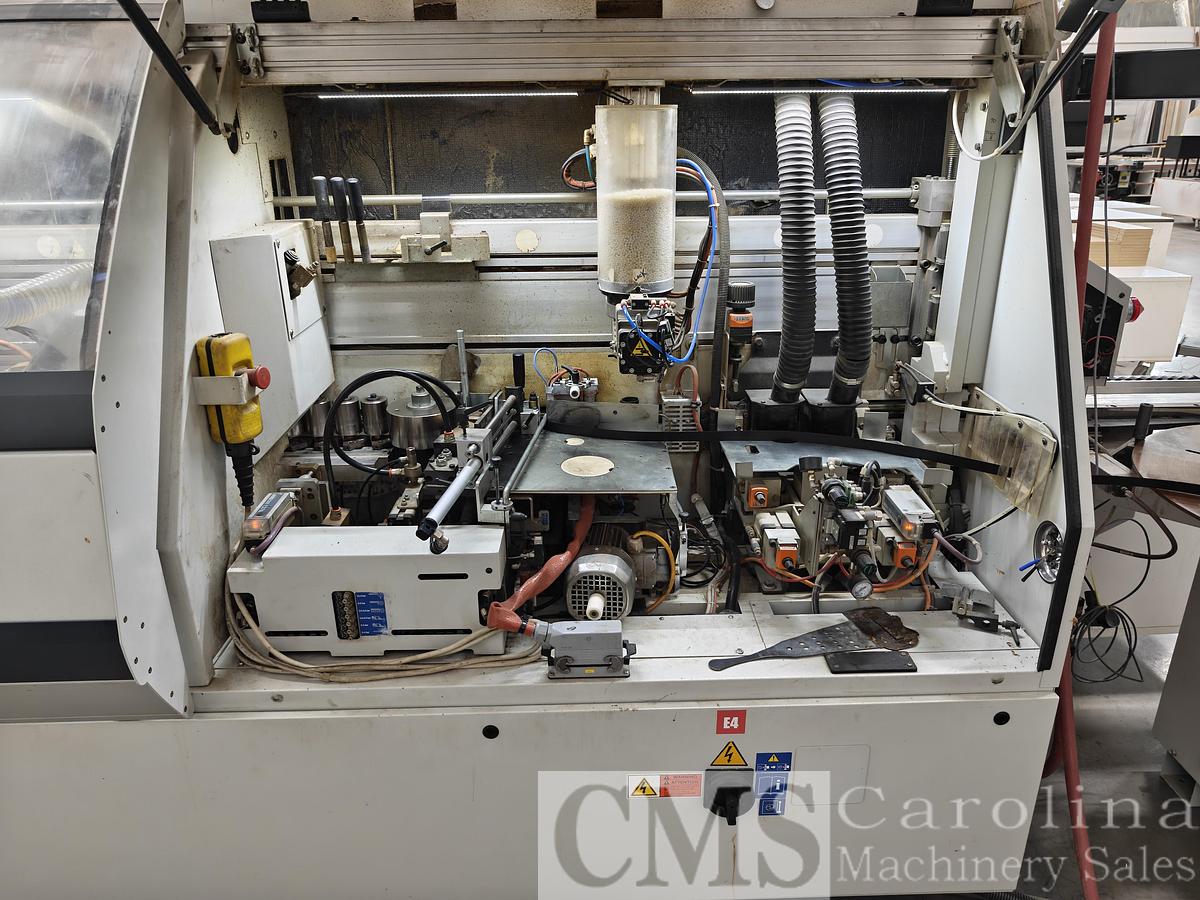

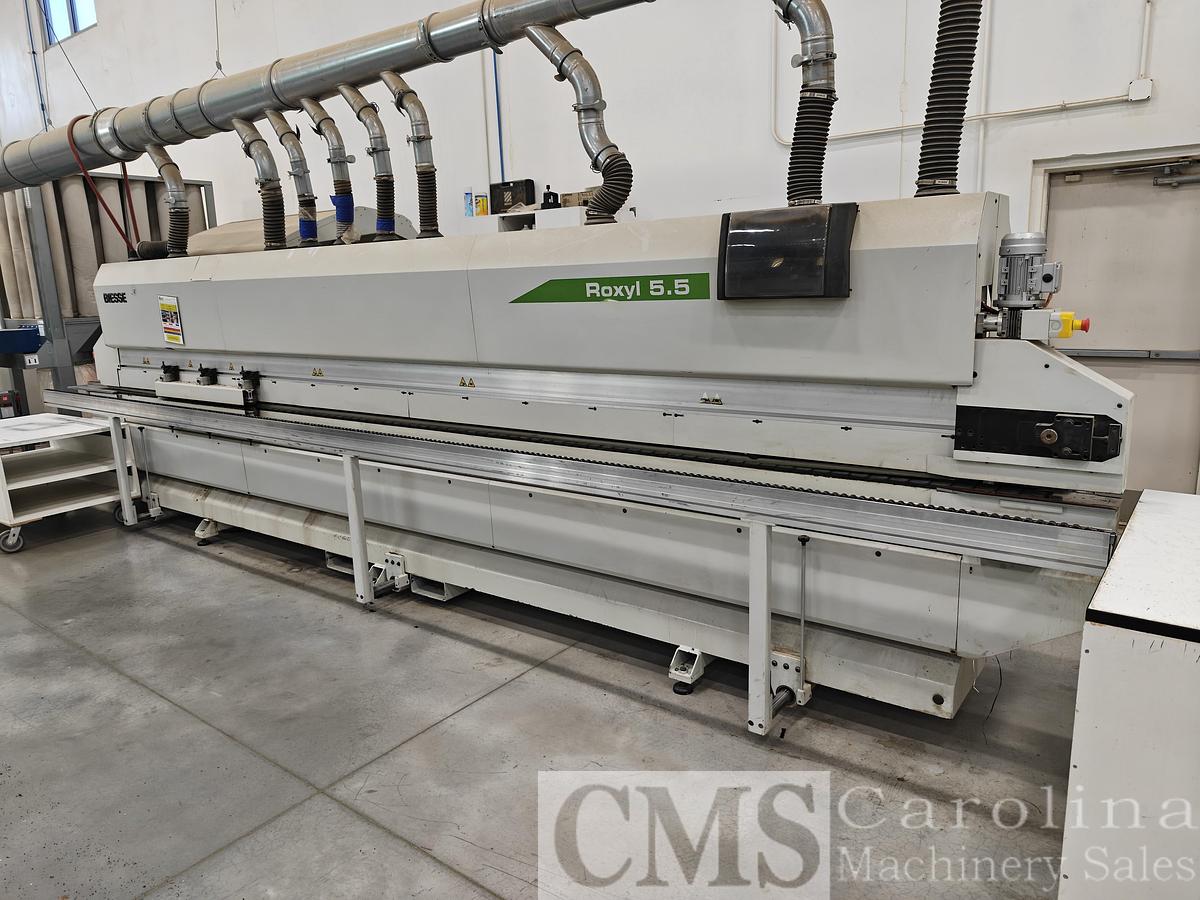

2015 Biesse Roxyl 5.5 Single Sided Edgebander

Capacity;

• Edge thickness; strips (0.4 - 22mm)
• Edge Thickness; coiled stock; (0.4 - 3mm)
• Panel thickness; 10 - 60 mm (0.39 - 2.36")
• Work piece width min.;85 mm (3.34")
• Work piece length min.; 140 mm (5.51")
• Feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM)
• Machine Layout
• Motorized top beam positioning
• Adjustable infeed fence
• Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning.
• Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion

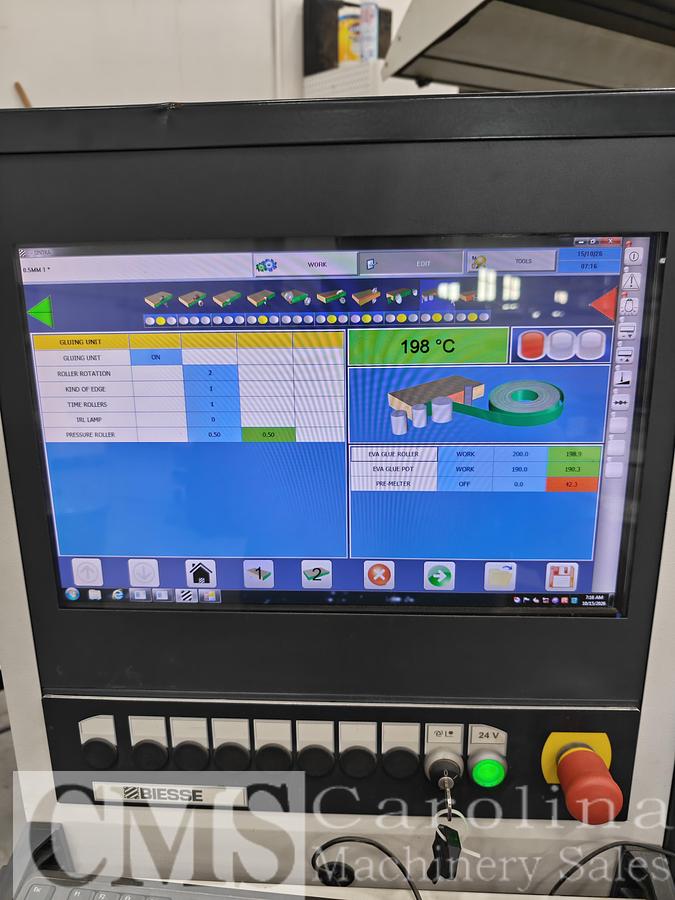

• EVA (Hot Melt) gluepot, equipped with quick pre-melting
• 2 Coil Magazine
• Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.

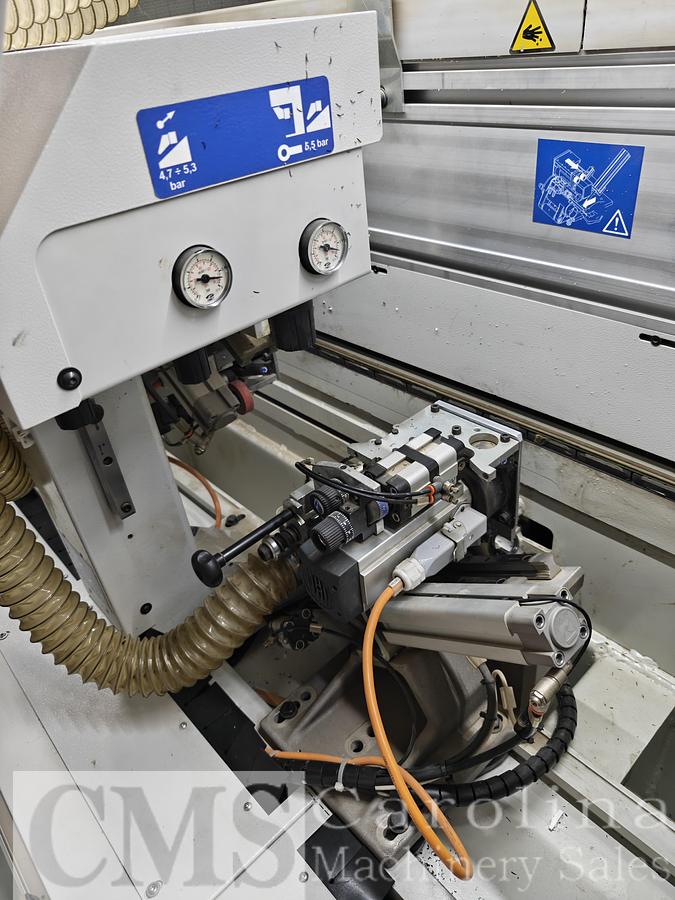

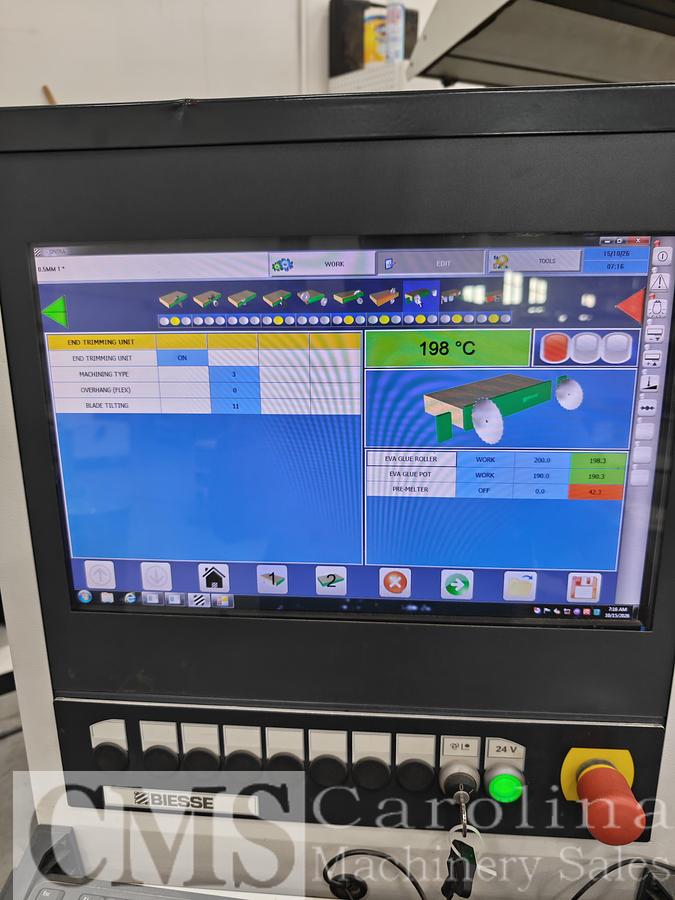

• End Trimming; Front & rear trimming motors, swivel to 0° - 15° bevel, programmable pneumatic change

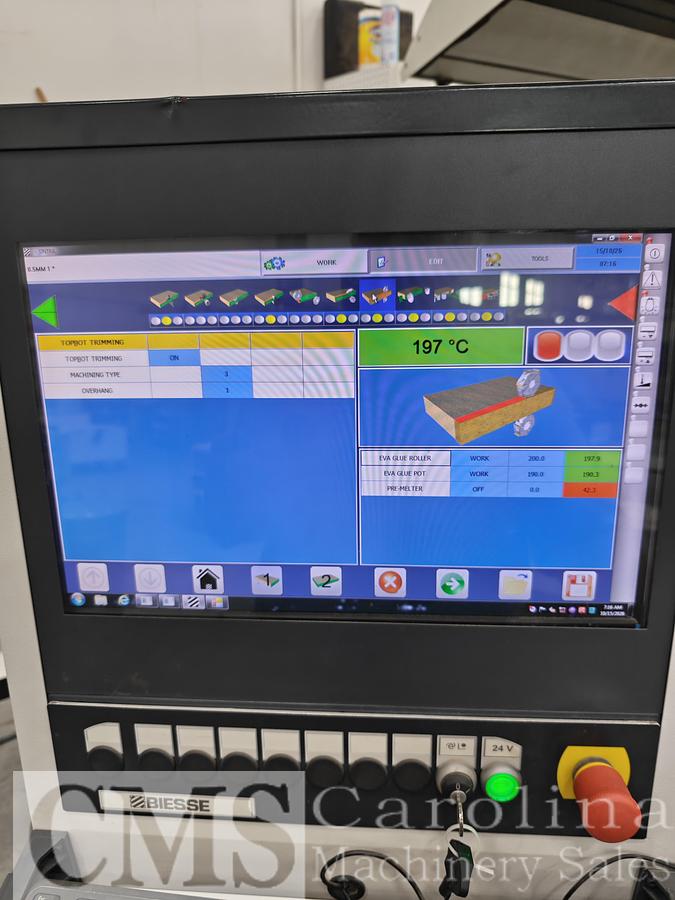

• Rough Trimming (first set);  Top/Bottom pre- or flush trimming motors

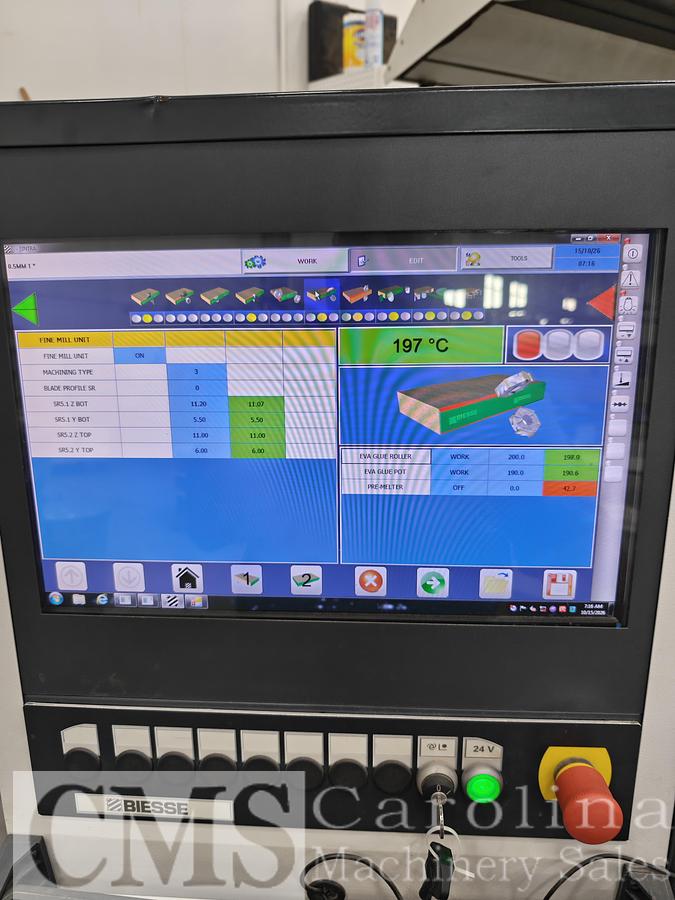

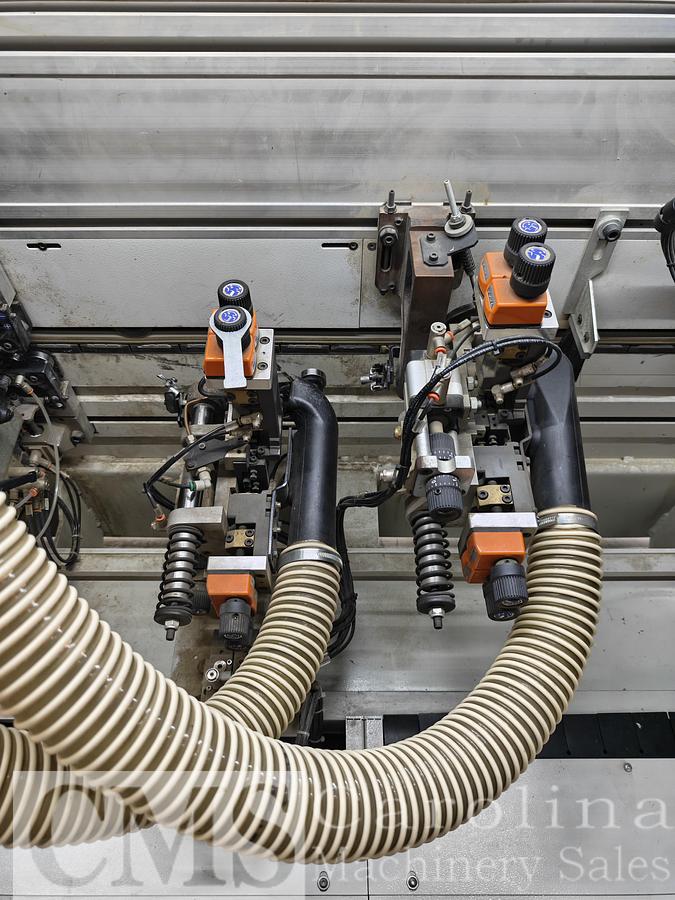

• Fine Trim/Bevel/Radius Trimming; Servo controlled, pneumatic pre-positioning of motors

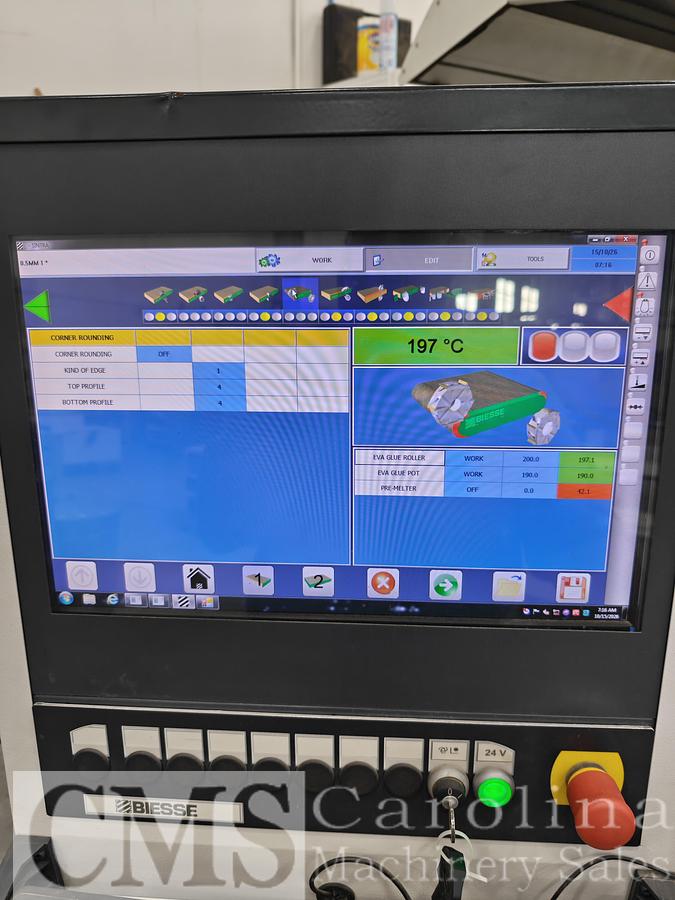

• Corner Rounding; (2) Motor corner rounding

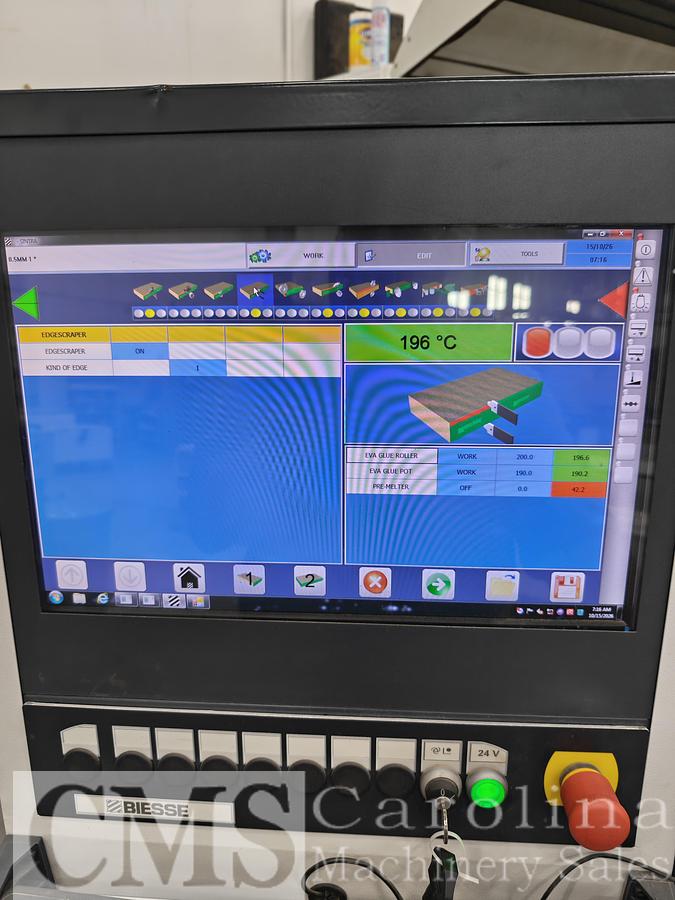

• Profile Scraping; Top/Bottom 2-axis NC programmable knife positioning
• Glue Scraping; Flat, top/bottom, digital positioning indicators, pneumatic controlled positioning
• Buffing; Top & Bottom buffing motors with 150 mm (6") cloth buffing wheel. fully adjustable

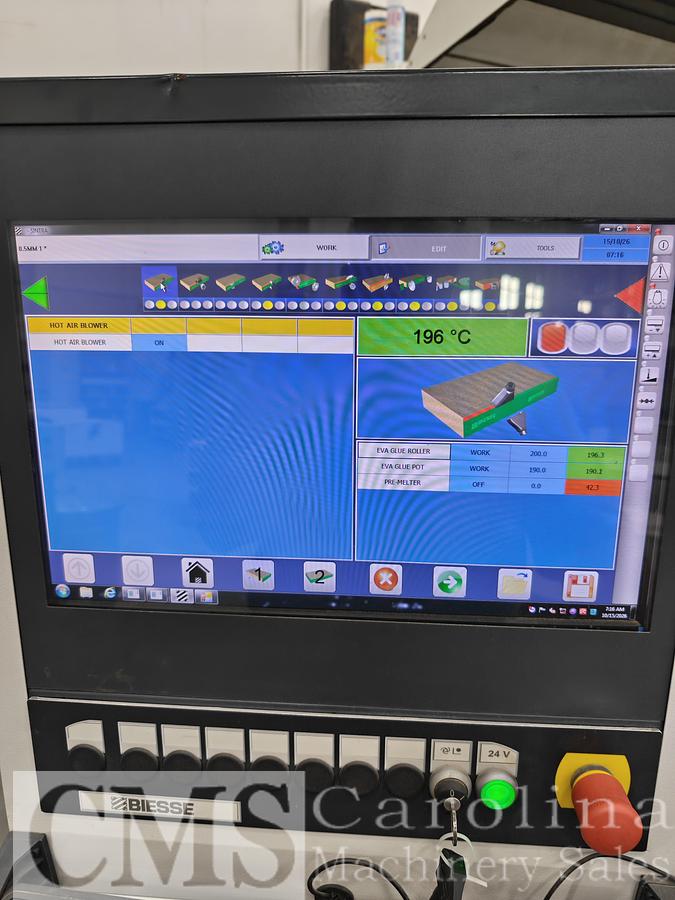

• Hot air blowers
• Overhead belt hold down
• Centralize lubrication system
