2019 Alpha Brush Alpha Brush Infiniti 3S-1000

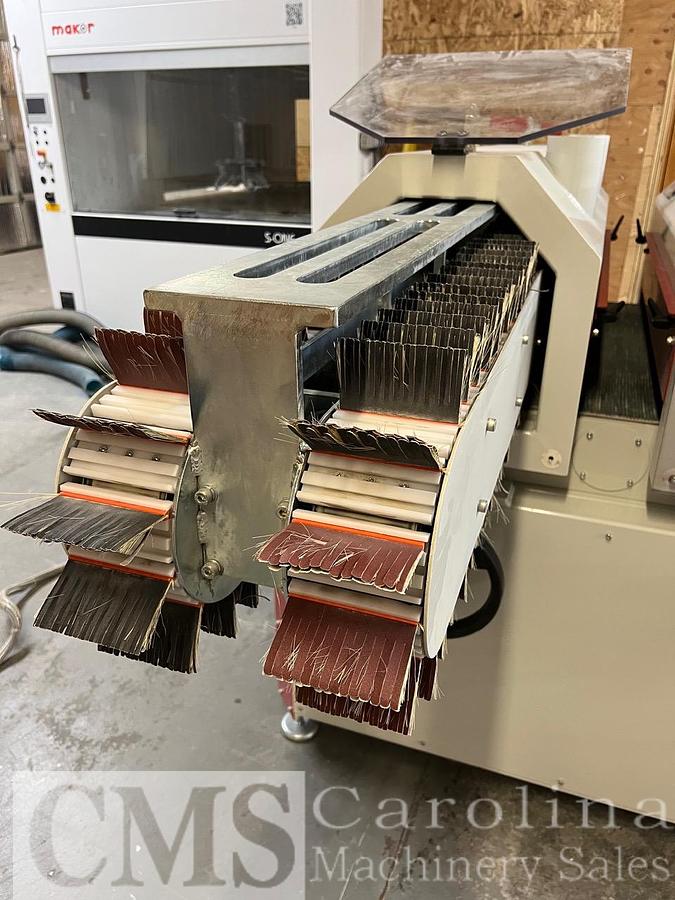

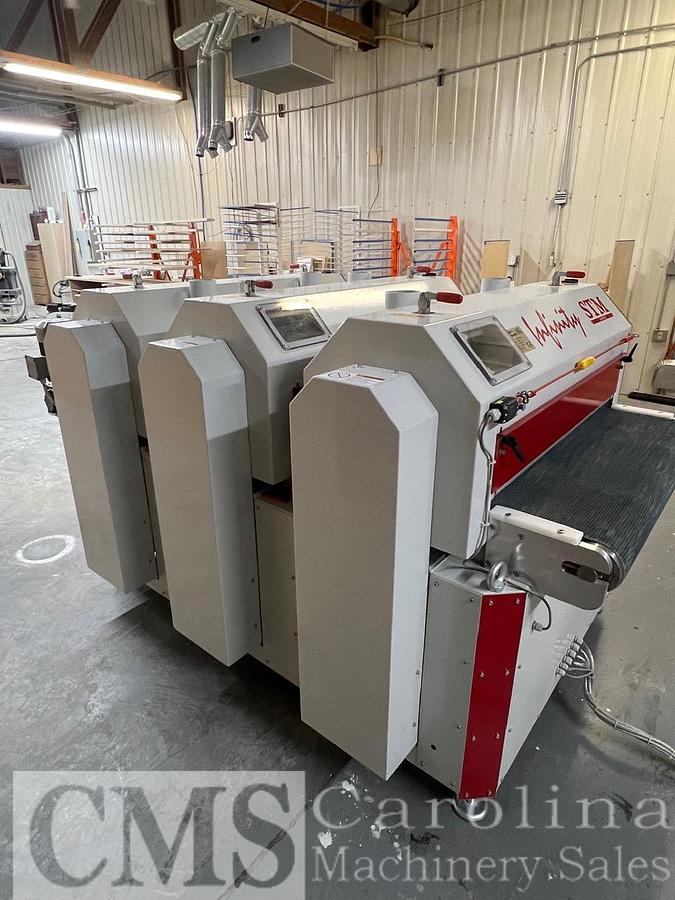

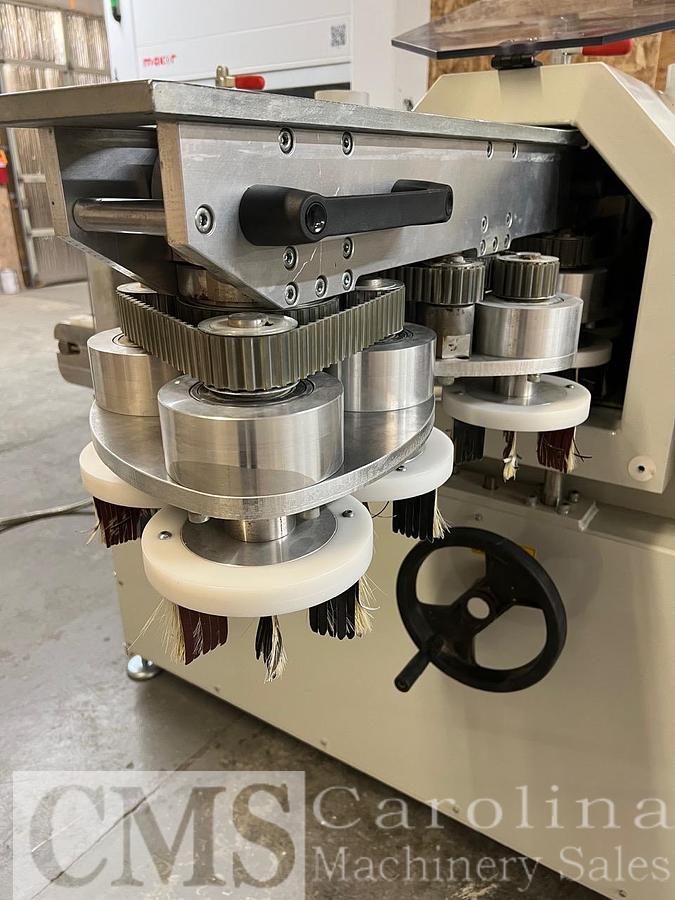

The Infinity machine is the perfect solution for custom size production. It is built with heavy duty motors, components & frame designed for years of demanding use & can be used in the wood, metal, plastic & composite industry. The machine is designed with an interchangeable system, that will allow fast changing of the different units for different applications. The different units are easily changed by lifting up the front cover, then lifting the two handles on top & slide the unit into a trolley for easily moving or storage.

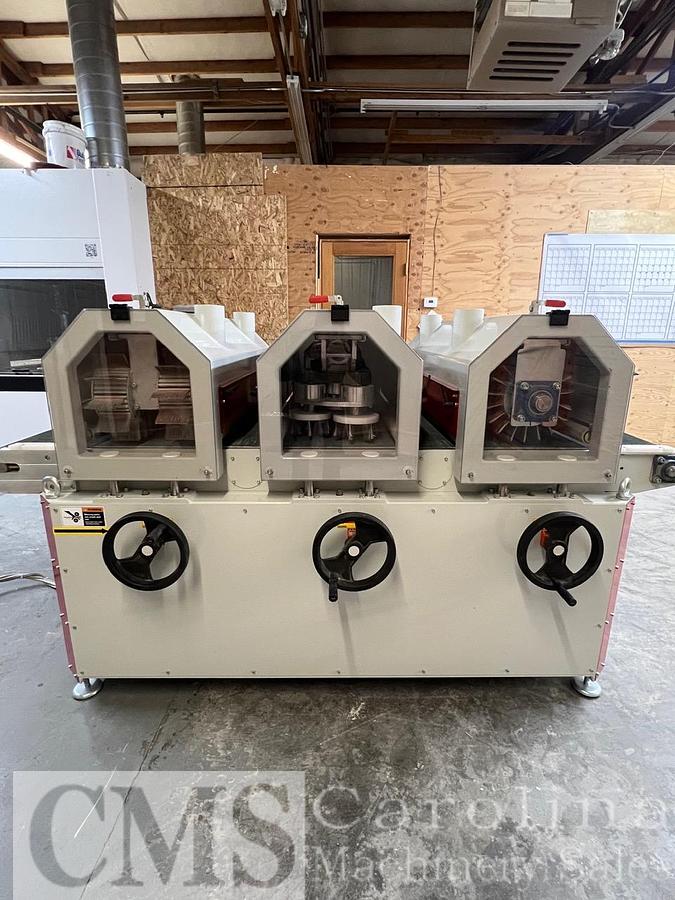

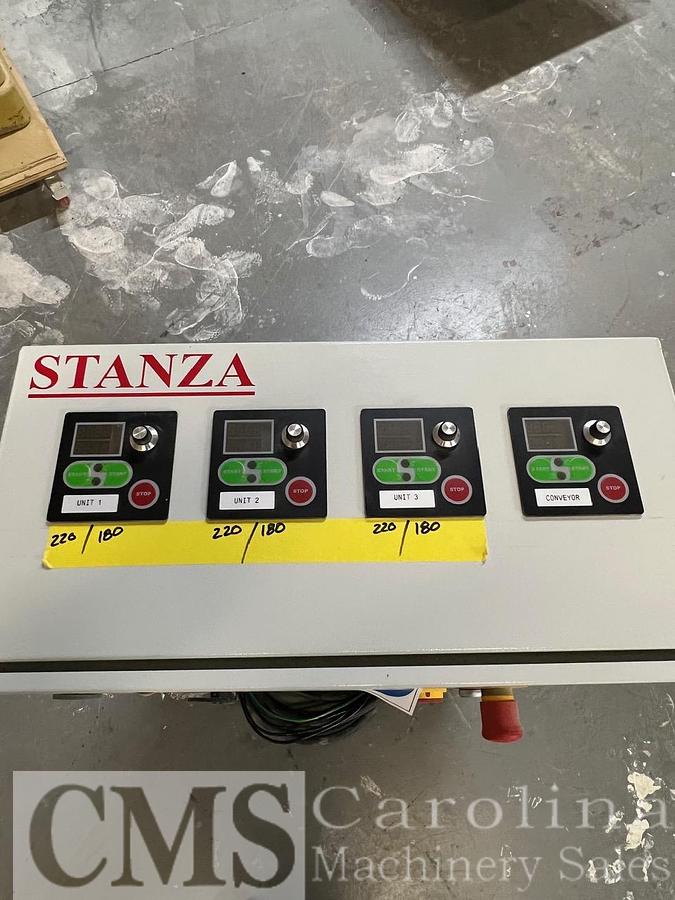

The machine has separate adjustable speed control for each unit as well for the conveyor. The height adjustment is done by turning a hand-wheel & measured down to 0.1 mm with electrical SIKO counters. (Can be set to US or Metric). The machine is already prepared with vacuum table outlet so an external vacuum fan can easily be connected.

• Part Thickness 6-100mm (.25-4”)
• Part Width (up to) 1000 (40")
•  2,2 KW motors for sanding media ( Variable speed 100-700 rpm )

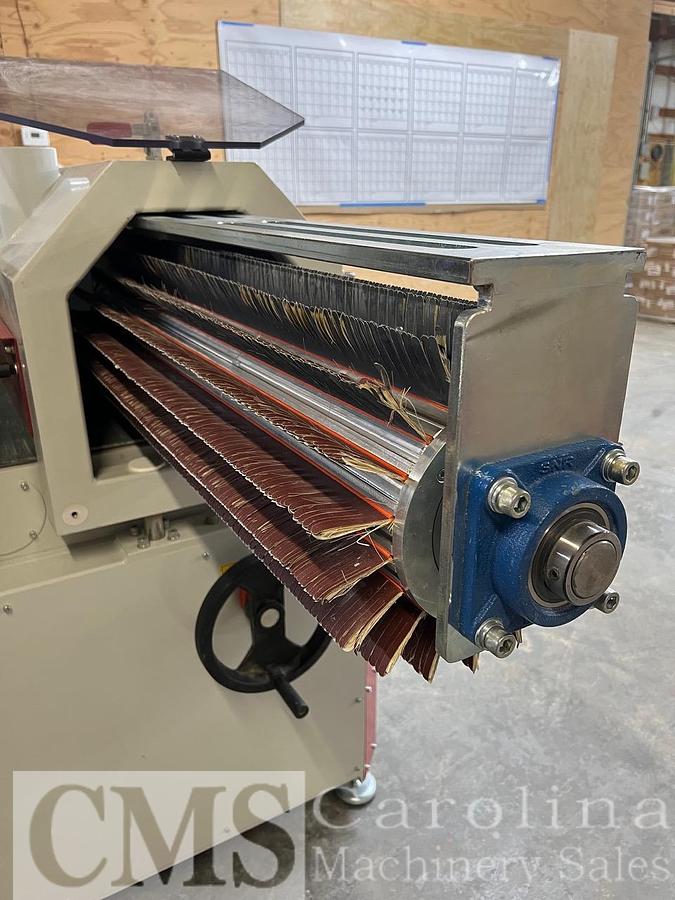

• Easy changing of abrasives.
• 0,75 kw Conveyor Motor
• Heavy duty construction
• Digital height readout
• Machine Dimensions L: 2350mm x W: 1450mm x H: 1375mm (93” x 57” x 54”)

Recently replaced the sandpaper with 180 and 320 grit sandpaper.
