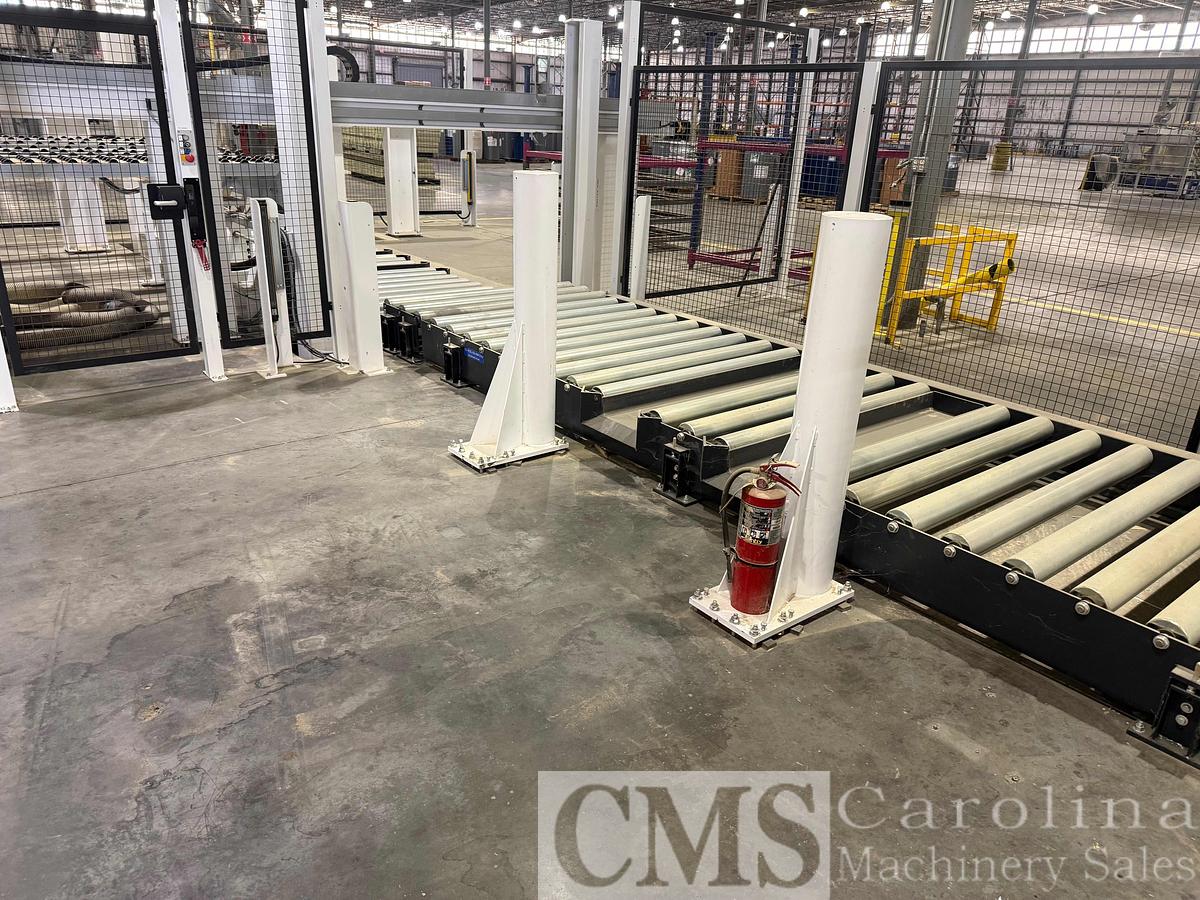

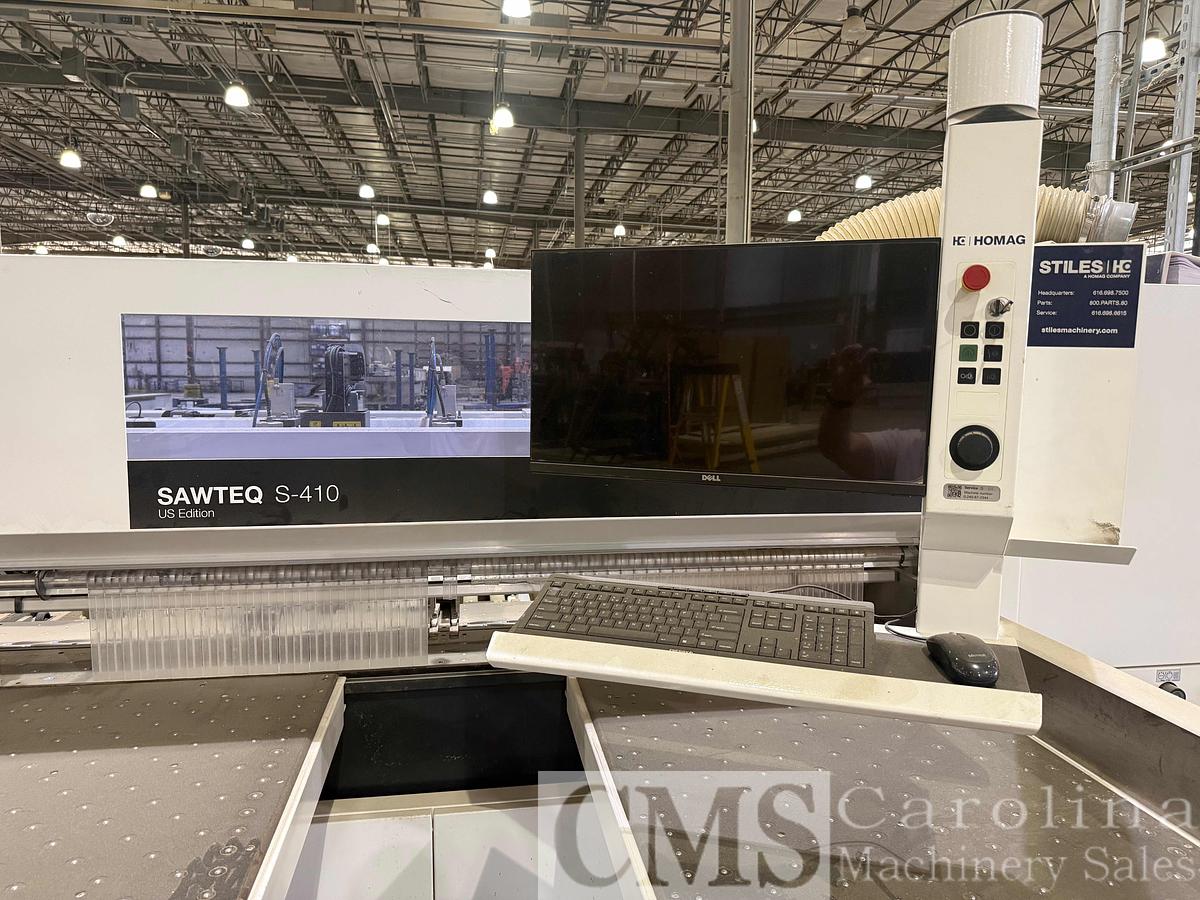

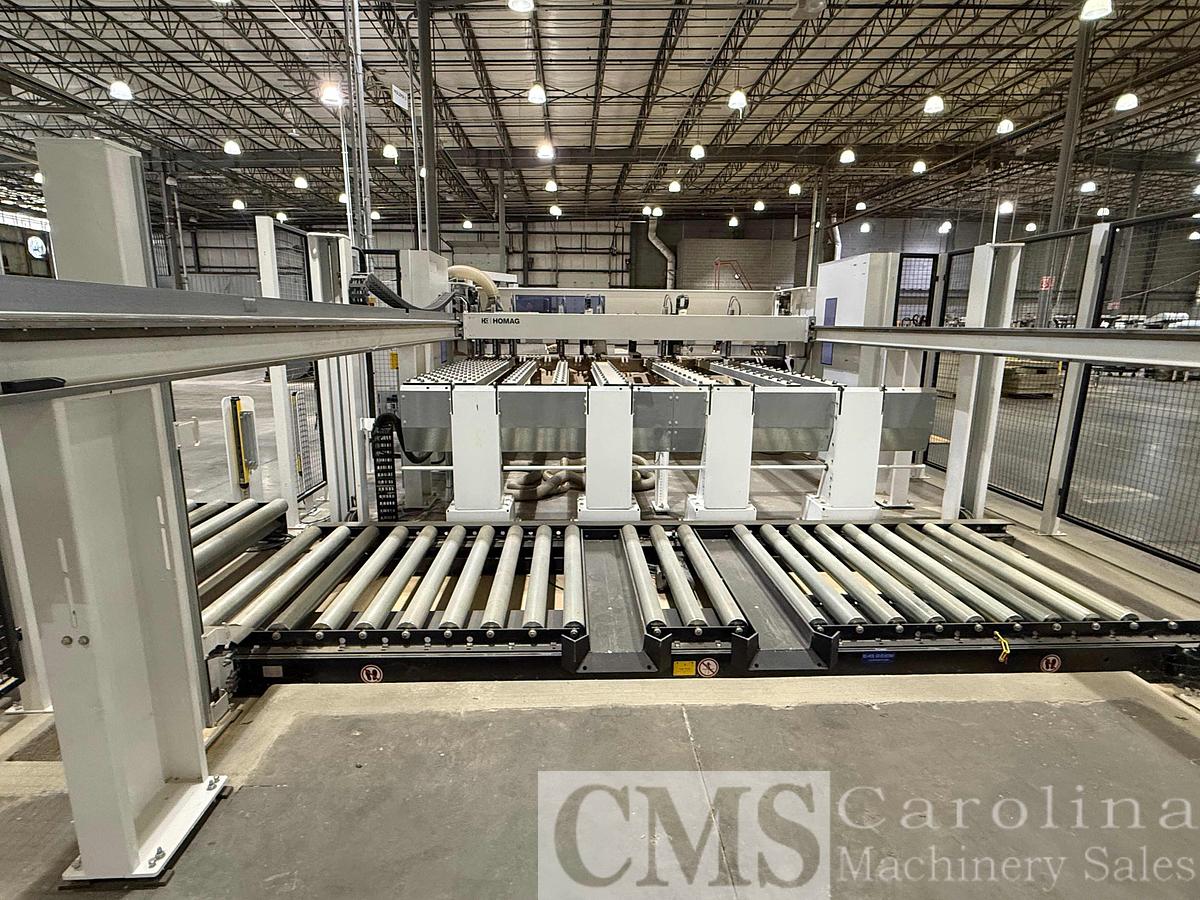

2023 Homag / Holzma Sawteq S410 38/16 Rear Loading Panel Saw

Location

Southeast USA

or
Call 704-288-1904

Specifications

ManufacturerHomag / Holzma
ModelSawteq S410 38/16 Rear Loading Panel Saw
Year2023
Stock Number012709
Sales Rep NameMike Hawkins
Sales Rep Emailmike@carolinamachinerysales.com
Sales Rep Extension104

Description

Model S-410 with lifting table

  • Saw blade projection (mm) 110 (optional: 125)
  • Cutting length/width (mm) 3200/3800/4300/5600*****
  • Lifting table width (mm) 2200
  • Program fence speed (m/min) up to 90 **
  • Saw carriage speed (m/min) up to 150 (optional 170)
  • Main saw motor (kW) 50 Hz: 18 (optional 24)
  • 60 Hz: 21 (optional 28)
  • Scoring saw motor (kW) 2.2
  • Average total air requirement (Nl/min) 210
  • Required compressed air supply (bar) 6 6
  • Extraction system (m³/h) 3800 (5230****), 26 m/sec
  • Max. stack height without pit (mm) – 560 (up to 4300 cutting length)
  • 450 (up to 5600 cutting length)
  • Max. stack weight (t) – 4 (for 5600 mm cutting length: 7)
  • Processing height (mm) 920
  • Air cushion tables (mm) 3/3/4/5 x 2160
  • S-410/38/19 5924mm X 9963mm X 4196mm
