2023 Makor Next-One 1300 Oscillating Sprayer System

Makor Next-One Sprayer Line

Photo for reference - Photos and video coming!

Includes:

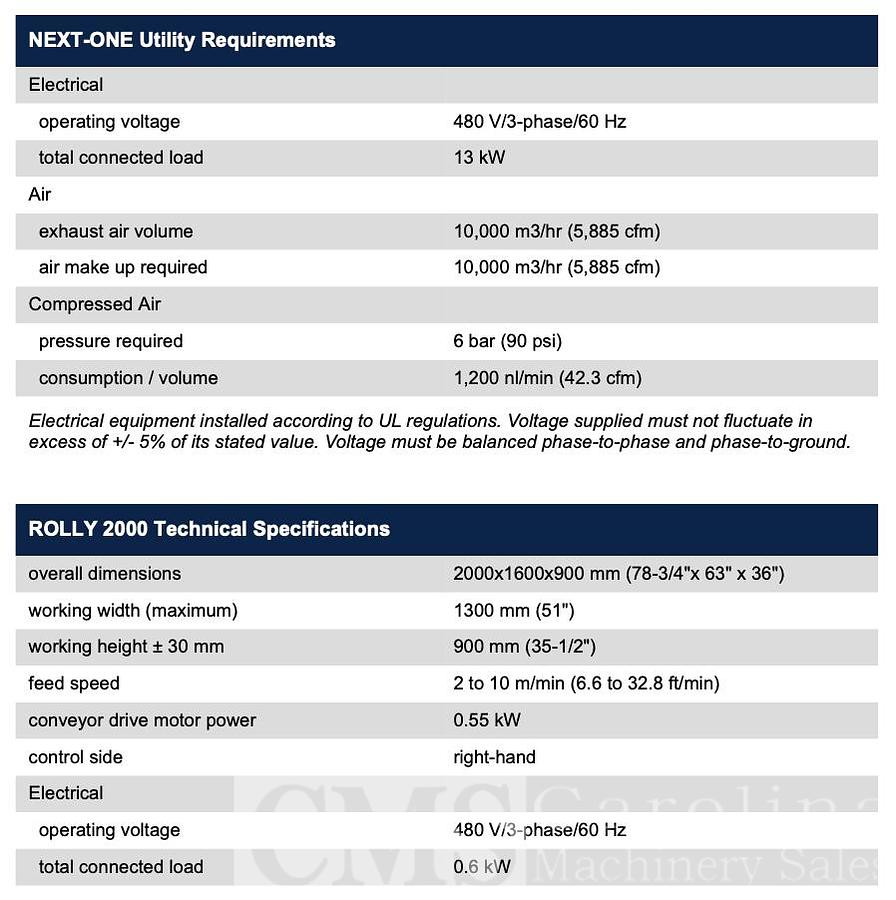

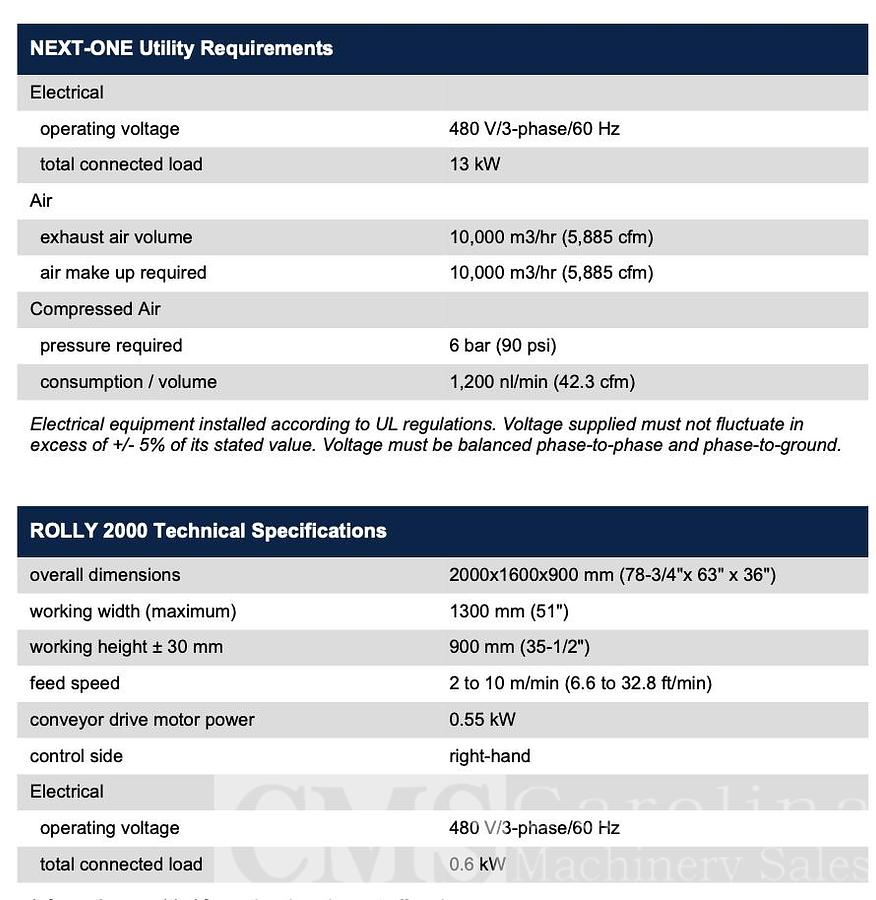

• Rolly 2000 Conveyor

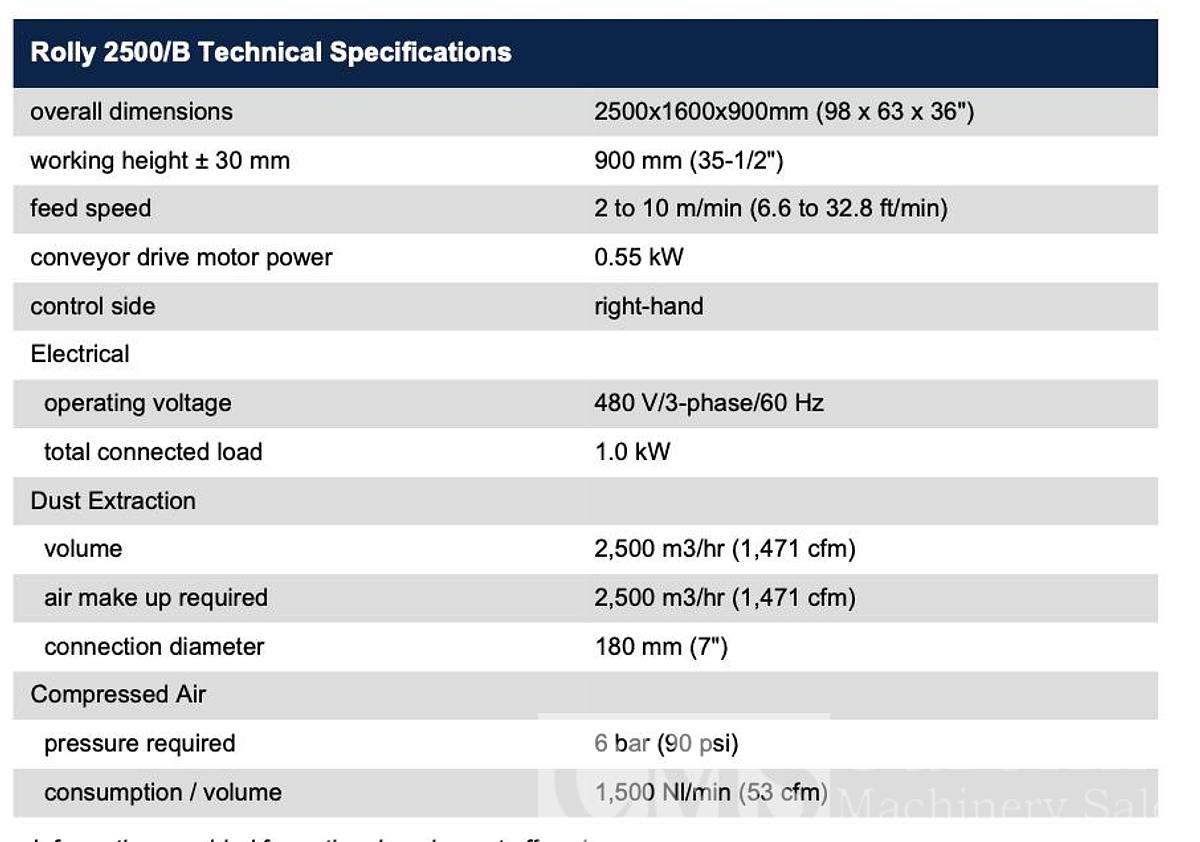

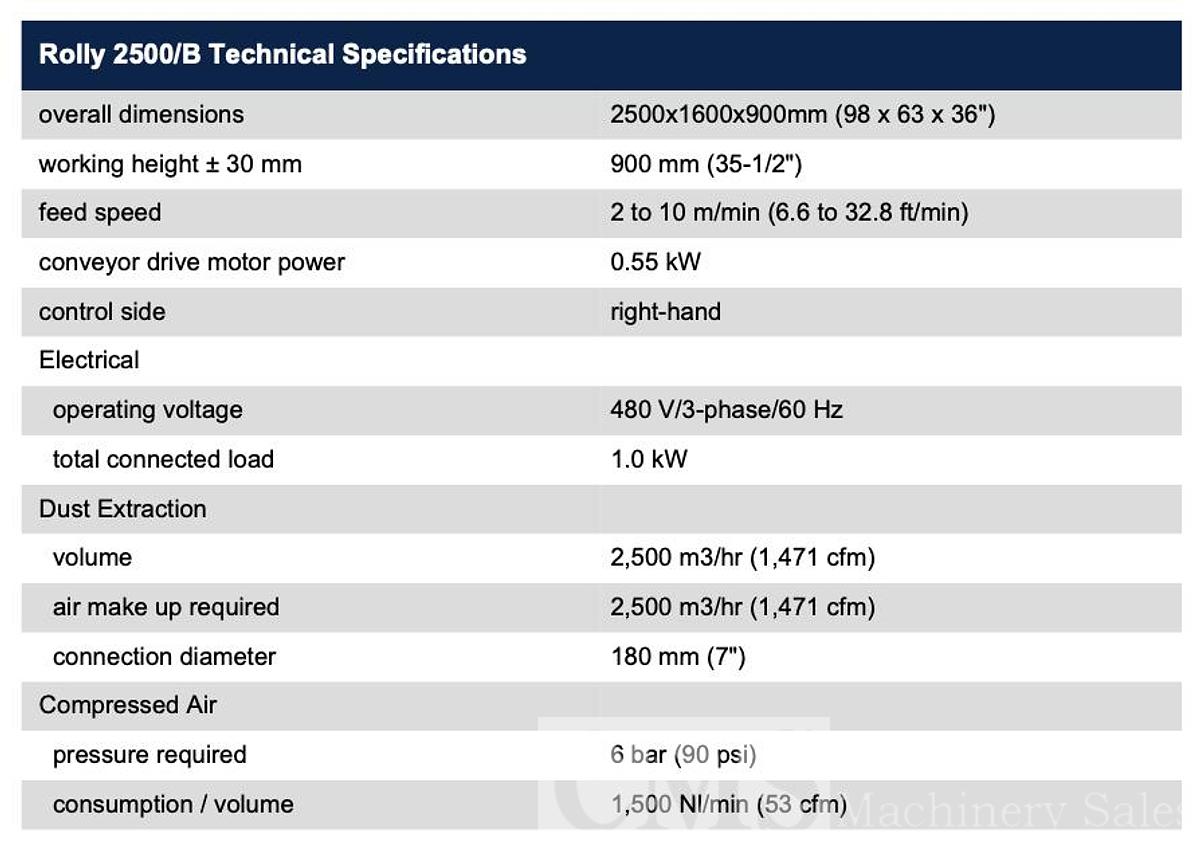

• Belt conveyor with blow-off device (Rolly 2500/B)

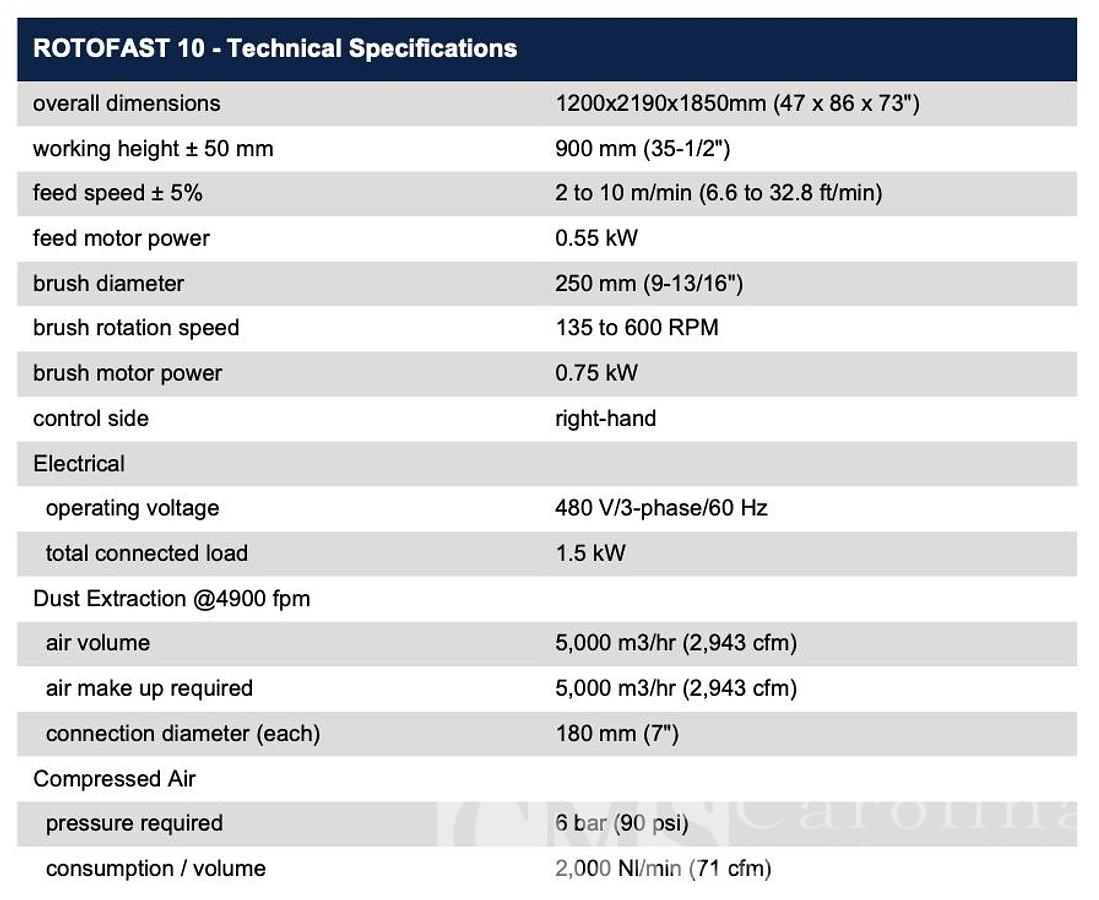

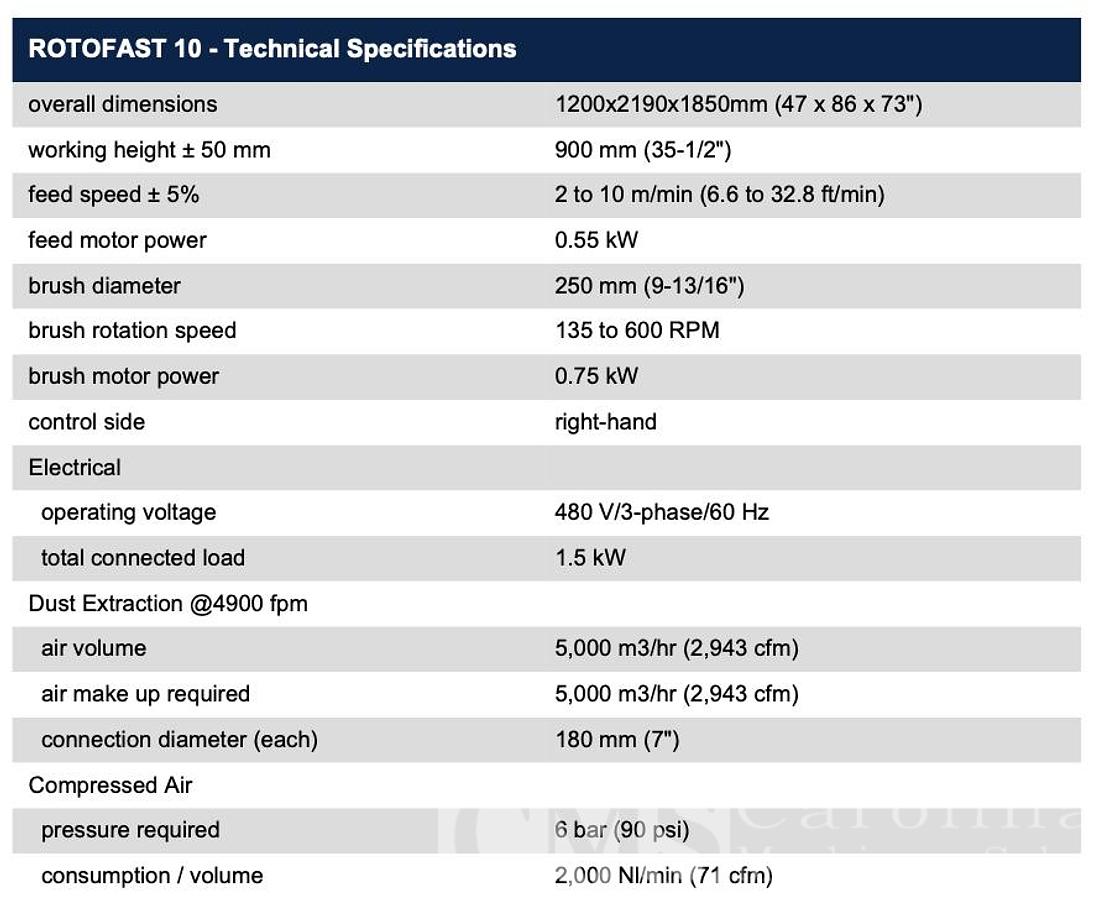

• Makor Rotofast Panel Brushing Machine
• Makor Next-One Reciprocating Sprayer
• Halcon 18" Oven

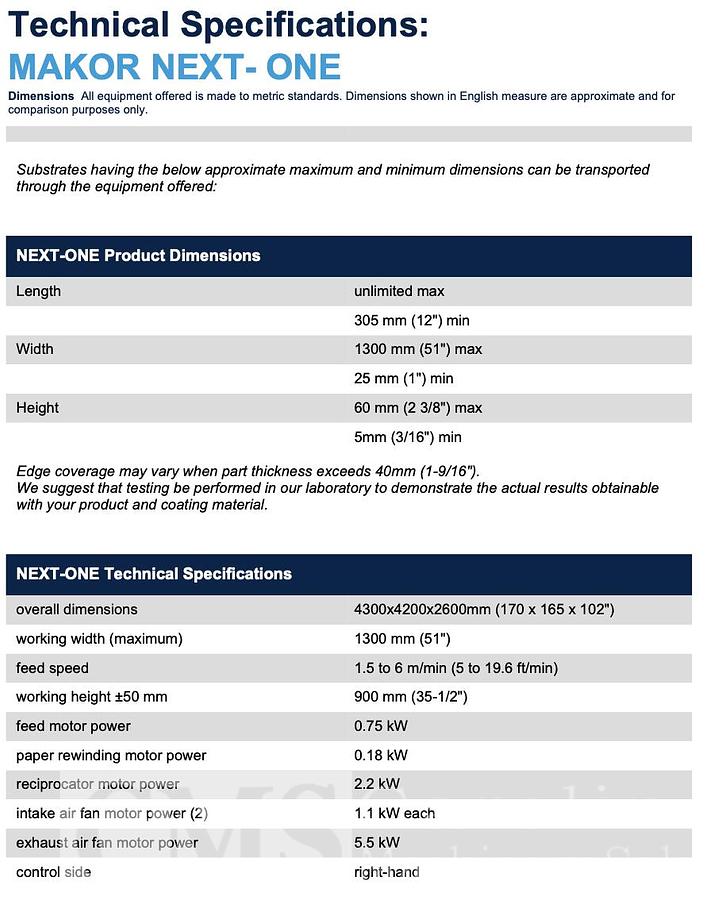

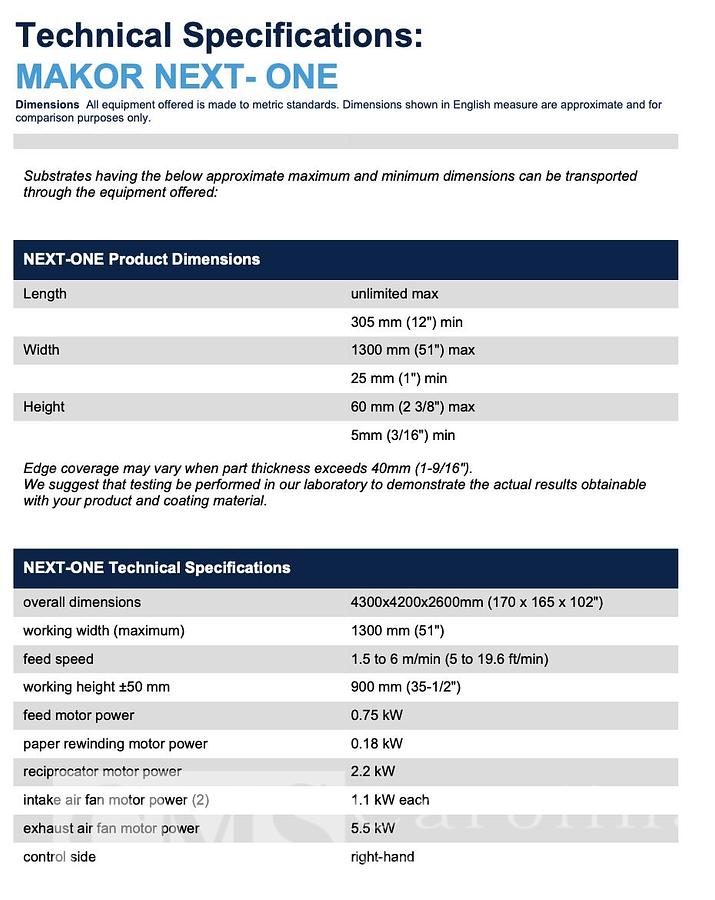

Manufacturer specs (to be confirmed):

• Part length: 12" - Unlimited
• Part width: 1" - 51"
• Part height: 3/16" - 2-3/8"
• Working width: 1300 mm
• Feed Speed: 1.5 - 6 m/min

Pumps and Guns info:

• Kremlin Airmax AVX Gun Kit
• Kremlin Airmox Fluid Pressure Regulator
• Kremlin Fluid Circulation Unit
• Agitator
• Pump Stand

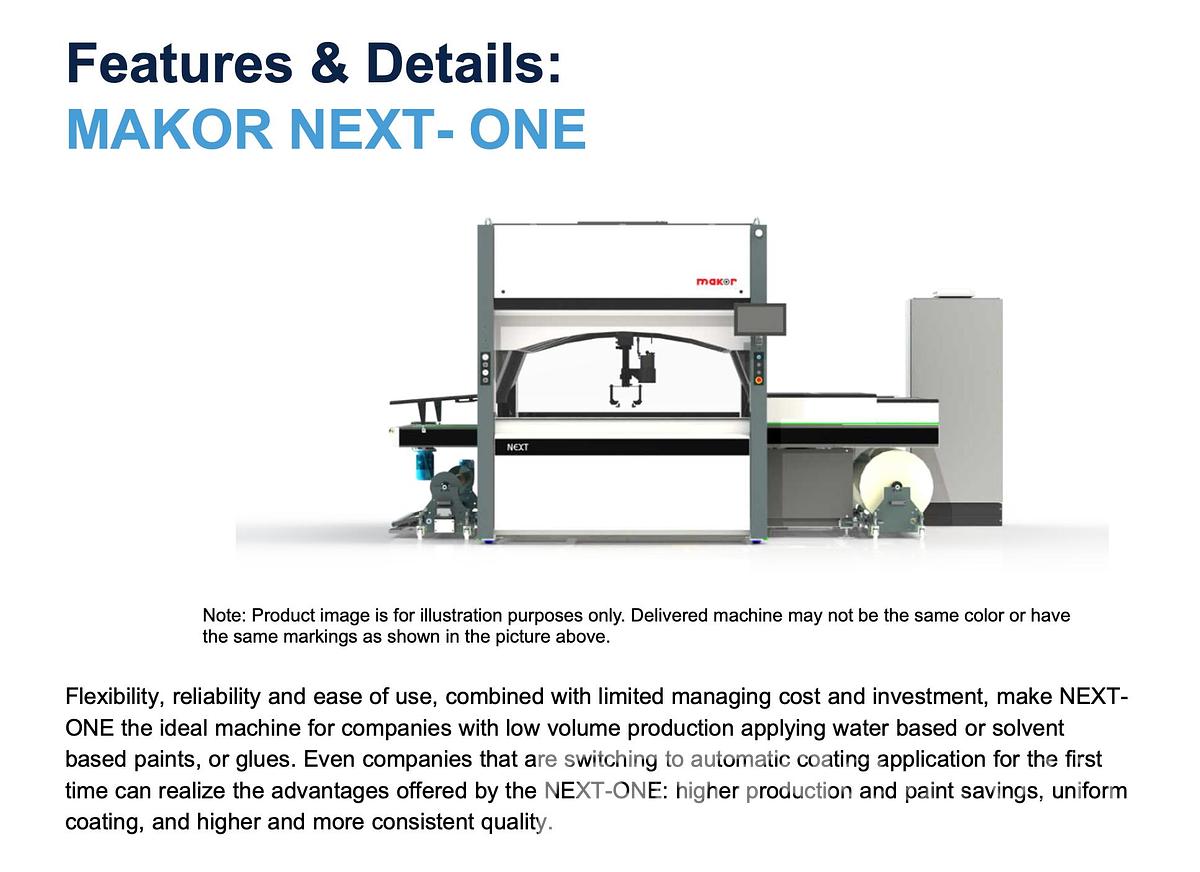

The best solution for painting medium production volumes.

Thanks to the large booth and the new design of the machine, the Makor NEXT ONE paints panels and furniture components of various sizes and shapes. It is ideal for applying both matte and glossy primers and finishes.

• Paper transport up to 3,000 meters of autonomy with a single roll
• New paper trolleys, simplified paper extraction and replacement
• Mono Spray Arm with Quick Release as standard
• Wide circuit configuration options for every need
• New tank for small touch-ups up to 6Bar
• New Cabin Designer, for high transfer efficiency
• Pressurized cabin with filtration
• Suction boxes with double filtration stage (7.6 m2) on wheels

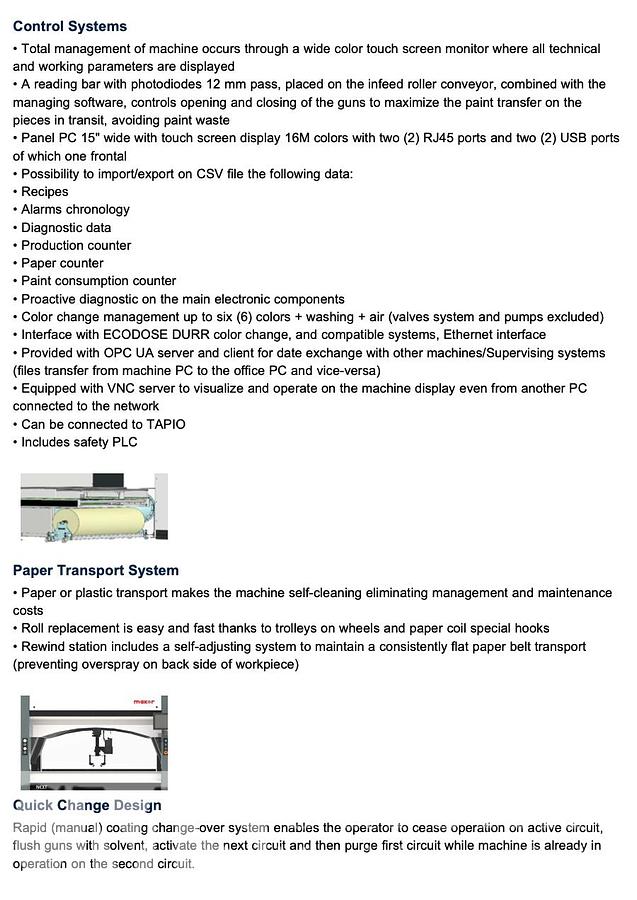

• New Interface with New 15″ Windows Panel PC
• High Precision Reading Barrier
• Maky Virtual Assistant
