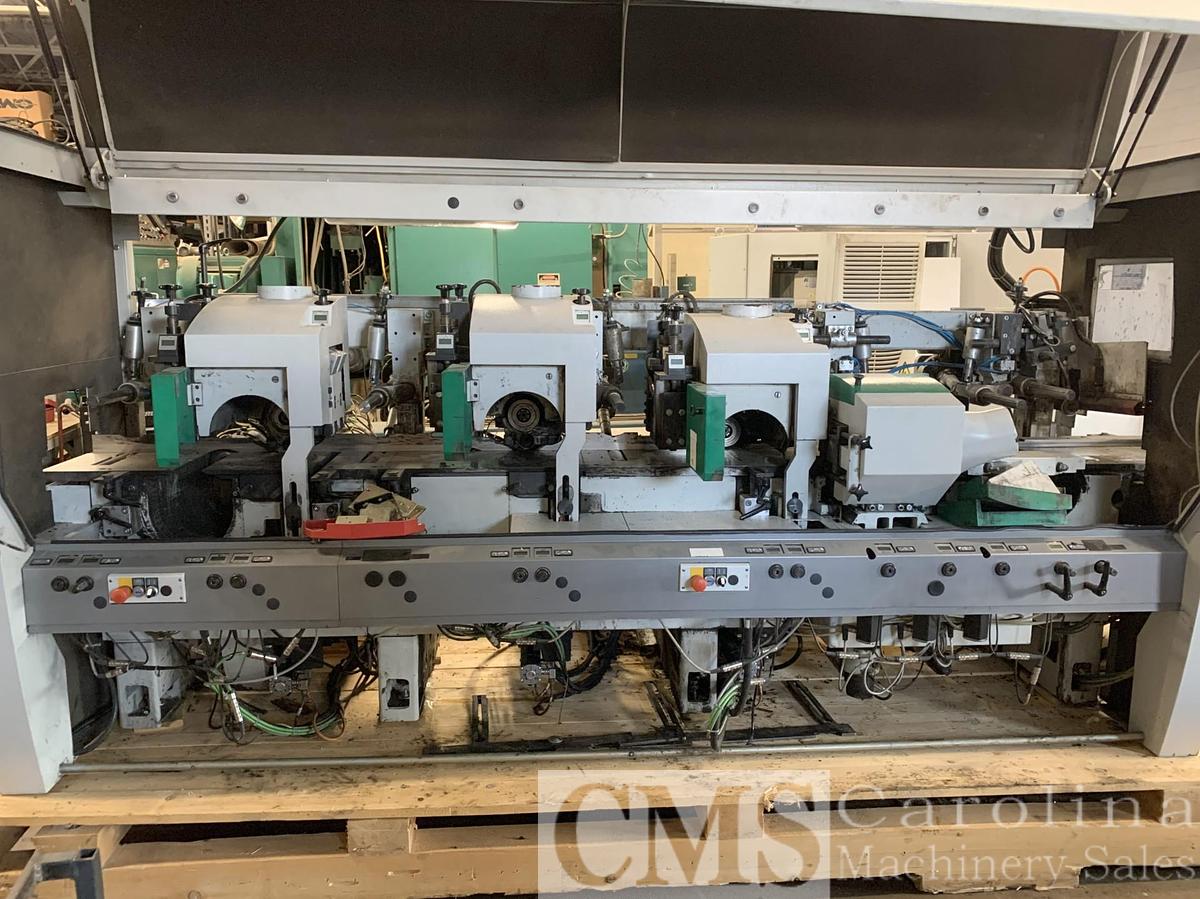

2011 Weinig Powermat 1000 12" Moulder

This machine will be available around the beginning of 2027.

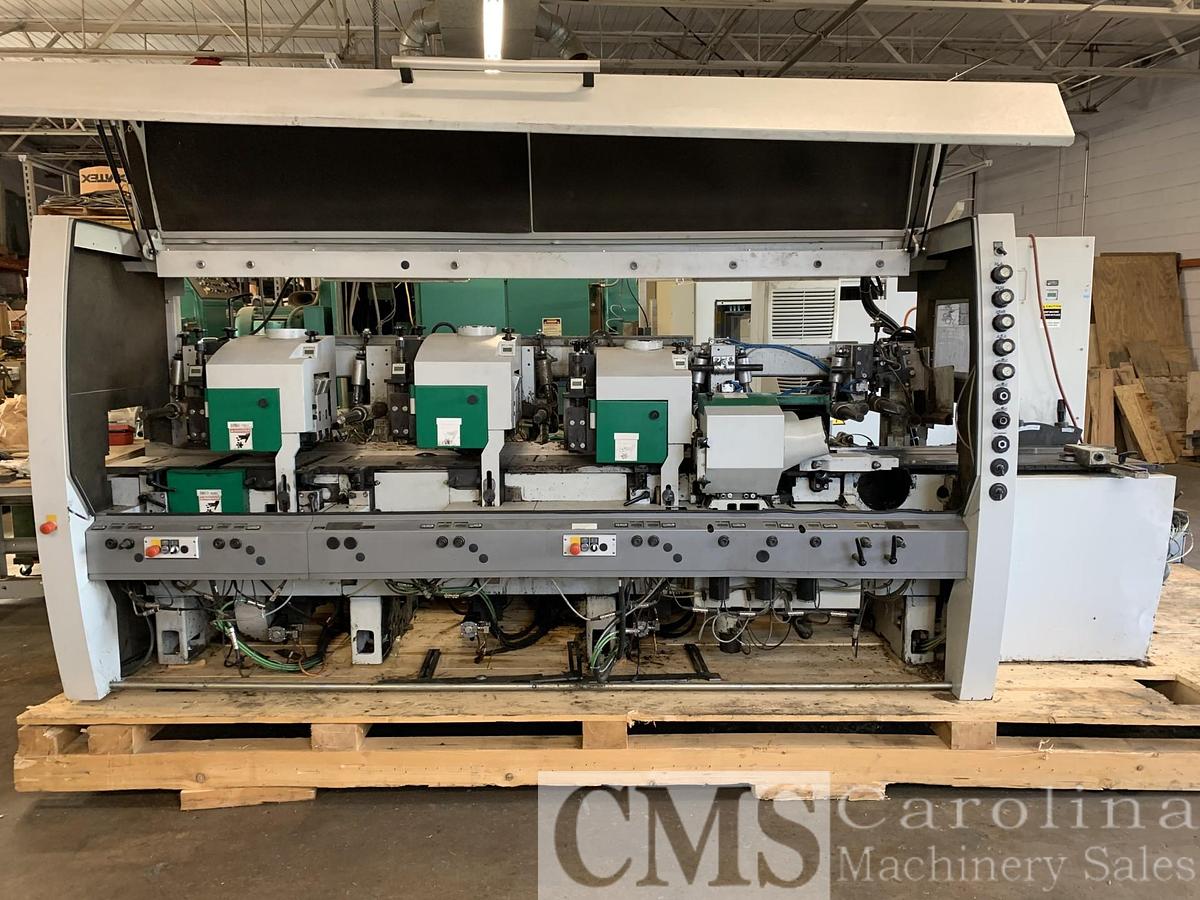

Weinig Powermat 1000 Moulder

Manufacturer specs (to be confirmed):

• 7-Head Machine
• 12" Capacity
• (20 to 300 mm, ~3/4" to 12") working width
• (8 to 160 mm, ~5/16" to 6-5/16") working height

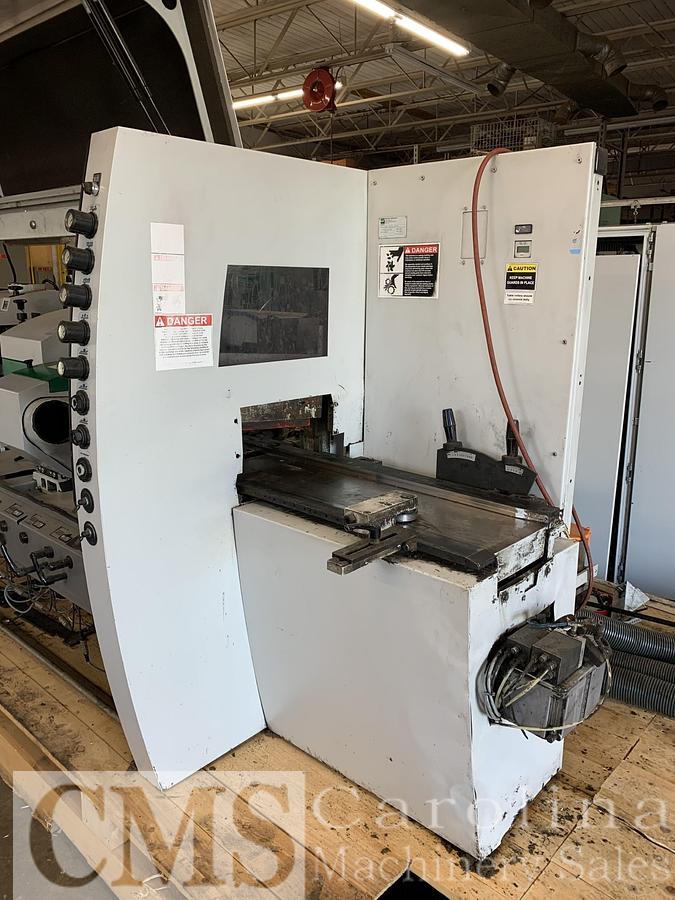

• 42" infeed/straightening table

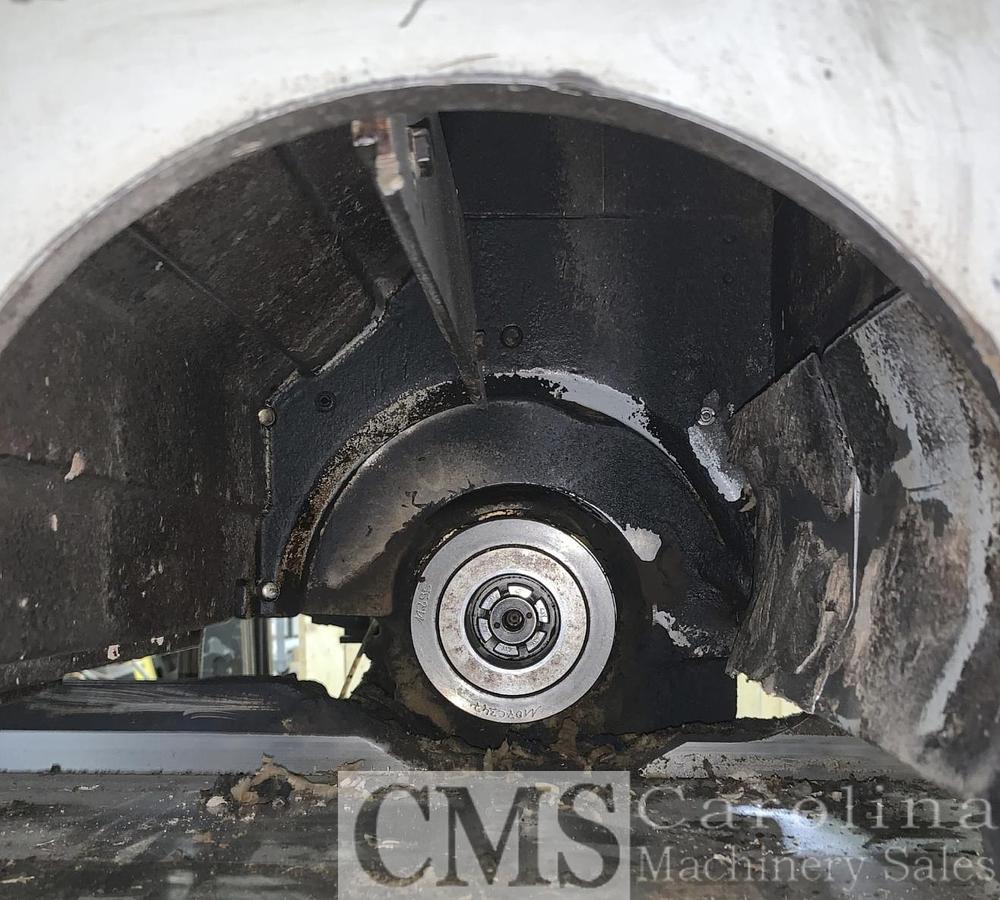

• 1st head: 15 HP, 8,000 RPM bottom horizontal spindle
• 2nd head: 15 HP, 8,000 RPM right vertical spindle
• 3rd head: 15 HP, 8,000 RPM left vertical spindle
• 4th head: 30 HP, (variable 2,000 to 8,000 RPM) top horizontal spindle with CNC controlled axial & radial movements
• 5th head: 30 HP, (variable 2,000 to 8,000 RPM) top horizontal spindle with CNC controlled axial & radial movements
• 6th head: 10 HP, (variable 2,000 to 8,000 RPM) top horizontal spindle with CNC controlled axial & radial movements
• 7th head: 30 HP, 8,000 RPM bottom horizontal spindle
• 7.5 HP, variable cardan-drive feed system, (6 to 36 m/min, ~20 to 120 ft/min)
• (7) top feed rollers & (3) lower table driven feed rollers
• Variable speed servo/ball-screw CNC controlled random movements on all top heads

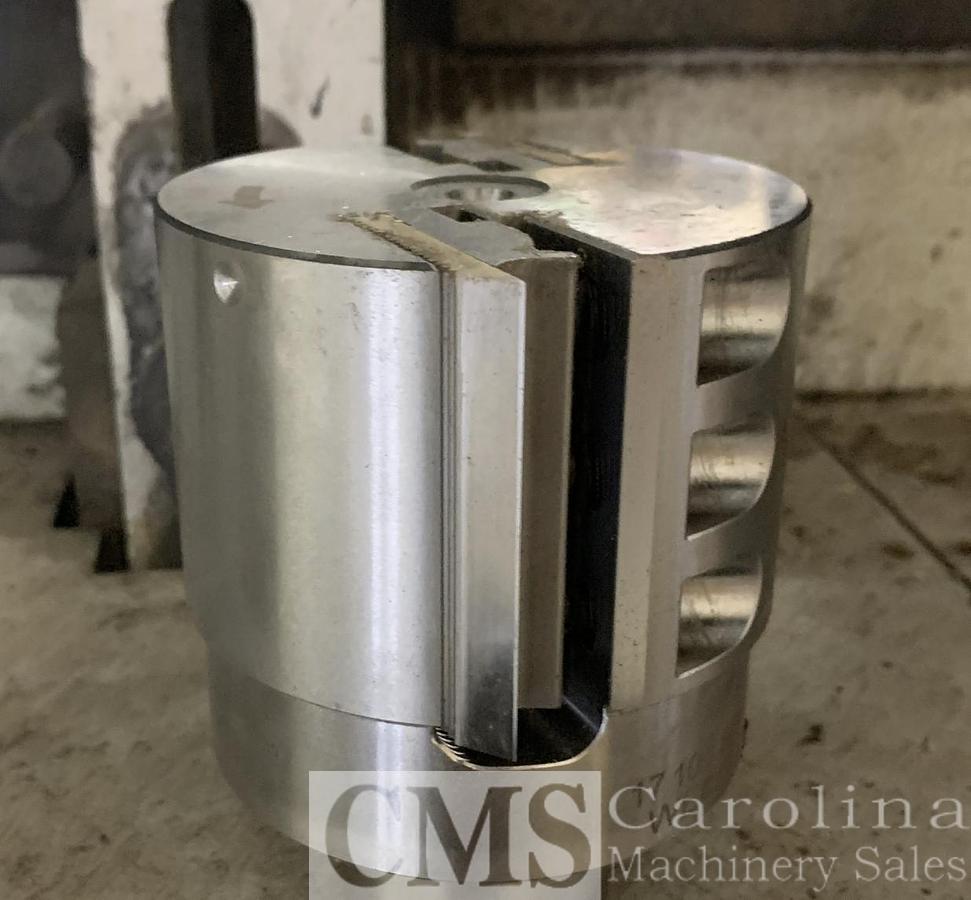

• Powerlock tool holding system

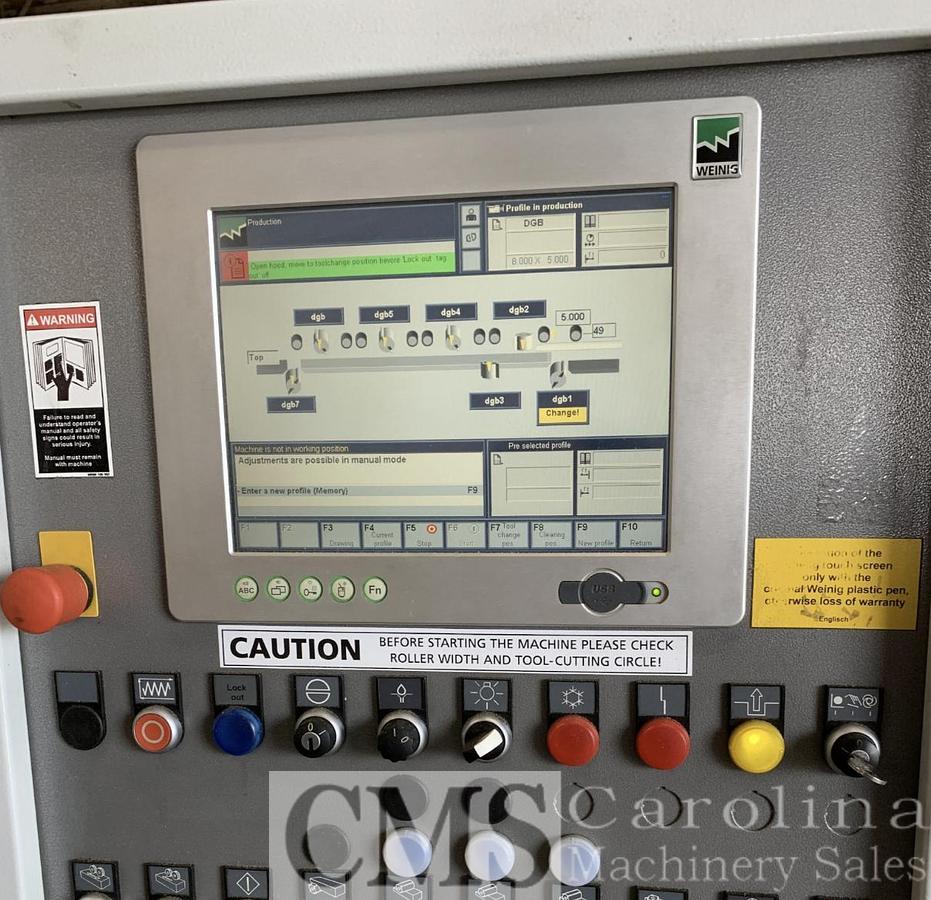

• PowerCom Plus CNC control system with production and diagnostics monitoring
• Centralized lubrication system
• Marathon bed plate coating
• Full safety and sound enclosure
