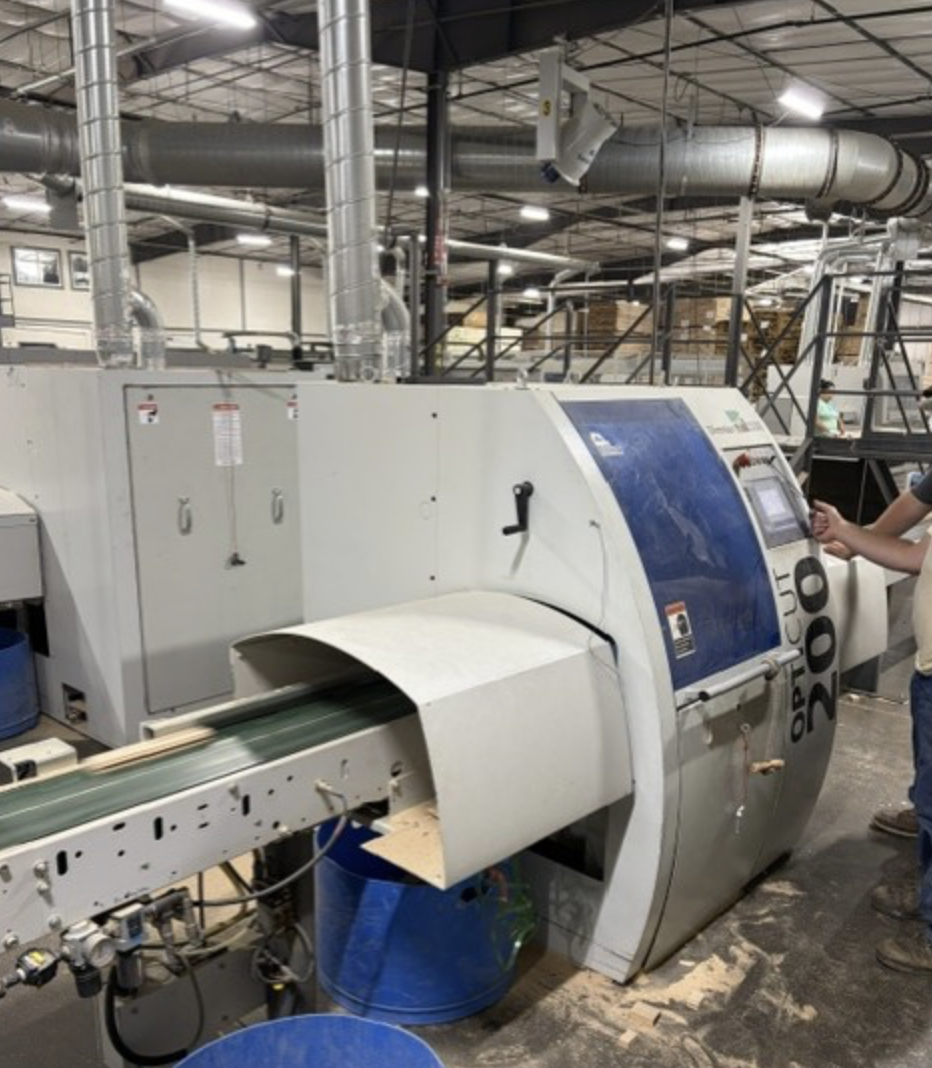

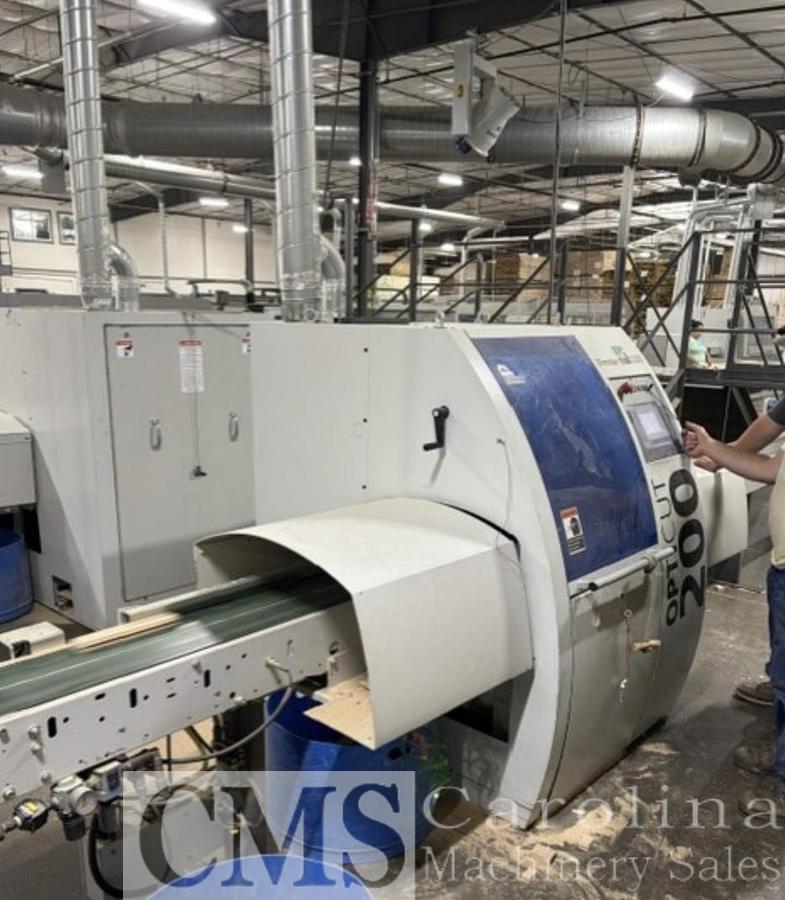

2006 Dimter Opticut 200 Optimizing Cutoff Saw

Dimter Opticut 200 Optimizing System

Unit was dismantled and removed from service in August, 2026.

Ready to ship!

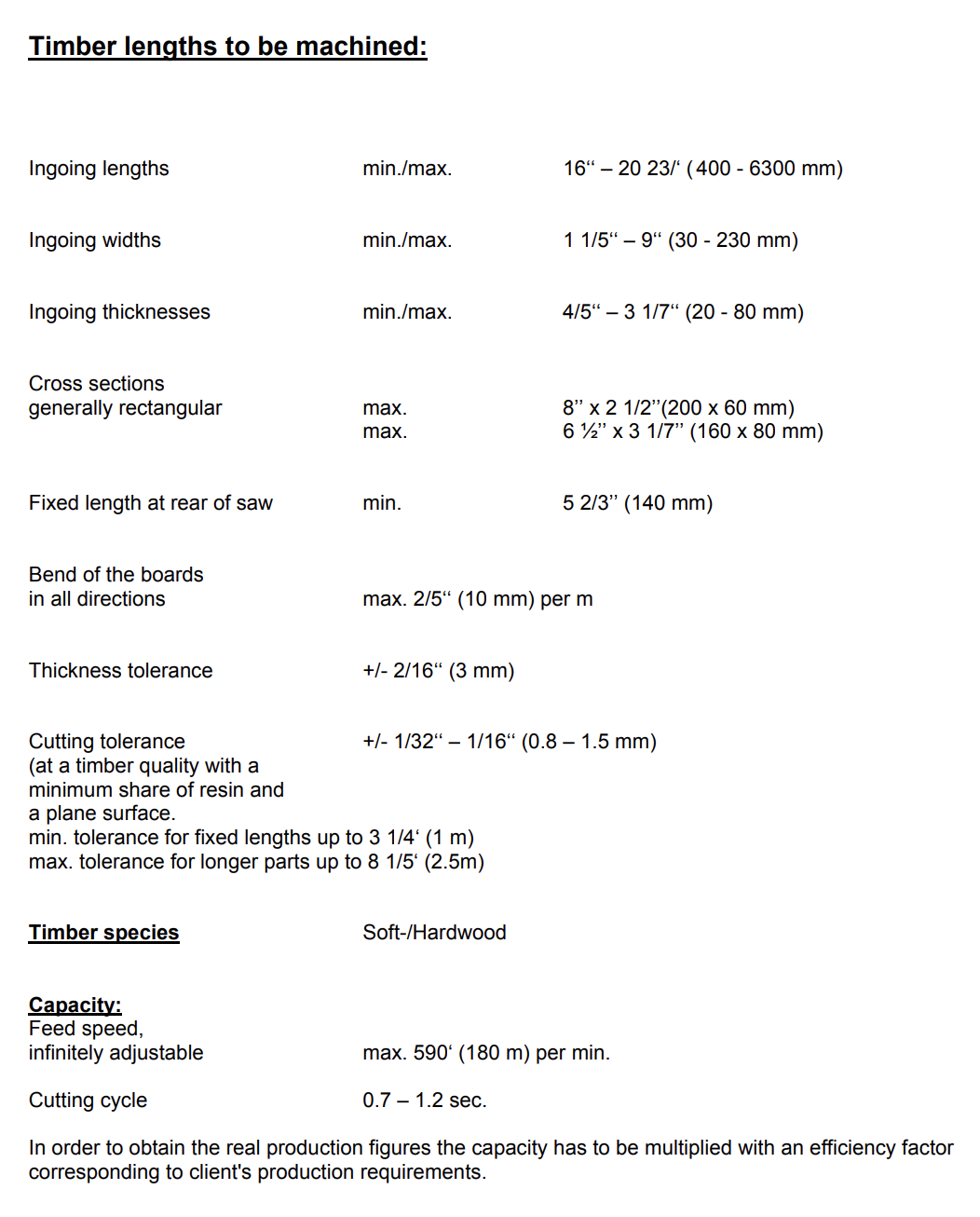

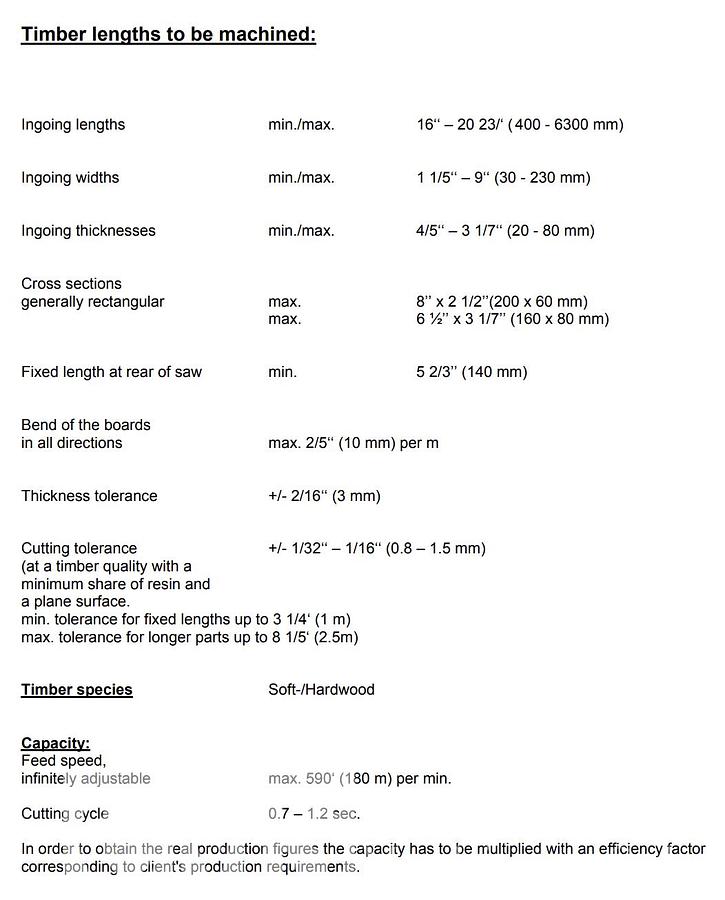

Manufacturer specs (to be confirmed):

• Max. crosscut section 7-3/4" x 1-15/16" to 5-3/4" x 3-1/16"
• Board width cap. 1-1/5" to 7-3/4"
• Board thickness 3/8" - 3-1/8"
• Board length 15" to 20'
• Shortest fixed length 5-3/8"
• Shortest finger jointing length 5"
• Max. fed speed 750 FPM
• Average production rate 36,000' running length/shift
• Equipped with: Blade dia. 19-1/2", with 10 HP - 4,100 RPM Motor
• 10 HP Servo drive feed motor

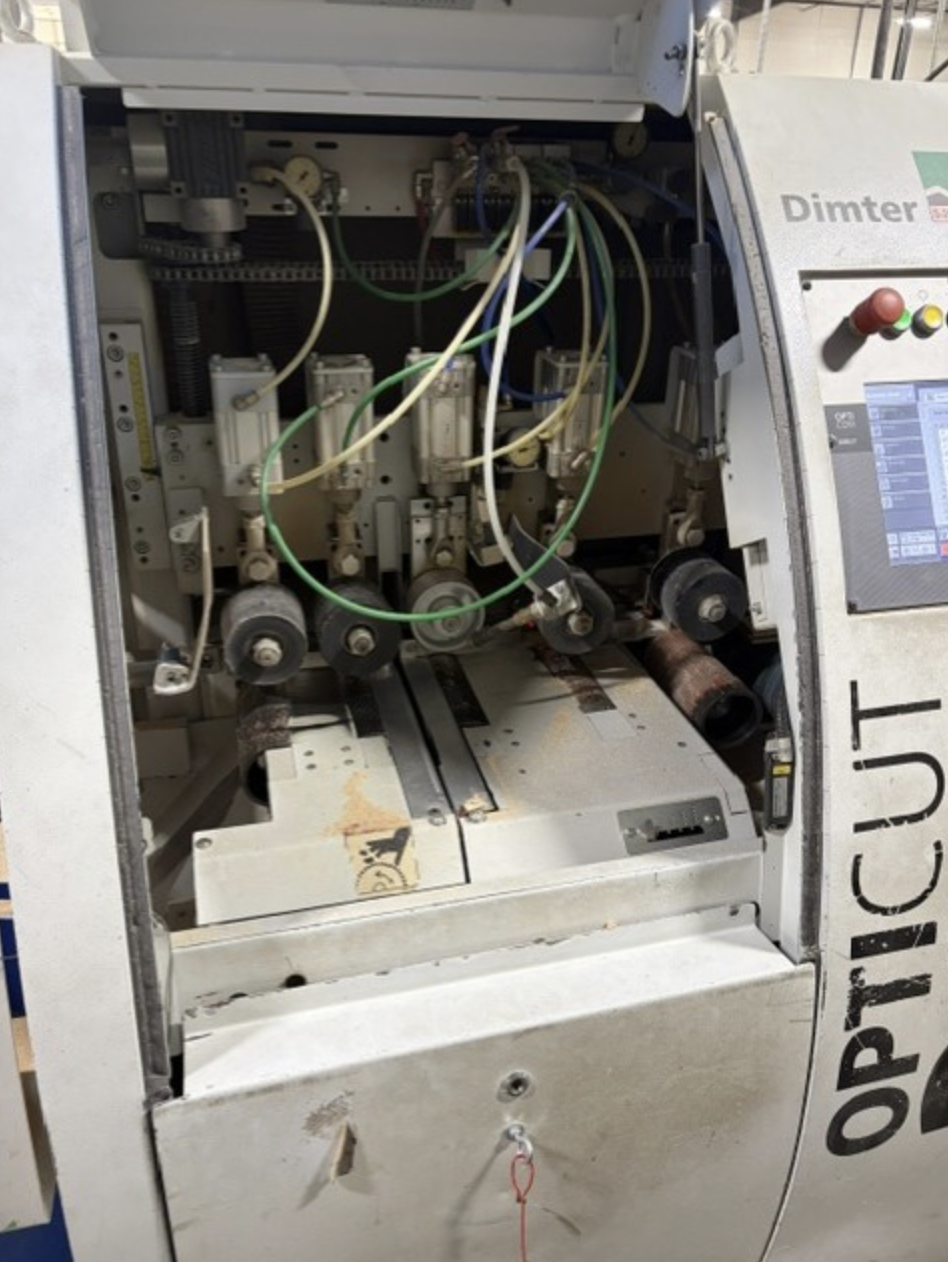

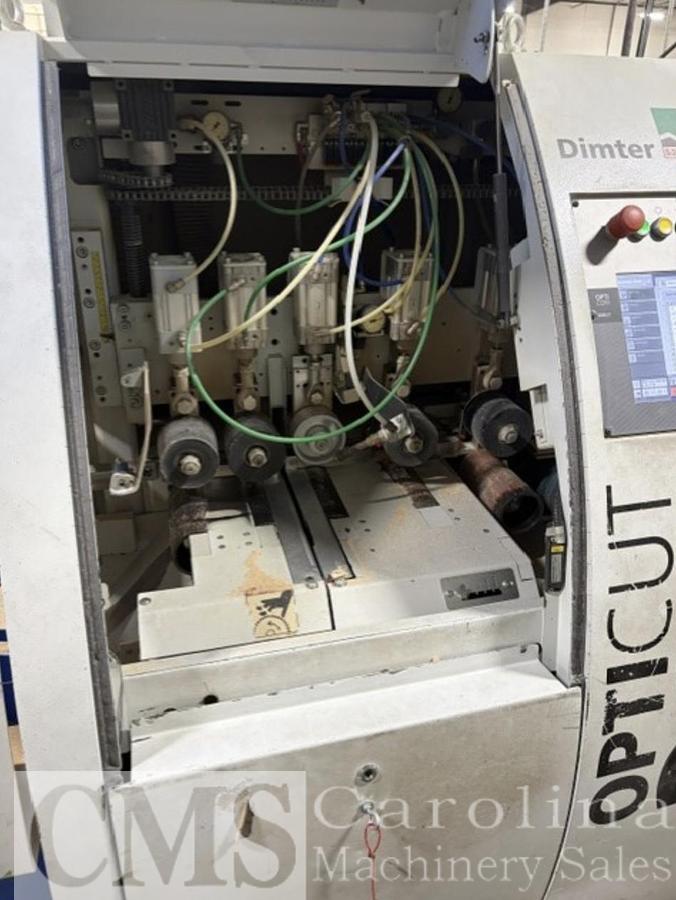

• (3) Pneumatically-operated top rollers & (1) Driven bottom drum roller

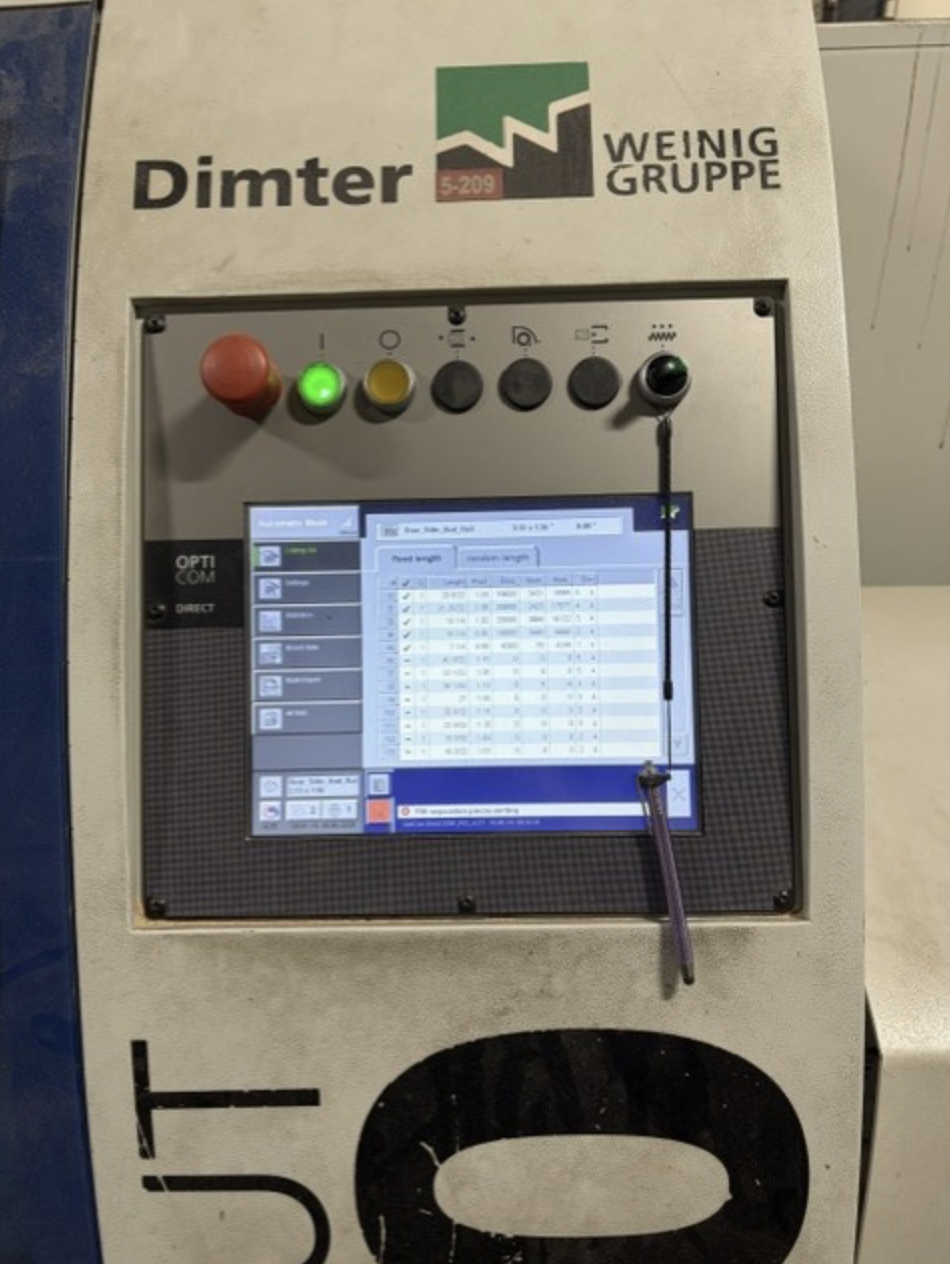

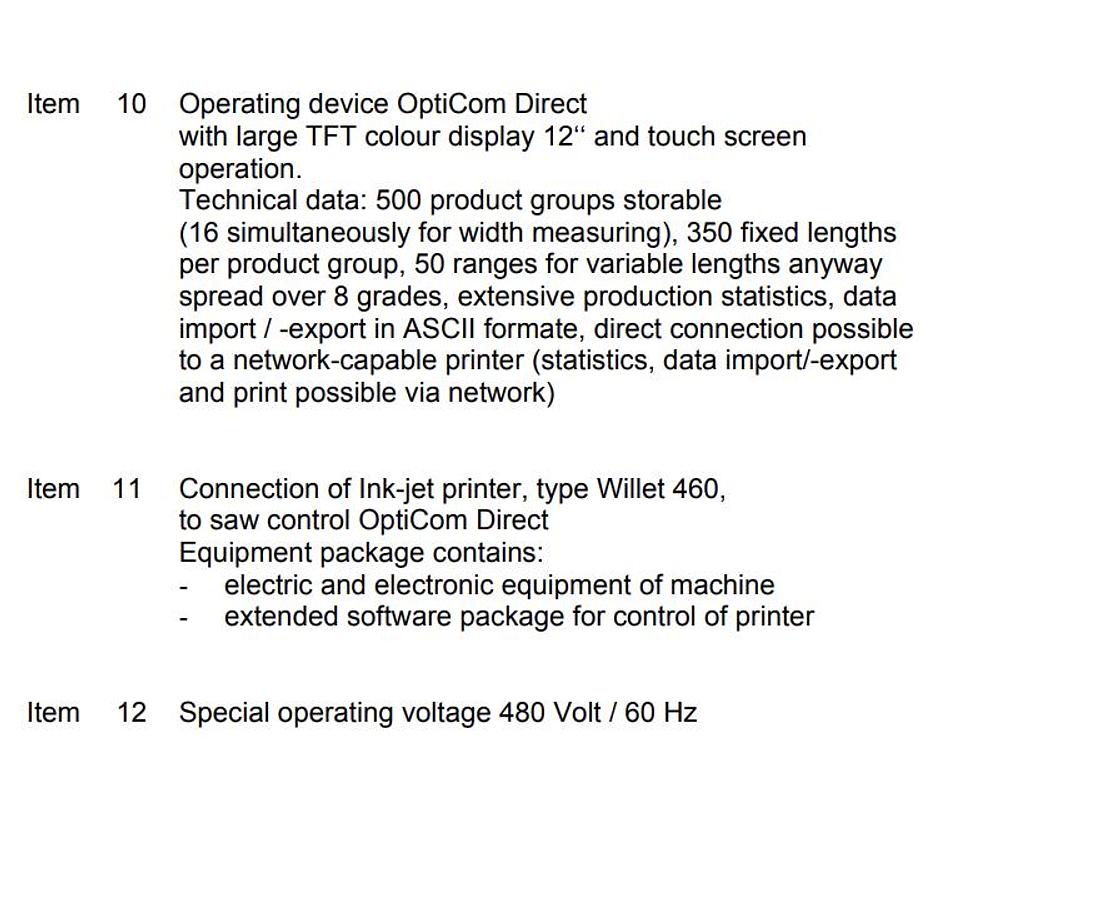

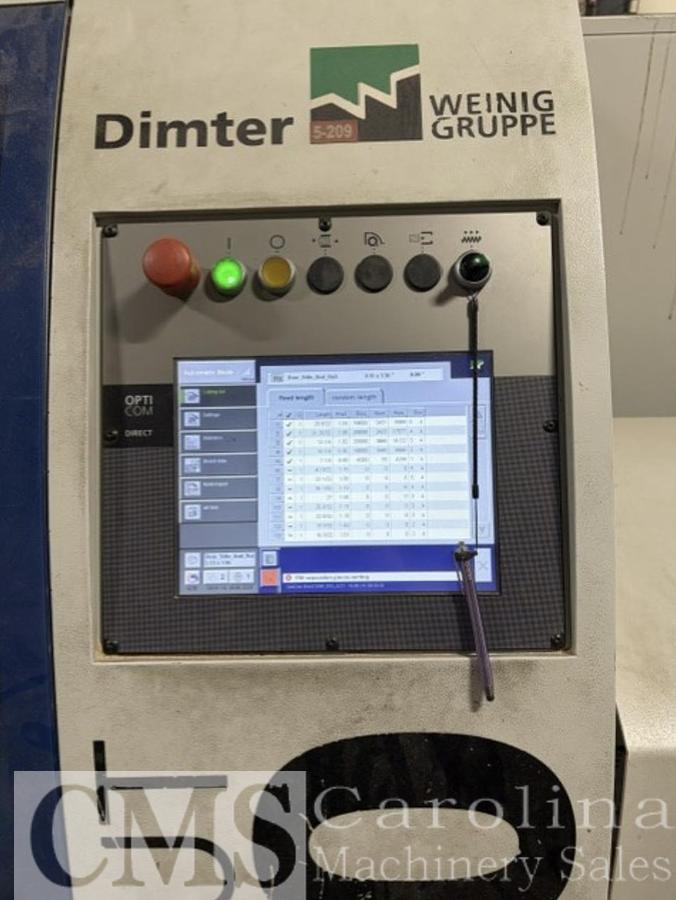

• Control, with LCD display & Touchpad.
