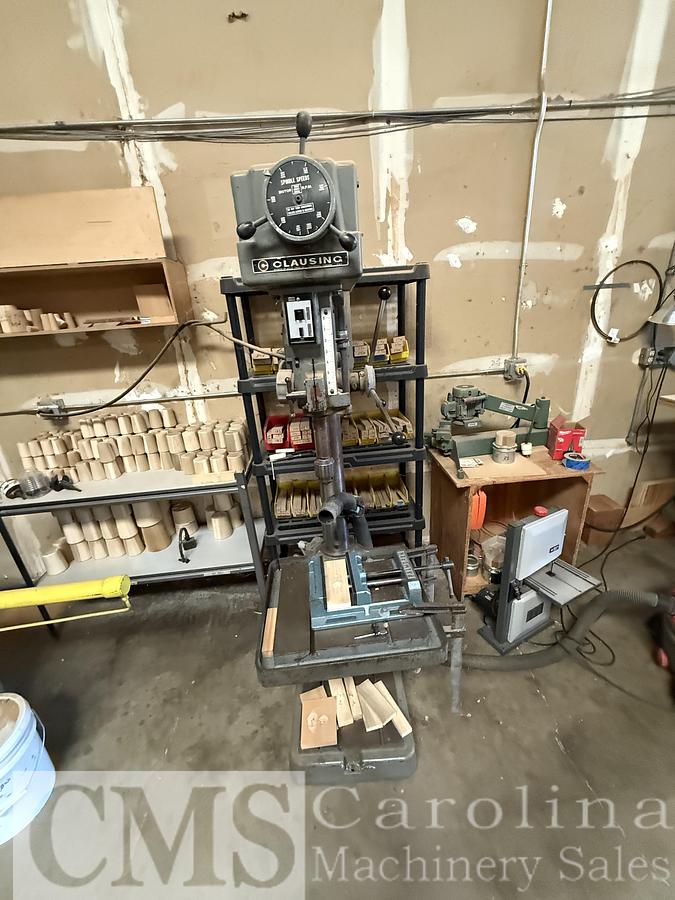

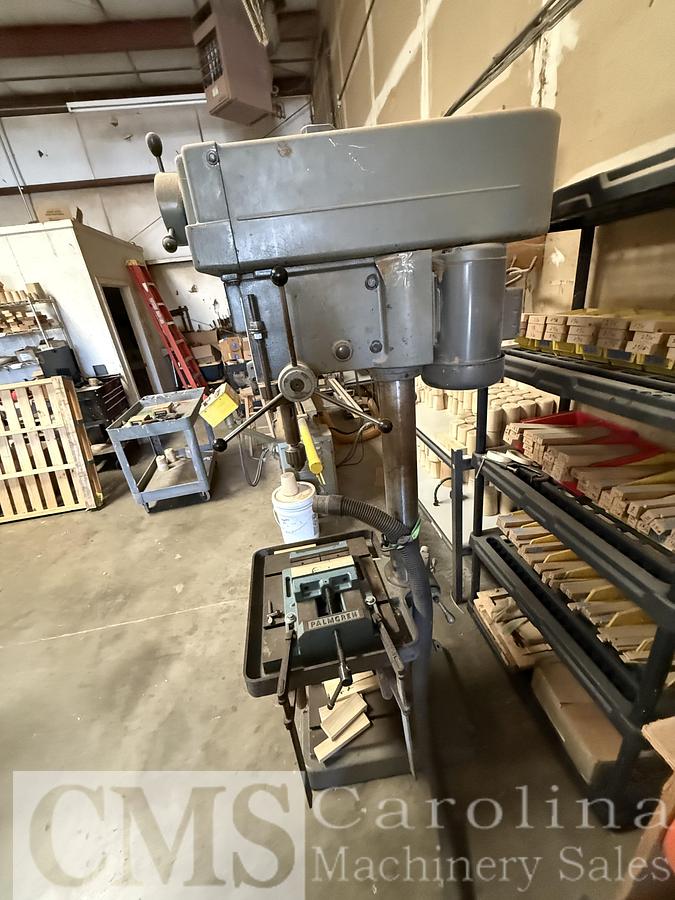

Clausing Model 2272 Drill Press

Manufacturer’s Specifications (to be confirmed)

• Variable Speed Drive – with sheave pulleys system
• Heavy-Duty Precision Head – all bearing surfaces are precision bored simultaneously for exact alignment. Eight ball bearings support the drive and spindle, lower spindle bearing has double row to absorb both radial and thrust load
• Precision Ground 22” x 19’5” thru coolant adjustable table and elevation mechanism
• 66” tall x 4” diameter 3/16” wall column for greater rigidity
• ½” cored T-slots on 9” centers for table and base
• 2 ½” diameter quill 3MT taper spindle, with 6 ½” travel, and thread adjustable depth stop
• Optional coolant system
• Mesh top belt guard
• Telescopic spindle guard
