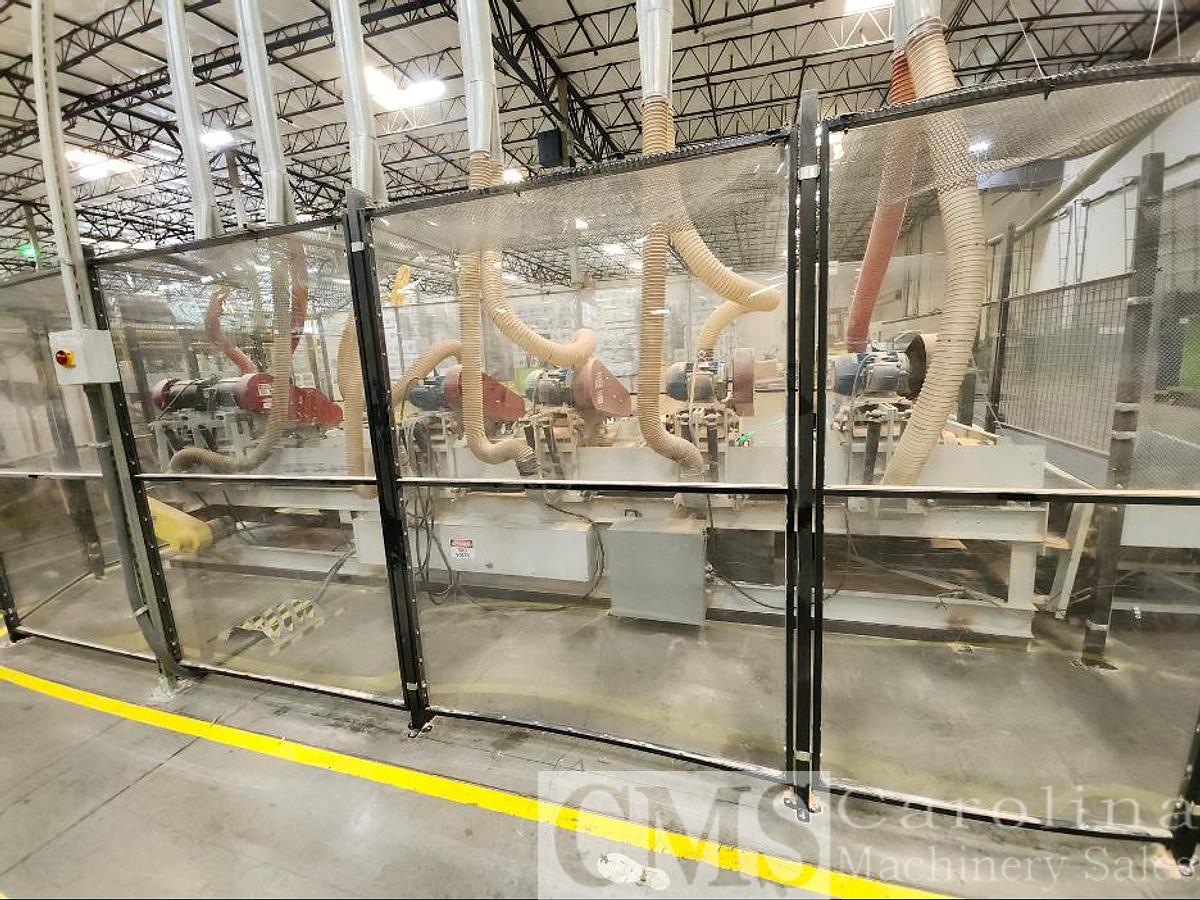

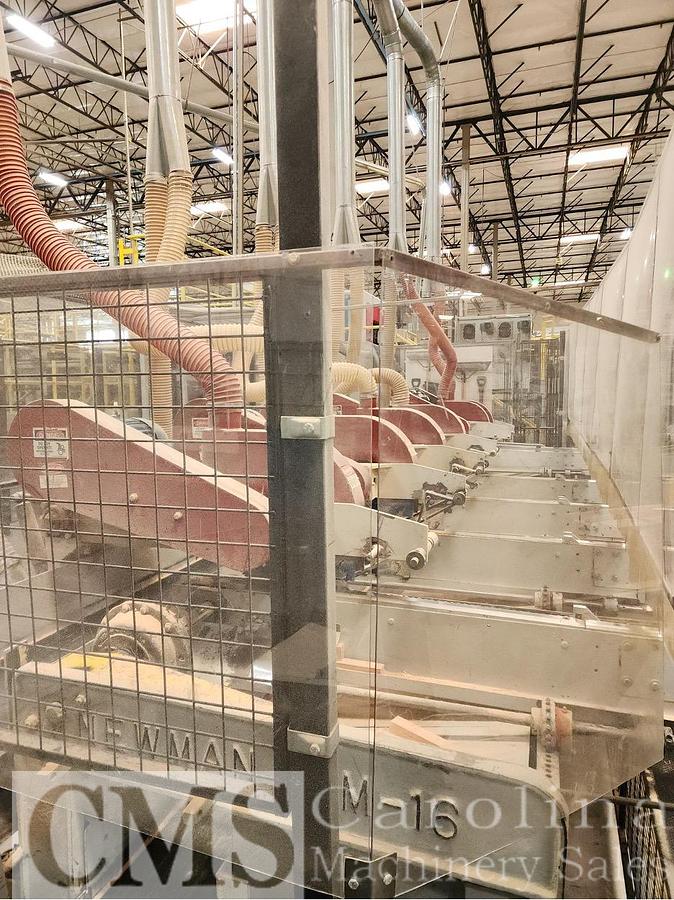

Newman KM16 Multiple Head Trim Saw

Length range 18 in (457 mm) to 16 ft (4.88 m) standard; 20–24

ft (6.10–7.32 m) optional

Max. stock thickness 4 in (102 mm)

Max. pass length 20 ft (6.10 m)

Accuracy 1/32 in (0.7 mm) or better

Production rate Up to 60 pieces per minute

Feed speed Variable, 20–60 CPM

S AW U N I T S

Type Overhead, V-belt driven, quick-change arbors

Arbor motor 7-1/2 HP (5.6 kW), 1800 RPM, 3/60/230–460 V

— each unit

Arbor speed 3000 RPM, ball-bearing mounted

Adjustment Hand cranks with individual friction locks

Hold-downs Self-adjusting, with lock-up heads per unit

Saw blades 18 in (457 mm) dia., 1-1/4 in (32 mm) bore, 5°

negative hook, .050 in (1.3 mm) side clearance

F E E D & C O N V E Y O R S

Feed drive 1-1/2 HP (1.1 kW) gear motor with variable

frequency drive

Feed chain #60 roller chain, two chains; four drags per chain, 2-1/4 in (57 mm) high at 27 in (686 mm) intervals

Lumber conveyor 12 in (305 mm) wide, 1-1/2 HP (1.1 kW) gear motor with VFD

Scrap conveyor 12 in (305 mm) wide, 1-1/2 HP (1.1 kW)

Belt direction Built to original specification

C O N S T R U C T I O N & I N S TA L L AT I O N

Frame Welded heavy-duty 6 in (152 mm) channel and

angle iron

Dust collection Ports at each saw unit; upgraded hold-down / collection system

Floor space 22 ft × 6 ft 9 in (6.71 m × 2.03 m)

Working height 36 in (0.91 m)

Overall height 5 ft (1.52 m)

Shipping weight Approx. 7,000 lb (3,200 kg)

Electrical 480 V, 3-phase, 60 Hz as installed
