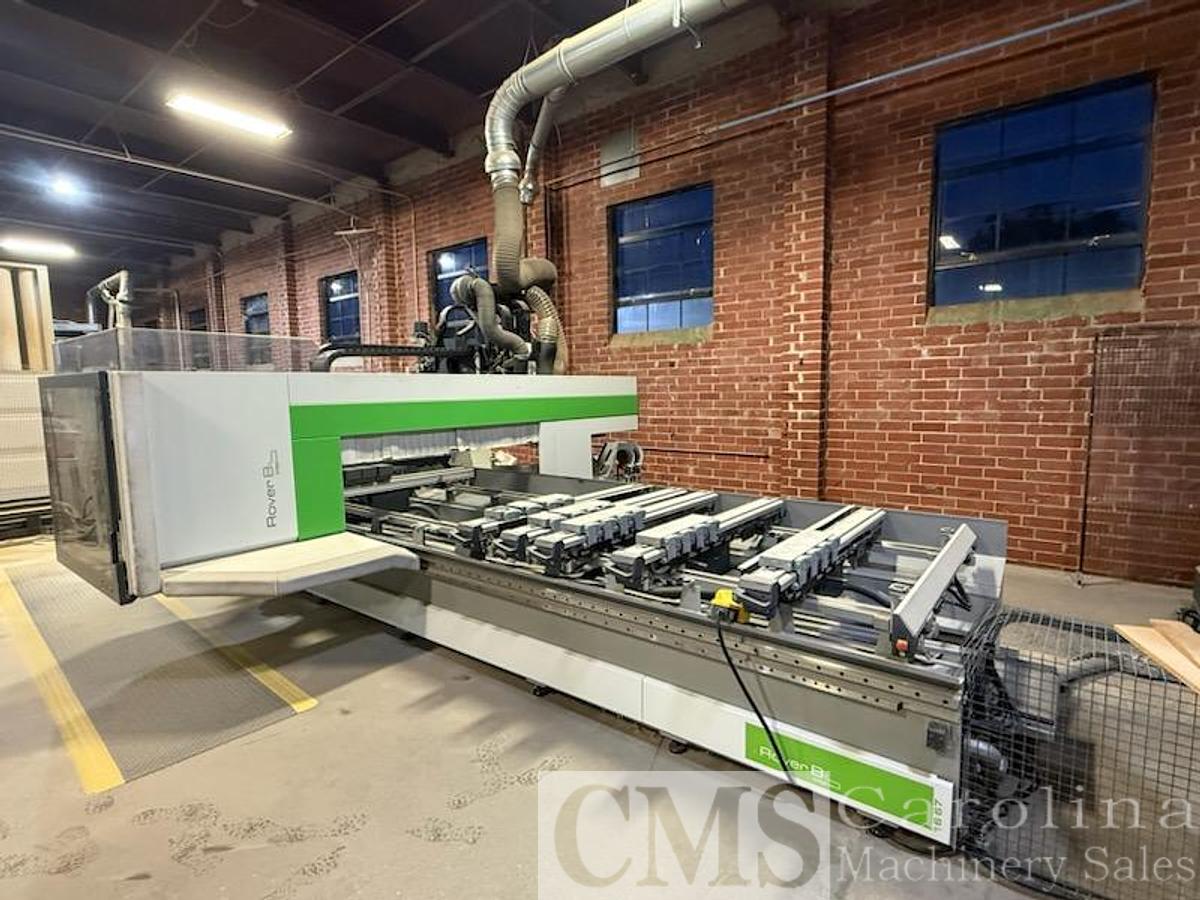

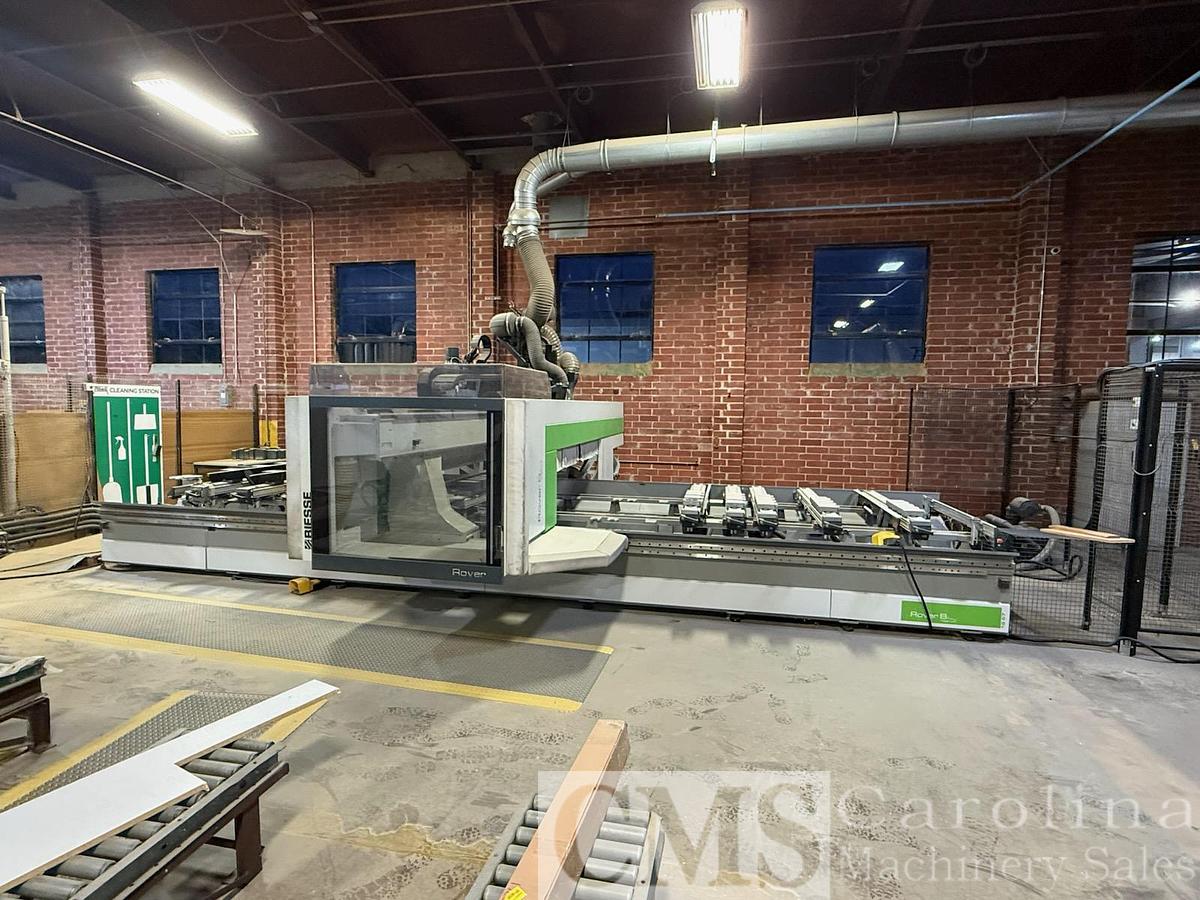

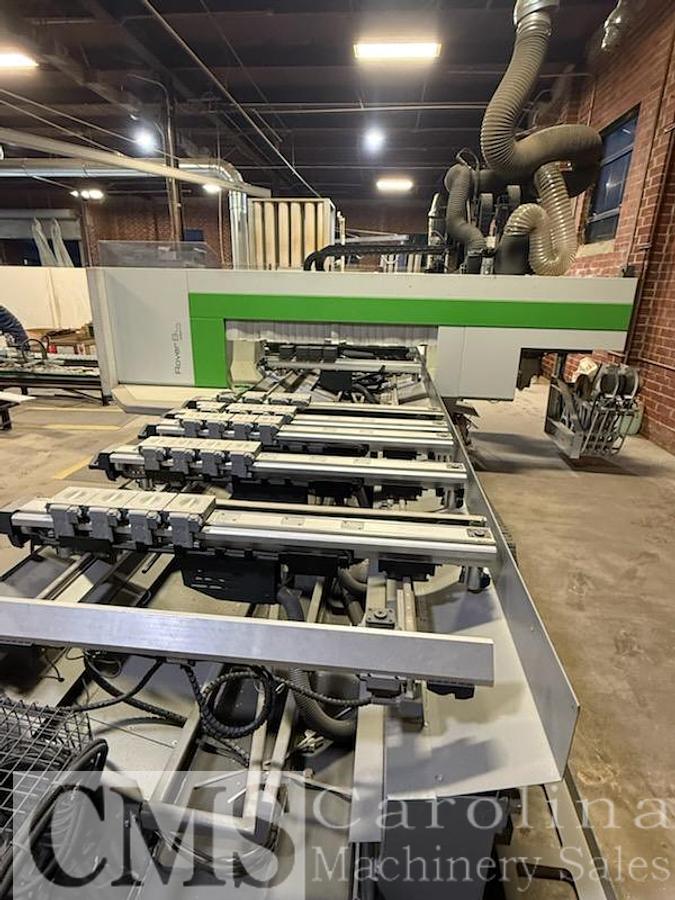

2021 Biesse Rover B Edge 1967 Machinng Center with Edgebanding
Specifications
| Manufacturer | Biesse |
| Model | Rover B Edge 1967 Machinng Center with Edgebanding |
| Year | 2021 |
| Stock Number | 012598 |
Description
X axis work area 67365 mm
Y axis work area 2725 mm
Max panel passage 200 mm
X axis movement speed 80 m/min
Y axis movement speed 60 m/min
Z axis movement speed 25 m/min
No. work areas 4

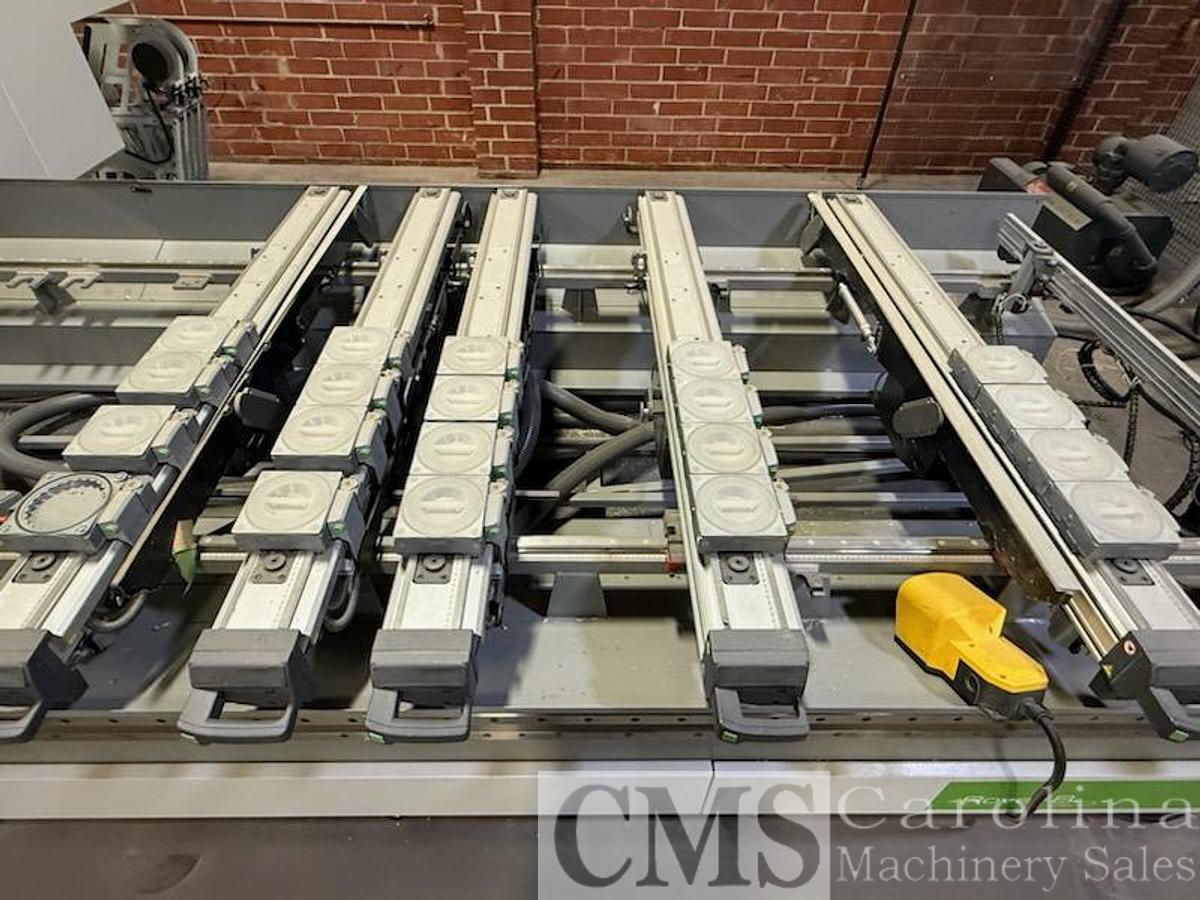

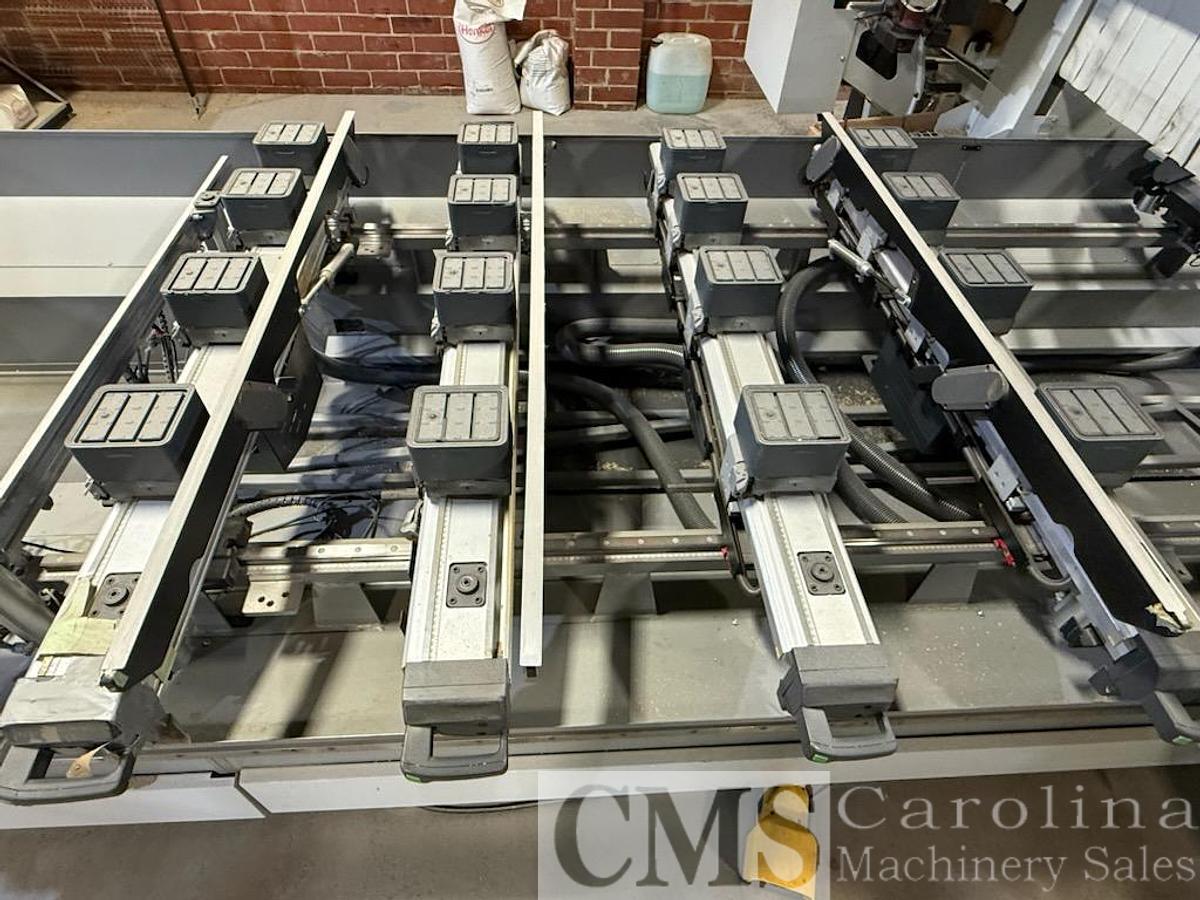

Work table bar with suction cup
No. bars with suction cup 10
With positioning by NC
Suction cups to secure piece being processed
No suction cups 40

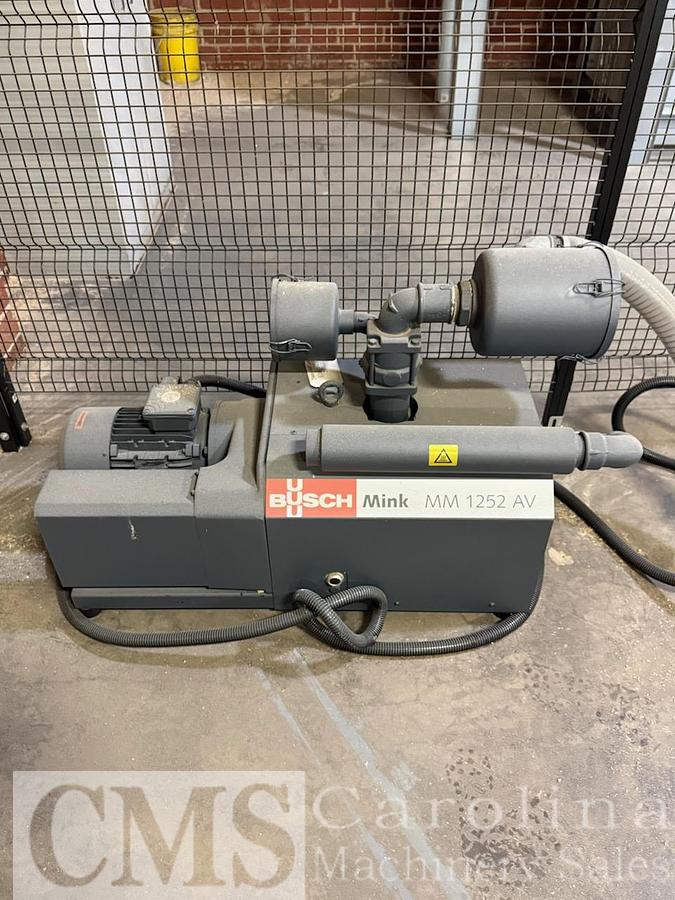

No. pumps 2
Single capacity 250 m3/h
Bore operator units 1
pindles for vertical boring 29
Spindles for horizontal boring in direction X 6
Spindles for horizontal boring in direction Y 4
Router Spindles 2
No. controlled axes 4
Automatic tool change Yes
Liquid cooling system Yes
Motor power #1 13.2 kw
r.p.m. 24000 RPM
No. controlled axes 4
Motor power #2 13.2 kw
r.p.m. 24000 RPM
Edging operating units 1
Max. machinable panel height 60 mm
Min. machinable panel height 14 mm
Gluing unit
Model GU60A
positioning Fitted to the main beam of the machine
Glue pot for polyurethane glue
Premelter for polyurethane glue

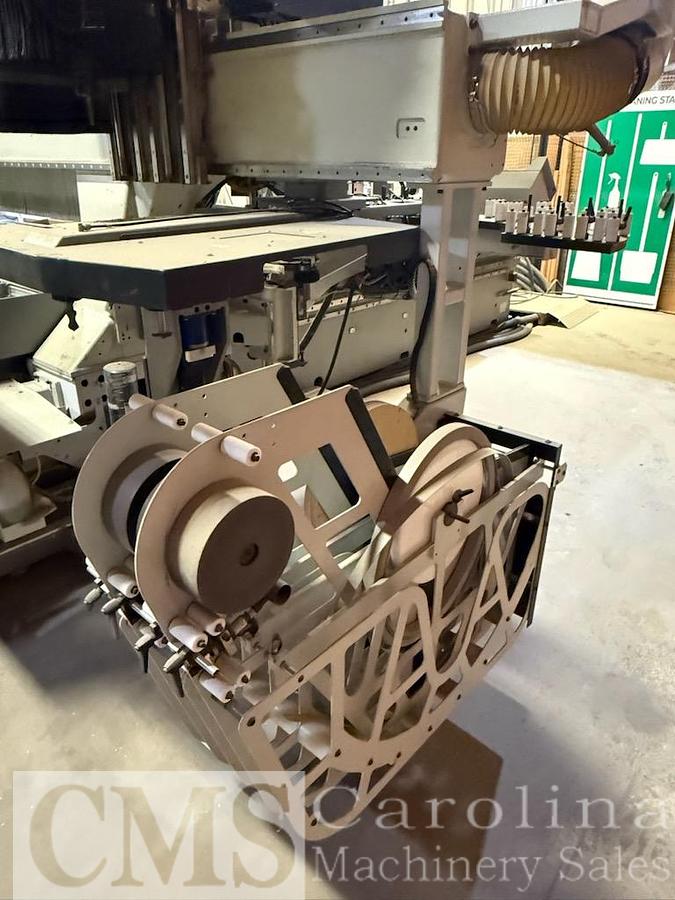

Edge coil magazine
No. Positions 2
Grooving unit 1 1
Tool magazine 1 1
No. positions 22
Control system WINDOWS
Machine programming software
BIESSEWORKS ADVANCED
Safety standard CE mark
Safety system Front safety mats
Waste chip conveyor YES
Total installed power 20.55 KW
