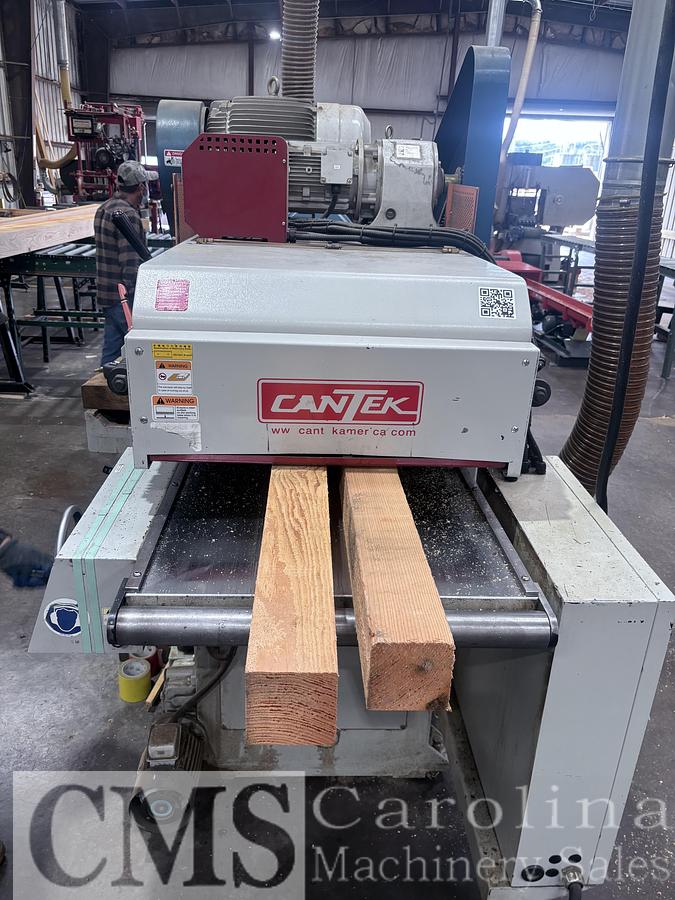

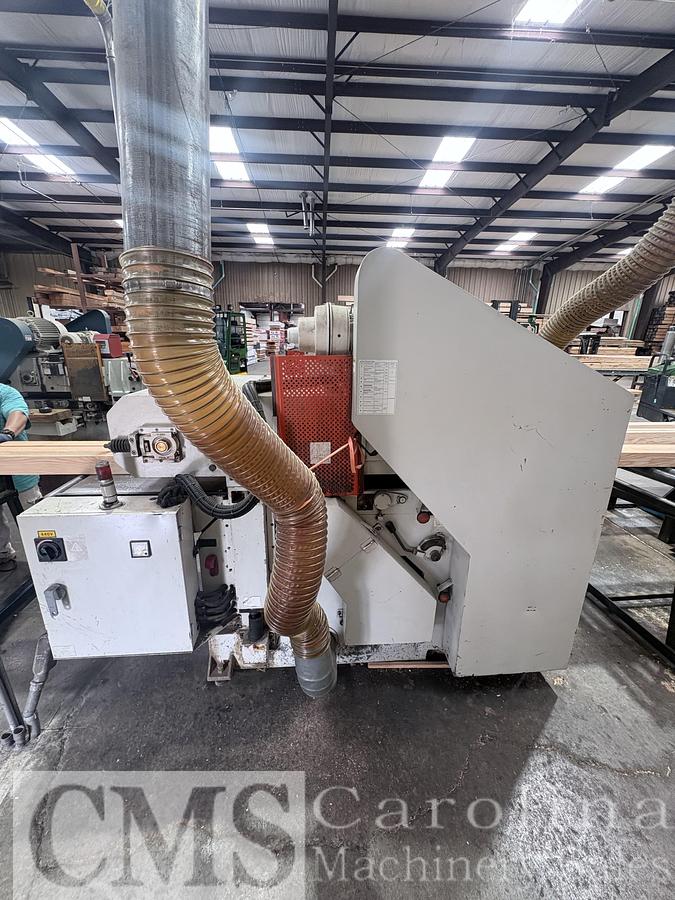

Cantek GT 760 ARD Top and Bottom Planer

Manufacturer Specifications

Max. working width

30″

Max. working thickness

8″ (16″, 20″ optional)

Min. working thickness

0.4″

Min. workpiece length

12.2″

Bottom head motor

20 HP

Top planing head motor

25 HP

Feed motor

5 HP

Table elevation motor

1 HP

Cutterhead diameter

4″

Knife dimensions

30mmx12mmx1.5mm (114 pcs per head)

Cutterhead speed

5000 RPM

Feed speed (variable)

26-79 FPM

Dust ports

(2) 6″

Machine dimensions (LxWxH)

107″ x 55″ x 75.6″

Machine weight

7040 lbs

Packaging dimensions

110” x 55″ x 77”

Shipping weight

 7700 lbs

Electrical requirement

460/3/60 = 71 amps

575/3/60 = 57 amps
