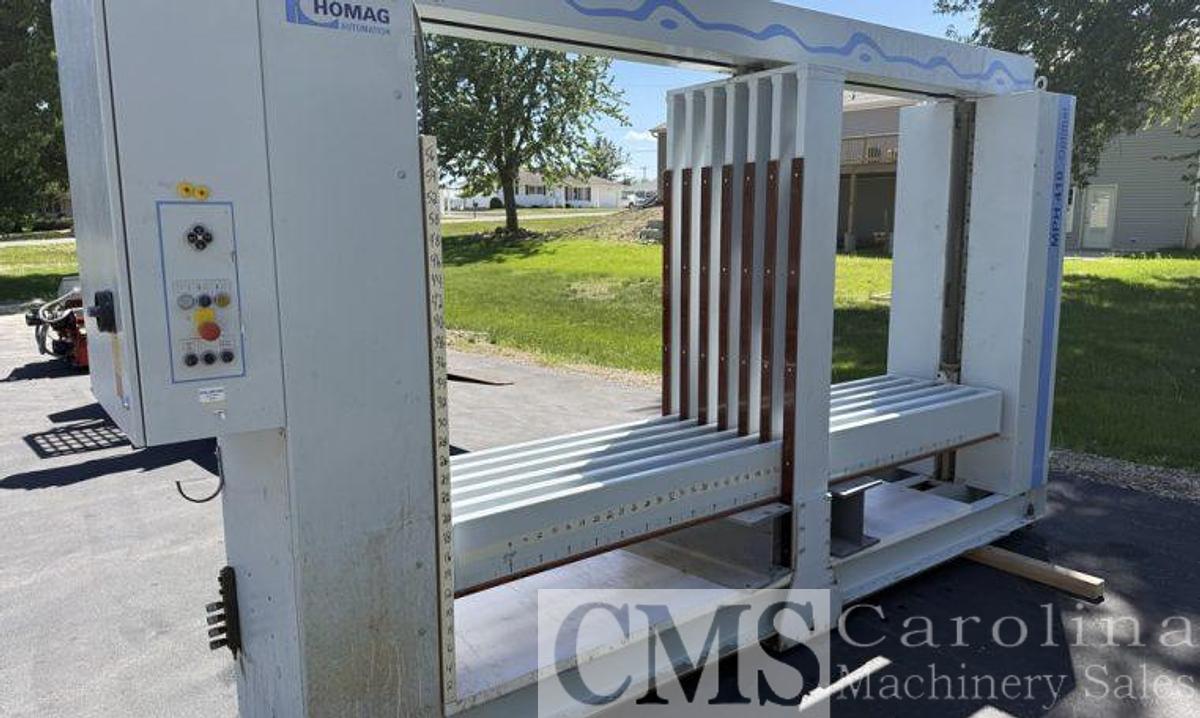

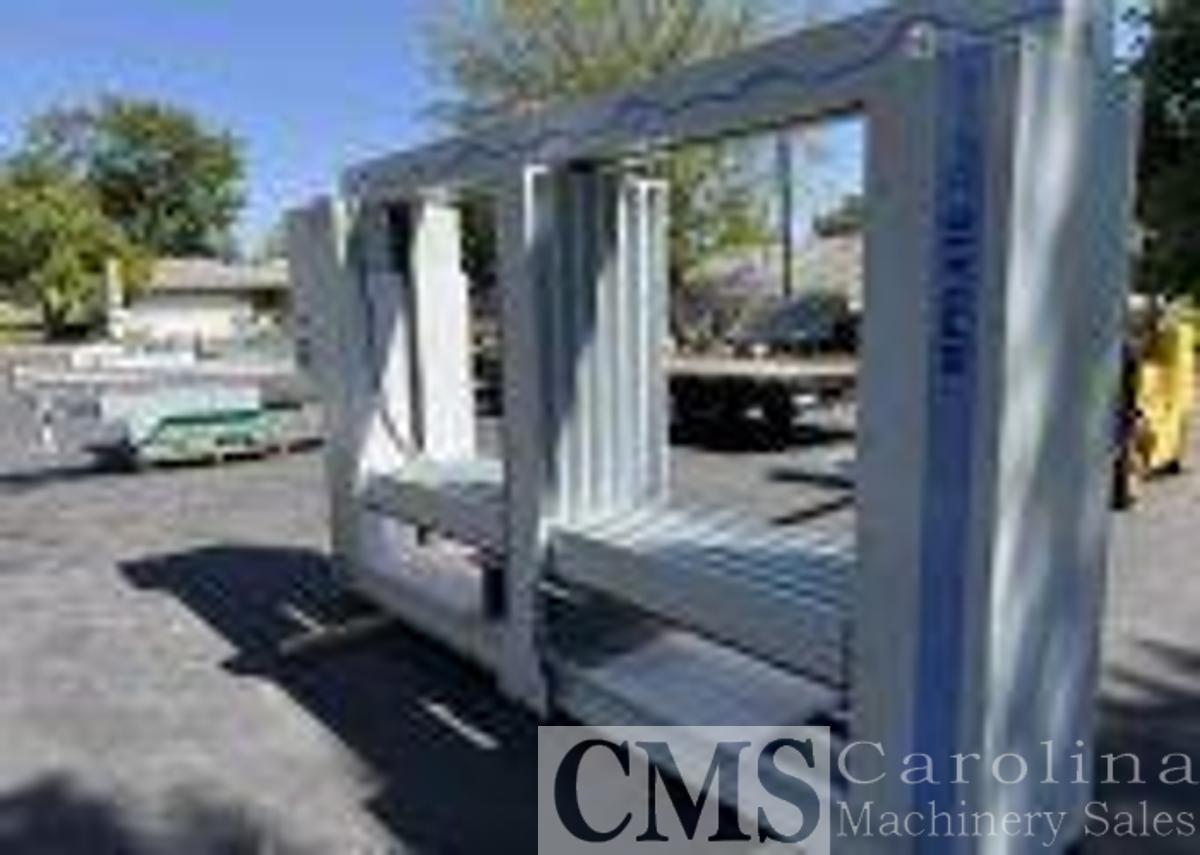

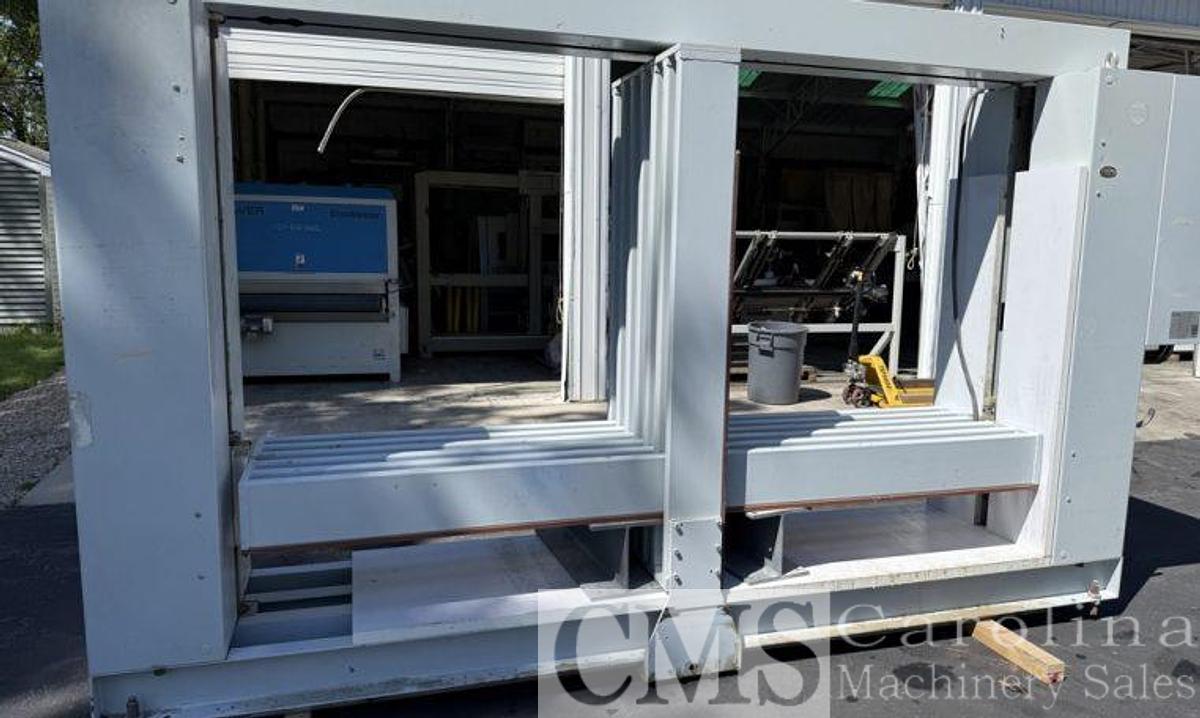

2015 Homag Ligmatech MPH-410 Case Clamp

WORKING CAPABILITY

Case length: 2,500 mm (98-3/8”) maximum, 250 mm (9-7/8”) minimum

Case depth: 700 mm (27½”) maximum, 250 mm (9-7/8”) minimum

Case height: 1,400 mm (55-1/8”) maximum, 150 mm (11¾”) minimum

MACHINE SPECIFICATIONS

Vertical and horizontal pressure beams with variable pressure capacity

Positioning speed (fixed): 25 mm/s (4.9 fpm) and 50 mm/s (9.8 fpm)

UTILITY REQUIREMENTS

Operating voltage: 460v, 3PH, 60 Hz

Amperage service: 8.7 amps @ 460 volts

Control voltage: 25 volt

Total connected load: 4 kW

Vertical and horizontal pressure: 15 kN (3,372 lbs/force)

Height of work platform: 300 mm (11¾”)

AMBIENT TEMPERATURE

Operating range 5°-35°C (min/max), 41°-85°F (min/max)

FOUNDATION REQUIREMENT

Concrete thickness (minimum): 180 mm (7”)

Floor space required (length): 4,000 mm (157½”)

Floor space required (width): 750 mm (29½”)

Floor space required (height): 2,500 mm (98½”)
