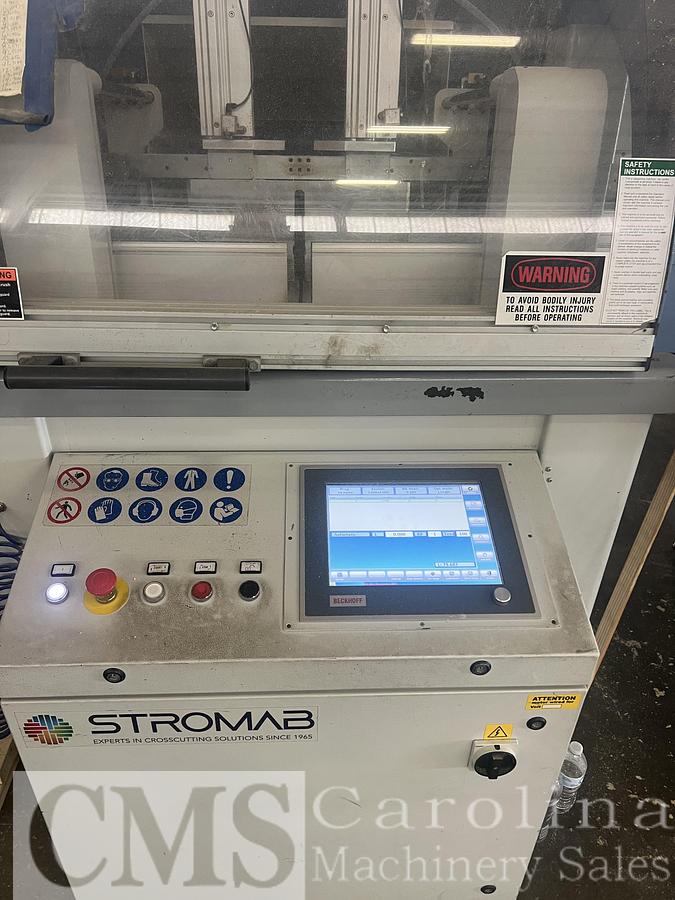

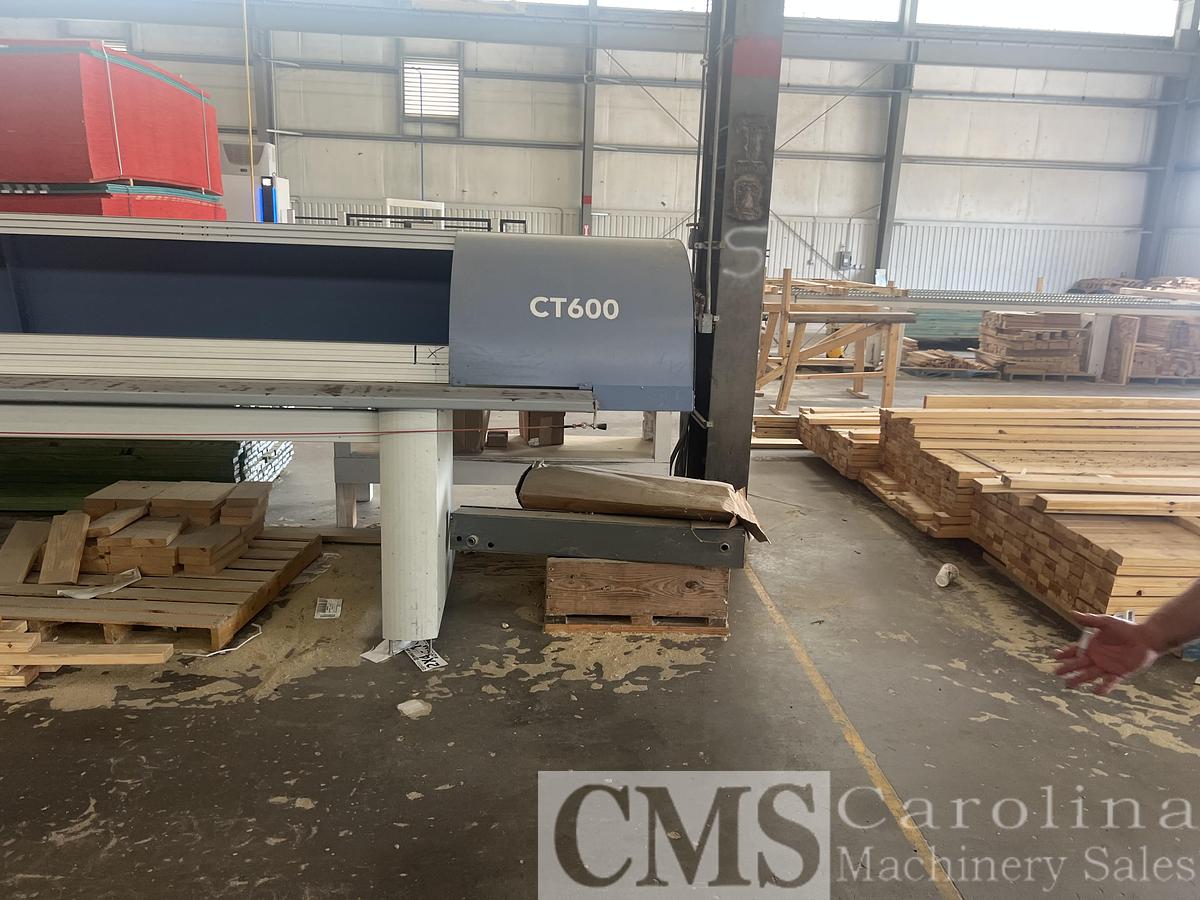

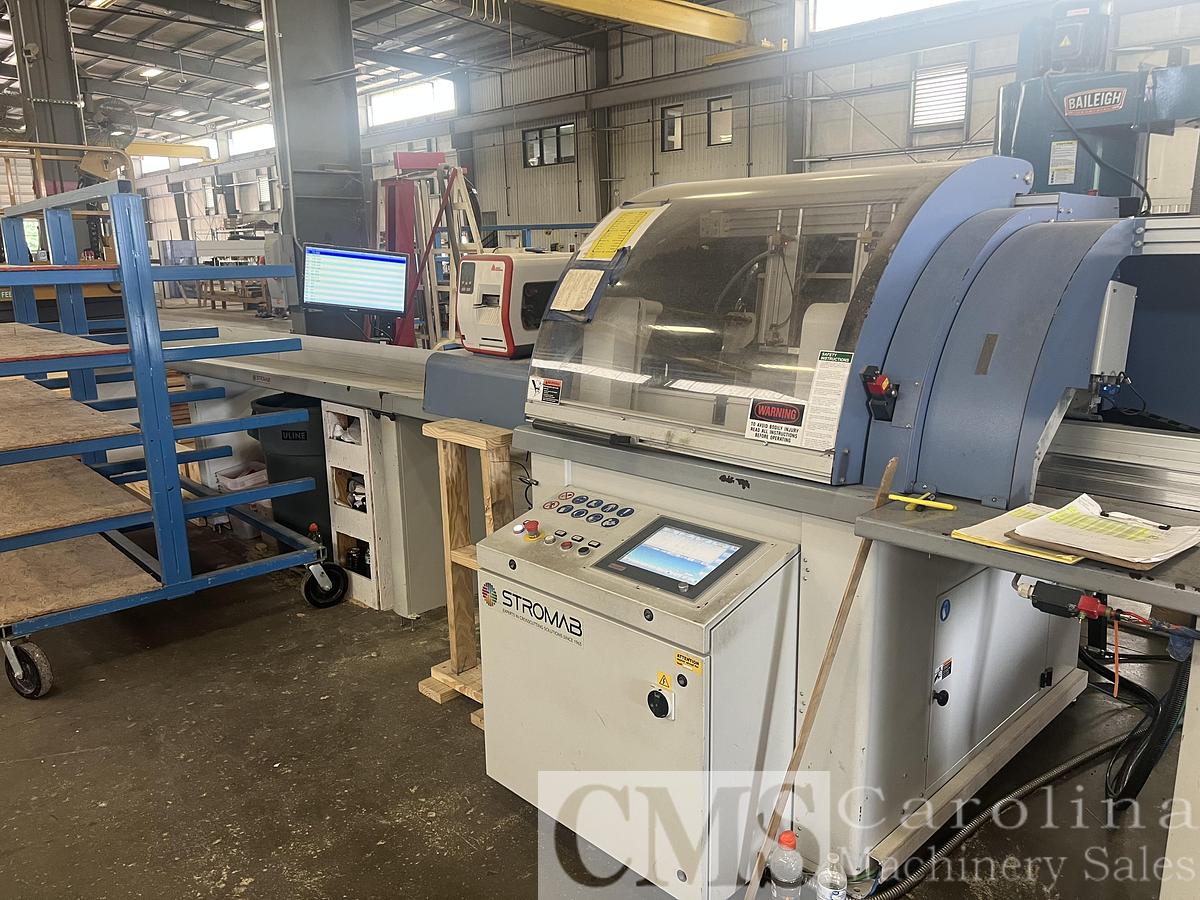

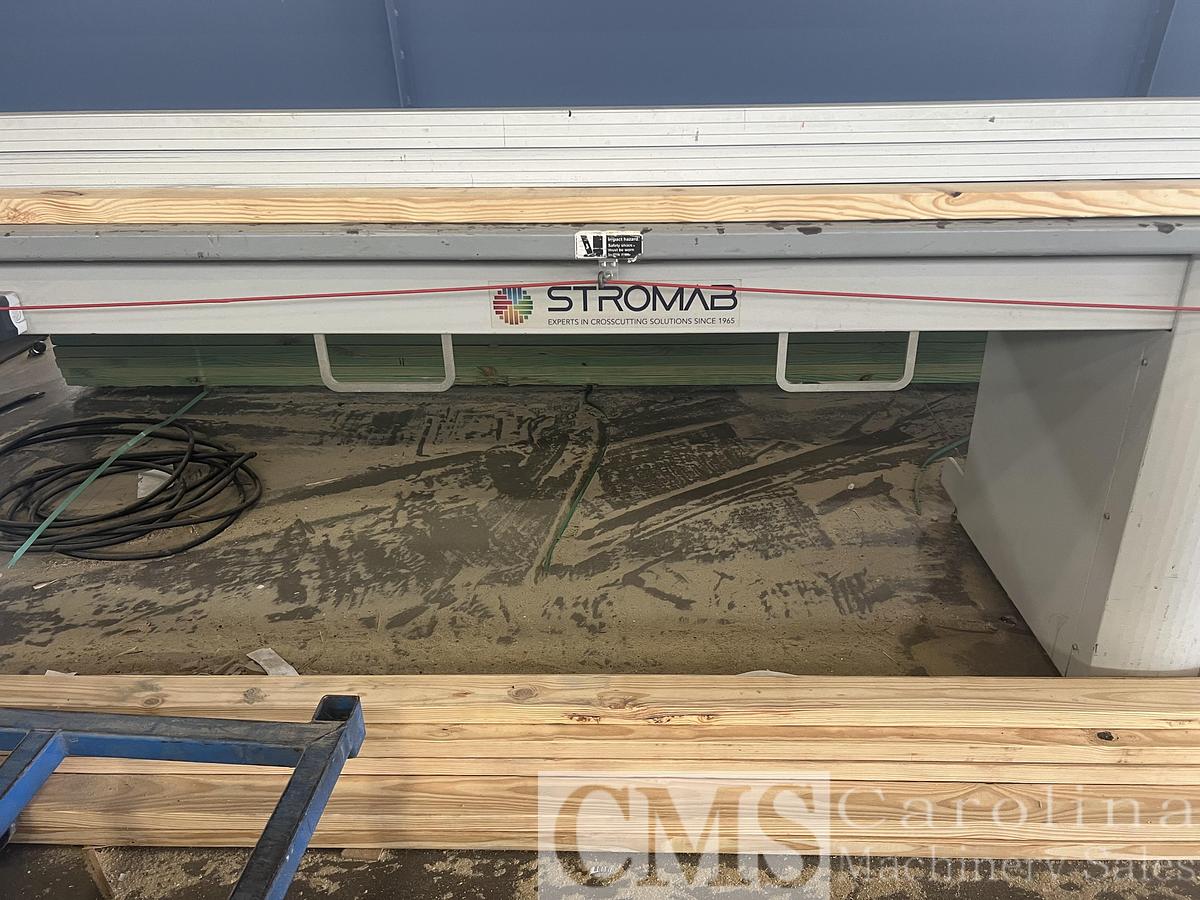

Stromab CT600 Optimizing Crosscut Saw

Manufacturer’s Specifications

Technical specifications Cutting unit

Blade diameter

600 mm

Blade rotation speed

2600 rpm

Blade motor power

kW 7,5 (HP 10)

Blade driving

Pneumatic Automatic

Working table rotation

70° 0° +70° (+/- 80° option)

Rotation accuracy

+/- 0,2 mm

Working table height

1000 mm

Working table inclination

8°

Minimum crosscutting section

20 x 10 mm

Max operating pressure

6 bar

Extraction outlets

2 x Ø100 mm - 1 x Ø120 mm

Net weight

1200 kg
