2018 Casadei XE NIA 40 Sliding Tablesaw
Specifications
| Manufacturer | Casadei |
| Model | XE NIA 40 Sliding Tablesaw |
| Year | 2018 |
| Stock Number | 012548 |
Description
Features include an aluminum carriage that slides on high precision hardened and rectified steel guides, which are mechanically fixed to the carriage. Fence positioning, main blade projection, and a separately powered scoring unit are manually adjustable. Mechanical digital read-outs for blade tilt angle. Motor: 15Hp, 3 Ph - 230 volt Sliding Table Stroke: 126", Anodized aluminum alloy carriage on hardened steel guides Saw blade lifting and tilt via hand wheels on front of machine 10-1/2 ft stroke with 50" rip capacity Automatic brake on main saw blade motor .3HP scoring motor Overhead saw guard Electronic rip fence with electronic read-out position display 16" blade capacity
Security execution
CA1592 XENIA 40 M - Circular saw USA/Canada version)
VOLT 230
Frequency 60 hz
Version "A"
Excentric clamp

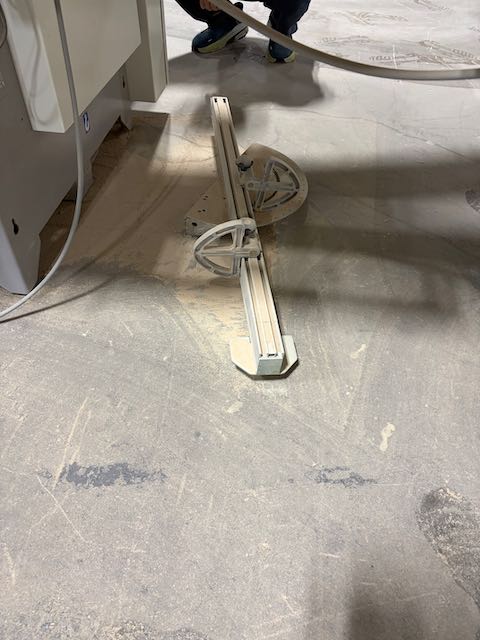

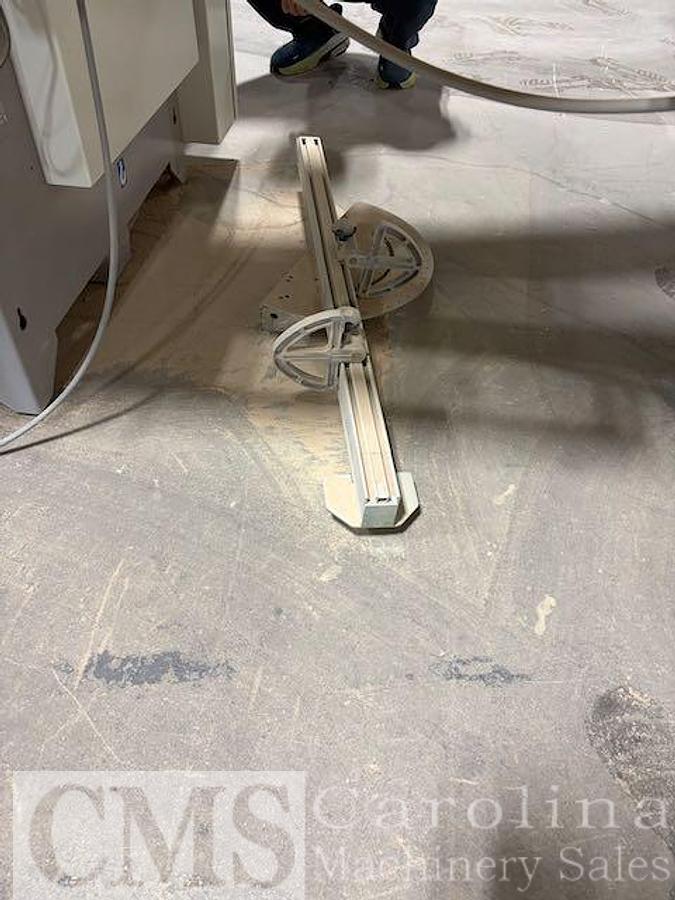

Angular cutting fence
1" diam. Saw spindle
