2018 Casadei FLEXA 27 Single Sided Edgebander

Specifications: FLEXA 27 RMA8: CA1297 Standard equipment: Electrical data:

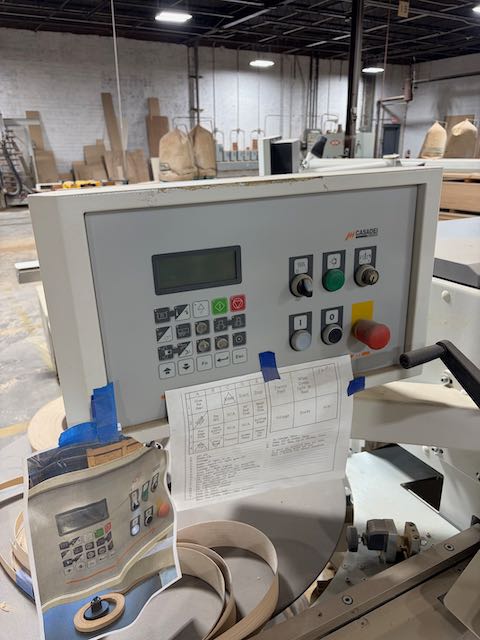

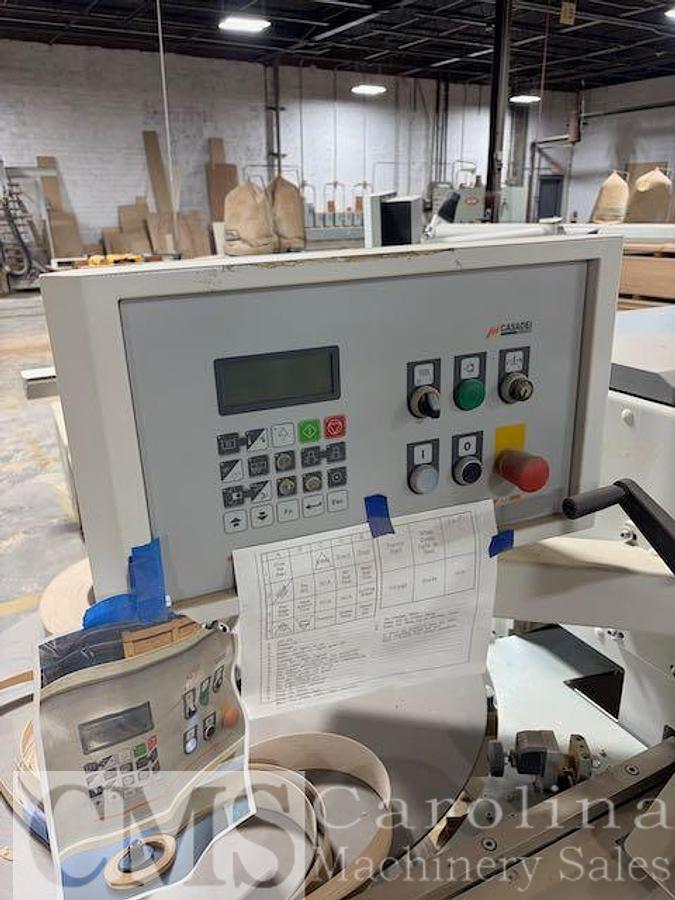

E-Stop on main control panel: 230 V 3 Ph 60 Hz. 37 Amps. --

Equipped with:Kit for “NESTING"; processing. --

CA4048 Spray Mist Device for edge finishing improves panel. --

Cleaning and polishing of the applied edge. --

Welded Steel Frame & Steel pressure hold-down beam with (2) rows rubber rollers. --

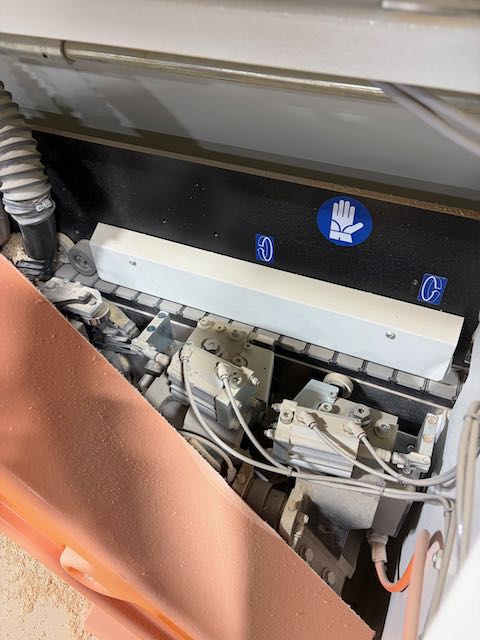

Feed chain with industrial high grip rubber. --

Chain on hardened steel guides. --

Guides consist of one circular and one flat. --

Manual adjustment of the pressure beam w/ readout. --

Automatic pos. of the working units w/ reference to panel. --

Mechanical digital indicators for panel thickness. --

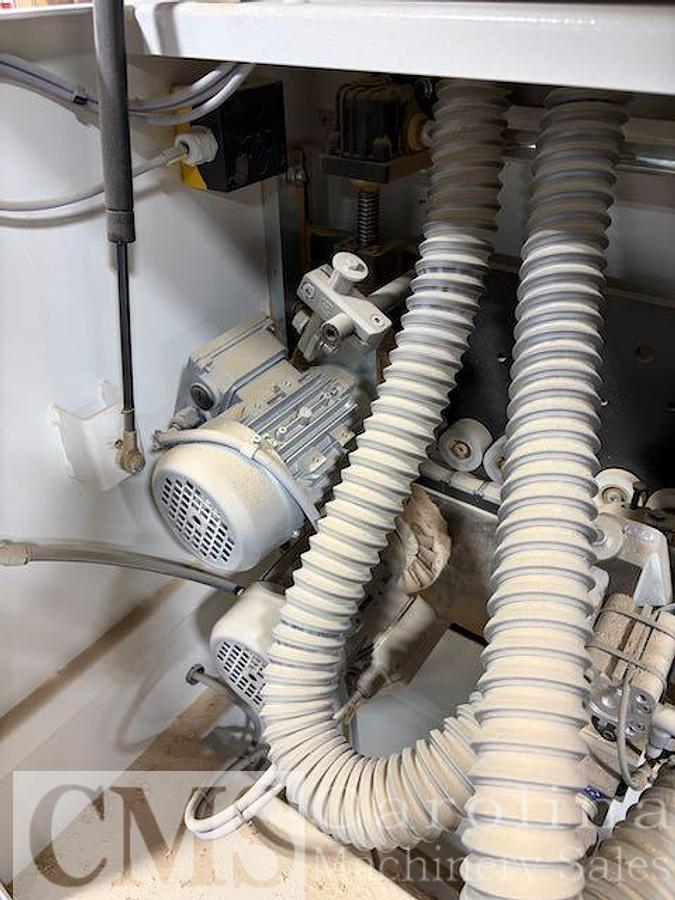

High Frequency Motors w/ Inverter. --

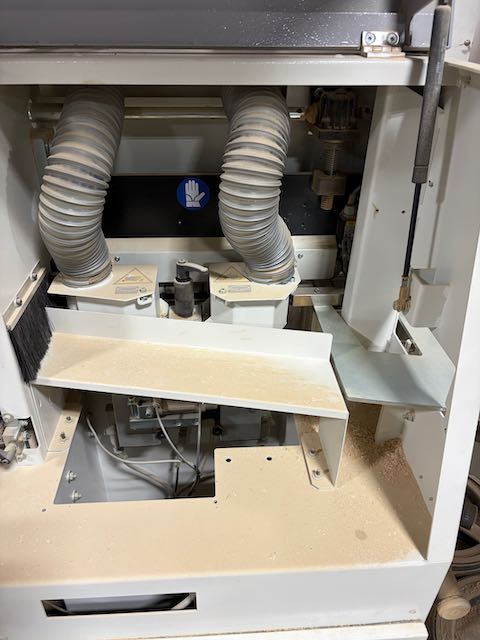

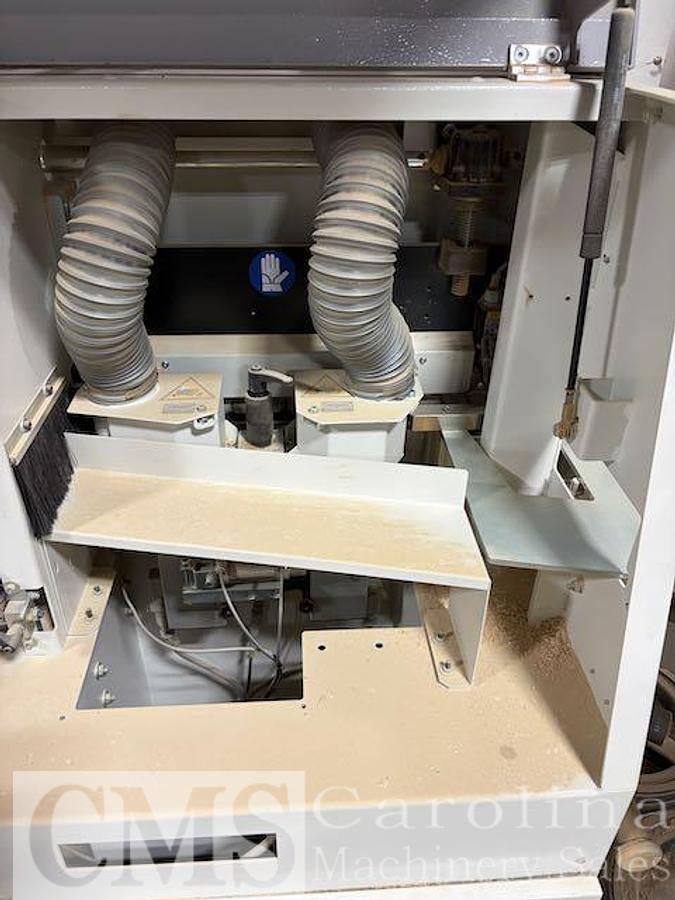

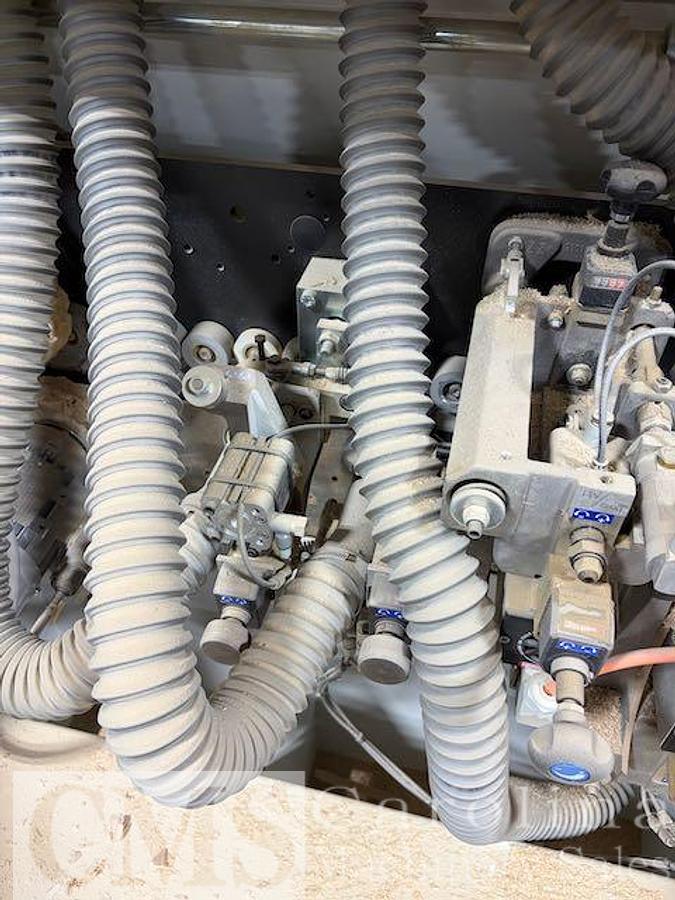

Centralized dust extraction. --

Adjustable panel support rollers. --

Sound enclosure & lockable switch cabinet --

Pre-milling unit:• Two cutter heads with automatic timing• Independent high frequency motors with Stock removal determined by infeed fence with digital display• Timed blower to clean the machined surface •Diamond tools 2.4 HP each.• Tools D=100mm H=49mm Max stock removal is H=45 mm / 55 mm. --

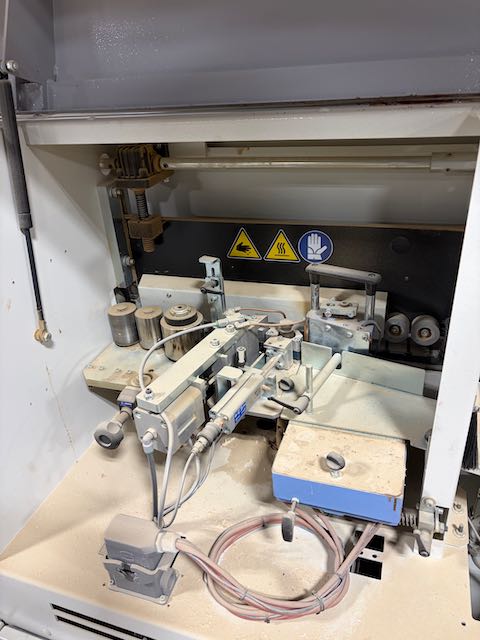

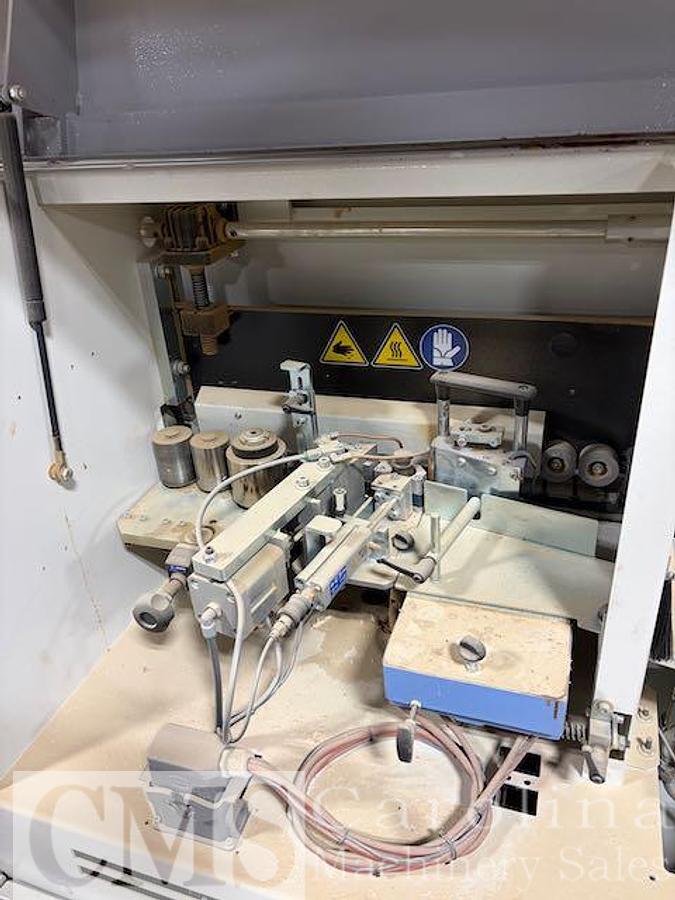

Working Units:Glue pot and edge processing magazine. --

2-Motor end trimming Unit. 0 - 15 deg. --

2- Motor Top and bottom trimming unit. --

Edge scraping unit for 3mm. --

CA5695 Glue Scraping Unit ;GS/K2". --

CA9360 Brushing/ Buffing Unit “BFK";. --

Machine Features:• Guided by a chain for accurate feeding and long-lasting perfection. • Thick, Steel top pressure beam complete with two rows of rubber coated wheels.• Robust panel support which can be extended according to the size of the parts. • ²Nesting Kit Allows processing of predrilled parts• 3 Contacting rollers on Trimming Unit• Edge Scraping Unit• Rubber coated copy wheel for end trimming unit• Anti- Adhesive Unit RA• Perfect cleaning of the panel• Prevents glue from sticking to the top and bottom surfaces GP-200• Two Pressure rollers (1 large, 1 flat)• Teflon coated glue pot• Automatic glue temperature regulator to reduce glue temperature if machine is not in use to reduce glue heat time• Automatic recovery of glue• Automatic loader for strips • 2.4 kW. 3.3 HP Power. 1.5 Kg Capacity End Trimming Unit IK/200• (2) Independent high frequency motors w/blades• Pneumatic tilting of the saw blade 0 – 15 deg. from control panel• Units slide on THK guideways• Mounted to the base for vibration-free machining• 12,000 RPM and .3 HP each. Trimming Unit “TT/K";• 2 Independent high frequency motors• Vertical revolving copy devices and front copy pads for accurate positioning• Dust extraction hood• 3mm tooling standard12,000 RPM and .4 HP each• Corner Rounding Unit “A/1";• For automatic rounding of PVC/ ABS edging with radius of 1 and 3 mm• Vertical and frontal copying device for adjustment of cutting point on the panel
