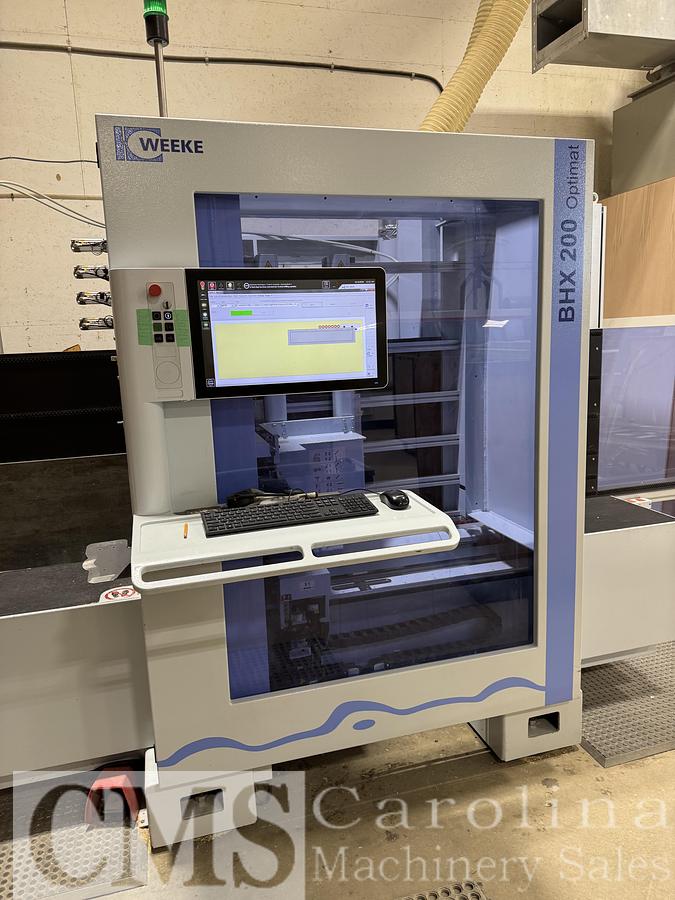

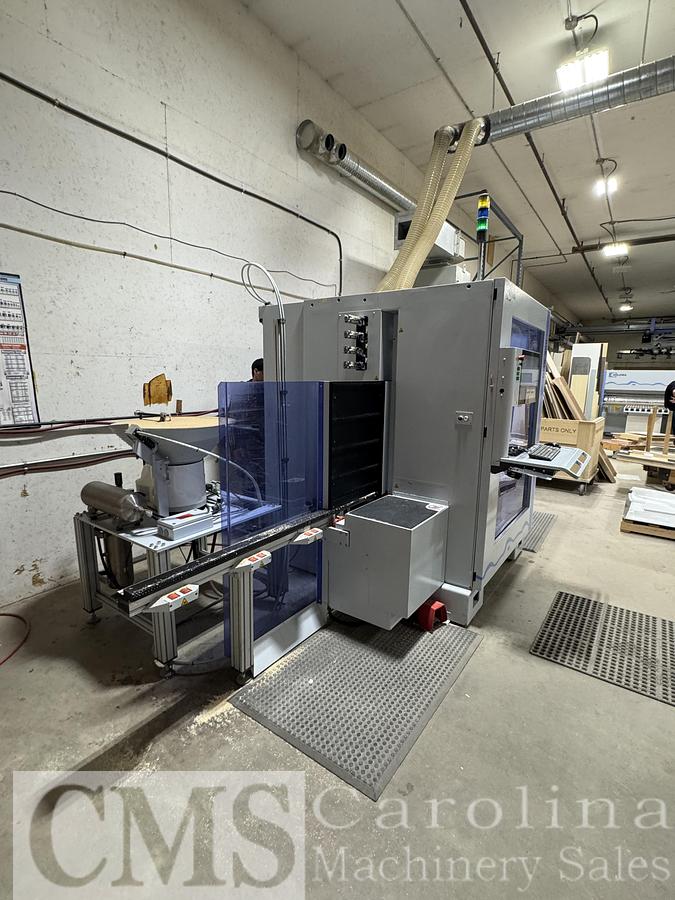

2013 Homag BHX 200

Working dimension X 3.050 mm

Working dimension Y 1.250 mm

Working dimension Z 80 mm

Number of milling spindles 1

Main motor power 10 kW

Rotation speed max 24.000 rpm

Tool clamping system HSK-F63

Tool changer positions 4

Vertical drilling spindles 15

Horizontal drilling spindles in X 6

Horizontal drilling spindles in Y 4

Groove saw 90° turnable

Vertical working surface

Machine table Feed-through technology

Special work piece clamping system clamp gripper

Out feed Work piece return

Barcode reader

Dowel insertion

Glue system PVAc

Dowel diameter 8 mm

Dowel length max35 mm

Safety device enclosed cabin

Milling for fittings Yes

HOMAG Plausibility check

Control cabinet cooling

ControlHOMAG POWER CONTROL, Homag powerTouch
