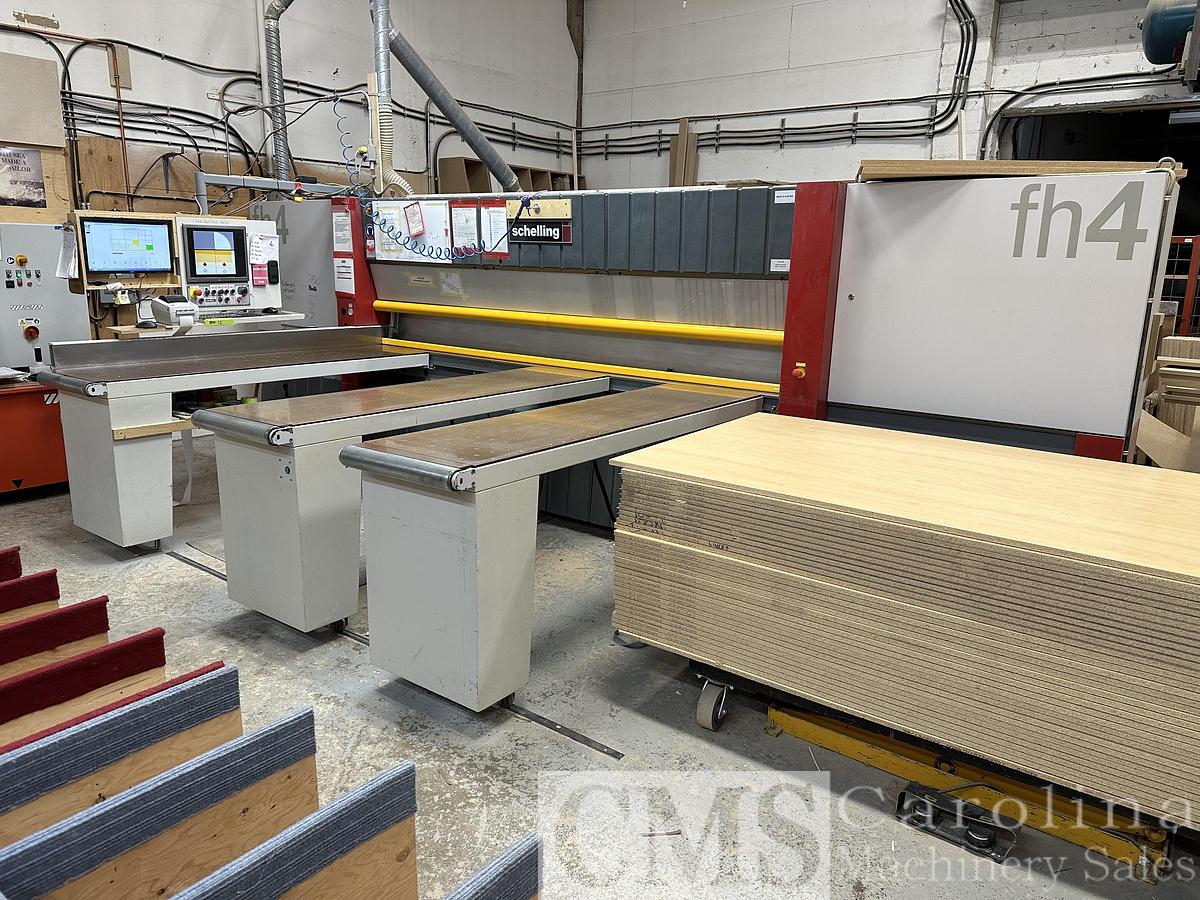

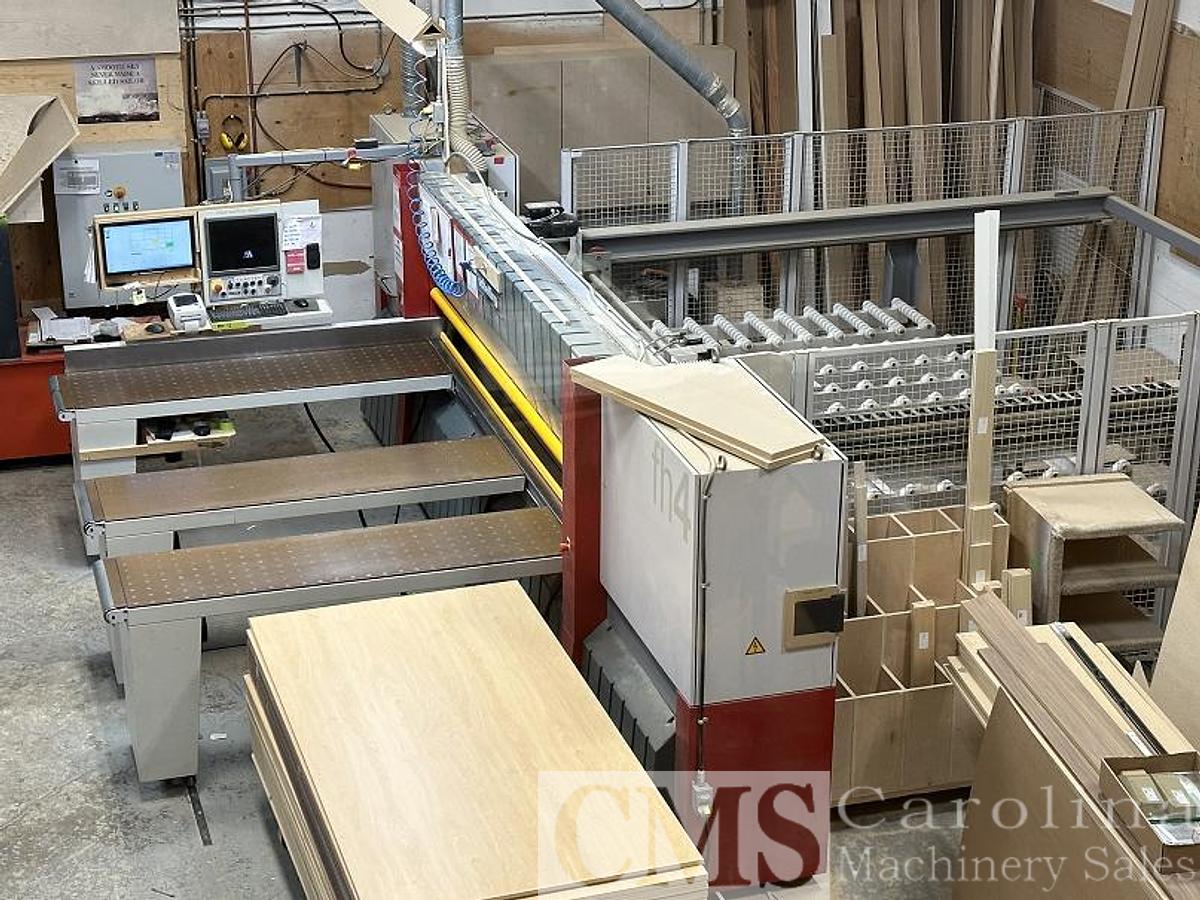

2007 Schelling FH4 330-310

Year of construction 2007

Installed date Sep-08

Machine hours 9290

Specifications:

Over all Depth with table 6810mm

Over all Width 6352mm

Support tables 600x2200 air flotation tables

1 stationary 2 movable

Main Motor Power 17kW

Saw carriage speed Variable saw carriage travel speed from 16 - 525 FPM

(5 - 160 MPM), constant return of 525 FPM (160 MPM).

Saw blade projection 75mm max cut

Feeder carriage Rack and Pinion

Saw travel Rack and Pinion

Voltage 480V

Included Options:

Saw blade quick change Yes

Grooving program Yes

Cooling Unit for electrical cabinets Fan

Saw software MCS Evolution, Windows XP

Side aligners Strip Aligner x2

Pusher fence (11) material gripper clamps with double clamping fingers

Scoring saw Electronic scorer adjustment, from the machine control

Display

19" Color screen displays cutting dimensions & patterns with

"REAL TIME" moving graphics, self-diagnostic, data input by

keyboard or direct downloading from office PC.
