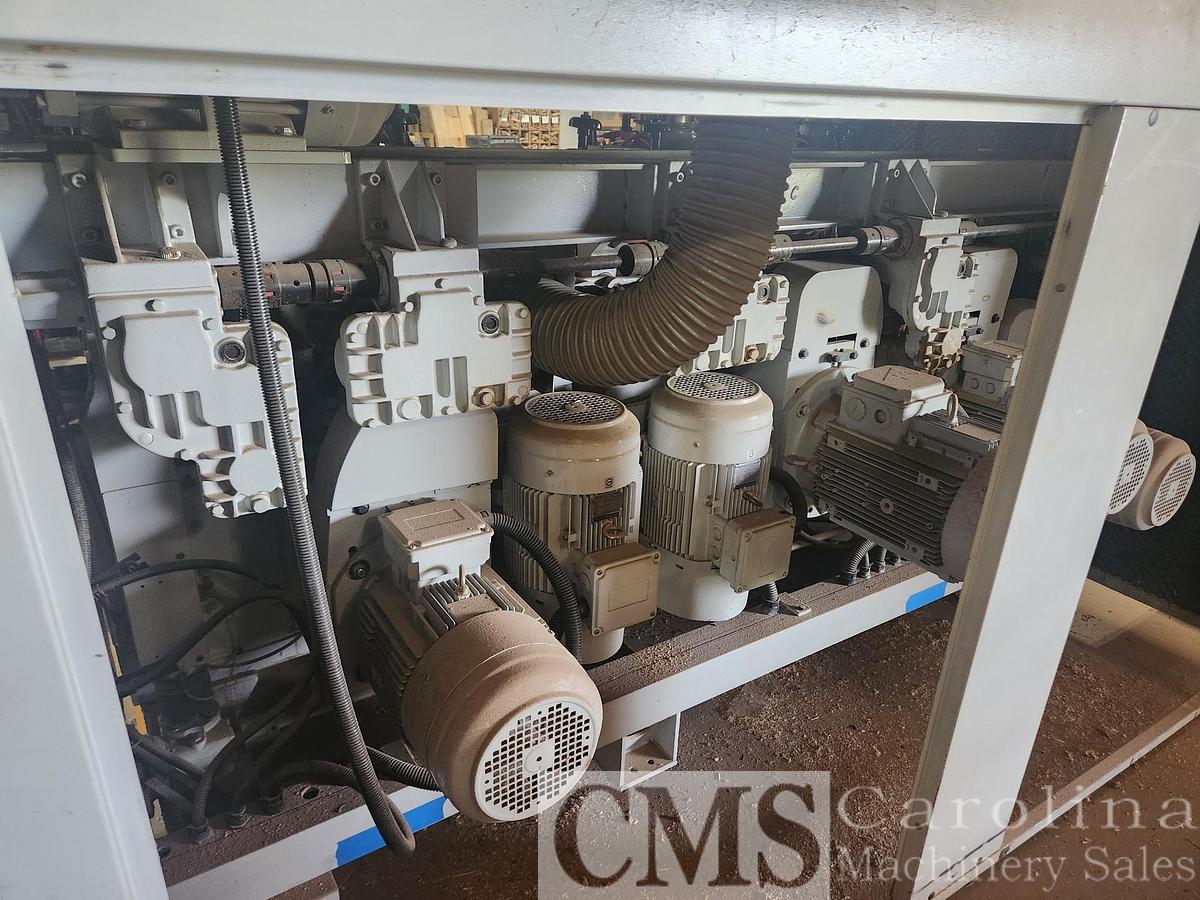

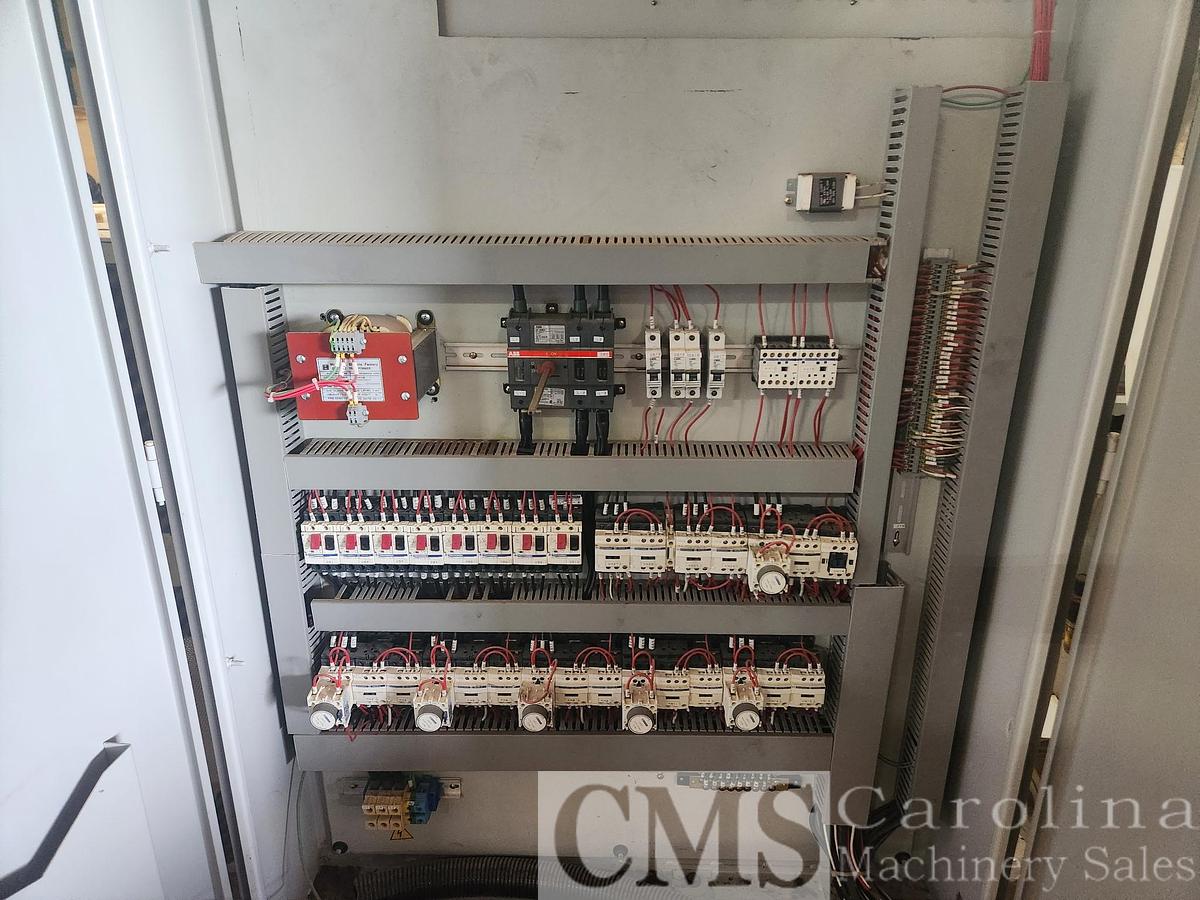

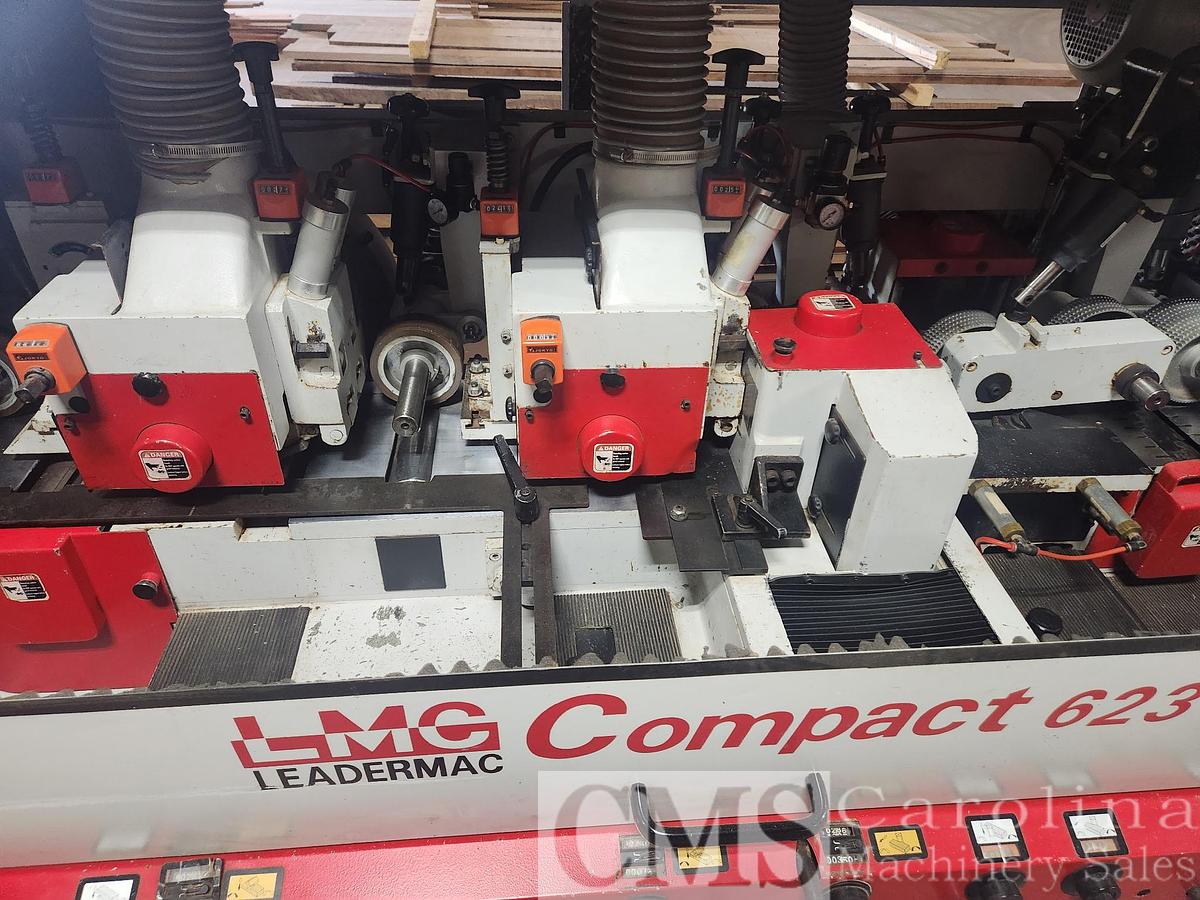

Leadermac Compact 623 6-Head Moulder

Leadermac Compact 623 Moulder

6-Head Machine

Needs new glass on front cover

Removed from service in good running condition.

Specs (to be confirmed):

9"  working capacity

Six (6) head

     Bottom 15 HP

     Right 10 HP

     Left 10 HP

     Top 20 HP

     Top 15 HP

     Bottom 15 HP

     1-13/16" dia. spindles at 6,000 RPM

     One (1) head supplied with each spindle

Pneumatic receding chipbreaker and pressure shoe for left and top spindles with digital readout.

Motorized feed beam

Cardan feed drive (chainless feed system)

Variable feed speed from 20 - 82 FPM powered by a 5 HP motor

Swing-away intermediate short piece feed mechanism at right spindle

Full width driven adjustable (1) infeed & (2) outfeed rollers in machine bed

Lateral side pressure roller at infeed gate

Feed jog/inch forward at top spindle.

Chromed 6' infeed straightening table

Chromed table plates and fences

Automatic table lubricant pump

Central lubrication system

Sound enclosure. The front cover got broke on the trip to shop.
