2022 Homag Sawteq B400 HPL400 Profiline Rear Load Panel Saw

Homag Sawteq B400 Rear Load Panel Saw

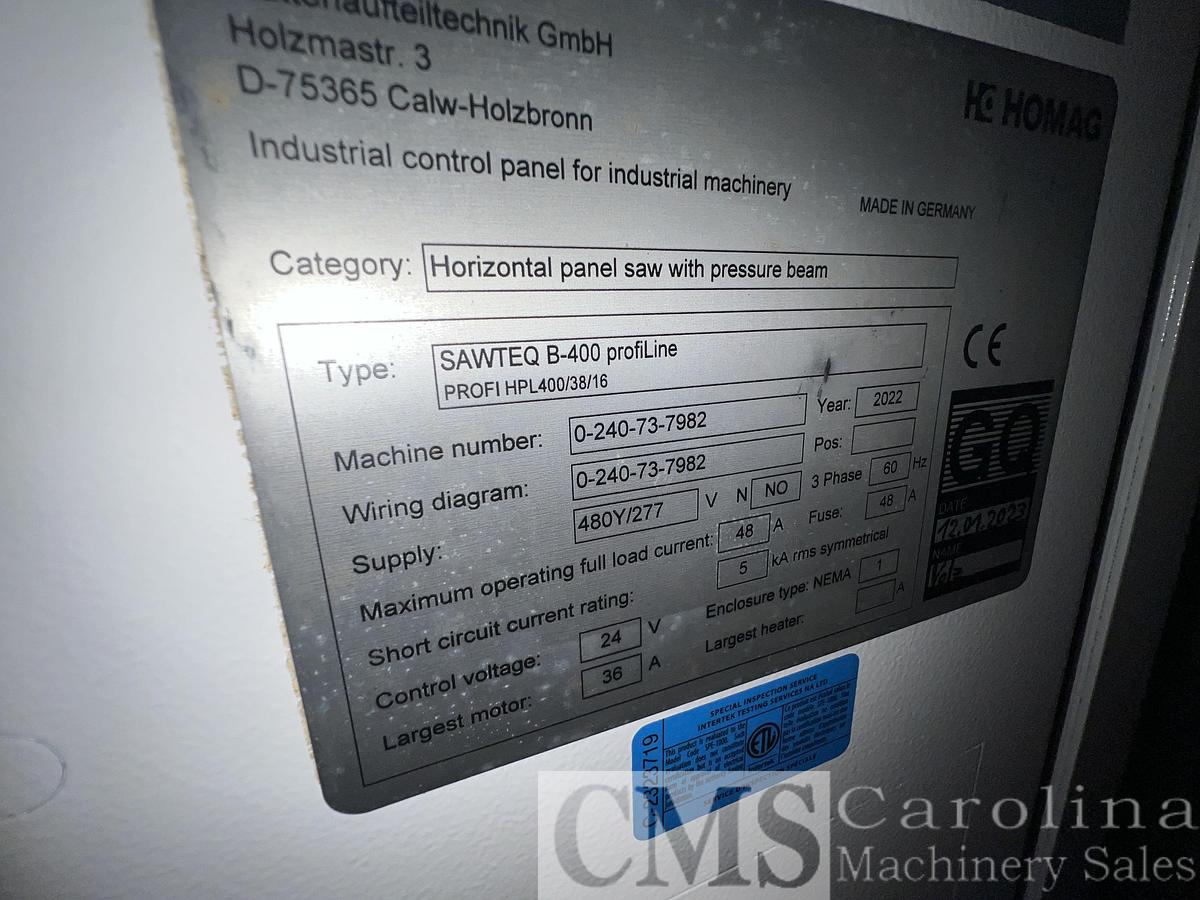

Model Sawteq B400 Profiline Profi HPL400/38/16

This machine was purchased new in 2022, installed in 2023, removed from service in early 2025, and is now in dry storage ready to to be loaded and shipped.

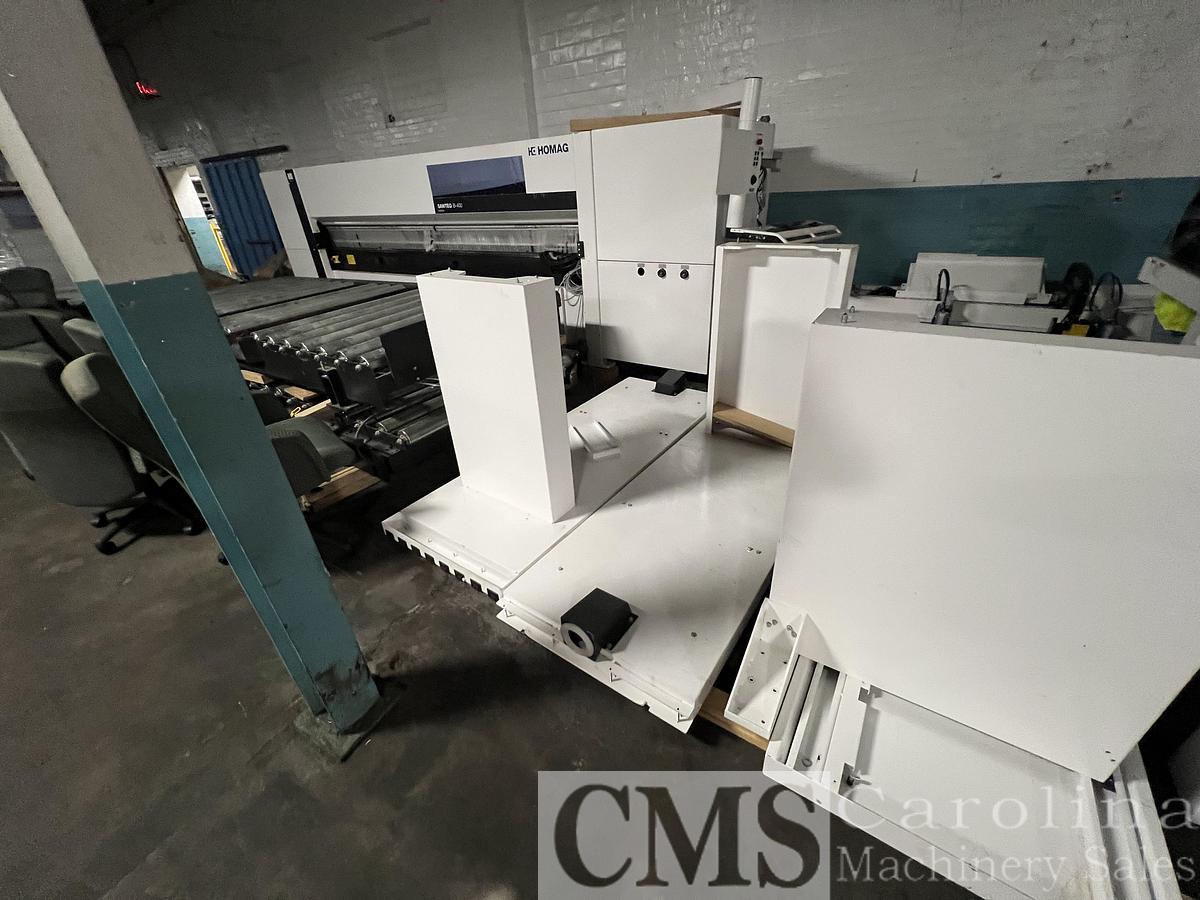

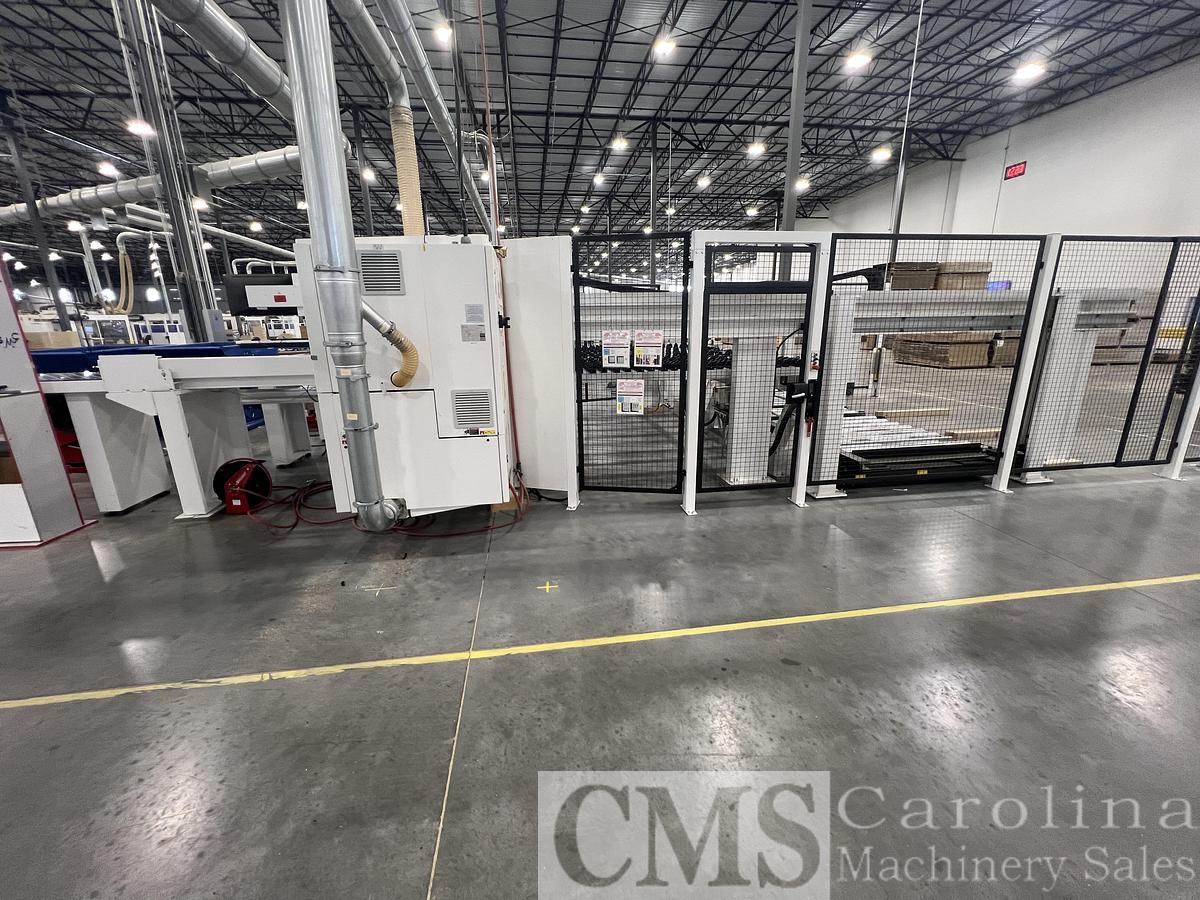

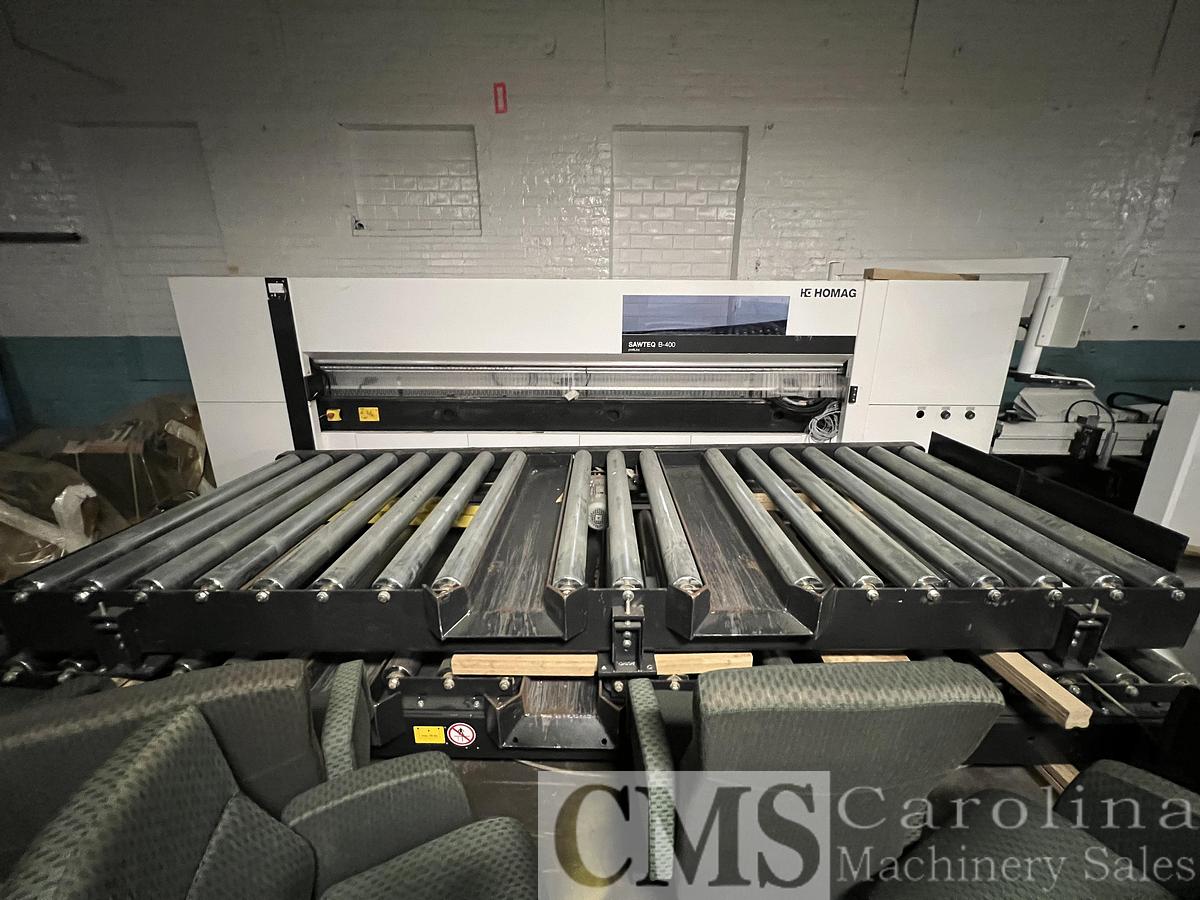

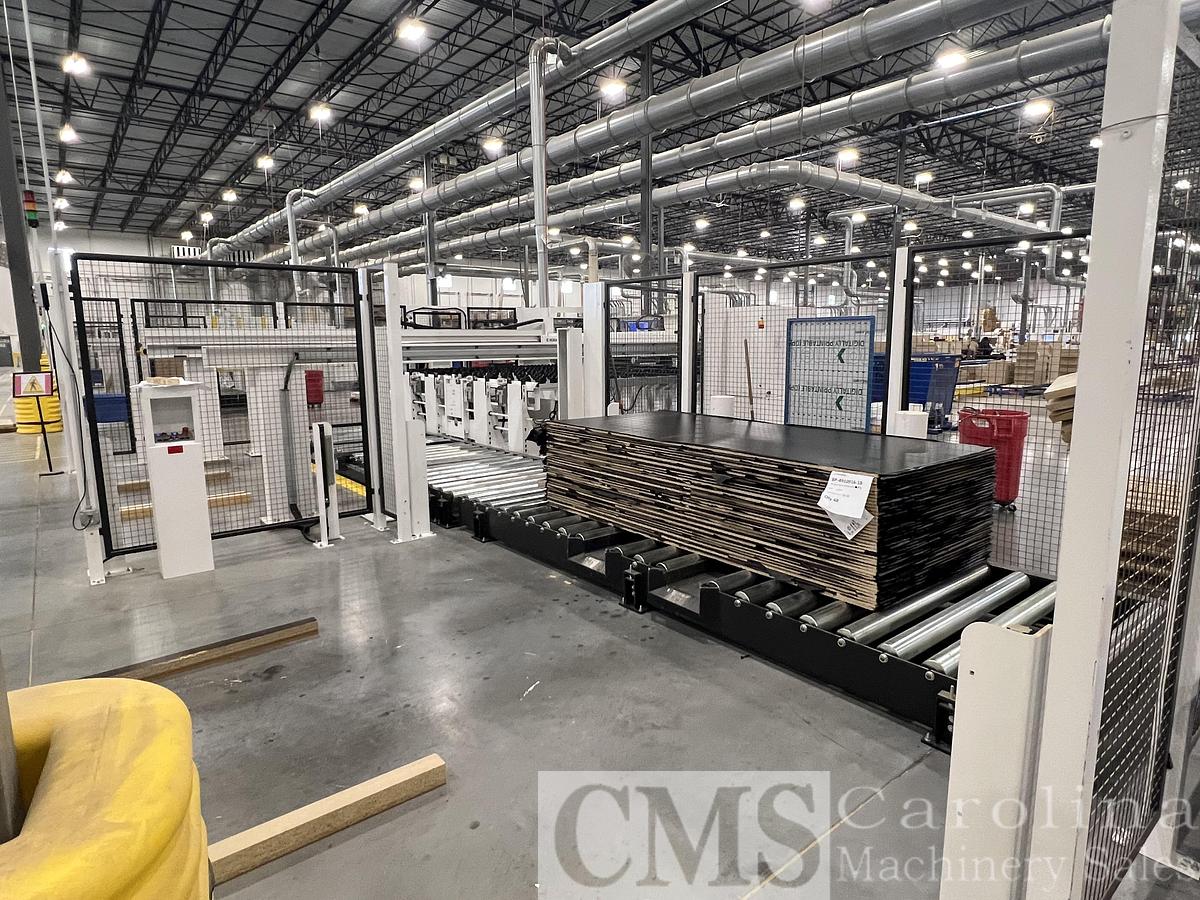

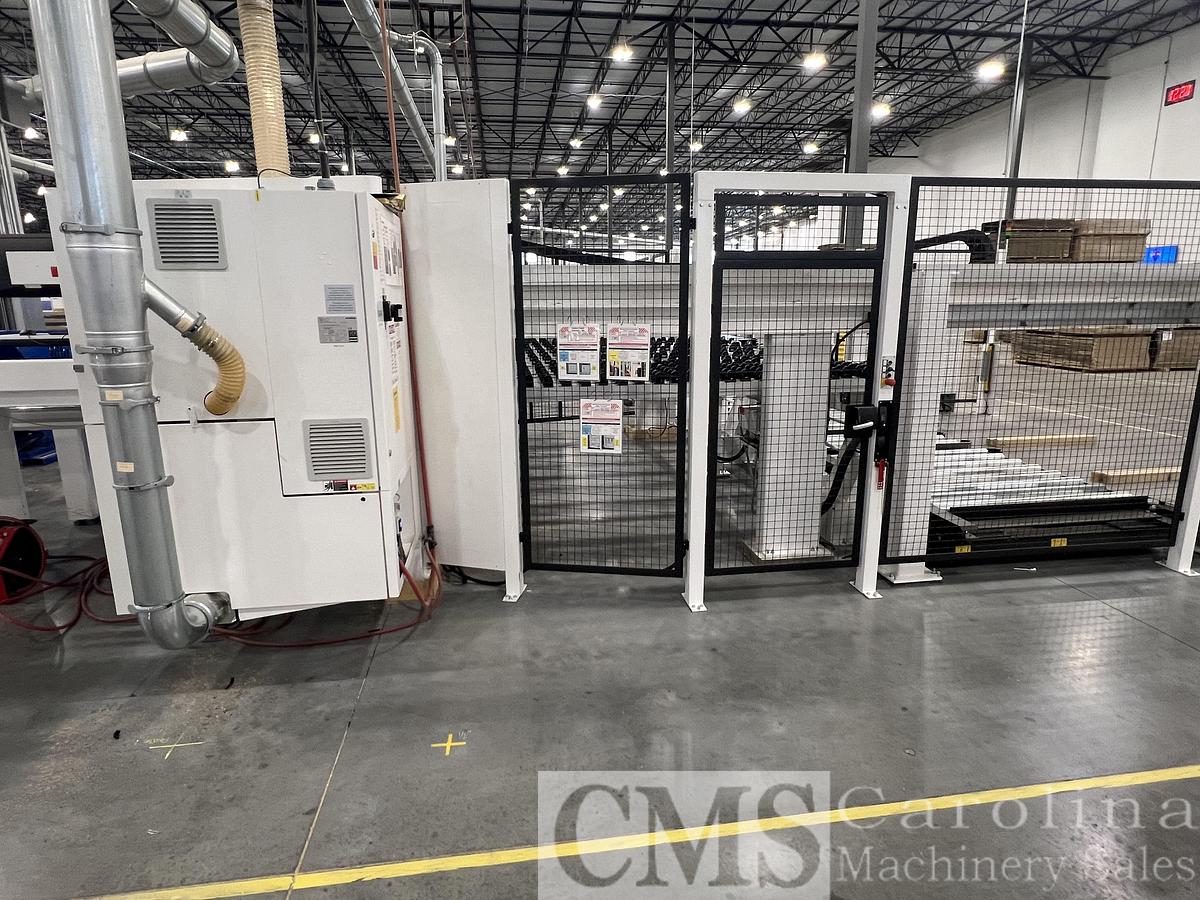

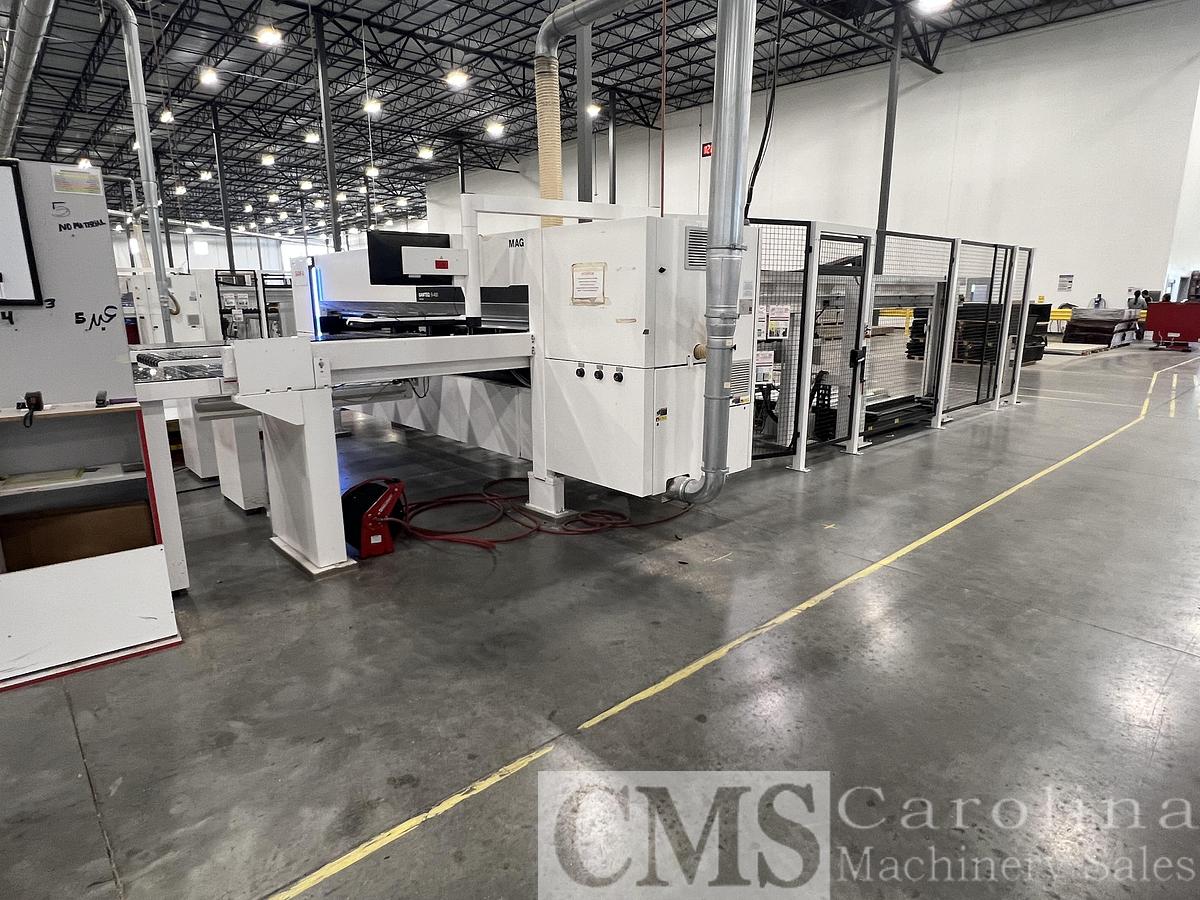

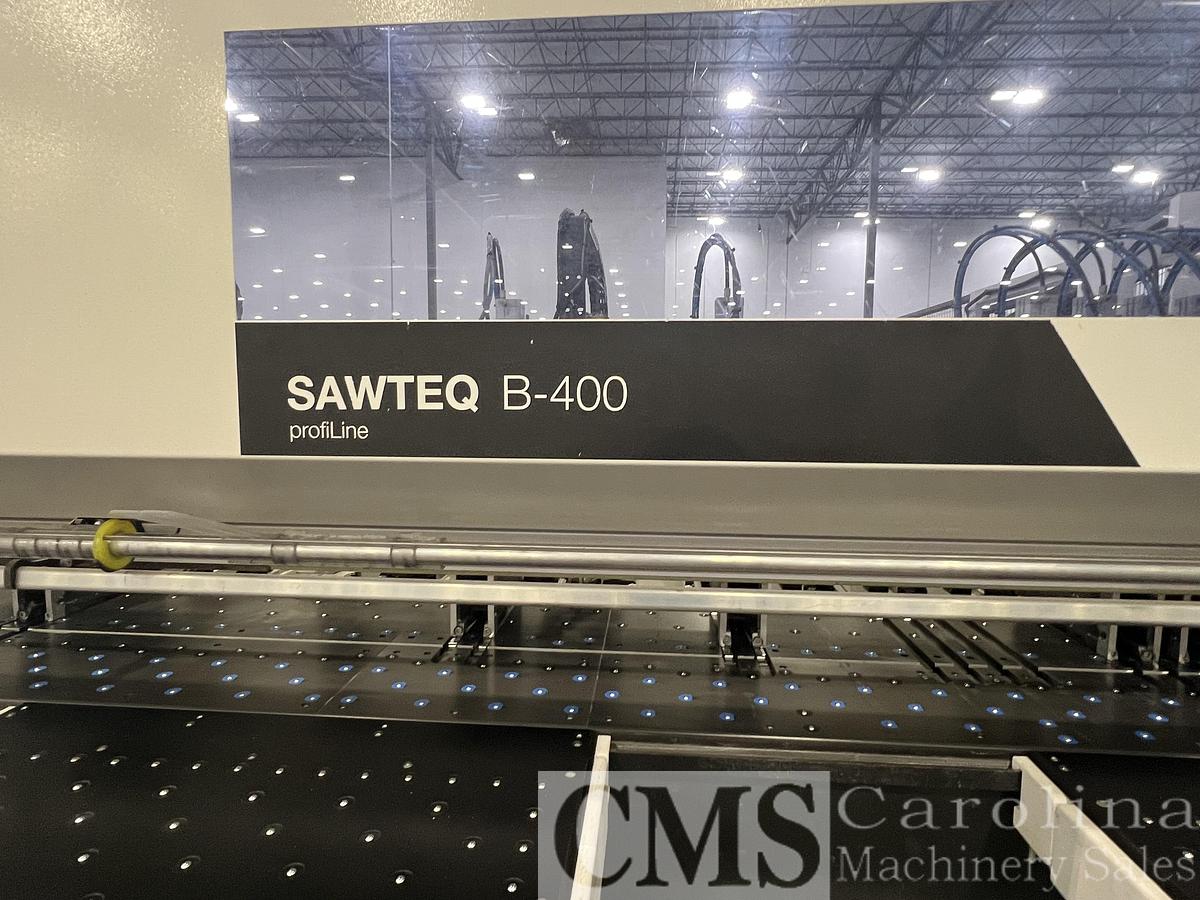

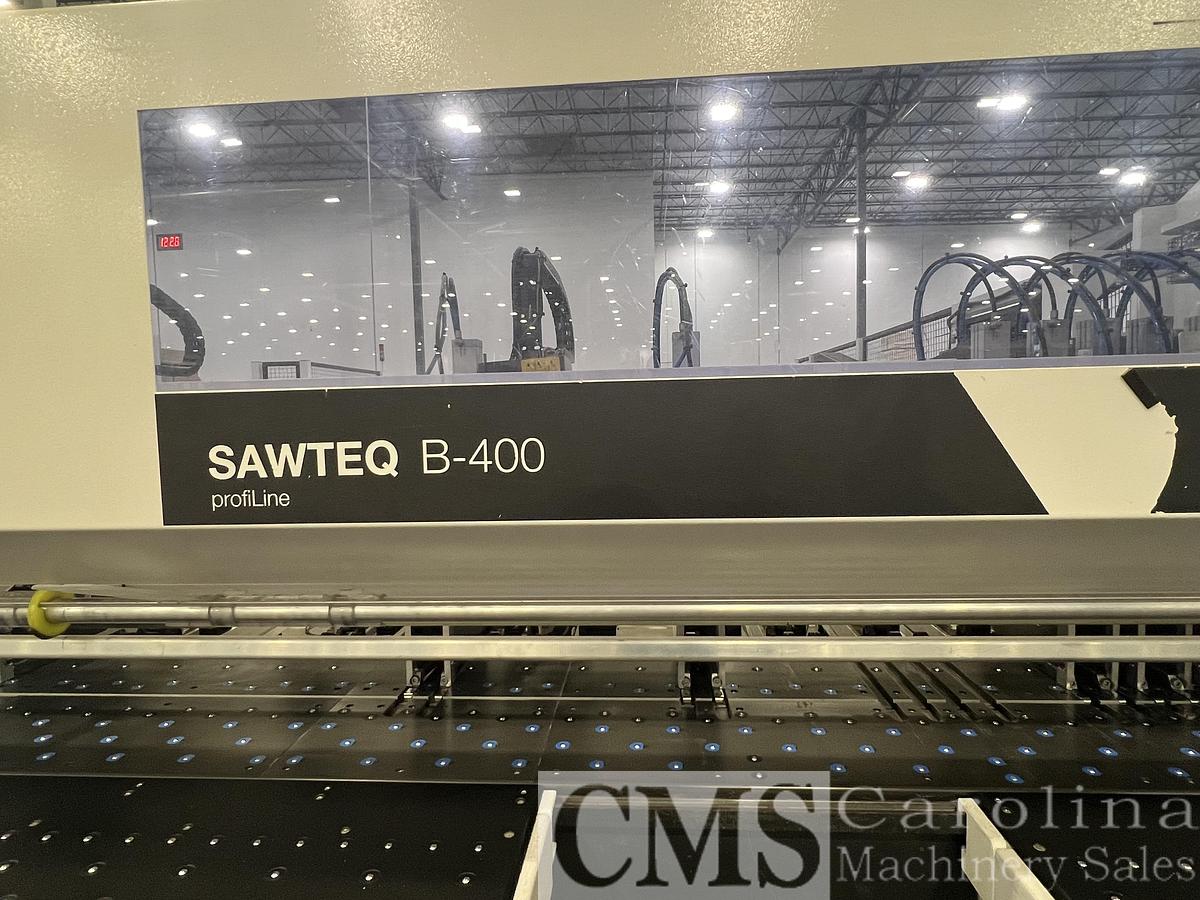

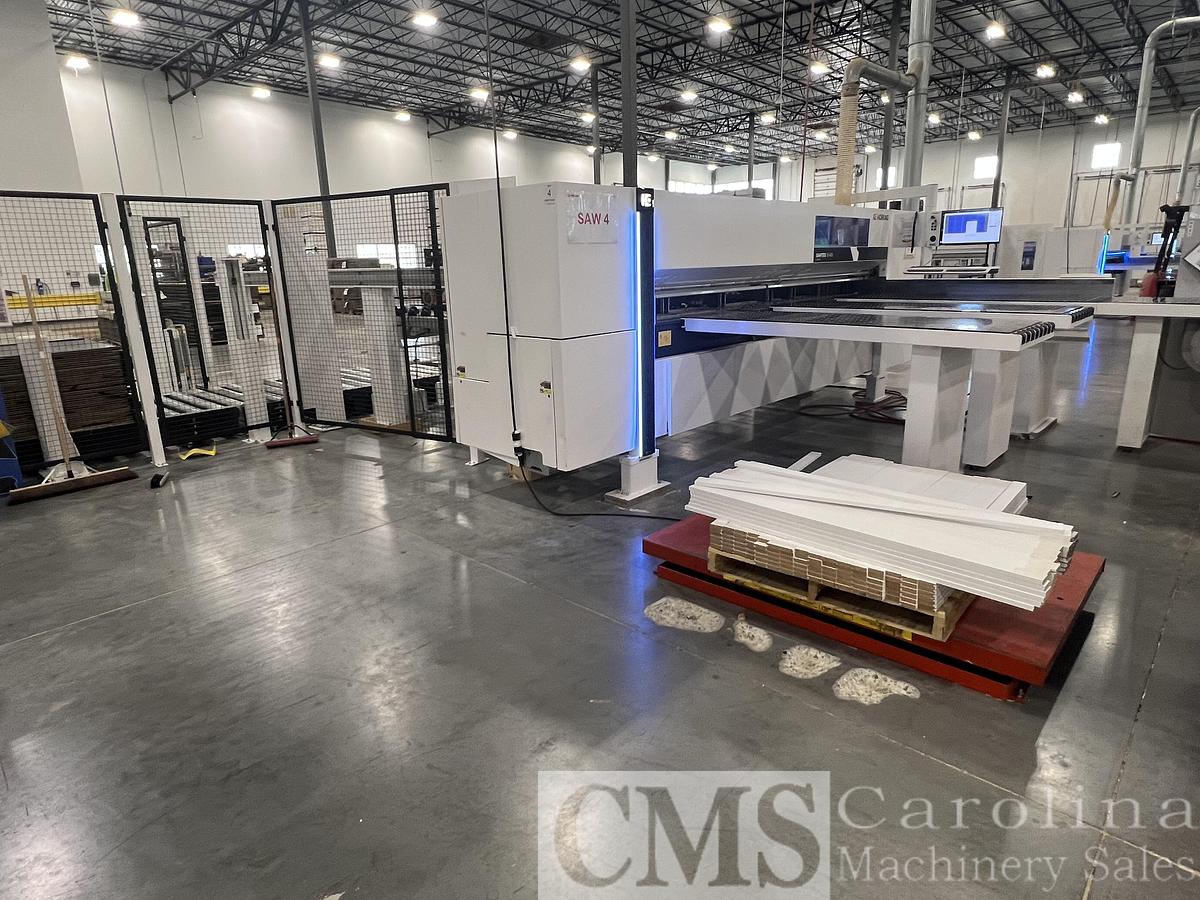

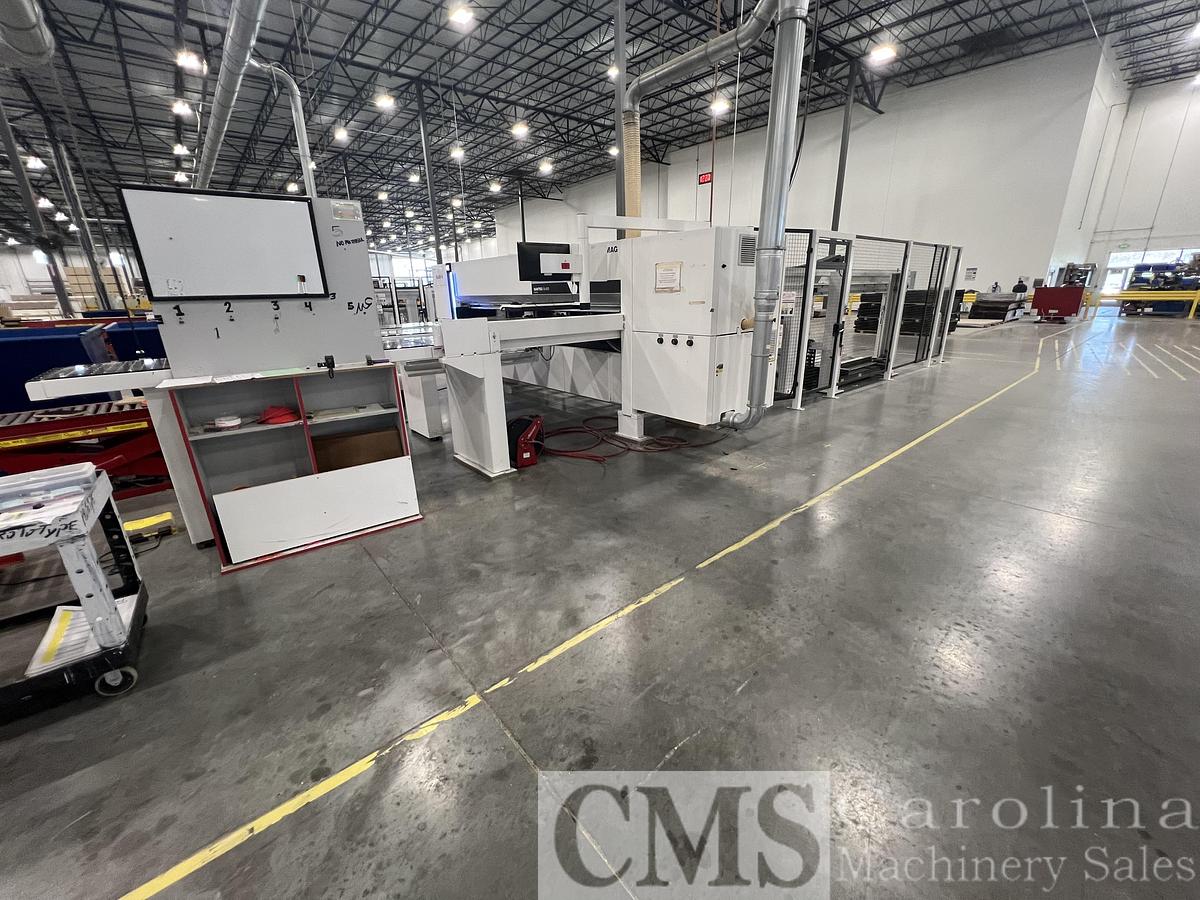

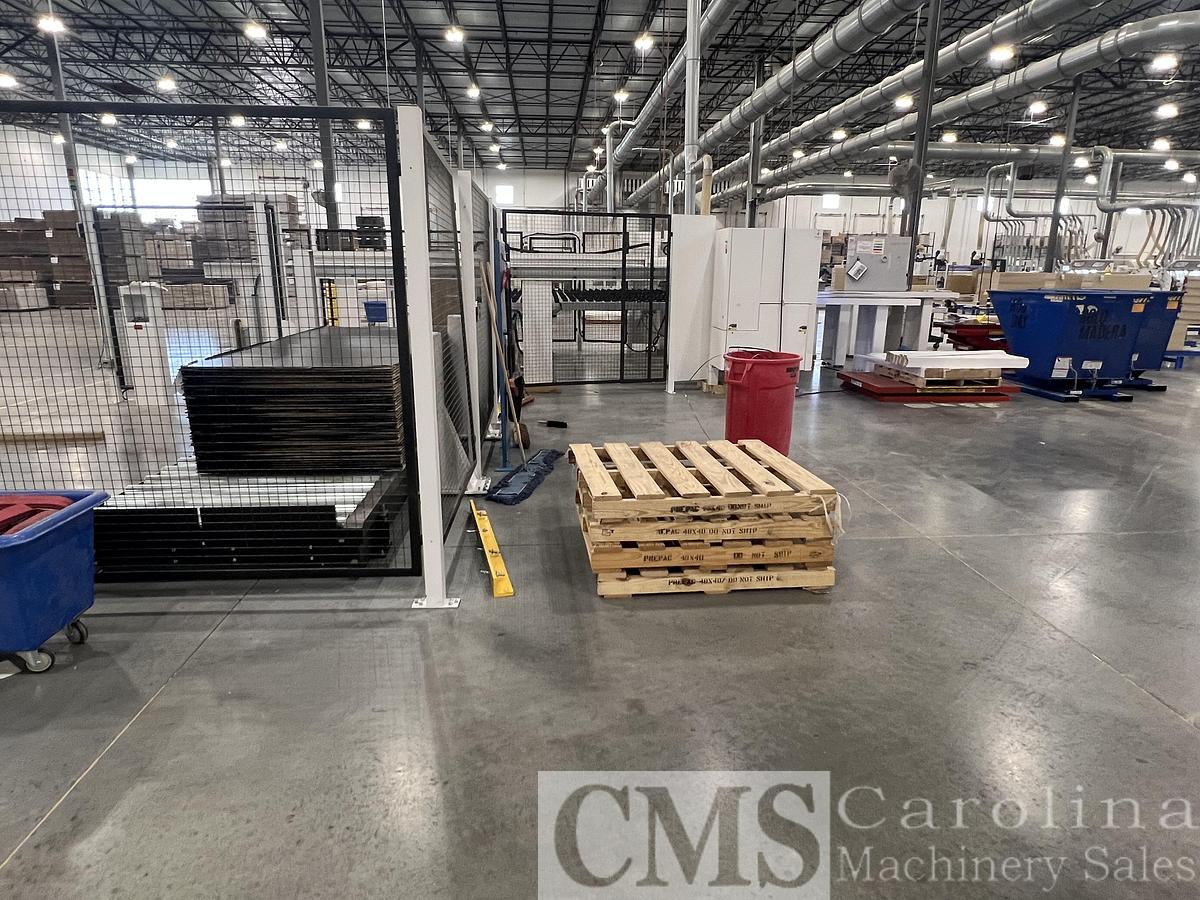

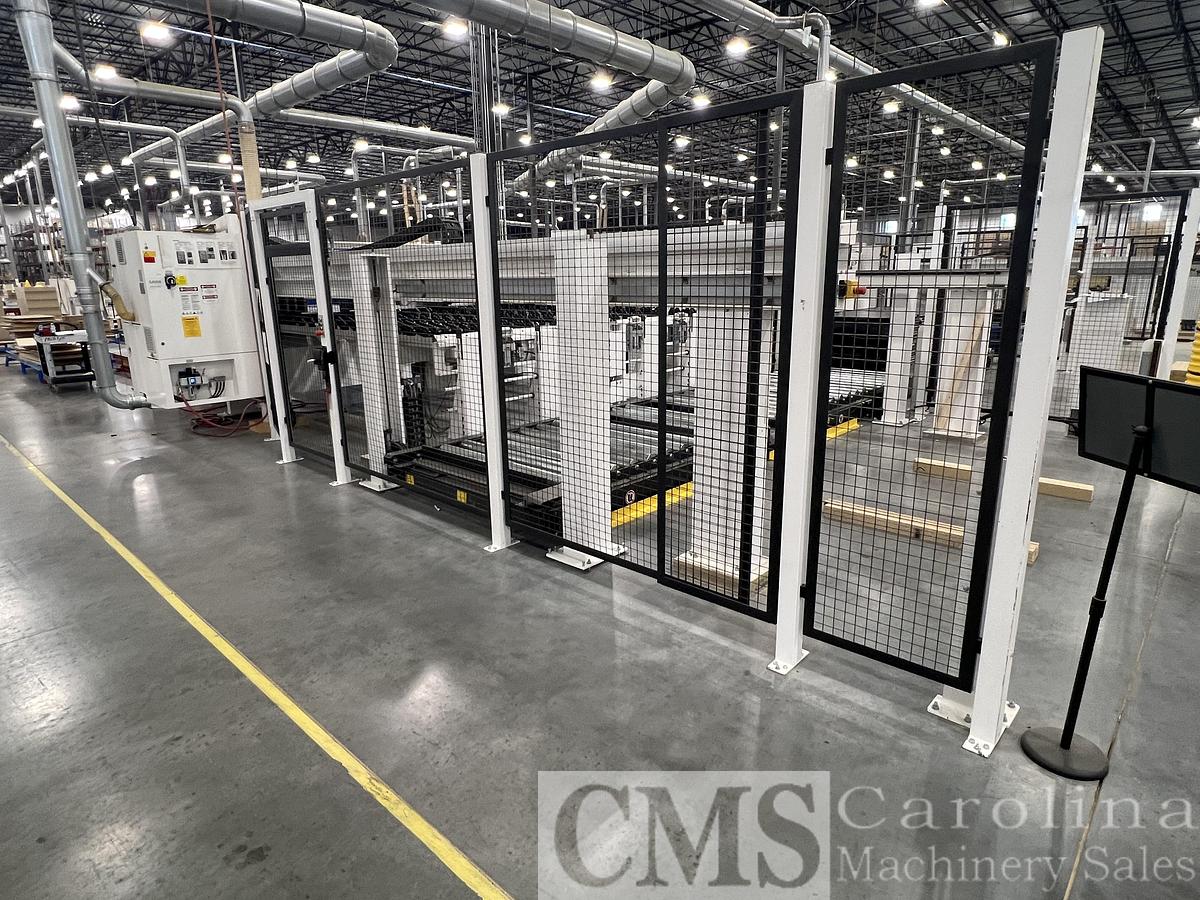

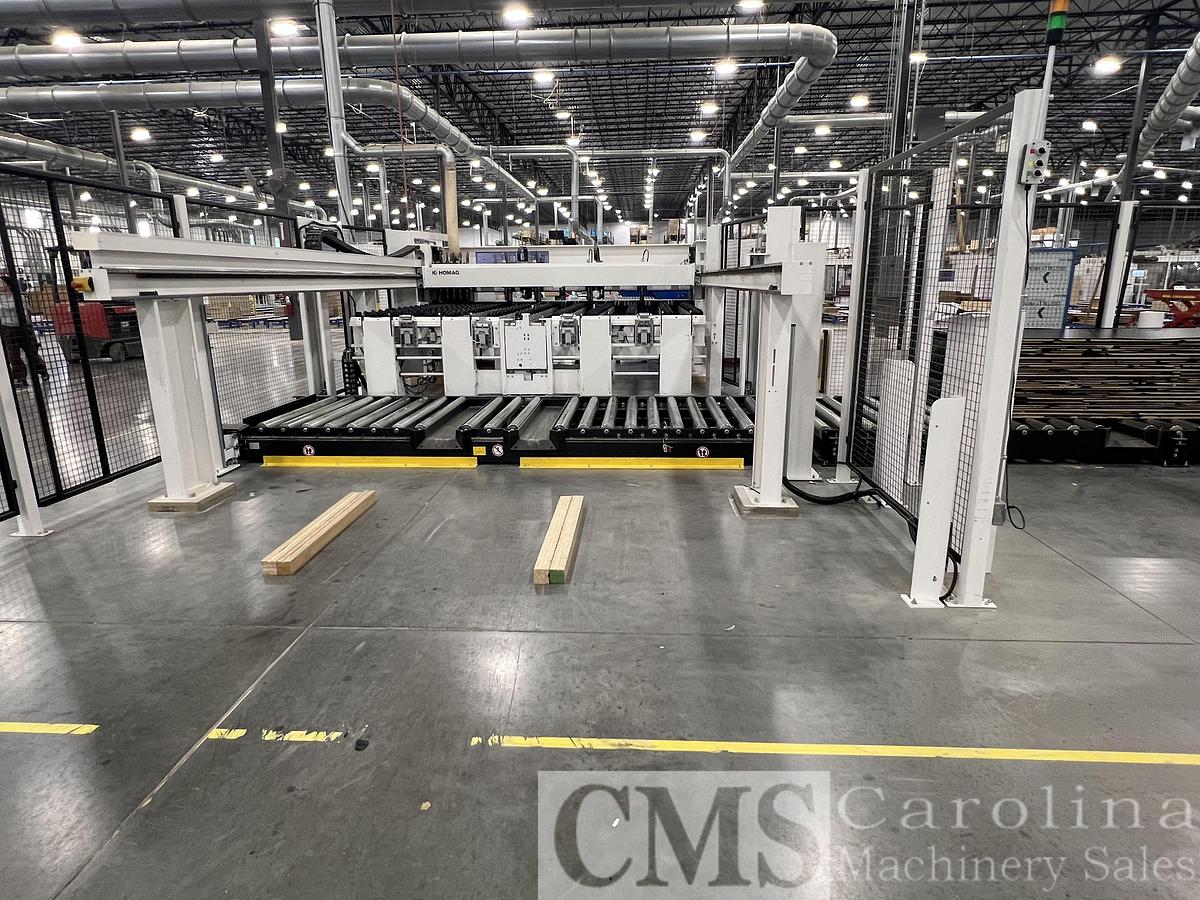

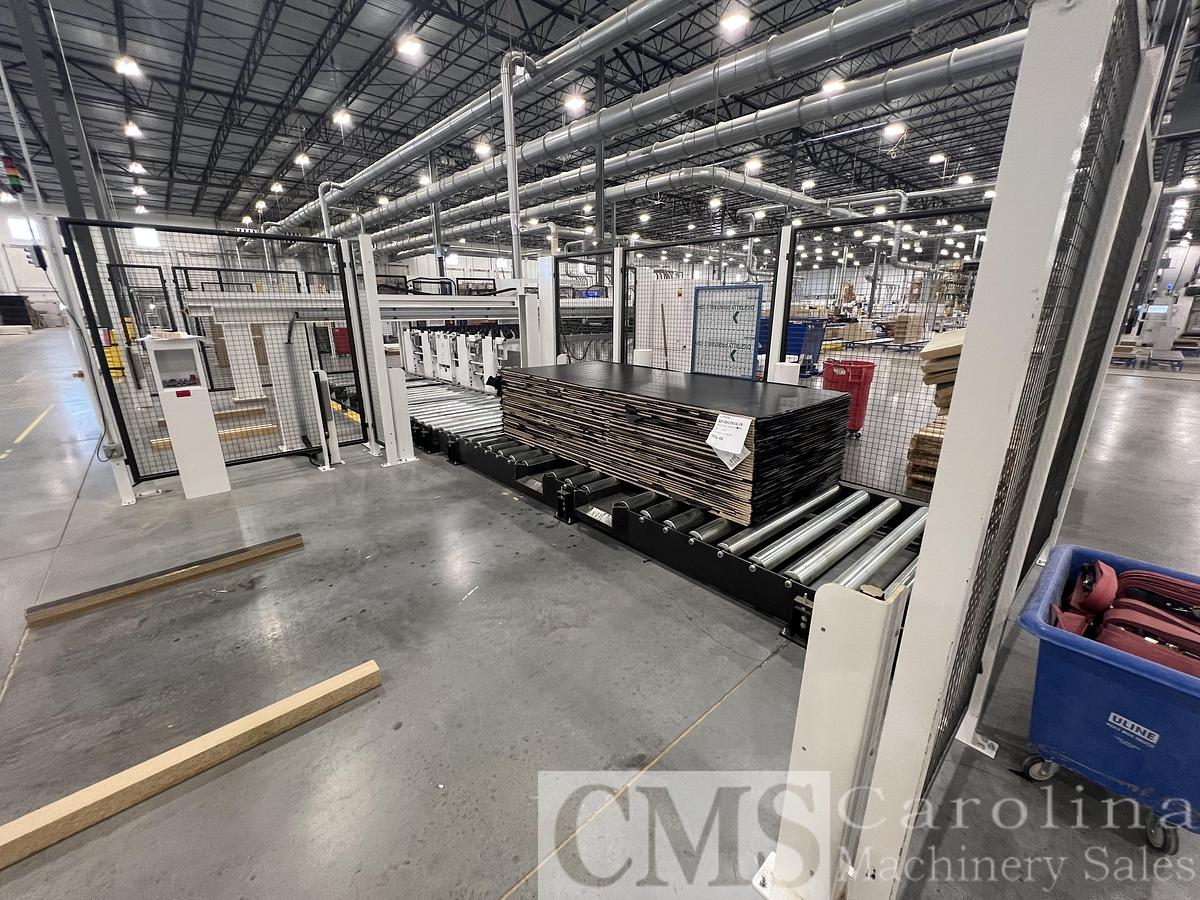

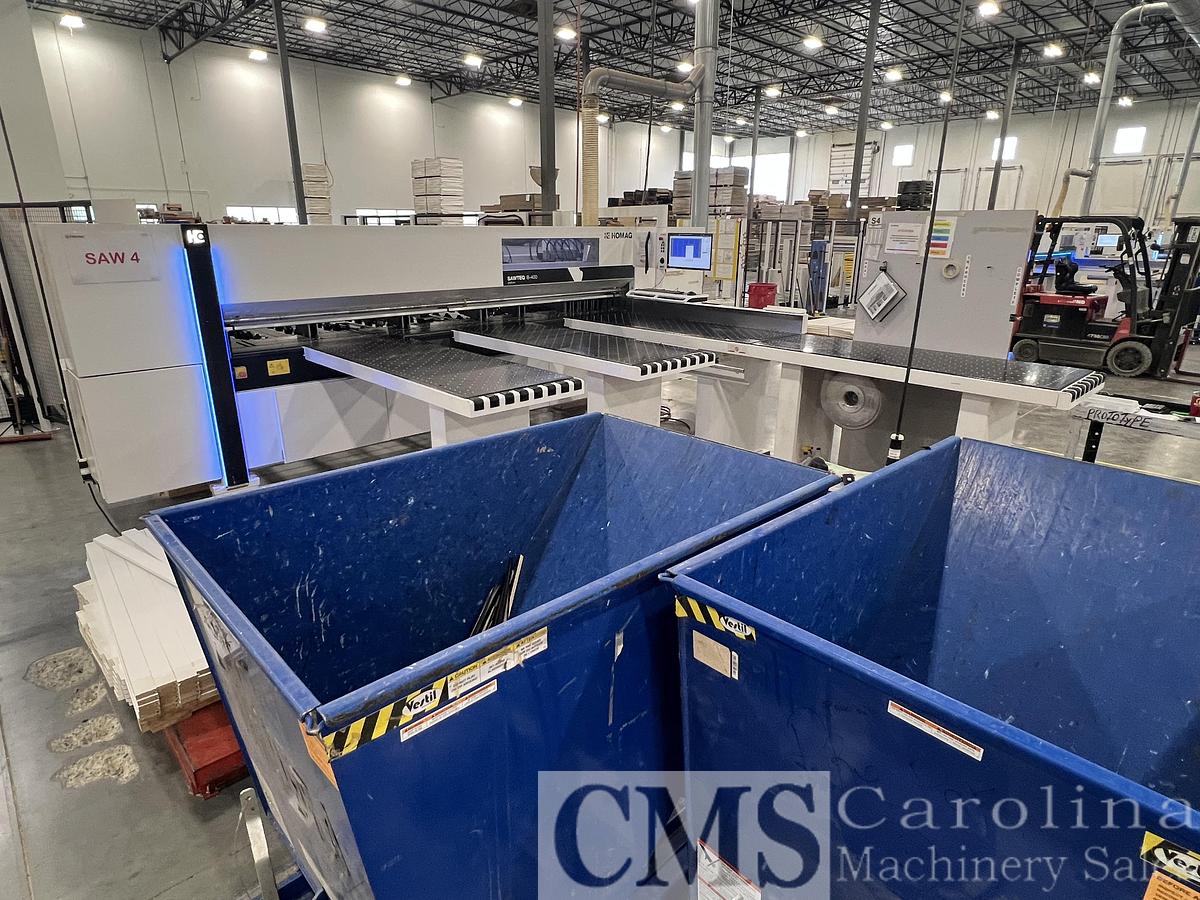

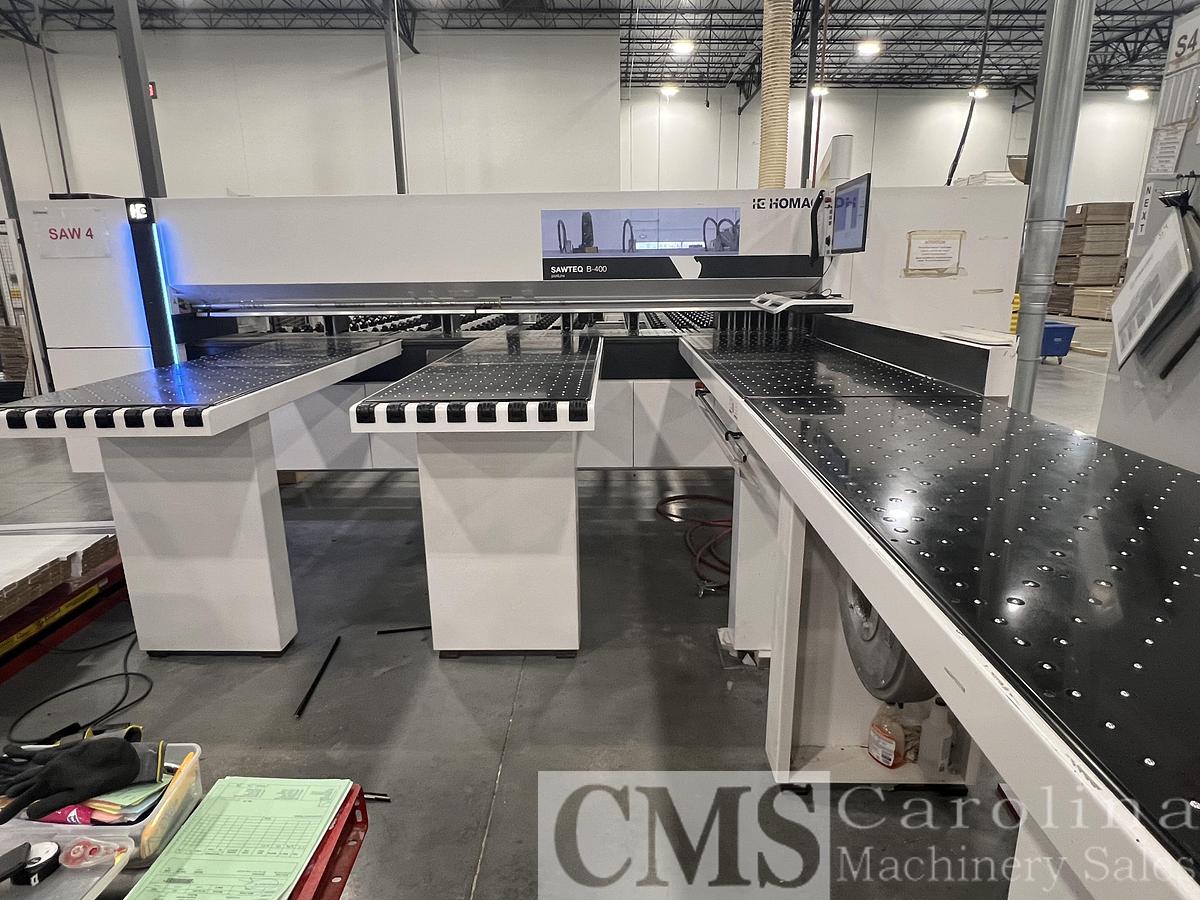

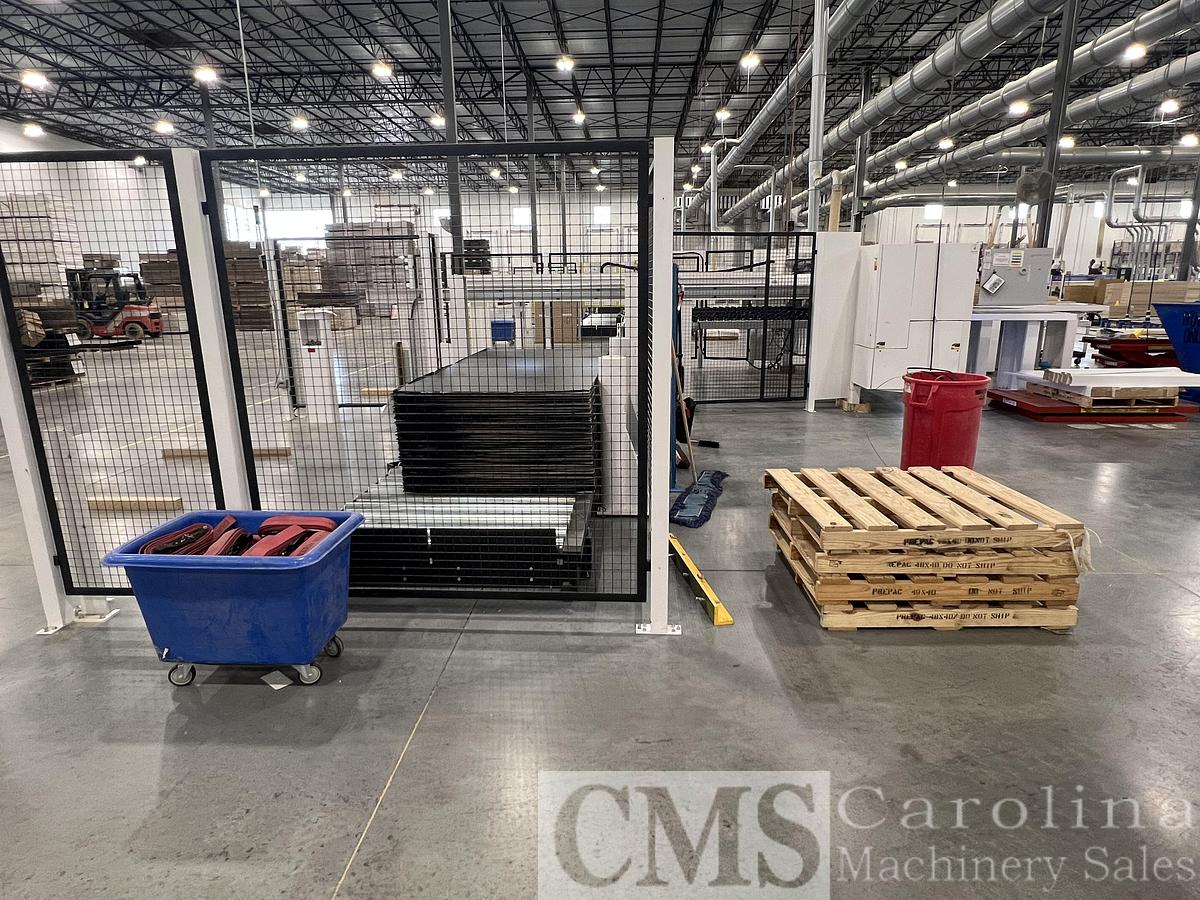

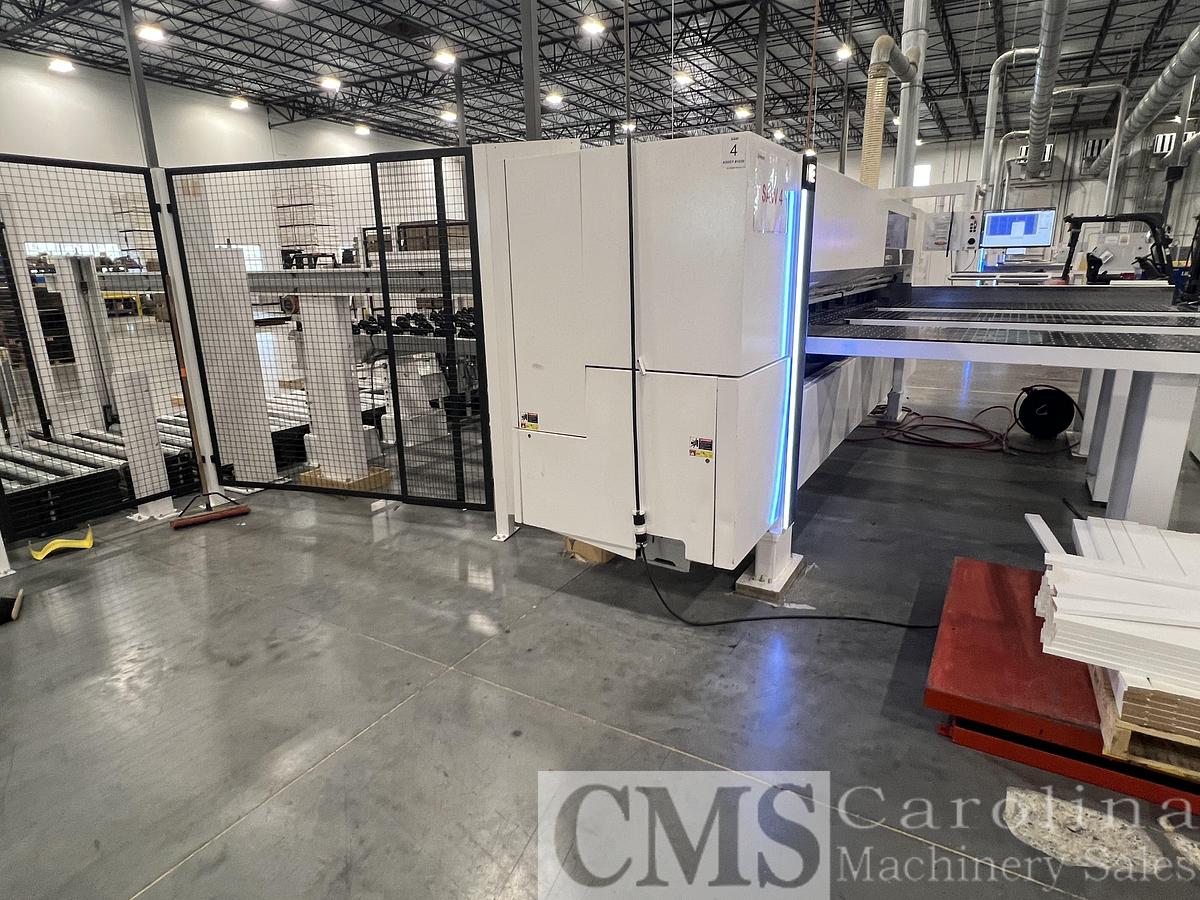

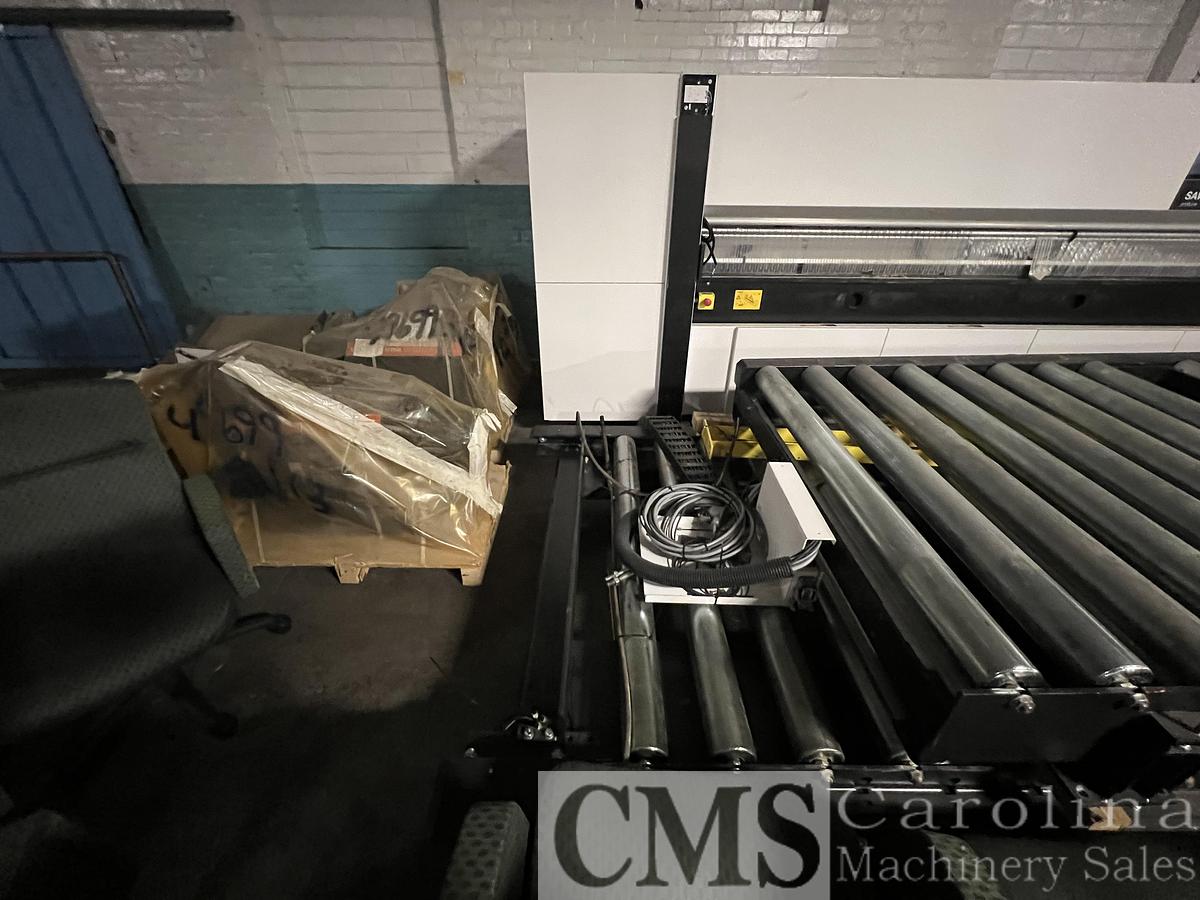

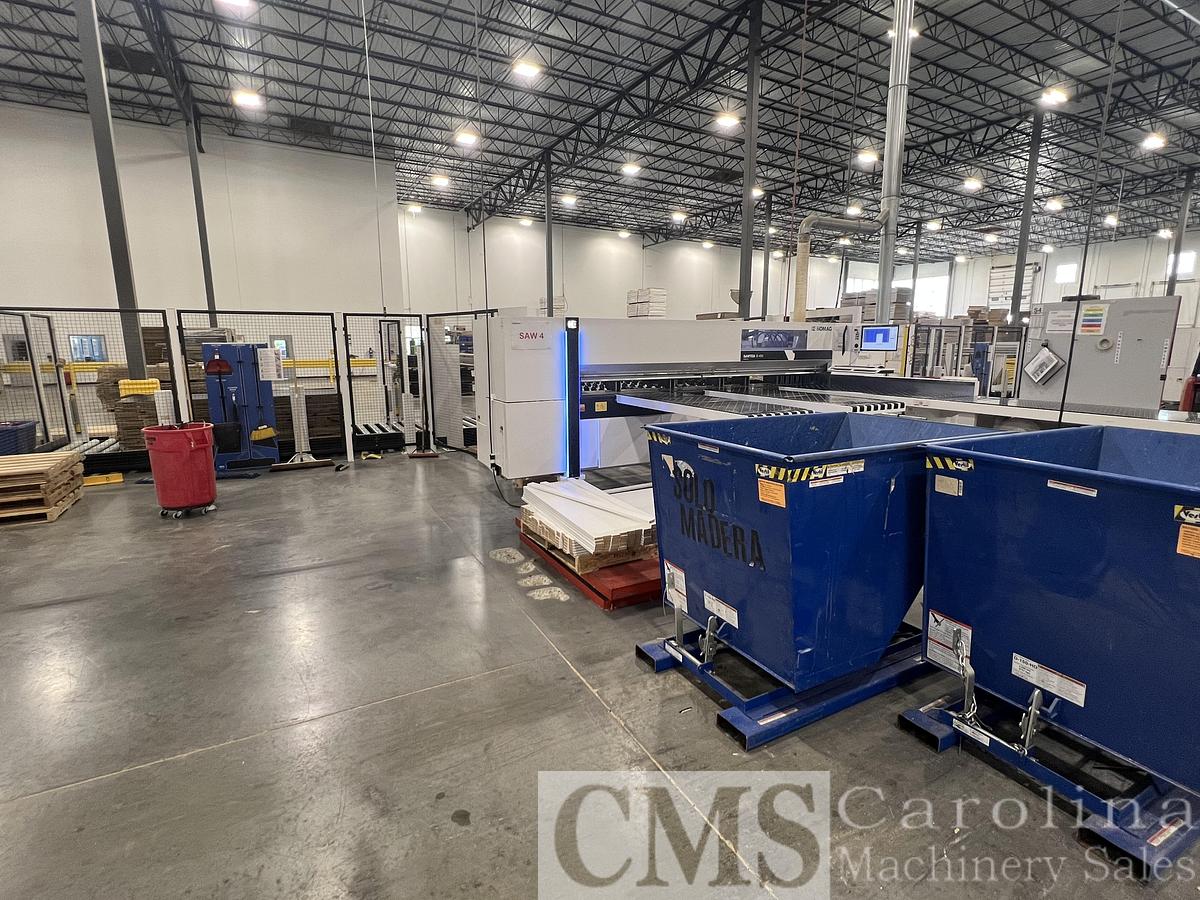

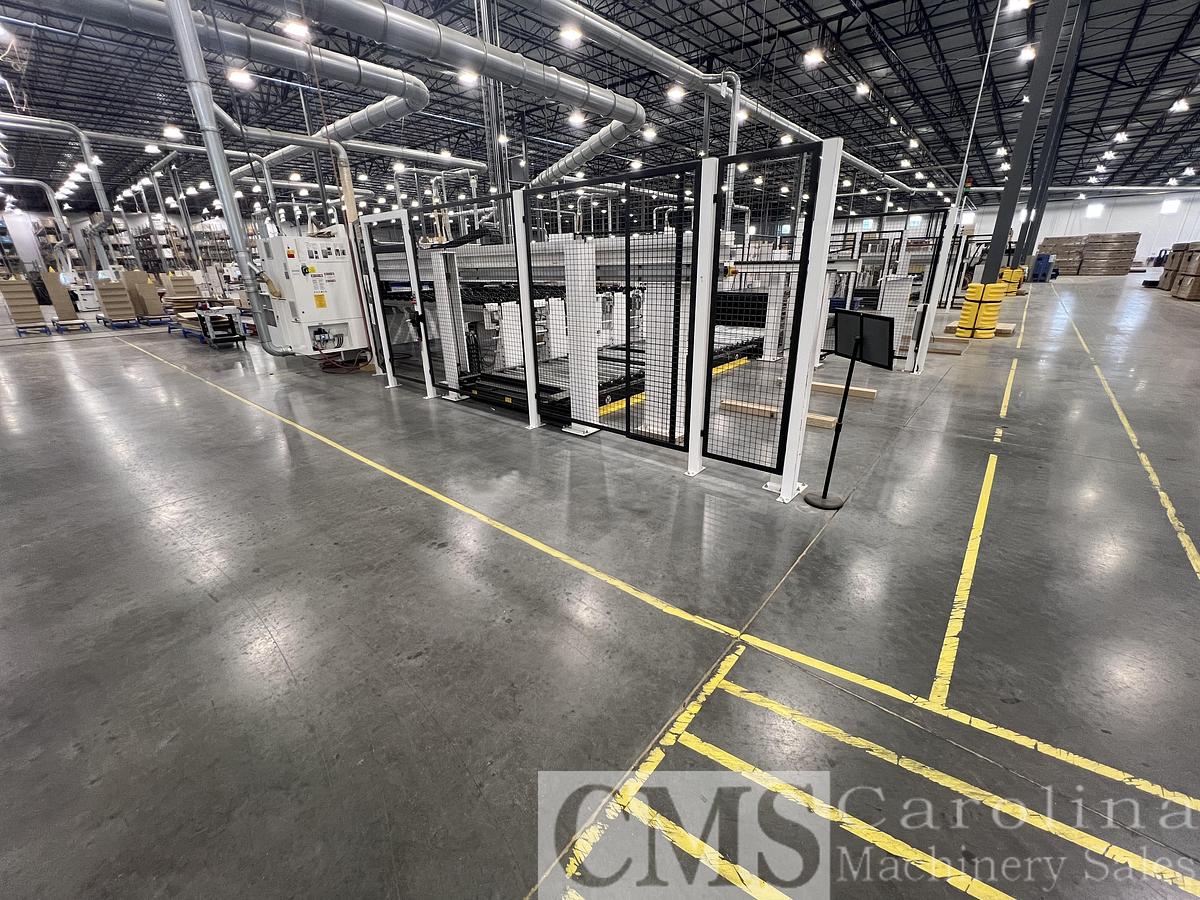

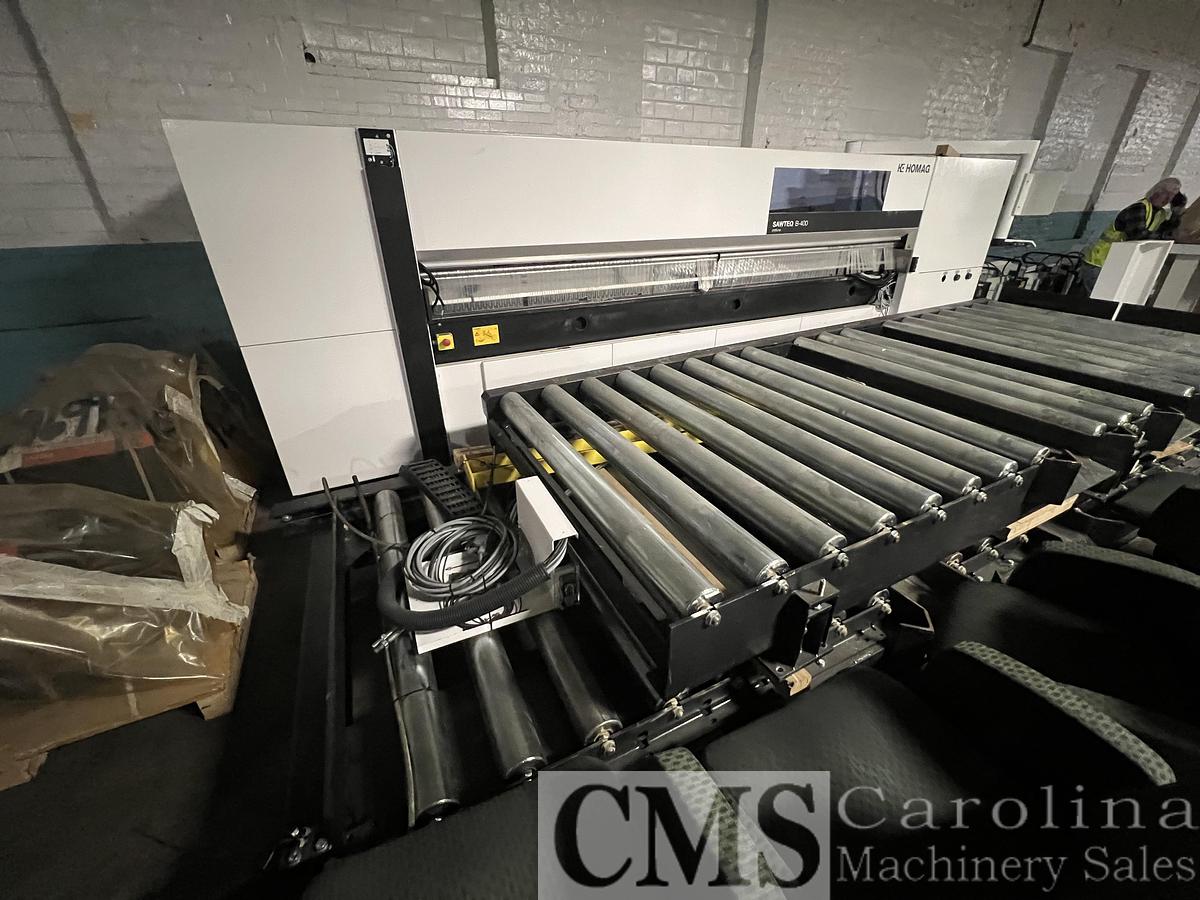

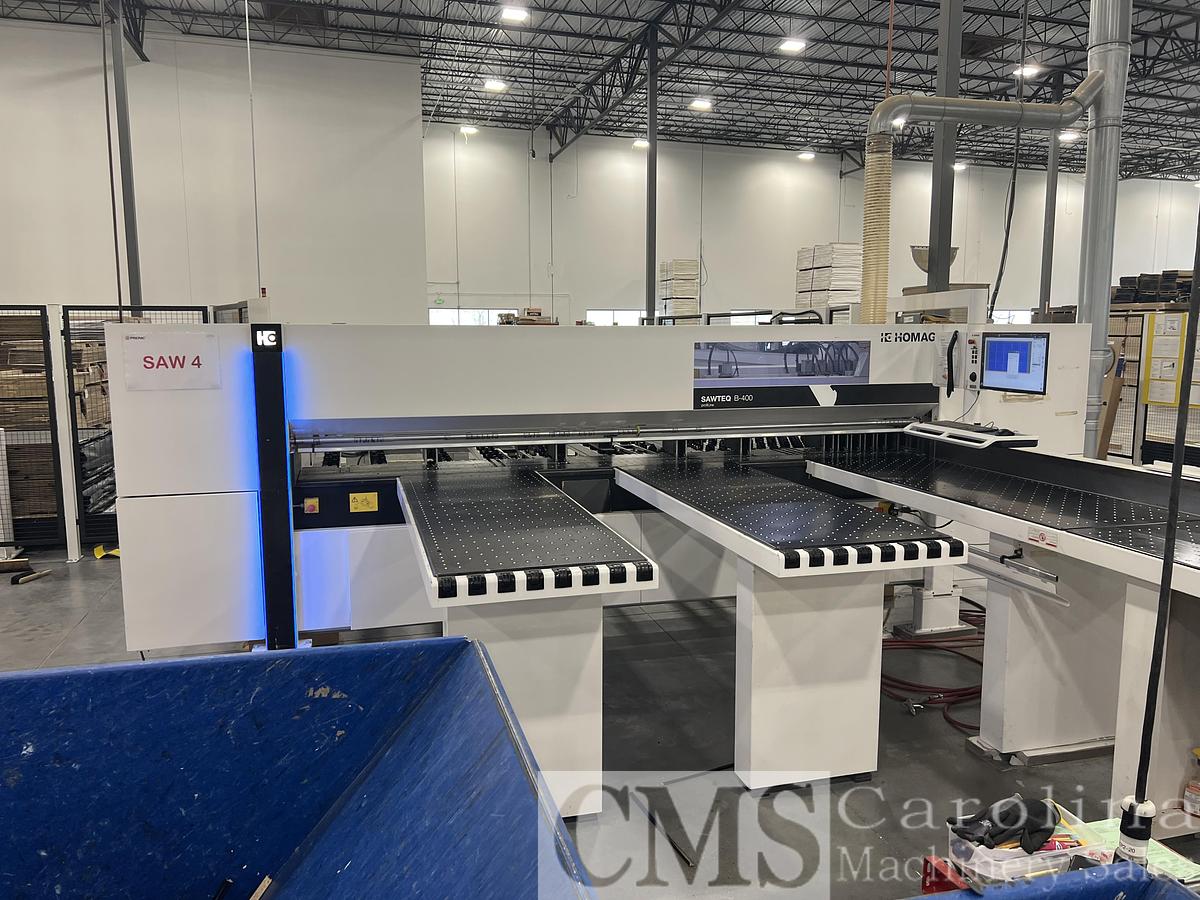

First photos and video are of identical system that was in operation. Last photos are of the system packed up and in storage, ready to be loaded and shipped.

Manufacturer specs (to be confirmed):

• HOMAG SAWTEQ B-400 PROFILINE Profi HPL400/38/16 REAR LOAD AUTOMATIC PANEL SAW
• Working Capacity: 149.6'' (3,800 mm)
• Rip cutting capacity; 145.6'' (3,700 mm)
• Pull back capacity.
• Main saw blade projection 4.9'' (125 mm)
• 37,5 HP (28 kW) Main saw blade & 3 HP (2.2 kW) Scoring blade
• Saw Carriage Forward speed 0 - 492 FPM (0 - 150 MPM) Saw carriage reverse speed 0 - 492 FPM (0 - 150 MPM).
• Pusher Fence: Electronically controlled overhead program fence with (9) 2-finger gripper clamps; clamps open up to 125 mm (4.9").Rack & Pinion drive on both sides, forward speed up to 82 FPM (25 MPM), return speed of 296 FPM (90 MPM).

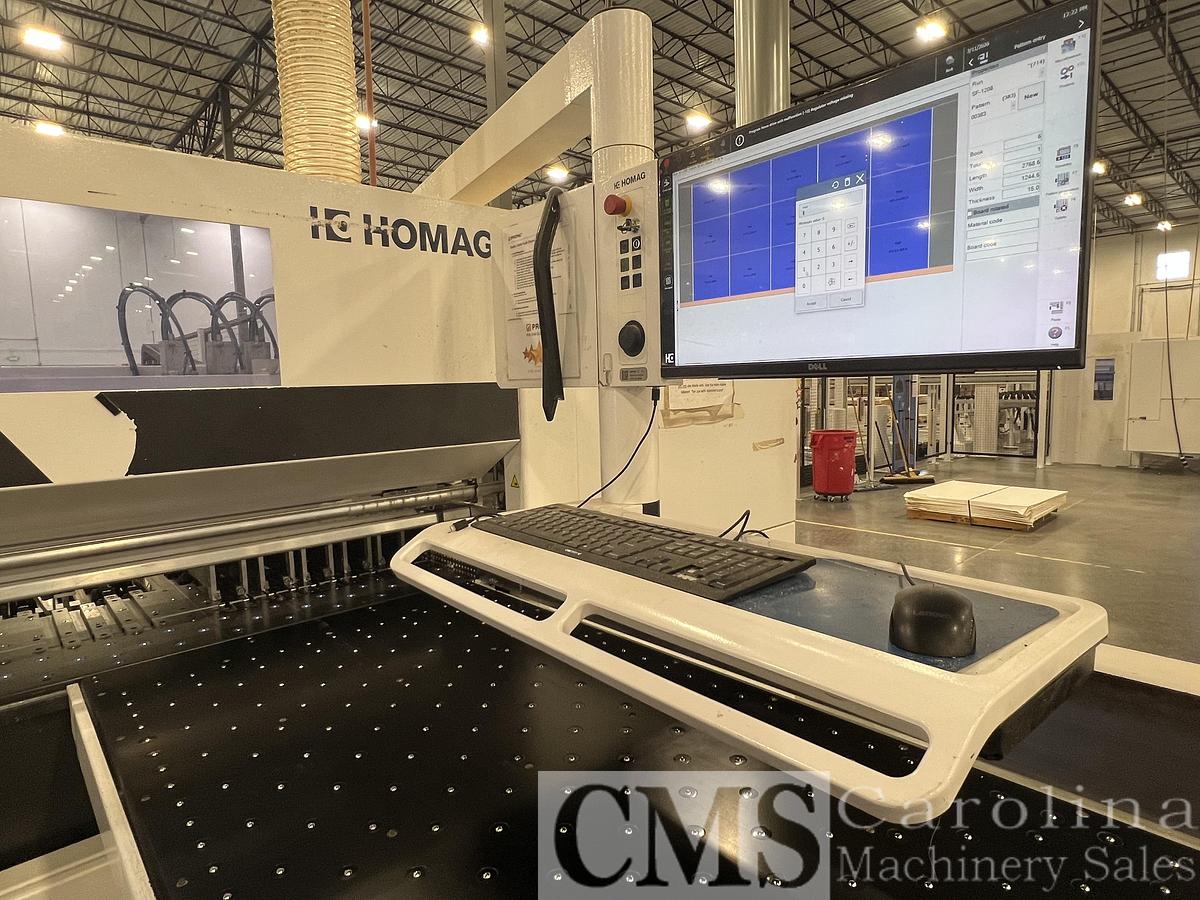

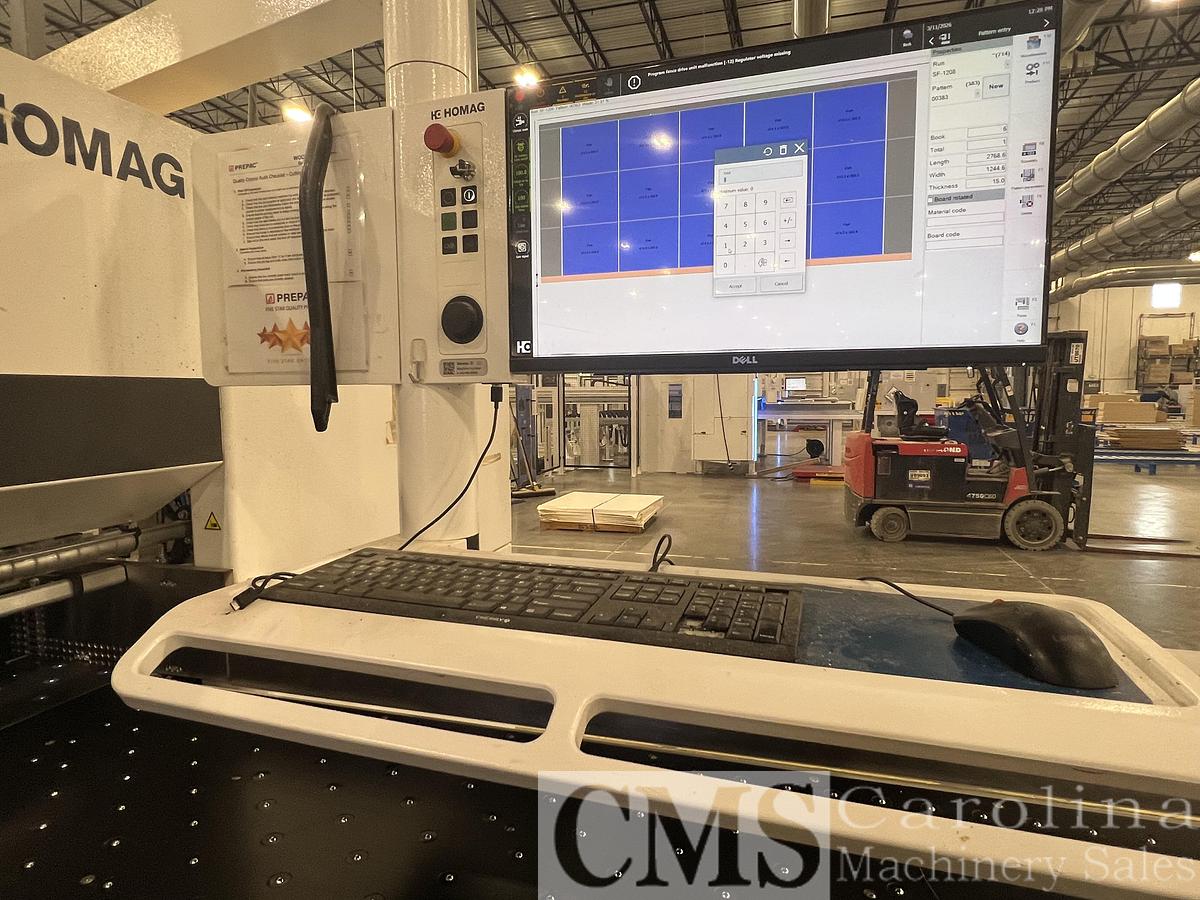

• Operator Interface: HOMAG "powerTouch2" PC Front-End with Windows10 + "CADmatic 5.0" Operating System "designed for industrial environments"
• 21" Full HD widescreen "Touchscreen" monitor with multi-touch display, online operation from an office PC is possible.

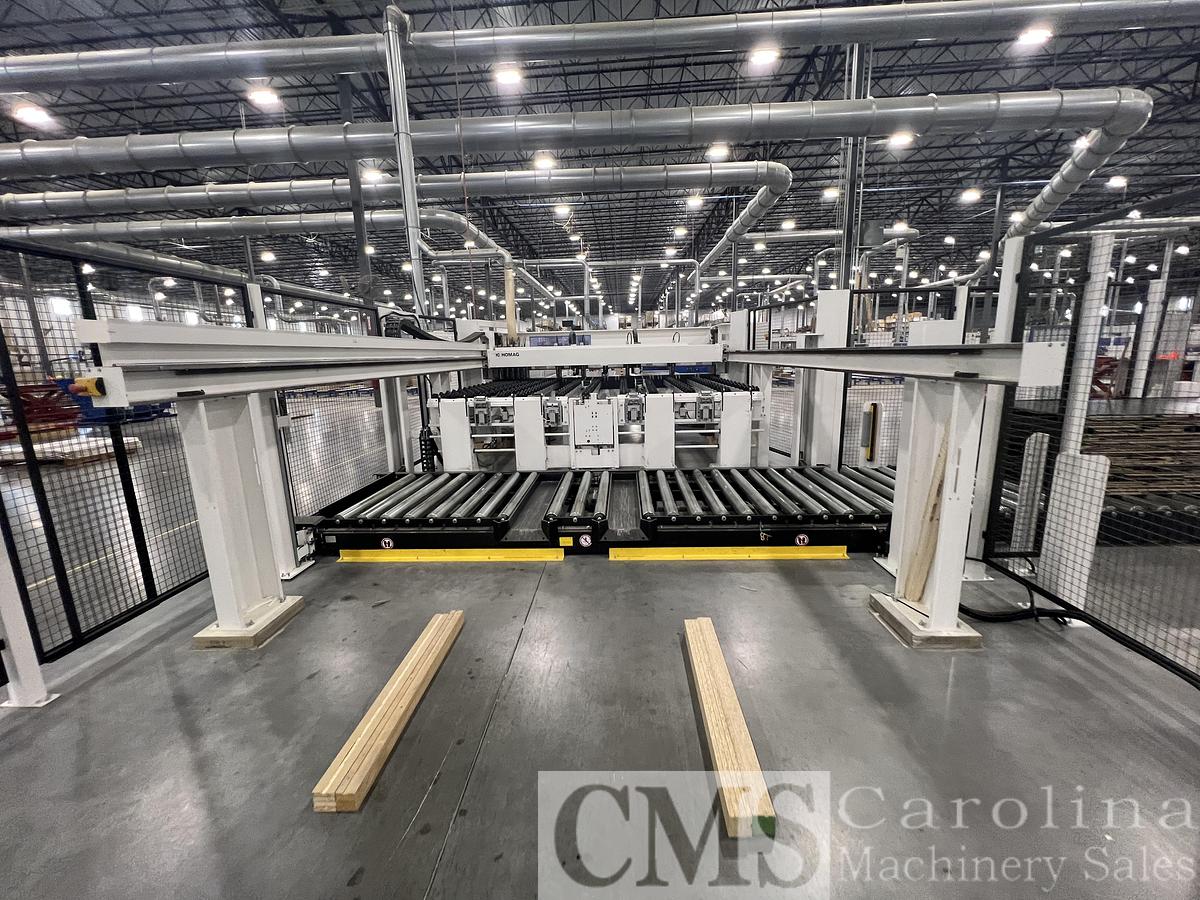

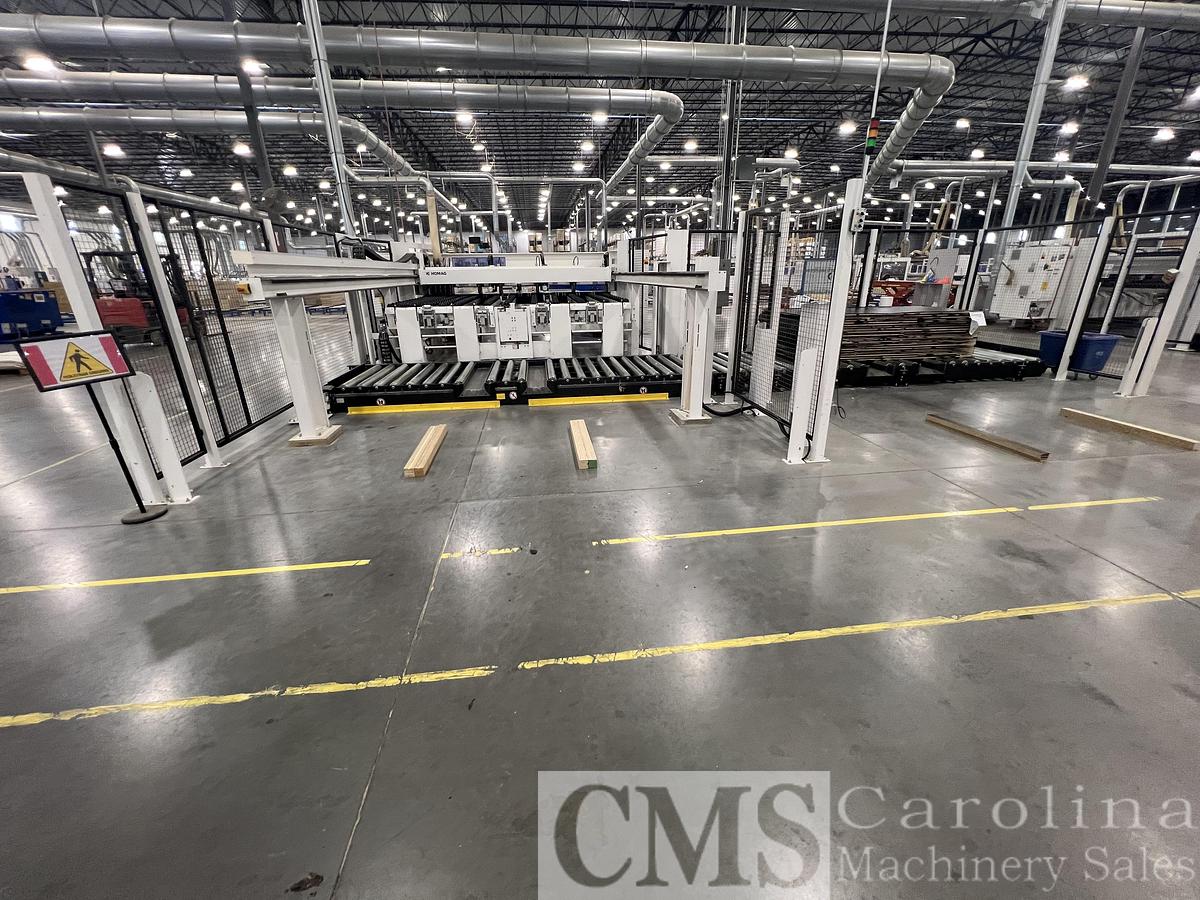

• Rear Lift Table: Automatic 4-column electro-hydraulic rear load lift table. Minimum Panel thickness when using auto Rear Load System 0.374" (9.5 mm).12,000 Lbs (5,454 kG) lift cap. 22.8" (580 mm) max. bunk height without pit or risers, 30.7" (780 mm) max. bunk height with a pit or risers.

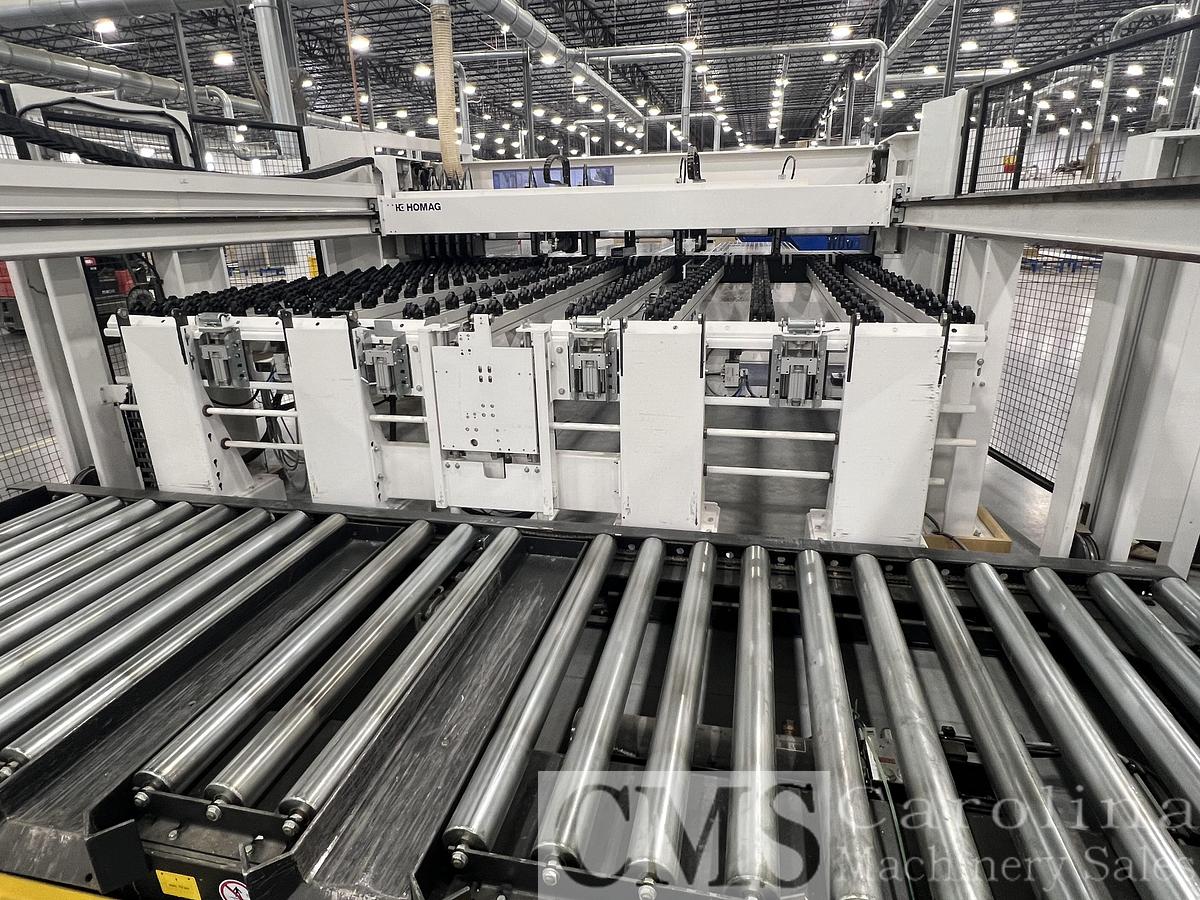

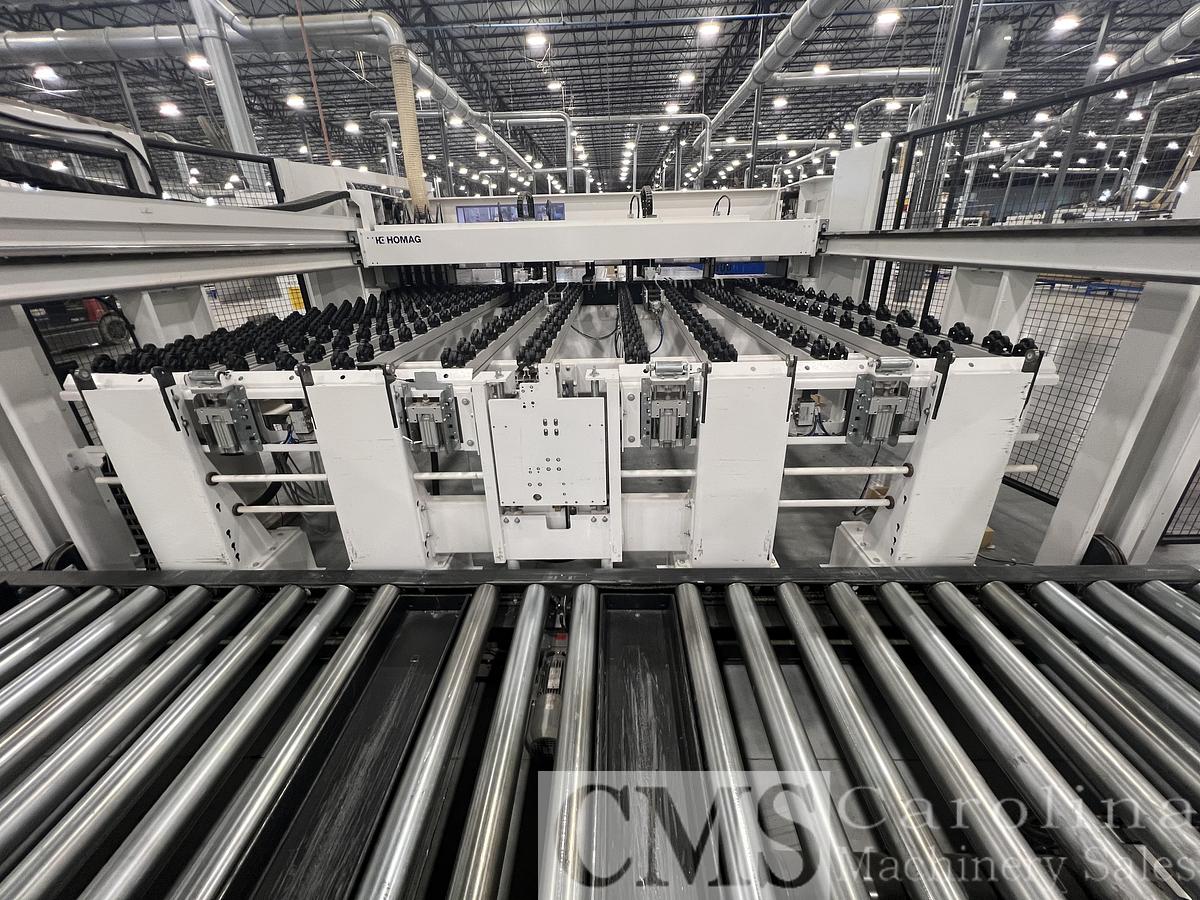

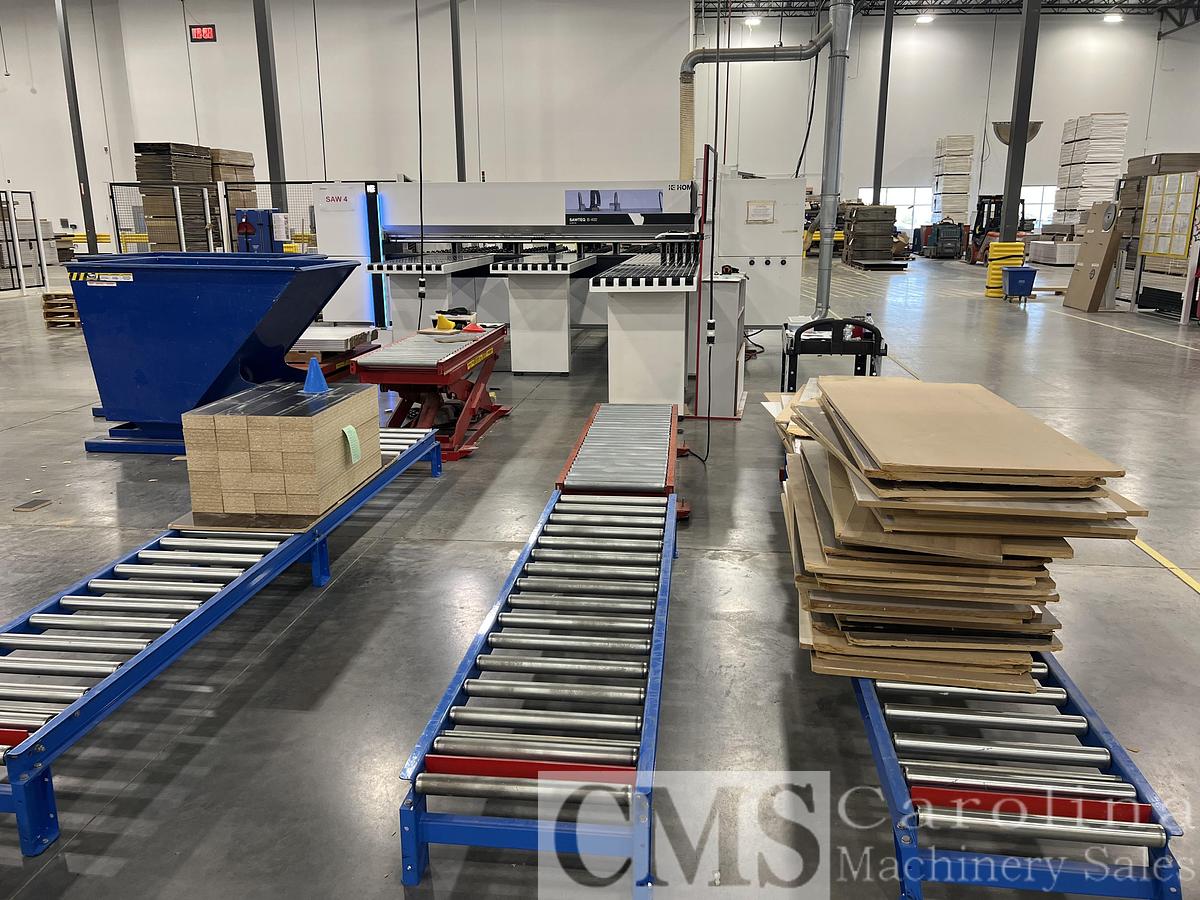

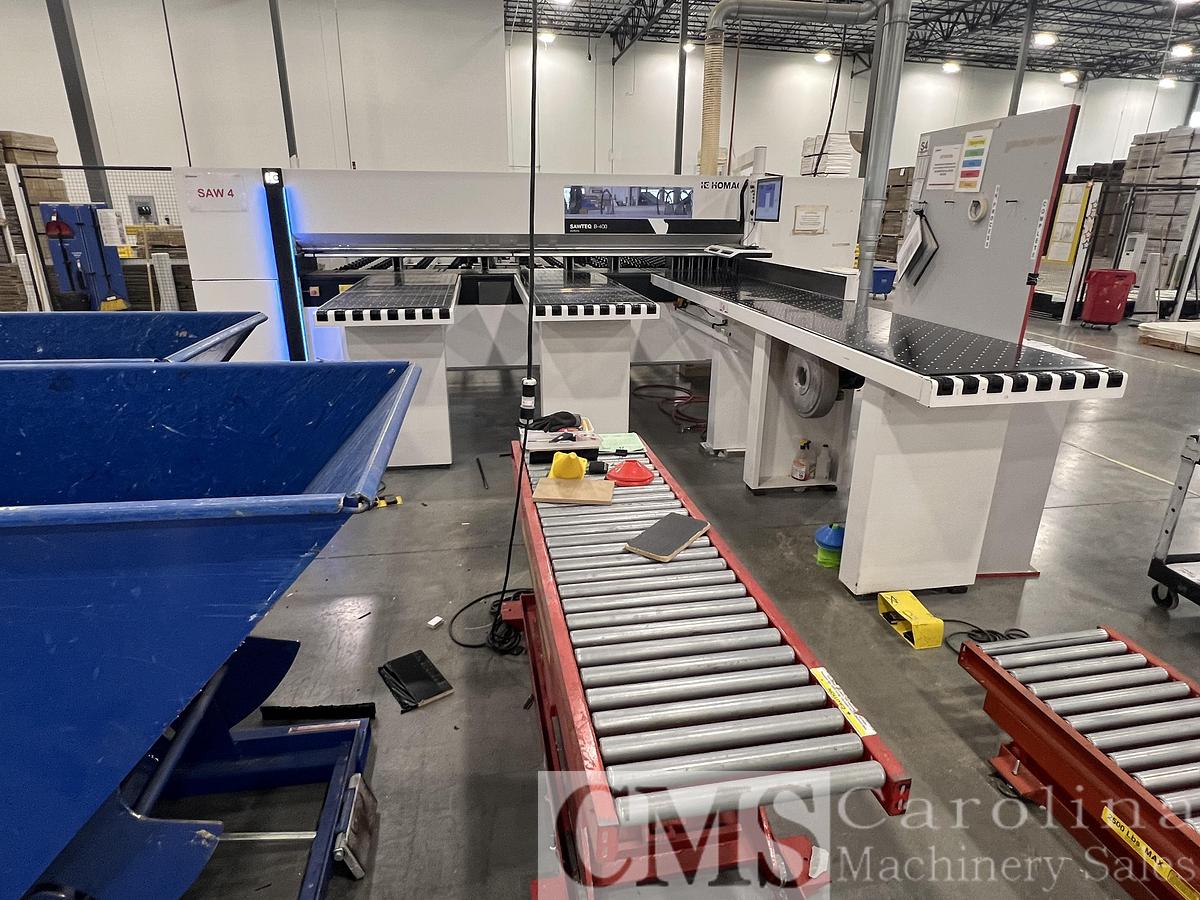

• Complete with:(2) in/out feed roller conveyors, with fork cut-outs, for load/unload bunks of material
• On-Board Optimizer.
• Automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right-angle fence.
• Max. Side aligner stroke 122'' (3,100mm):

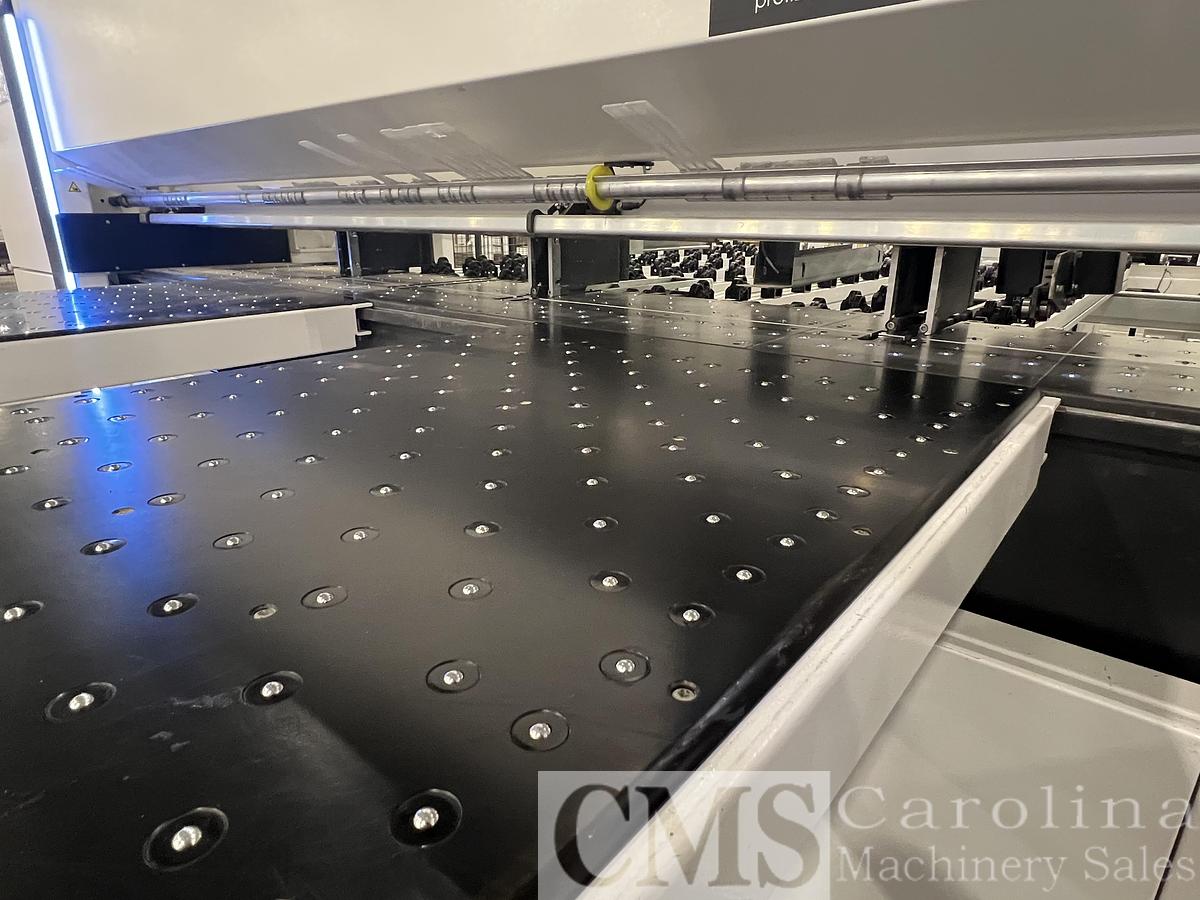

• Rear support rails with non-marking roller modules.(4) Front air flotation tables 74" x 26 (1,879 mm x 660 mm).
