Automated Industrial Technology AIT Pallet Board Stacker with Unscrambler

This system is already dismantled and ready to load.

All machinery removed in good working condition.

Additional decks and conveyors also available at this location.

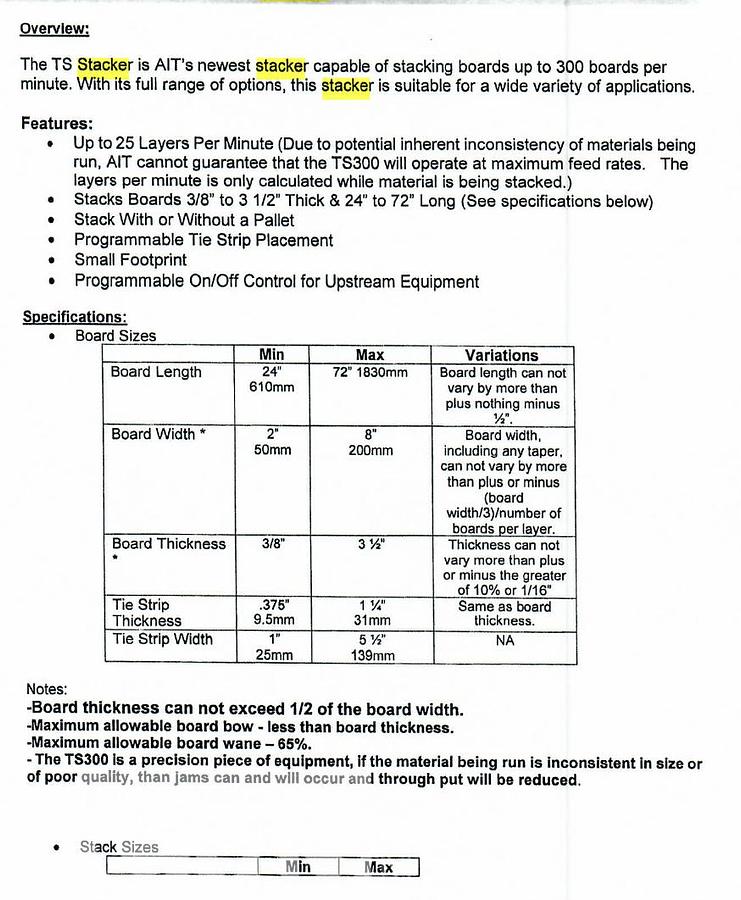

Overview:

The TS Stacker is AlT's newest stacker capable of stacking boards up to 300 boards per

minute. With its full range of options, this stacker is suitable for a wide variety of applications.

Features:

• Up to 25 Layers Per Minute (Due to potential inherent inconsistency of materials being

run, AlT cannot guarantee that the TS300 will operate at maximum feed rates. The

layers per minute is only calculated while material is being stacked.)

Stacks Boards 3/8" to 3 1/2" Thick & 24" to 72" Long (See specifications below)

• S t a c k With or Wi t h o u t a Pallet

• Programmable Tie Strip Placement

• Programmable On/Off Control for Upstream Equipment

Specifications:

• Board Sizes

Board Length Min

24"

610mm

Max

72" 1830mm

Board Width * 2"

50mm 200mm

Board Thickness 3/8" 3 ½ "

Tie Strip Thickness Tie Strip Width

3.5mm

25mm

1 ¼ "

31mm

5½"

139mm

NA

-Board thickness can not exceed 1/2 of the board width.

-Maximum allowable board bow - less than board thickness.

-Maximum allowable board wane - 65%.

- The TS300 is a precision piece of equipment, if the material being run is inconsistent in size or

of poor quality, than jams can and will occur and through put will be reduced.

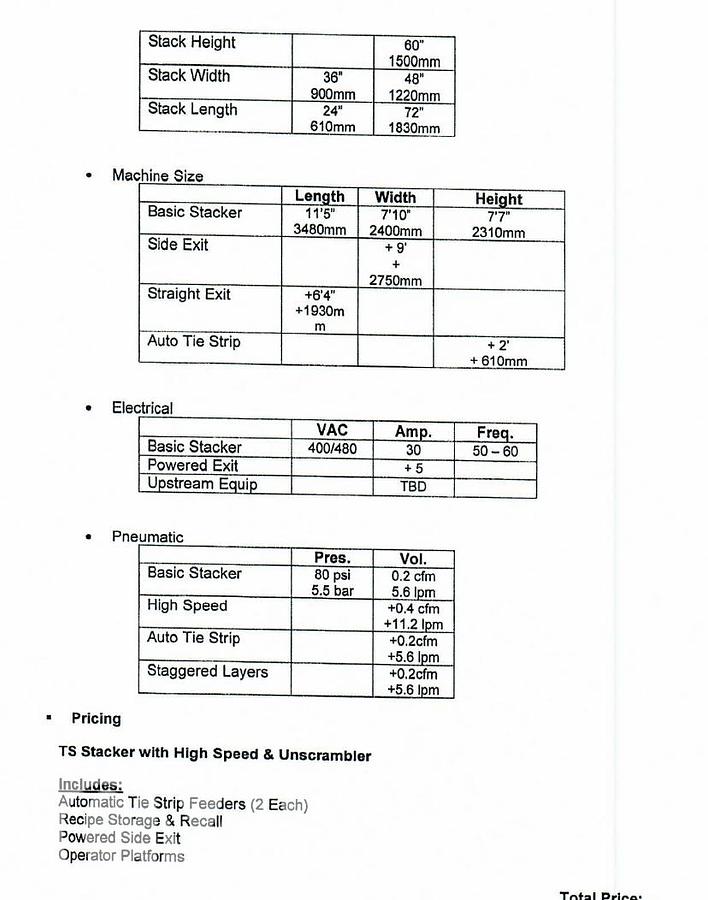

• Stack Sizes

Min Max

Page 23 of 36

Stack Height 60"

1500mm

Stack Width 36" 4 8 "

Stack Length 610mm

120mm

1830mm

• Machine Size

• Electrical

• Pneumatic

+ 610mm

+5.6 lpm

Length Width Height

Basic Stacker 11'5"

3480mm

7'10"

2400mm

"77 2310mm

Side Exit + 9 '

+

2750mm

Straight Exit +6'4"

+1930m

m

Auto Tie Strip + 2'

VAC Amp. Freq.

Basic Stacker 400/480 30 50 - 60

Powered Exit + 5

Upstream Equip TBD

Pres. Vol.

Basic Stacker 80 psi 5.5 bar

0.2 cfm

5.6 lpm

High Speed +0.4 cfm

+11.2 pm

Auto Tie Strip +0.2cfm

Staggered Layers +5.6 p m

+0.2cfm

• Pricing

TS Stacker with High Speed & Unscrambler

ncludes:

Automatic Tie Strip Feeders (2 Each'

Recipe Storage & Recall

Powered Side Exit

Operator Platforms
