Brewer Side Winder Feed Thru Deduster with Unscrambler

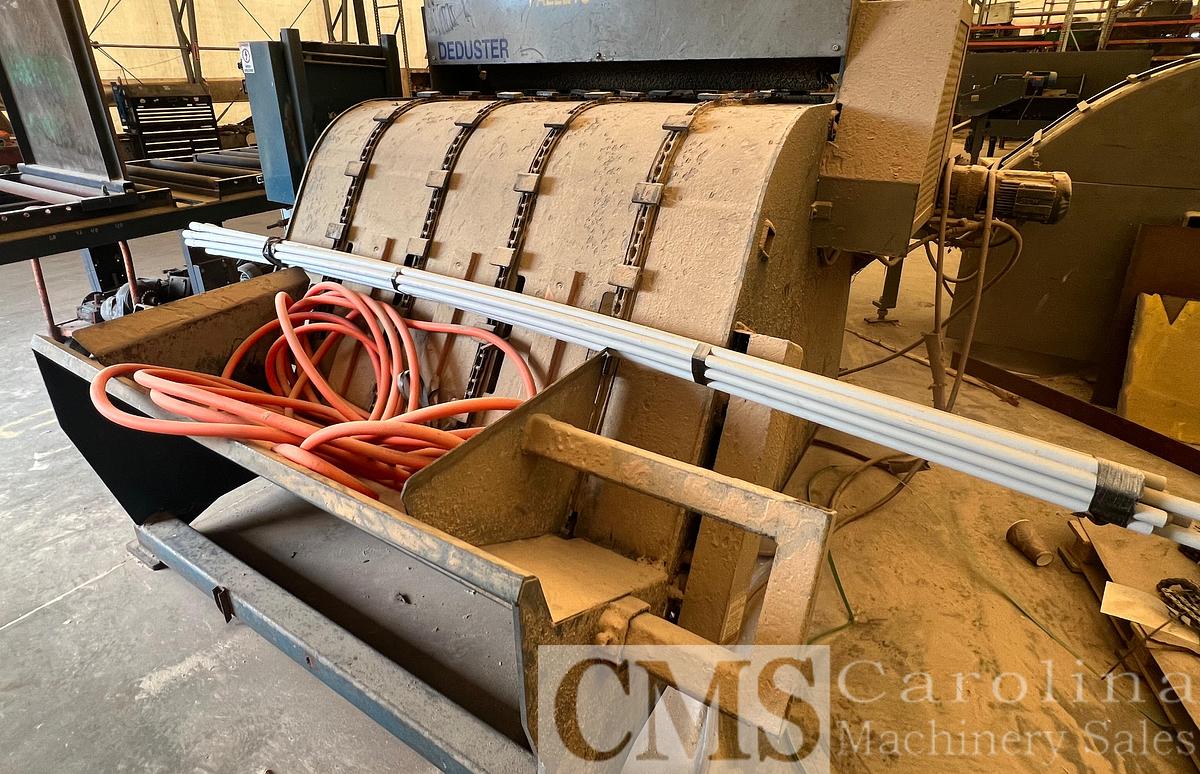

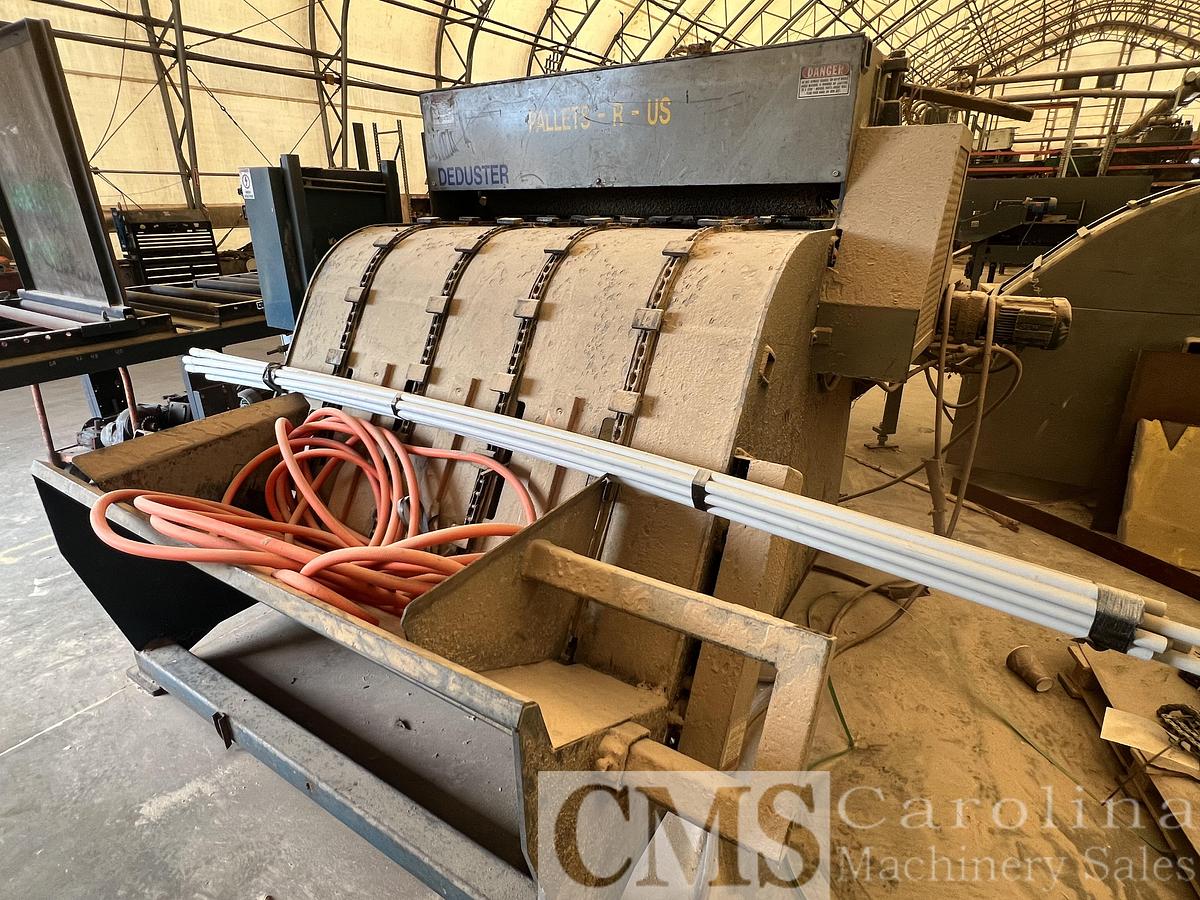

Brewer Deduster with unscrambler.

Disconnected and ready to ship.

Designed to remove saw dust from boards 30" to 60" long x 3" to 8" wide x 3/8" to 2

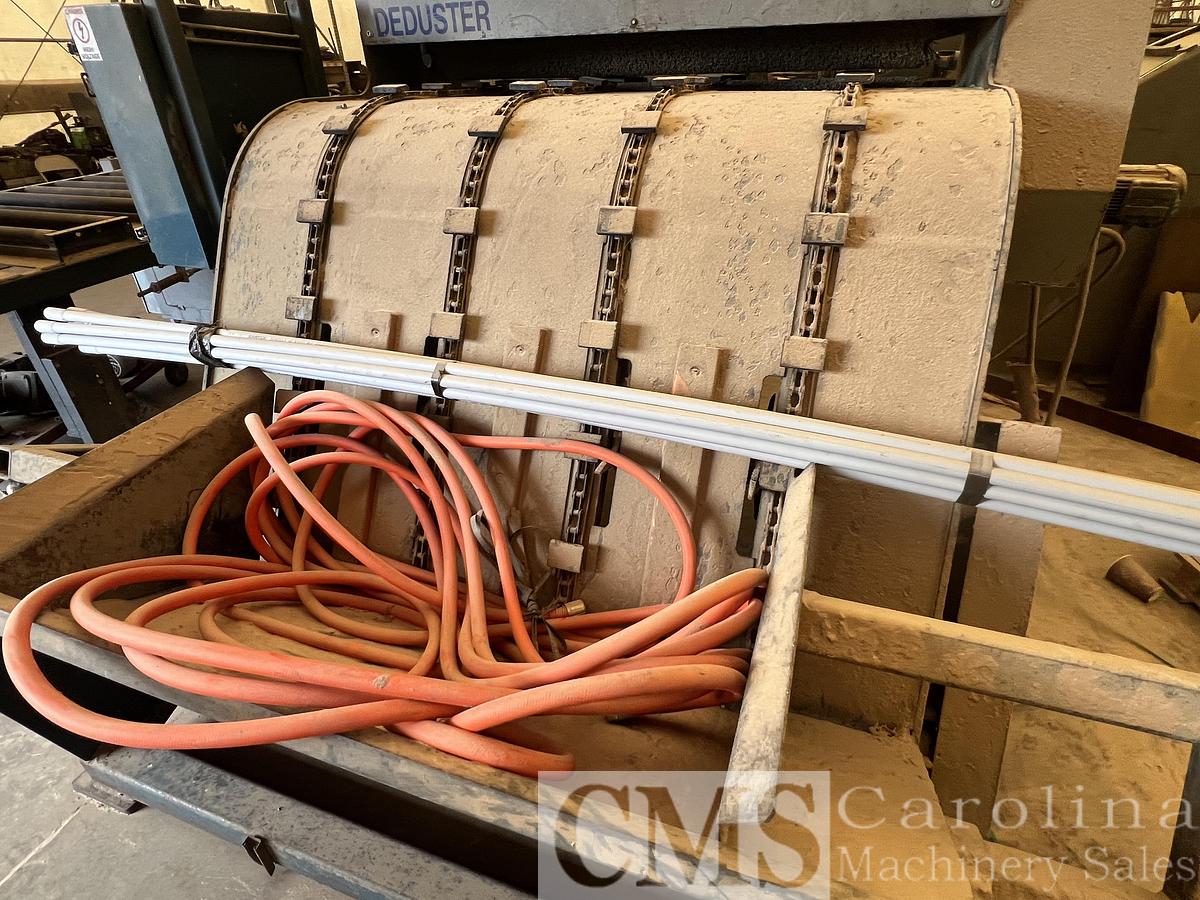

½ " thick. Unscrambler style feed with four strands of #2060 chain and ½ " tall dogs

feed boards from a lower hopper singular and sideways through 8" diameter upper and

lower spiral, nylon drum brushes.

Feed chains are powered by 2 HP motor and gear reducer with VFD for variable feed

speed. Brush arbors are powered by 2 HP motor and gear reducer. Frame is

constructed of heavy duty 3/8" steel plate sides. Electrical - control and starter

panel is pre-wired for fast installation. Electrical controls are provided including start

stop buttons, overload protection and starters for two 2 HP motors.

FEATURES:

Stacks 15 layers per minute

• Installs behind notchers, chamfers, trim saws, band saws & gang saw:

R u n your whole line with one grader/operato

INCLUDES:

1 1 ' of Infeed Conveyor

10' Integrated exit conveyor

SPECIFICATIONS:

Board Sizes

Other Specs Infeed Conveyor Height

Power Requirements

Pneumatic Requirements

Minimum Maximum

Board Length 32" 72"

Board Length

(with optional tie strips)

36" 72"

Board Thickness 3/8" 1-1/2"

Board Width 2"

30" min - 38" max

480 VAC / Three Phase / 40 Amp
