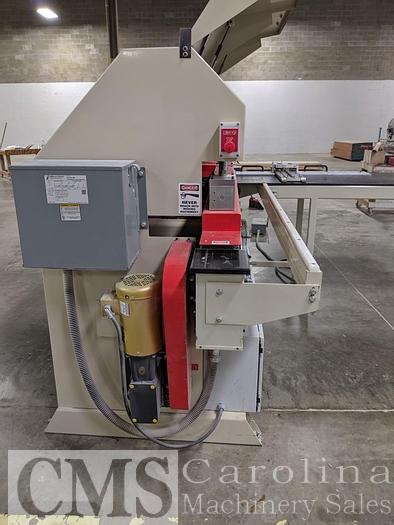

2017 Unique 4522 Shaper
Shape Only Machine with (2) Stations.
- All heads are CNC controlled and accept HSK quick change tooling.
- Ridged 1-piece welded steel frame with double-spindle shaper (PLC controlled jump cope & cope)
- All heads are floating heads making this machine suitable for shape & sand on pre-hogged arched raised panels.
- Jump cope on 1st shaper eliminates tear out of end grain.

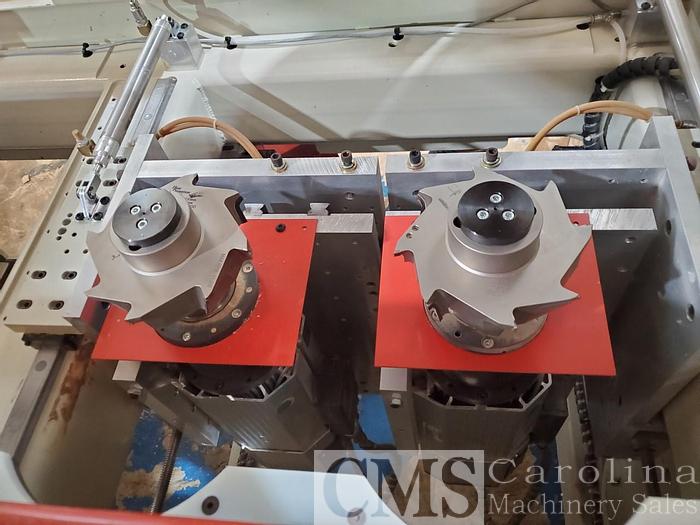

- Technical Specs - Shapers: (2) 10 HP Direct drive, HSK, variable speed floating shapers, 6,000 - 9,000 RPM ACC motors with 1-1/4" dia. spindles and 5" max. stack height. HSK motors
- Sanders: No Sanders
- 2-1/2" Max. workpiece thickness; 6" wide with replaceable pads, variable feed speed conveyor from 0 - 35 FPM.
- (5) Staggered rows of holddown rollers; squaring fence for narrow parts, exclusion of workstations with the flip of a switch.

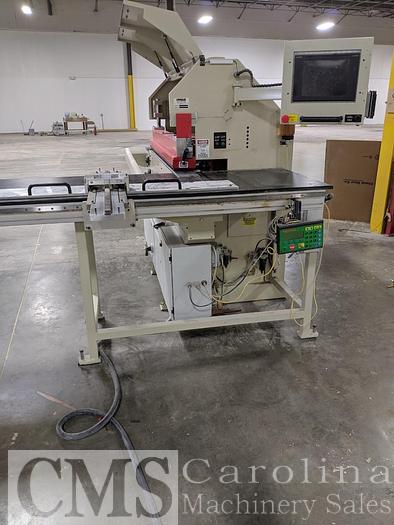

- A computer "select module" assists the operator with quick setup and changeover; Touch Screen panel; Quick change tooling with HSK motors
- TigerStop sizing/squaring table/fence; Max part size to use fence is 50"
