2007 Lower/ Doucet DMDDDBB Sander and Return
Specifications
| Manufacturer | Lower/ Doucet |
| Model | DMDDDBB Sander and Return |
| Year | 2007 |
| Stock Number | 012393 |
Description
Disc Master 48" de-nibbing and brushing sander with 2 rollers and 16 disc station
53" max material width and 4" max thickness
Disc Station: 16x 10″ discs, each with 24 key-ways, 75mm long, 2x 1.5KW gear motors, variable speed discs 50-300rpm, eccentric orbital disc movement, separate height adjustment of disc station - to run discs only or rollers only or both
Rotating Roller Spindles: 2x 2″ diameter spindles positioned 90deg to the feed with 16″ diameter brushes, 2x 2.2KW (3HP) gear motors, variable speed 14-300rpm, spindles are counter rotating and have individual speed controls
4x Spring loaded material hold-down rolls
10hp Vacuum bed / blower
2hp feed Motor 3-15mpm variable speed
Motorized table height adjustment
DRO showing thickness of material
Sensor controlled pneumatic oscillation
Constant pass –line

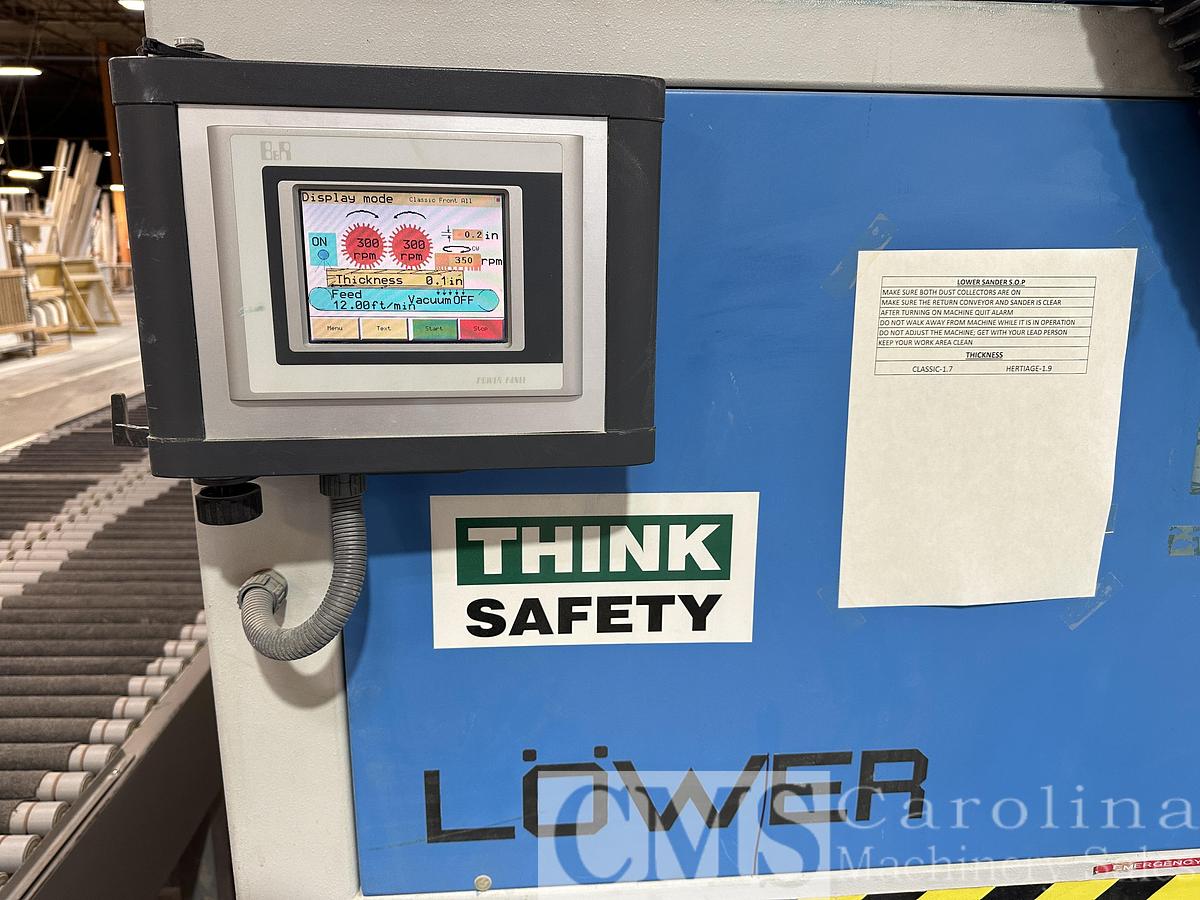

Front mounted control panel
Emergency shut-offs at in-feed and out-feed
Automatic shut off for over-thickness
8x dust hoods 3@ 3.2″ diameter, 4@ 5.6″ diameter 1@ 8″ diameter
Low Usage
