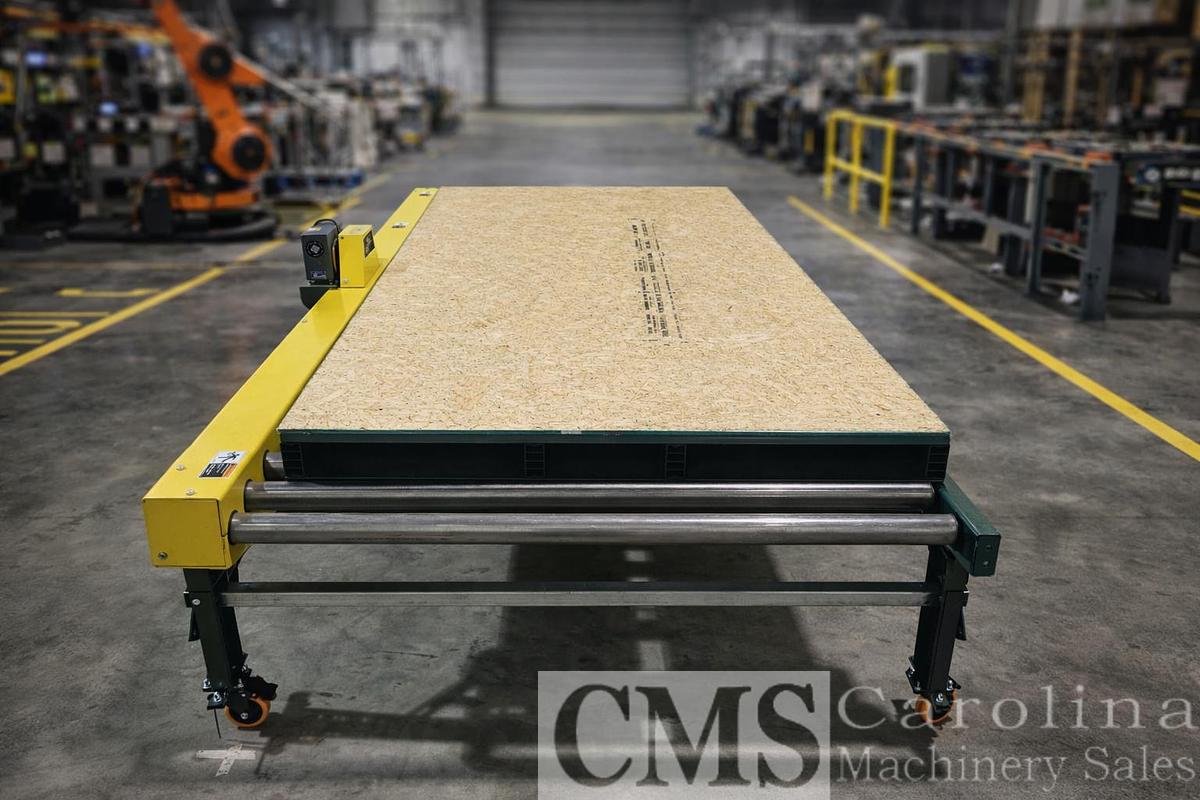

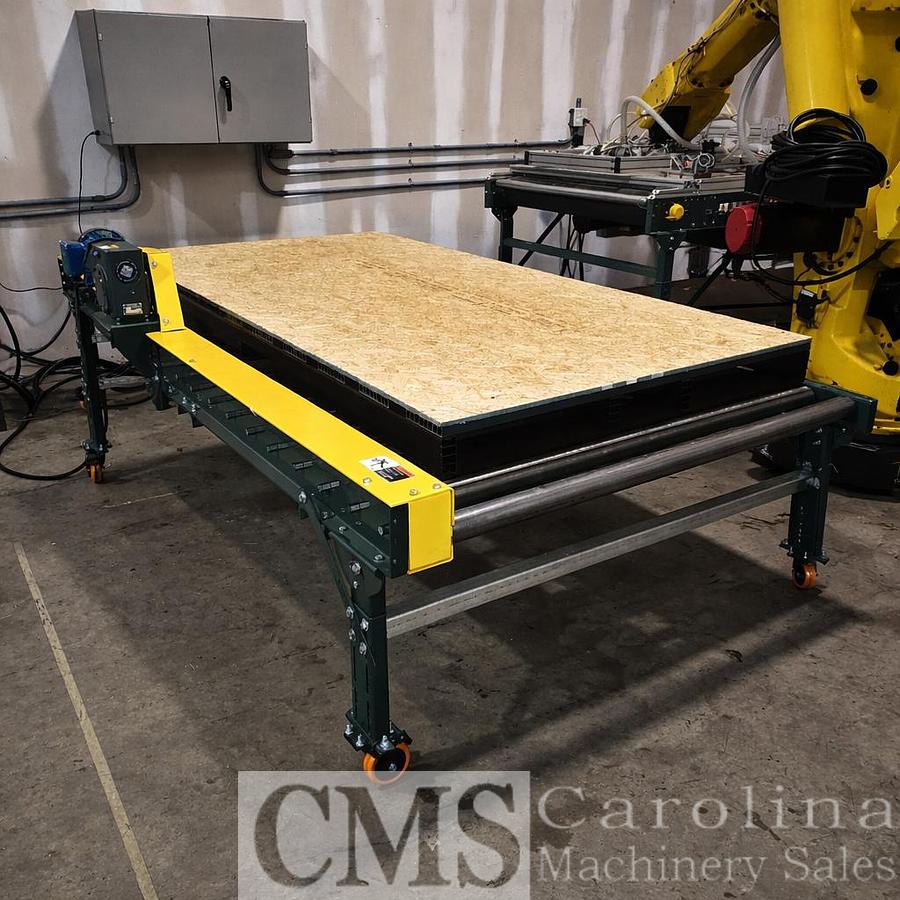

Ashland 51"W x 10'L Pallet Conveyor

Location

Southeast USA

Condition: Used / Like New in working condition, tested.
Drive Type: Chain drive
Motor & Gearbox: 1Hp motor 208/230/460V 3PH
Frame Width: 58-1/4" Overall.
Between Frame Width: 51-1/2" (50" Rollers width)
Roller Diameter and Spacing (Centers): 2.5" on 3" Centers
Roller Speed (Feet per Minute): 25 FPM
Bed Height (Roller Height from Floor): 24" to 30" (Includes 6 rollers for positioning)
Frame Height (Sides): 4"
Overall Length: 10' 2" Conveyor Total length.
Skid Size: 130Lx 60Wx 30H With conveyor disassembled and stacked.
