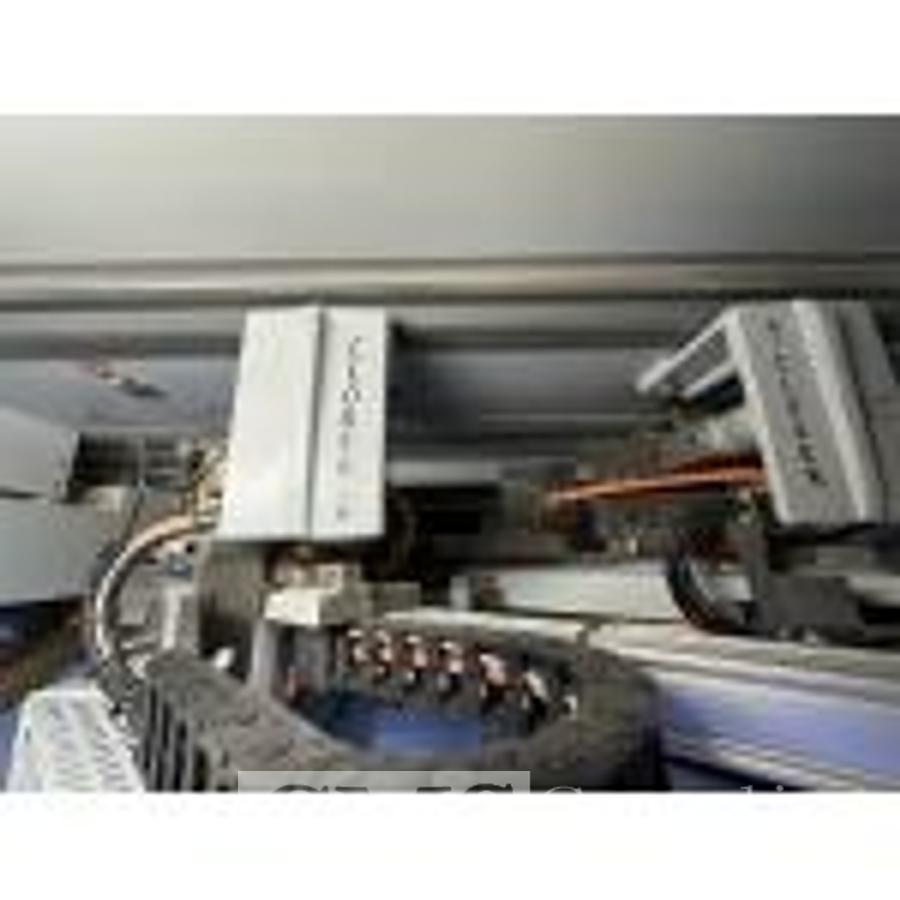

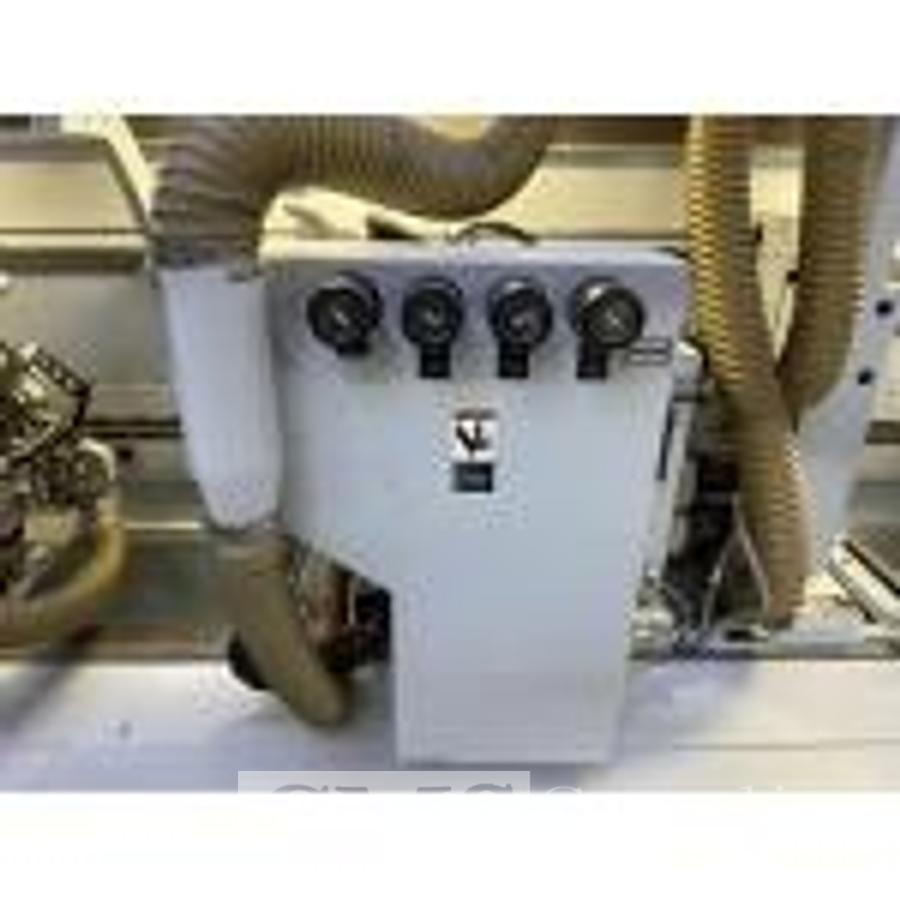

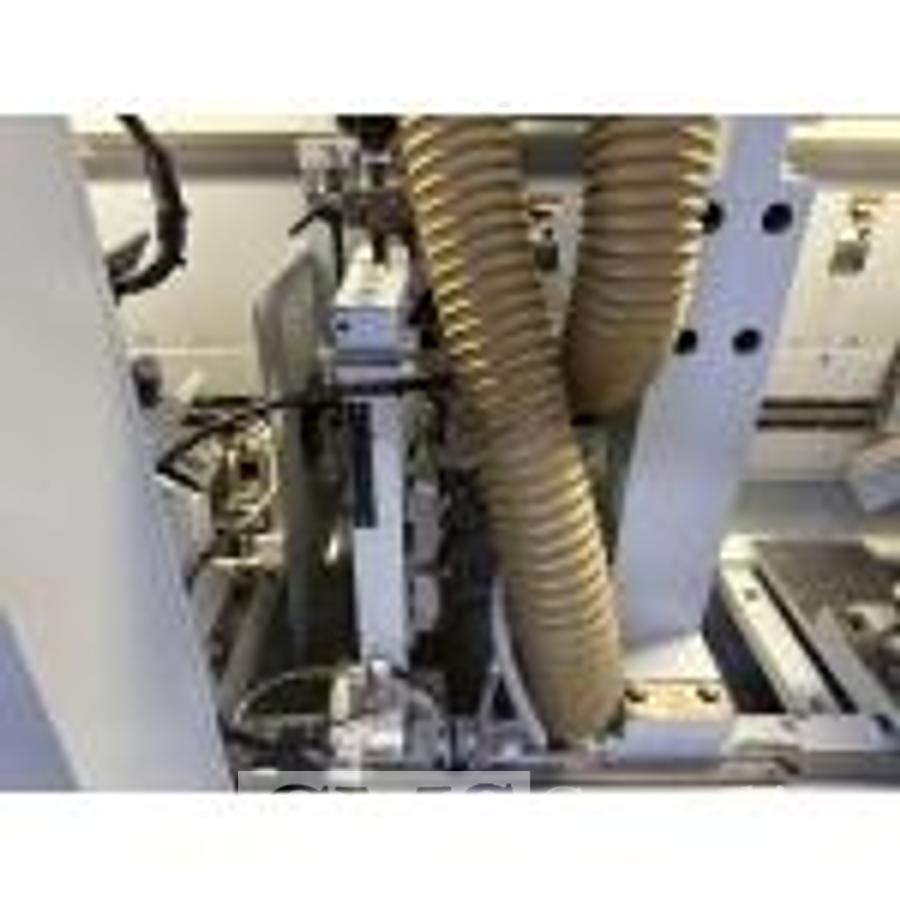

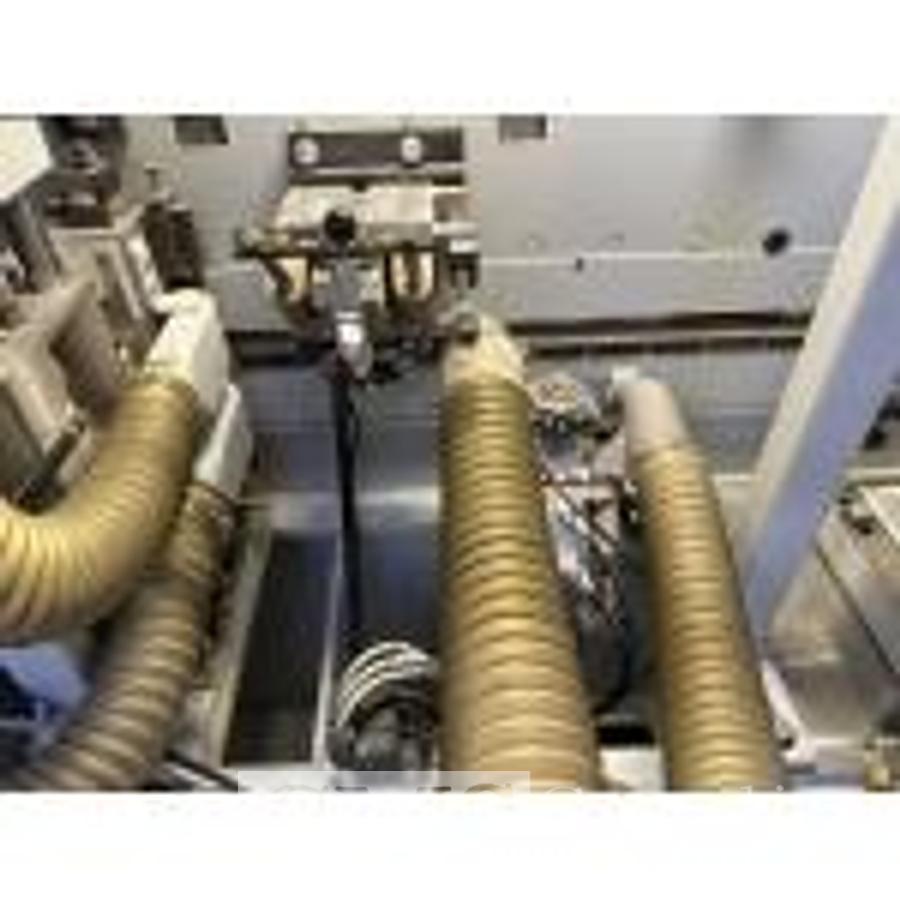

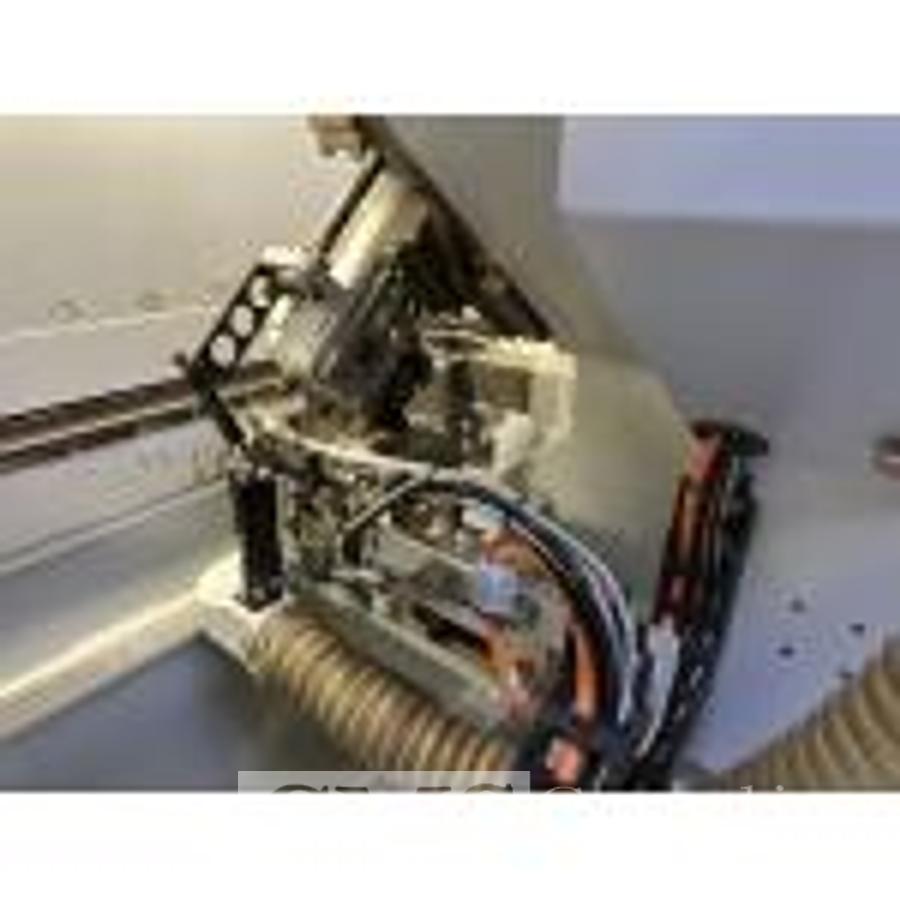

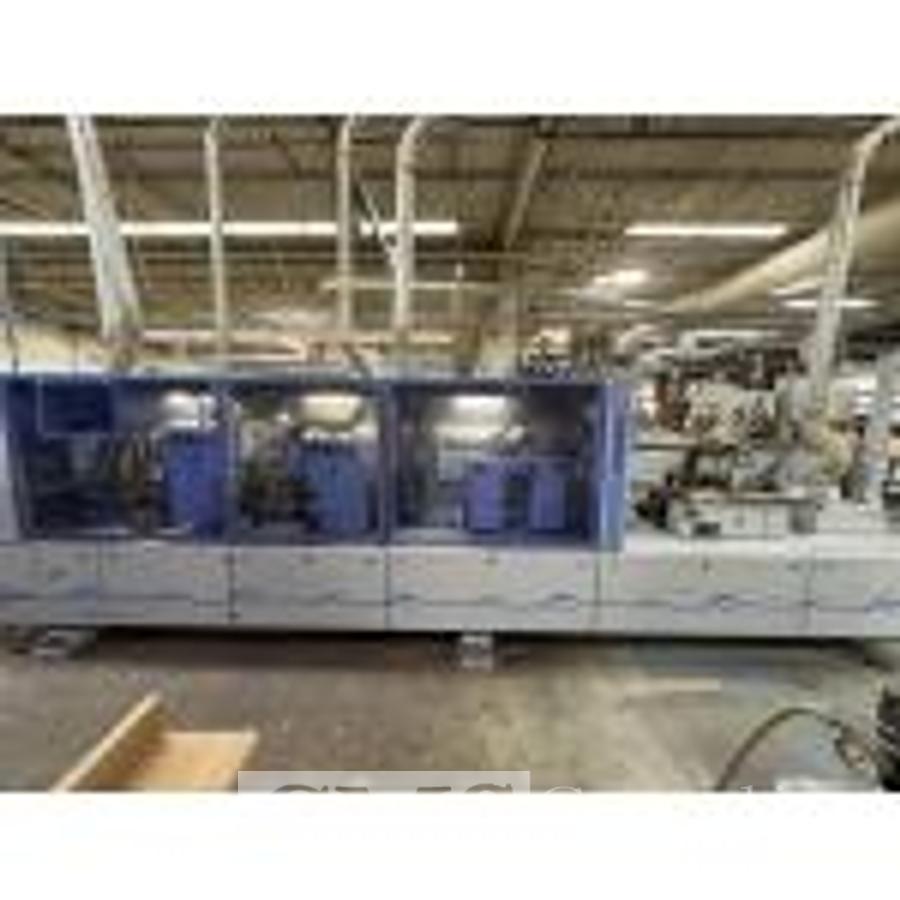

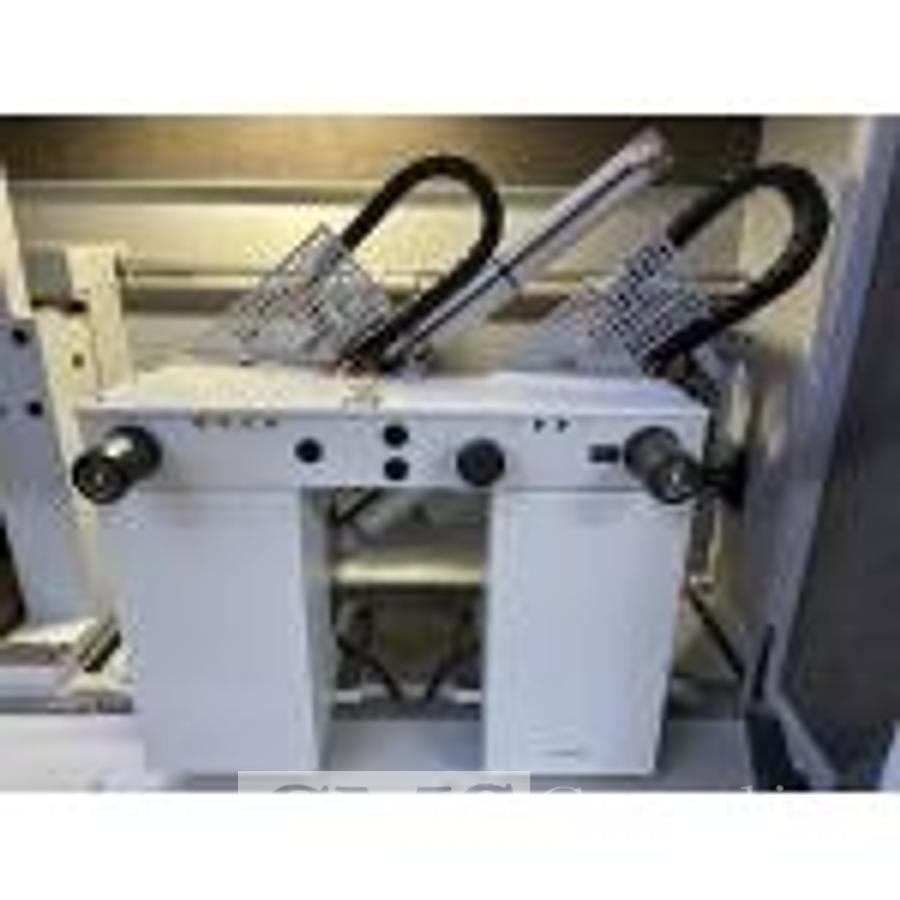

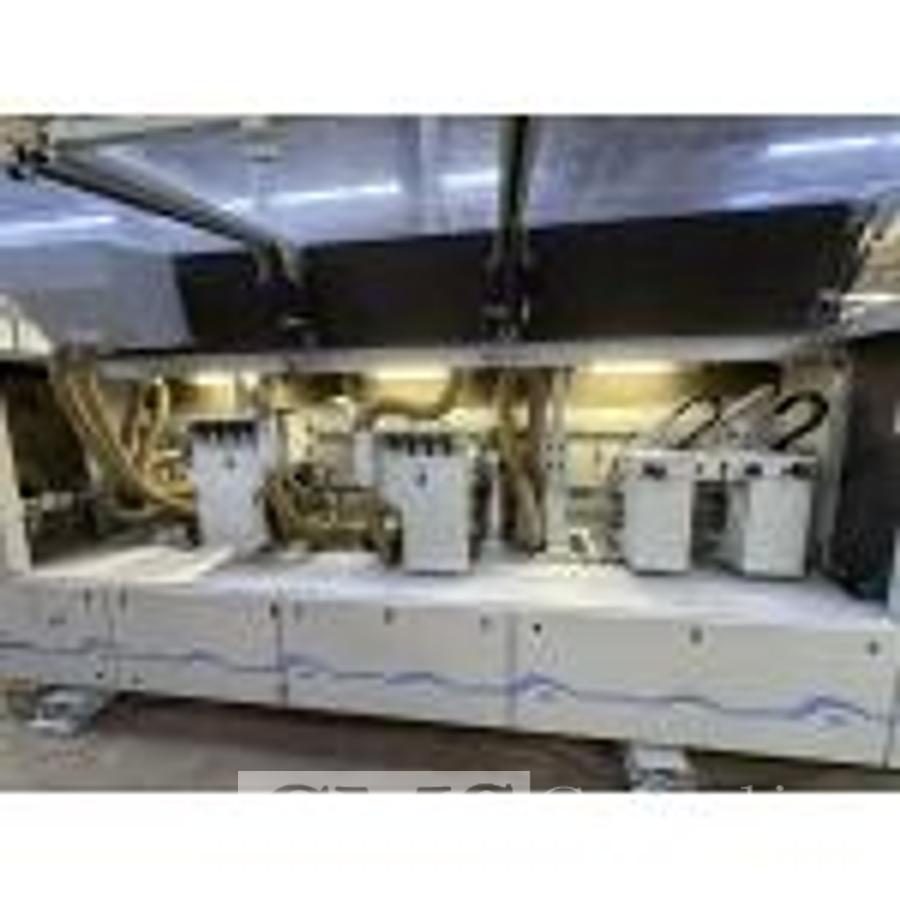

2011 Homag KAL210 Ambition 2262 Single Saded Edgebander
Specifications
| Manufacturer | Homag |
| Model | KAL210 Ambition 2262 Single Saded Edgebander |
| Year | 2011 |
| Stock Number | 012390 |
Description
Working Level: 950mm (37-13/32")
Min/Max Workpiece Thickness: 12/40mm (15/32" / 1-9/16")
Edgebanding Thickness Capacity:
Strips - 0.4mm - 6mm (0.16" - 15/64") Coils - 0.3mm - 3mm (0.12" - 1/8")
Variable Feed Speed: 18-25 m/min (59-82FPM)
Adjustable Infeed Fence | Pre-Milling Unit: 2 Motors (3kW each) Max tool Diameter: 125mm (4-15/16) | Panel Pre-Heater
Quick Melt Gluing Unit - Melting Capacity: 12kg/h (26lbs/h)
Clipping Unit: Max Edge Thickness: 3mm (1/8) Max Edge Height 43mm (1-11/16")| Pressure Unit | Snipping Unit: 2 Motors (0.8kw each) Max Edge thickness: Chamfer - 3mm Straight - 6mm
Flush Trimming Unit: Top/Bottom
Profile Trimming Unit: Leading/Trailing/Top/Bottom (2) Motors - 0.4kW Each | Profile Scrapping Unit: Top/Bottom/Laterally
Glue Joint Scraping Unit: Top/Bottom
Edge Buffing Unit: Top/Bottom
Power Control PC22 with PLC Controls | Wired for 480V 3ph, Includes Transformer
