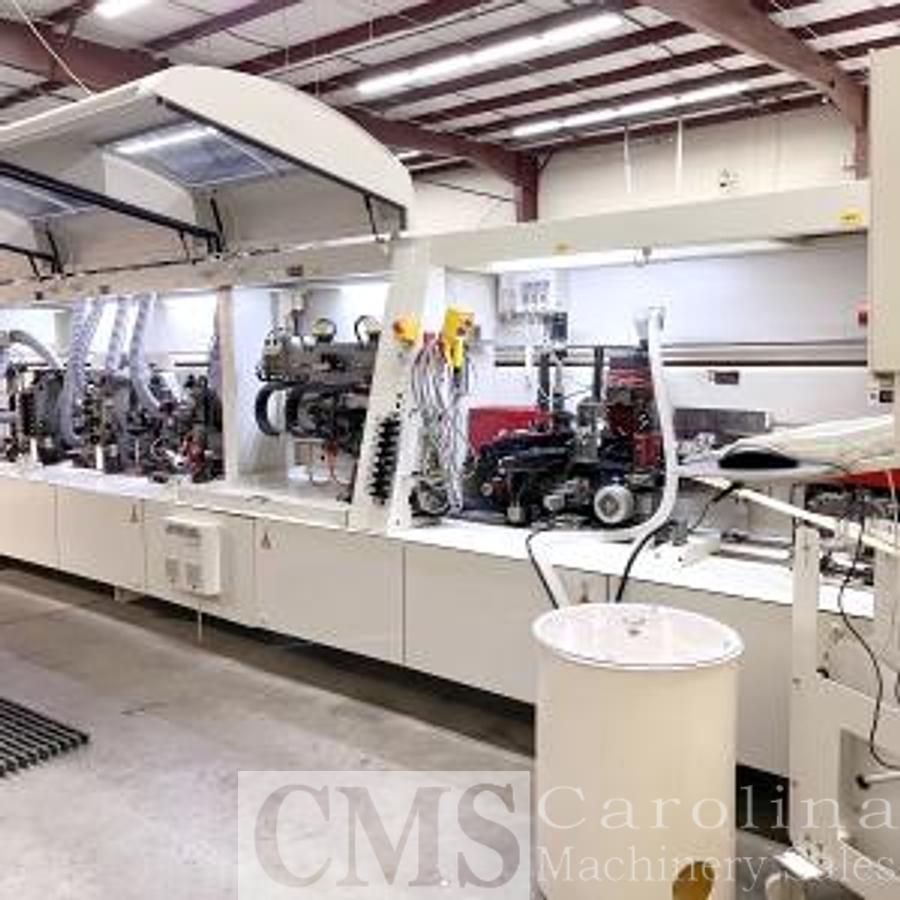

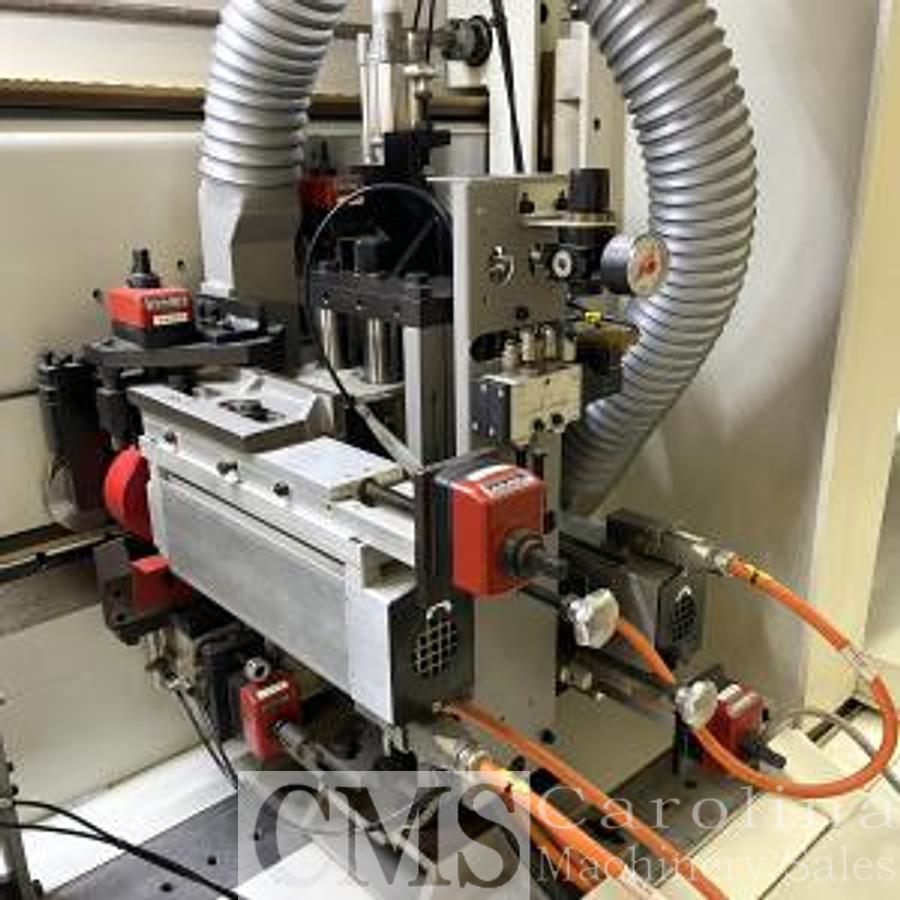

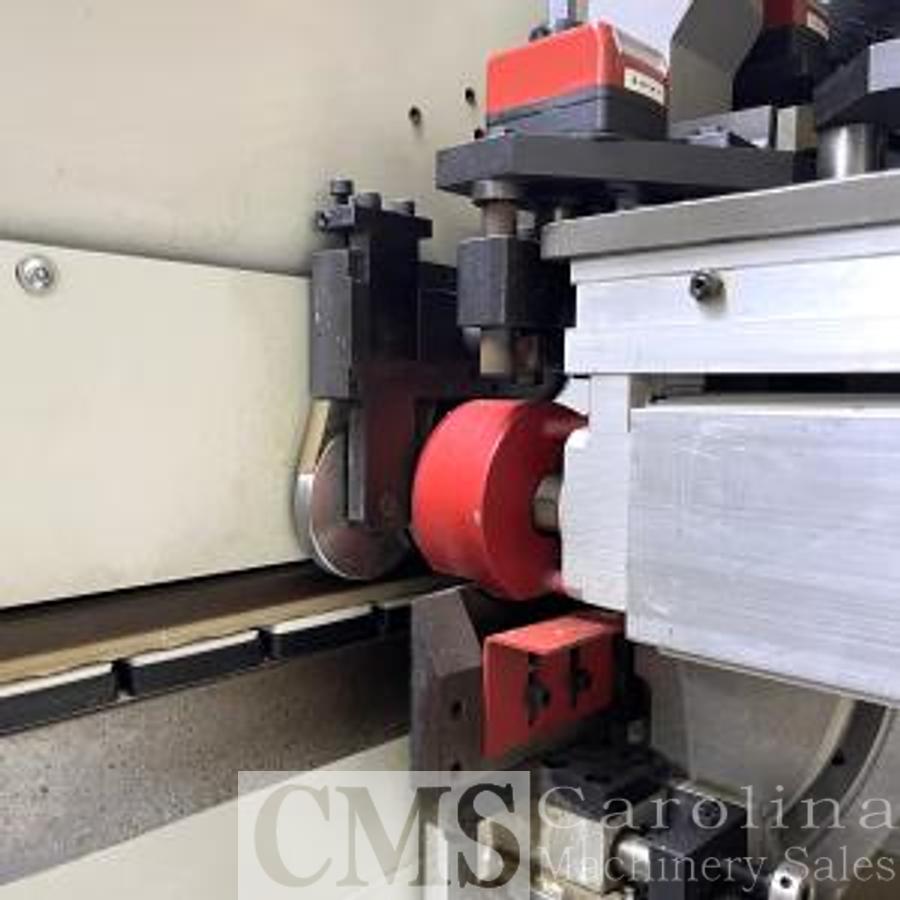

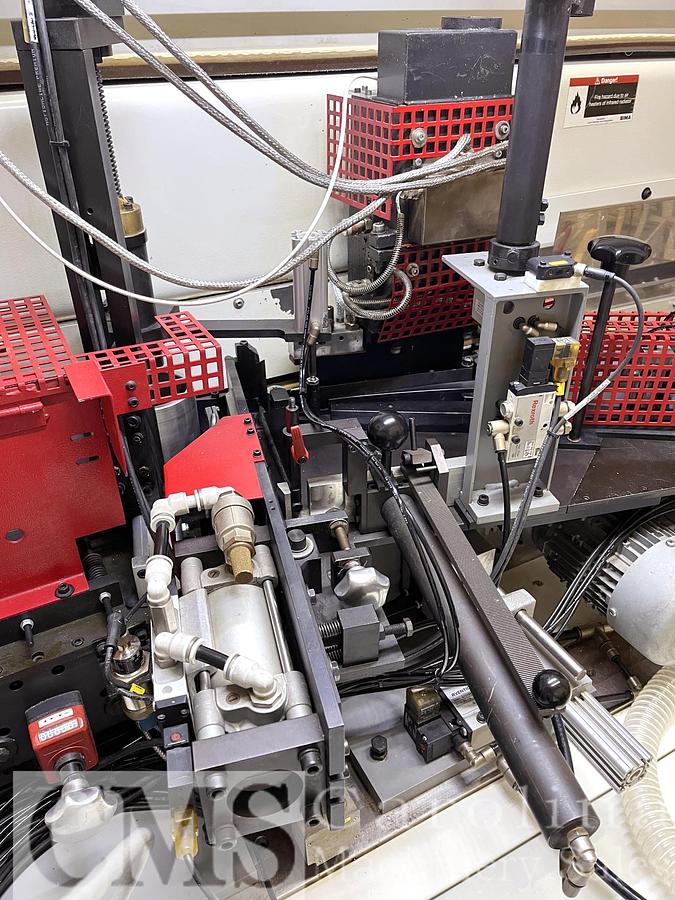

IMA Novimat Concept L20

Location

Southeast USA

or
Call 704-288-1904

Specifications

ManufacturerIMA
ModelNovimat Concept L20
Stock Number012329

Description

  • Tooling: Multi-Milling Unit, 2 mm corner rounding unit
  • Edgeband Capabilities: 0.5 mm - 3 mm coiled edgebanding
  • Edging Strips and Lipping: 3 mm - 20 mm
  • Minimum Edge Tape Height: 14 mm
  • Maximum Edge Tape Height: 65 mm
  • Minimum Panel Thickness: 8 mm
  • Maximum Panel Thickness: 60 mm
  • Smallest Work-piece 65 mm x 300 mm (at max panel thickness of 25 mm)
  • Processing Speed: 20 m/min with corner rounding
  • Processing Speed: up to 30 m/min only end trimming
  • Working height: 960 mm
  • Operating Voltage: 3PE 60Hz 480V
  • Rated Power: 27 kW
  • Nominal Current: 56A
  • Compressed Air: 7-8 bar
