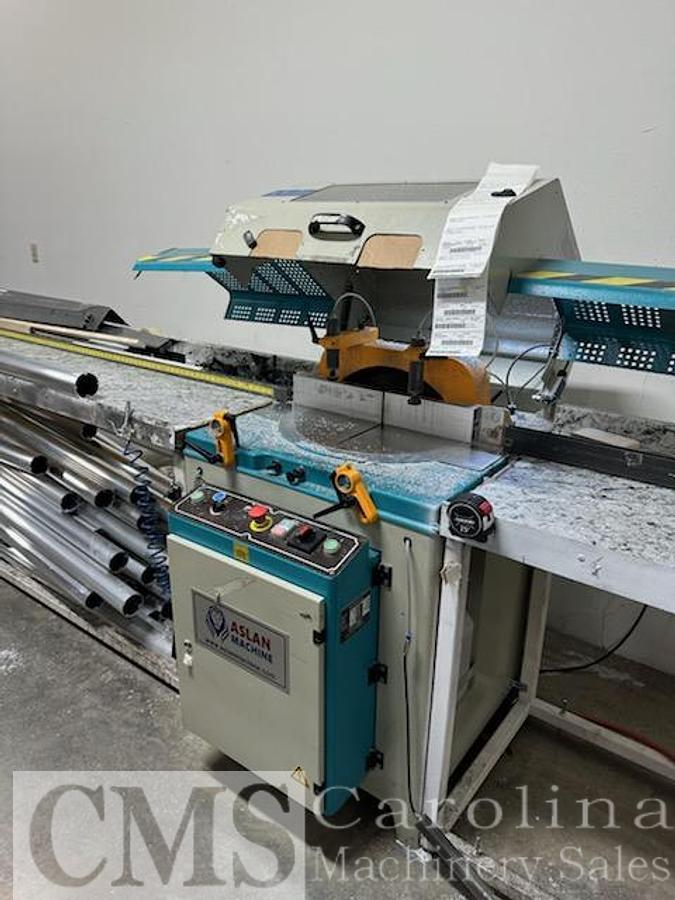

2021 Aslan US1 420

● For smooth, precise, fast and easy cutting of aluminum profiles

● Can cut profiles at all angles from -75.0° to left and +75° to right

● Adjustable saw blade rising speed

● Adjustable fence for wider cutting capacity

● Multiple profile cutting at one sequence

● Safety guard for protection

● Double hand operation for safety

● Standard vertical pneumatic profile clamping system

● Standard horizontal pneumatic profile clamping system

● Lighted cabin for increased visibility

● Top and bottom dust ports

● Easy to use control panel

● Standard hydro-pneumatic (oil and air) system for smooth cutting

● Spray mist cooling system for the blade

● Strong motor

● Special alloy aluminum table, strong sheet body and durable electrostatic paint

● Cast iron center

Standard Equipment

● Ø 420 mm saw blade installed.

● 2 pneumatic vertical clamps

● Air gun

Optional Equipment

● 2 pneumatic horizontal clamps

● 2 dust ports

● Spray mist system

● Standalone clamp pressure adjusters for flexible profiles

Technical Specs

● Motor Power: 2.2 kw (3 hP)

● Voltages: 230 (1 phase), 230 (3 phase), 460 (3 phase), 50/60 Hz.

● Rotation: 3000 rpm

● Blade Size: 420 mm (17 inch)

● Bore Diameter: 30 mm / 32 mm

● Air Pressure: 90-120 psi (6 - 9 Bar)

● Weight: 260 kg (575 lb)

● Dimensions (WxLxH): 90x85x130 cm (33x35x51 inch.)
