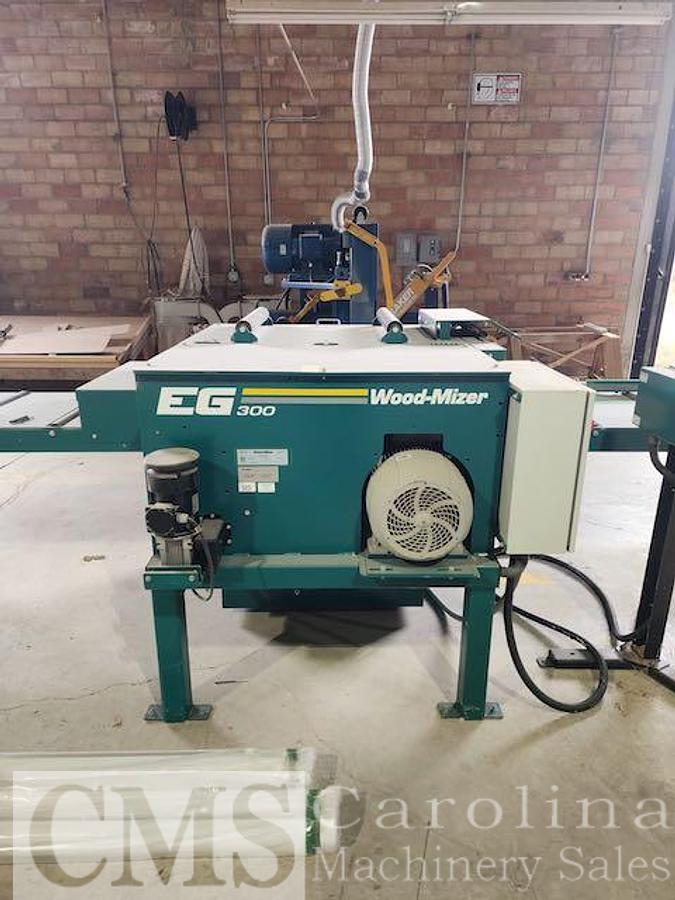

2017 Wood Mizer EG 300

Power Selections:

Power Selections 18.6kW (25HP) electric

Cutting Capacities

Min Width of Cut 20 mm (.75") (multirip) 60 mm (2.36") (edging)

Max. Material Thickness 60mm (2.36")

Blade

Blade Speed (RPM) 2940 RPM (50Hz) 3520 RPM (60Hz)

Number of Blades 2-5

Blade Diameter 350 mm (13.75")

Blade Kerf 4 mm (0.16")

Blade Adjustment Method Electric

Blade position Fixed on right side

Feed System & Operation

Feed Speed 0-20 m/min (0-65 ft/min)

Board Kickback Prevention Anti Kick-back fingers

Board Alignment Optional Lasers

Straight Edge Board Fence Adjustable Board Fence

Material Hold-down Powered Steel Rollers

Multi-Rip Function Optional

Multi-Rip Operator Controls Stationary Control Station

Setworks Setworks

Feed System 4 powered rollers

Options Outfeed table

Cant outfeed tailer

Machine Dimensions & Requirements

Sawdust collection port diameter 150mm (6")

Electrical Requirements 400V 50Hz 3Ph 40A Safety Standards CE
