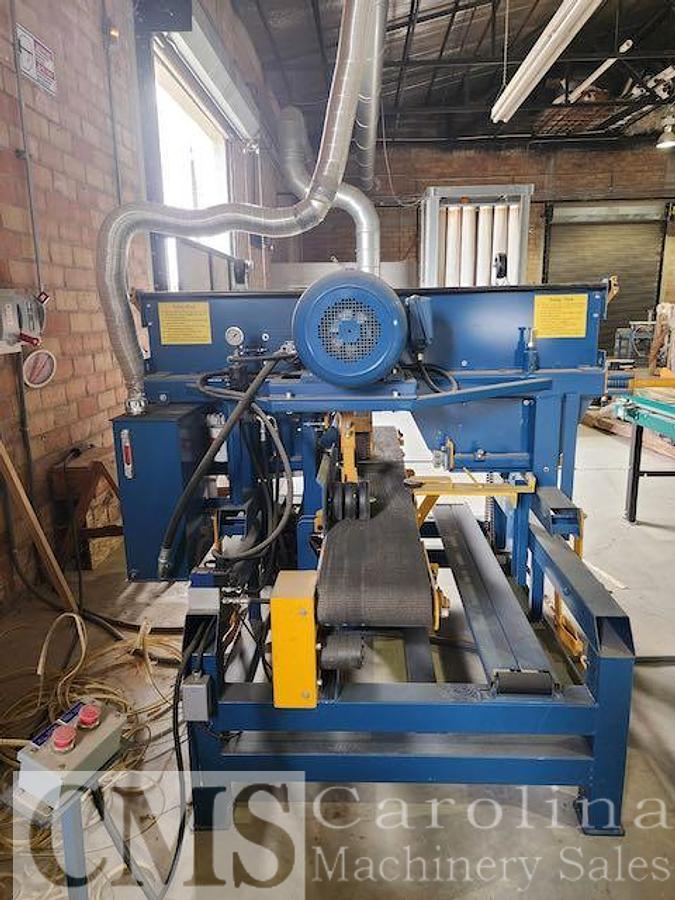

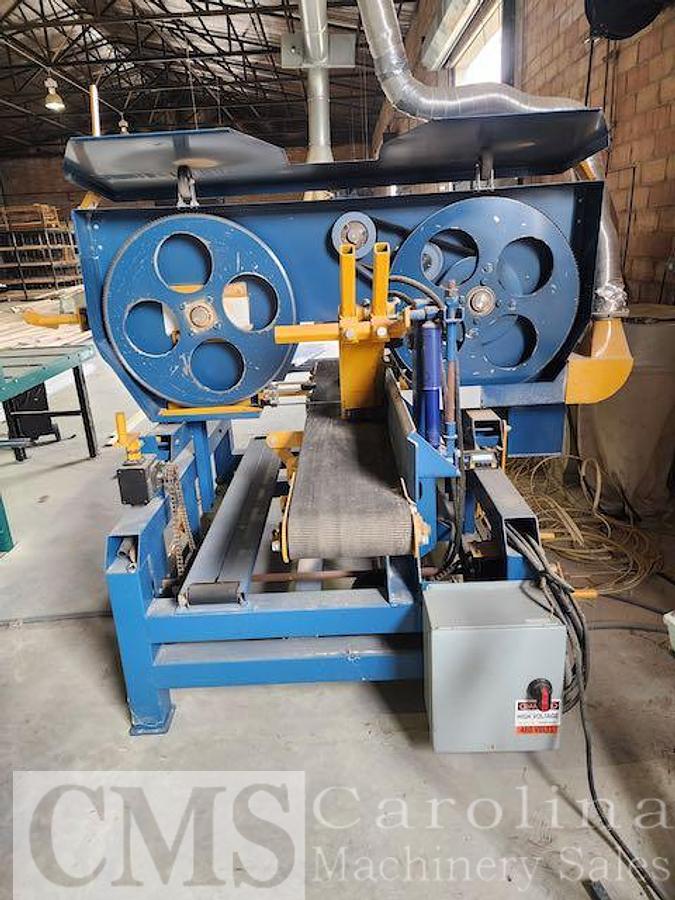

2019 Baker ABX Resaw Horizontal Re-Saw

• Number of heads: 1
• Guides: Baker Low-Profile Flat Guides with hardened tool steel guide plates with rear backup roller guide wheels
• Dust Output: 6"x6" (15.24cm x 15.24cm) square outlet with a 90° adapter chute with a 4" (10.2 cm) diameter outlet, which can be rotated to serve four directions of discharge. 500 CFM recommended.
• Dimensions & Weight:
• Length: 64 in. (1.63 m)
• Width: 72½ in. (1.84 m) with return conveyor
• Height: 68 in. (2.03 m)
• Weight: 2,000 lbs. (907 kg)
• PowerMain Drive Motor: 30 HP TEFC
• Electrical: All 3-phase voltages available. Completely prewired. NEMA 12 enclosure with starter and overload protection standard.
• Feedworks/Conveyor Hydraulic Motor: Driven by main engine. Hydraulics has 10gallon reservoir, flow control valve for variable feed speed, filter, start/stop valve.
• Feedworks and Capacities Feedworks: Rough-top belting and hold down wheel
• Material Capacity: 12" x 12" (30 cm x 30 cm)
• Feed speed: Fully variable 0 to 95 fpm (0 to 29 m per minute)
• Hold-down system: Hydraulically powered hold-down wheel system with Western Conveyor width: "AB" = 6" (15 cm)Rollers "ABX" = 12" (30 cm)
• Blades 14’2" x 1" x 0.035" hardback or 14'2" x 1 1/4" x 0.035" hardback
• Blade Tensioning: Mechanical spring
• Kerf: 0.072" (1.8288 mm)

Options

• Computer Setworks
• Material Handling Conveyors
• Vulcanized endless belt
• Flat Top Belting
• Larger Motors
• Shingle Belt
• Wedge Belt
• Hold-over Wheels
• Non-powered hold-down
• Blade height Digital Readout
• Return Conveyor
• Tilting Feedworks (0° to 26°) with degree meter
• Air Tensioning

LIKE NEW
