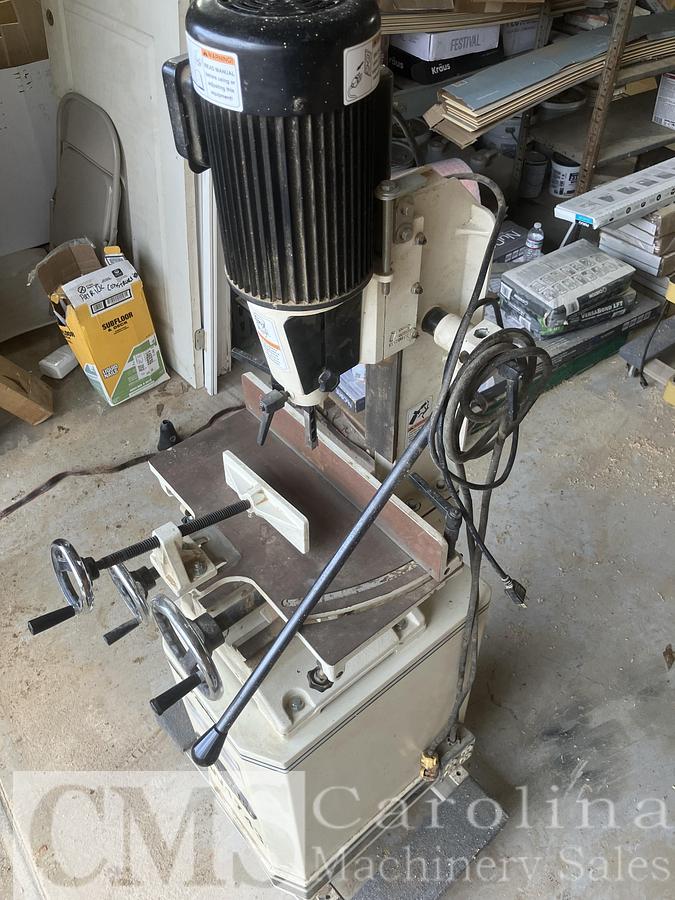

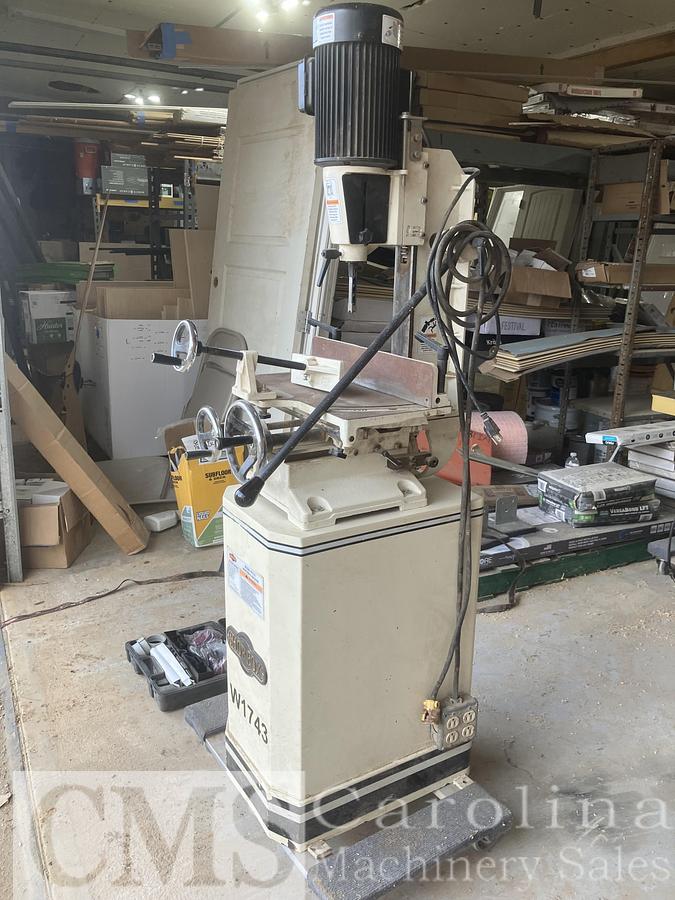

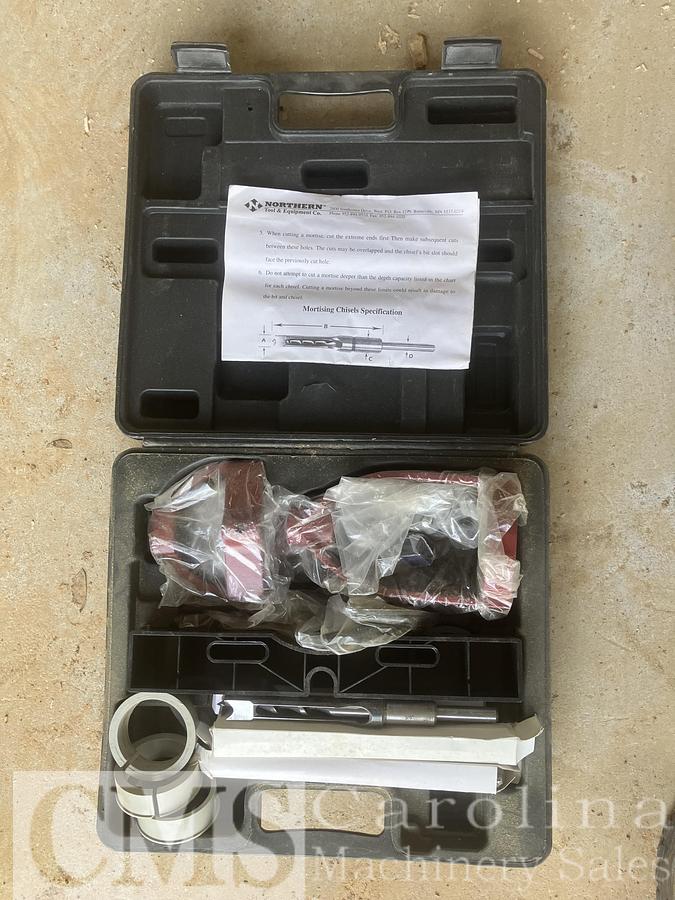

2006 Shopfox W1743 Mortiser

Shop Fox W1743 Mortiser

Manufacturer Specifications

Product Dimensions

Weight.......................................................................................................... 263 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................ 24 x 36 x 71 in.

Footprint (Length x Width).................................................................... 20-1/2 x 17-1/2 in.

Shipping Dimensions

Carton #1

Carton #2

Type........................................................................................... Wood Slat Crate

Content................................................................................................. Machine

Weight................................................................................................... 308 lbs.

Length x Width x Height..................................................................... 23 x 22 x 36 in.

Type.................................................................................................. Cardboard

Content.................................................................................................... Stand

Weight.................................................................................................... 68 lbs.

Length x Width x Height..................................................................... 19 x 22 x 29 in.

Electrical

Motors

Power Requirement.............................................................. 110V/220, Single-Phase, 60 Hz

Minimum Circuit Size......................................................................................... 15 Amp

Switch............................................................................................ On/Off Push Switch

Switch Voltage.................................................................................................... 110V

Cord Length....................................................................................................... 6 ft.

Cord Gauge................................................................................................... 16 gauge

Plug Included....................................................................................................... Yes

Main

Type......................................................................... TEFC Capacitor Start Induction

Horsepower........................................................................................... 1-1/2 HP

Voltage................................................................................................ 110/220V

Prewired.................................................................................................... 110V

Phase...................................................................................................... Single

Amps....................................................................................................... 14/7A

Speed.................................................................................................. 1725 RPM

Cycle....................................................................................................... 60 Hz

Number of Speeds............................................................................................. 1

Power Transfer ................................................................................... Direct Drive

Bearings............................................................. Shielded and Permanently Lubricated

Bearings............................................................. Shielded and Permanently Lubricated

Model W1743 Machine Specifications, Page 1 of 2Main Specifications

Operation

Table Cross Travel......................................................................................... 3 in.

Table Longitudinal Travel......................................................................... 14-1/2 in.

Vertical Spindle Travel................................................................................... 9 in.

Column Tilt....................................................................... Left and Right 30 degrees

Head Vertical Traverse................................................................................... 3 in.

No Of Spindle Speeds......................................................................................... 1

Range Of Spindle Speeds........................................................................... 1725 RPM

Cutting Capacities

Maximum Stock Width.................................................................................... 9 in.

Maximum Stock Thickness.......................................................................... 6-5/8 in.

Maximum Mortising Depth.......................................................................... 6-1/4 in.

Maximum Chisel Travel............................................................................. 6-1/4 in.

Chisel Size Range................................................................................... 1/4 – 1 in.

Fence to Chisel Center Distance........................................................................ 3 in.

Extendable Work Stop Length..................................................................... 30-1/2 in.

Table Information

Table Size Length................................................................................... 12-1/2 in.

Table Size Width......................................................................................... 19 in.

Floor To Table Height.............................................................................. 36-3/4 in.

Chuck Information

Chuck Type............................................................................................... Keyed

Chuck Size............................................................................................... 1/2 in.

Chuck Capacity.......................................................................................... 1/2 in.

Construction

Base.................................................................................................... Cast Iron

Head.................................................................................................... Cast Iron

Table......................................................................................... Ground Cast Iron

Paint....................................................................................................... Epoxy

Cabinet..................................................................................................... Steel

Column................................................................................................. Cast Iron

Fence......................................................................................... Ground Cast Iron........................................................................................................ 2 Year

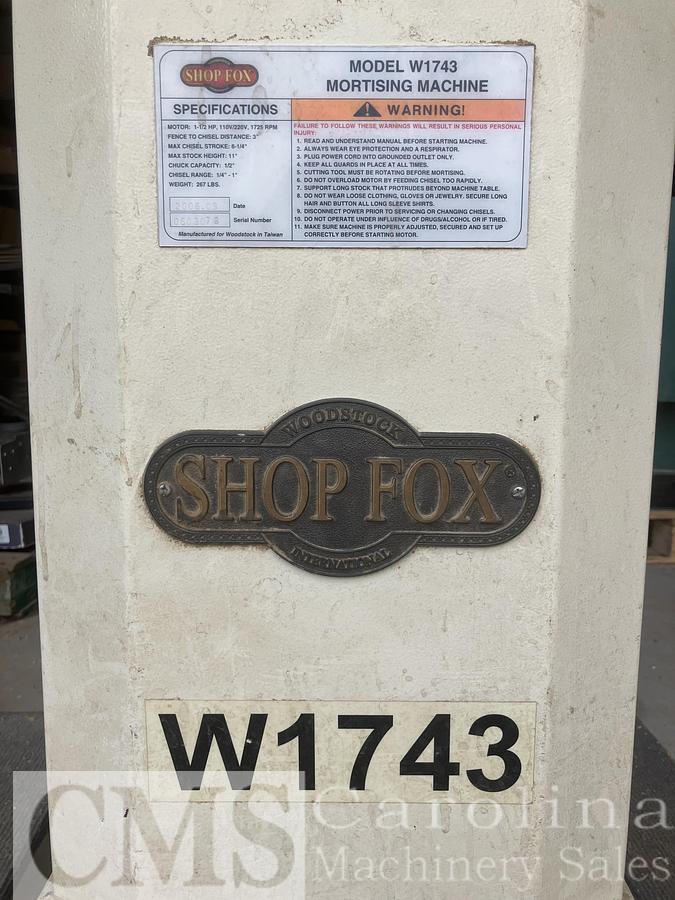

Serial Number Location .................................................................................. Data Plate

Customer Assembly & Setup Time .......................................................................... 1 Hour
