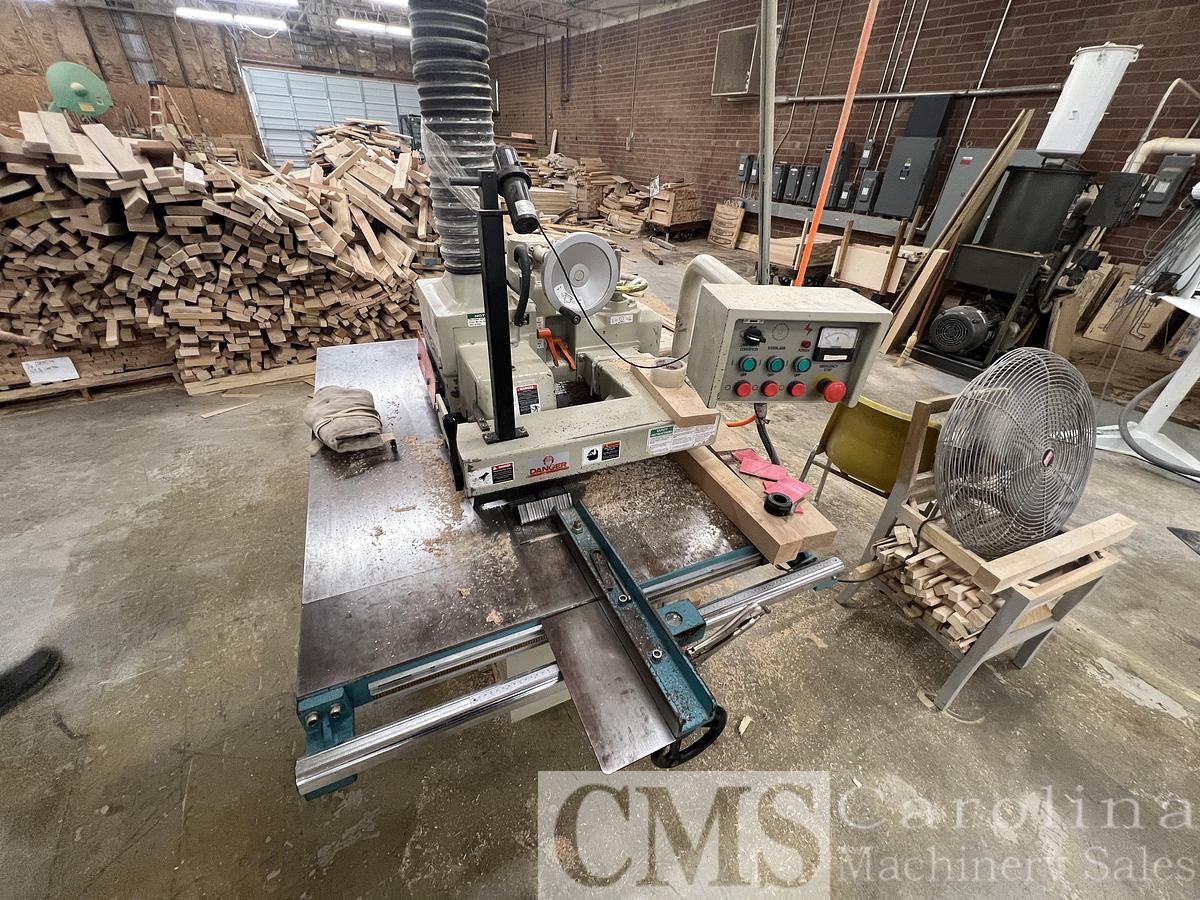

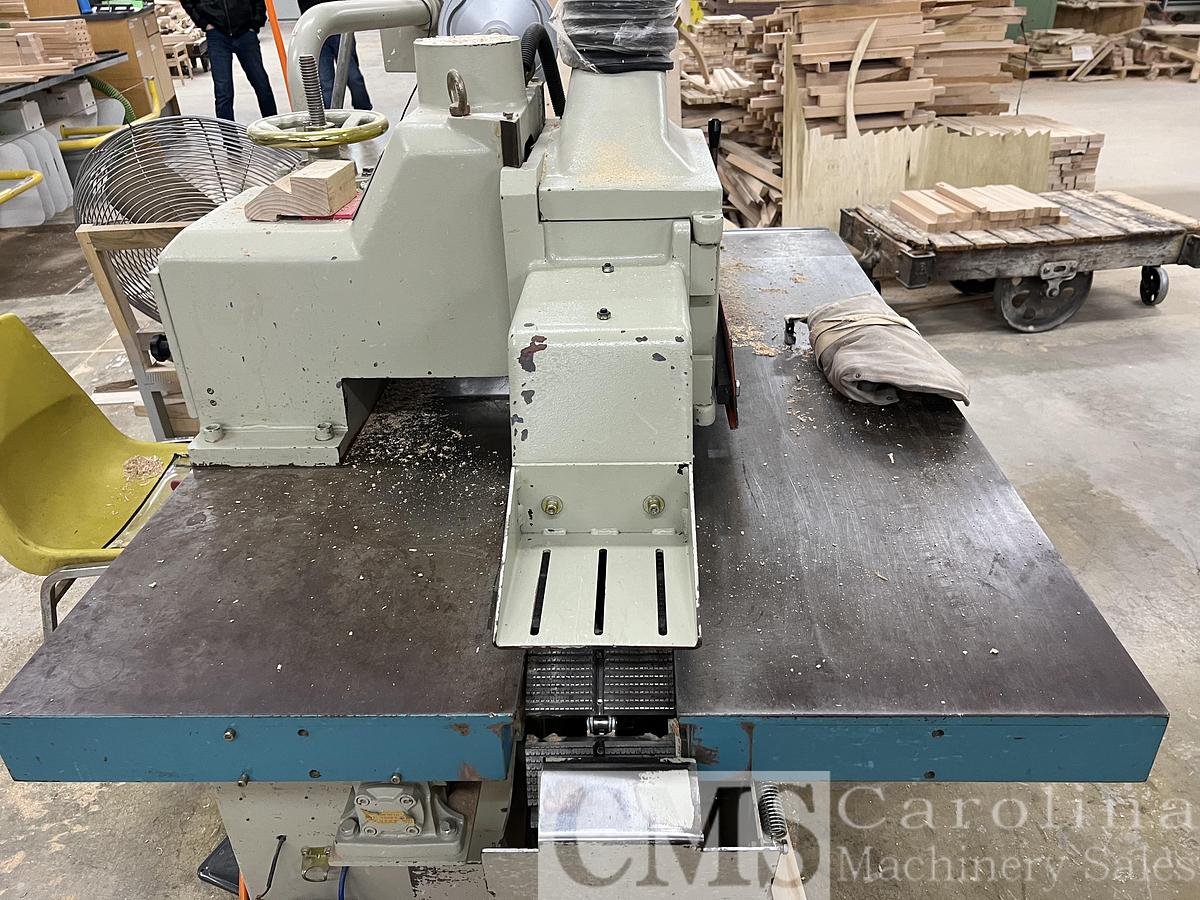

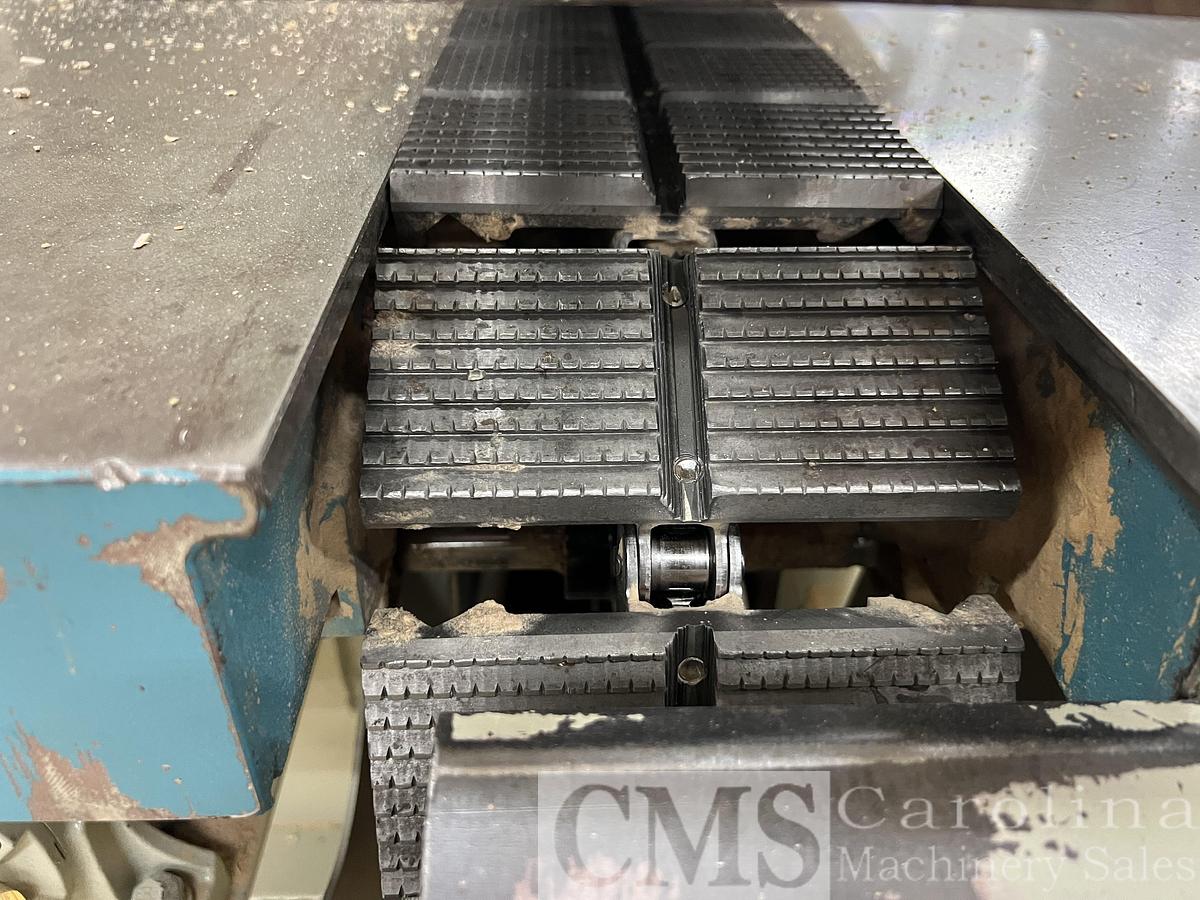

Extrema Straight Line Rip Saw

Extrema Straight Line Rip Saw

Manufacturer’s Specifications

Specifications:

• Horsepower: 20HP
• Voltage: 230V or 460V
• Phase(s): 3PH
• Blade Size: 14" - 20"
• Main Motor: 20 HP
• Feed Motor: 3 HP
• Elevation Motor: 1/2 HP
• Blade Speed: 3600 RPM
• Feed Speed: 50 - 180
• Max Rip Capacity: 25-1/2"
• Working Height: 33 1/2
• Table Size: 52" x 82 1/2"
• Hold Down Rollers: 12
• Chain Rail Length: 53"
• Chain Pad Width: 8 1/2"
• Guaranteed Glue Line Length: 13'
• Set of Anti-Kickback Fingers: 3
• Disc Brakes: Yes
• Oiler System: Auto
• AMPS (230V/460V): 58A / 29A
• Max Thickness Capacity: 5 1/8"
• Weight: 4900 lbs
