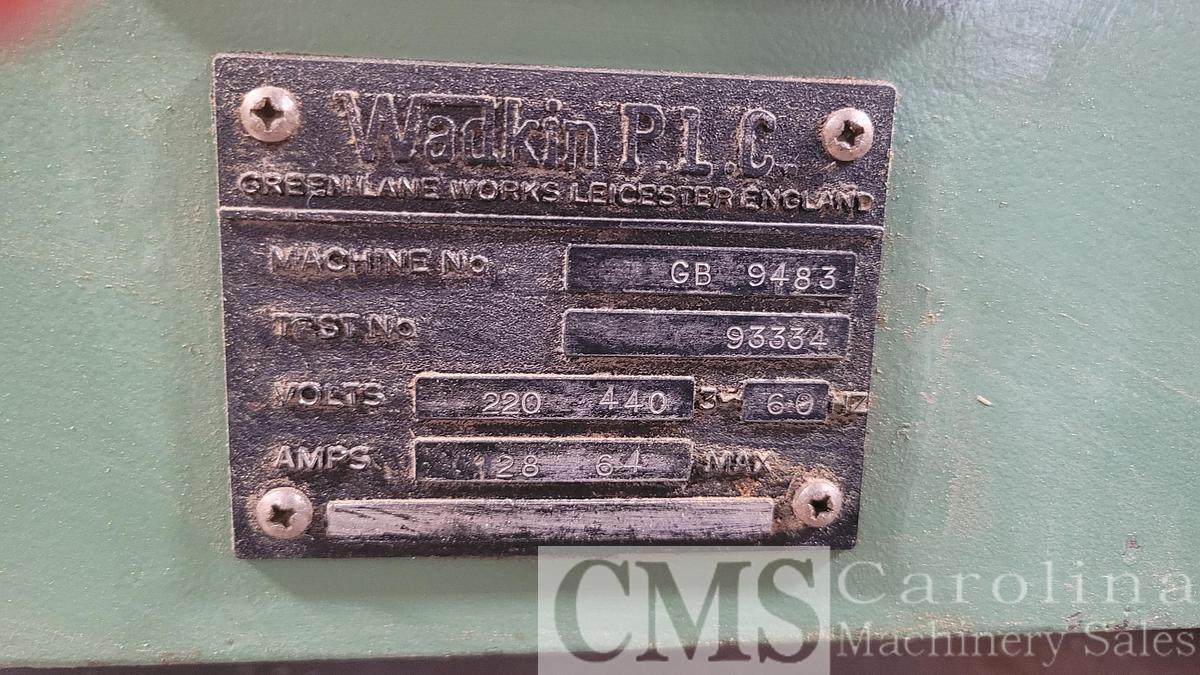

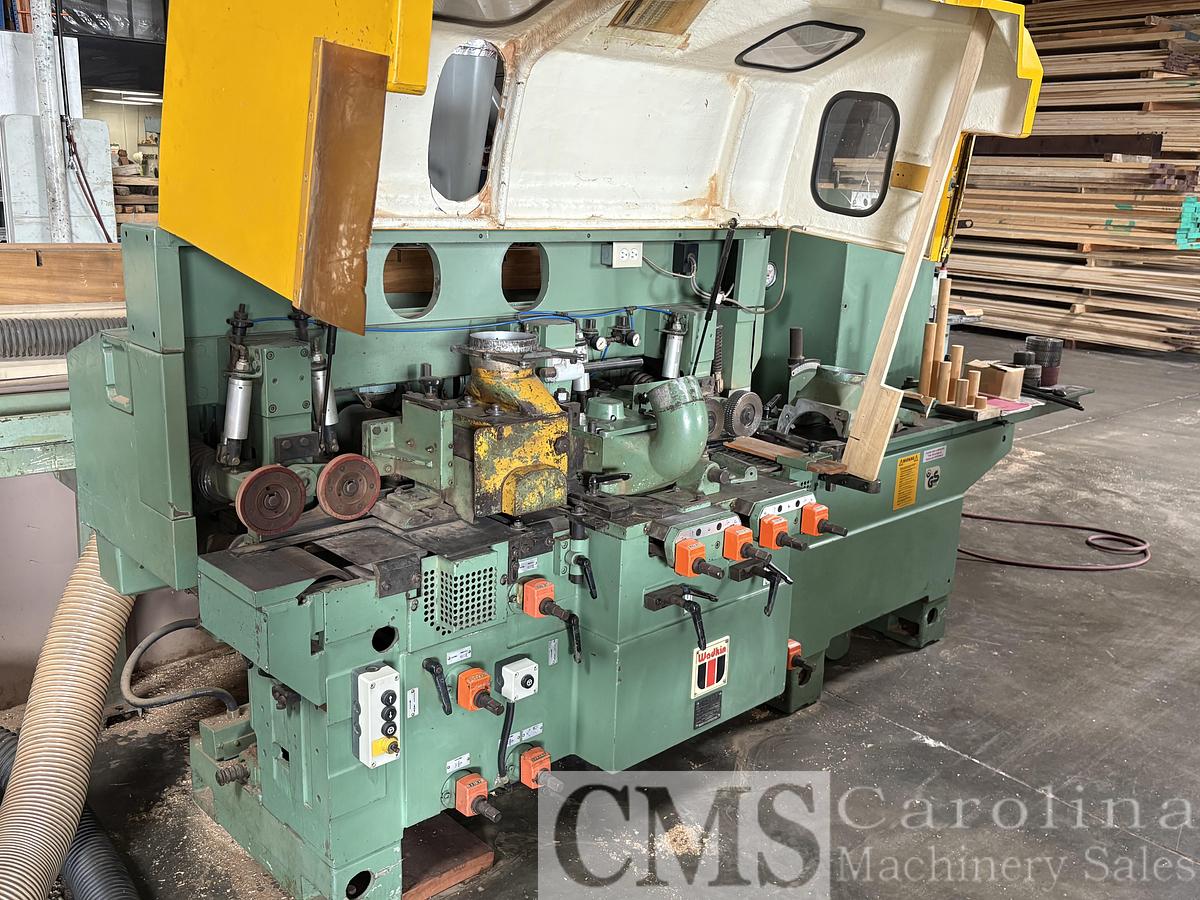

Wadkin GB 220 5 Head Moulder

Model GD-220-5

220 volt three phase, 60 hz, 67 amps

Max workpiece admitted 230 mm x 130 mm (9" x 5")

Max workpiece finished size 220 mm x 120 mm (8.66" x 4.72")

10-1/2" wide x 77" long adjustable height infeed table

1" high adjustable infeed fence

40mm Spindle dia.

• 1st head: bottom horizontal spindle

7-1/2 hp, 208-230/460 volt three phase drive motor

• 2nd head: right hand vertical spindle

7-1/2 hp, 208-230/460 volt three phase drive motor

• 3rd head: left hand vertical spindle

7-1/2 hp, 208-230/460 volt three phase drive motor

• 4th head: top horizontal spindle

15 hp, 208-230/460 volt three phase drive motor

• 5th head: bottom horizontal spindle

10 hp, 208-230/460 volt three phase drive motor

cardan feedworks

Mechanical digital readouts on chip breaker and axial adjustments

Sound and safety enclosure with lift up hood around all heads

Interior cabin work light

3 hp, 208-230/460 volt three phase feedworks drive motor

Variable speed feed with 20 to 75 ft/min range

Push button motor controls

Wadkin 5 head molder

GD 390 cutting ability

4 3/4 “ high x 9” wide
