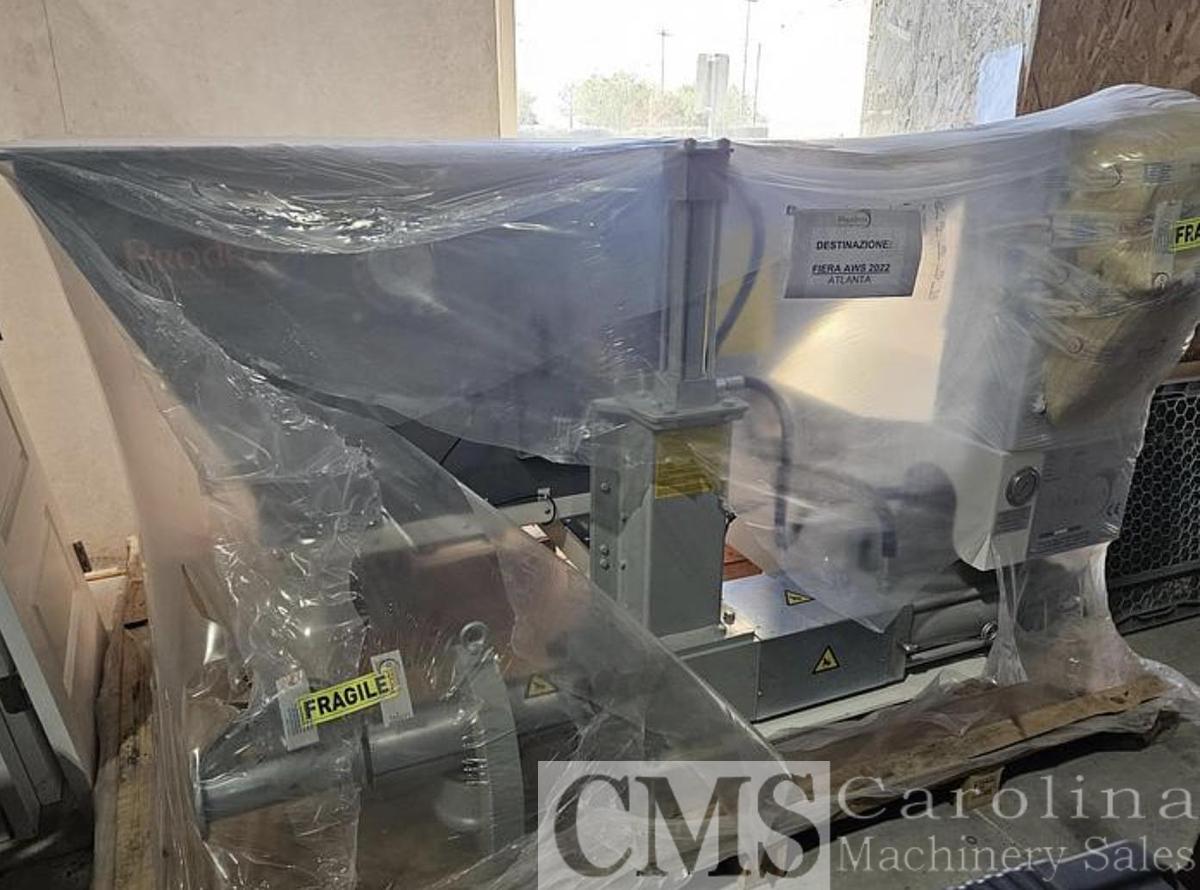

Prodeco E60 Super Briquette Press

Prodeco USA E60 SUPER Vertical Briquette Press Machine

New, never used!

Manufacturer specs (to be confirmed):

• 10 HP (7.5 kW) 460VAC/3/60Hz hydraulic pump motor package (CASAPPA/Siemens/NERI)
• 3 Hydraulic cylinders with 1 mono-block clamp (Parker/OMT)
• Material processing capacity: 88 – 220 lbs/hr (40 – 100 kg/hr)
• Produces 2.4” (60mm) diameter briquettes
• Maximum compression length per stroke: 2.4” (60mm)
• 48.5”H x 78.5”W x 54”D (1.23m x 2.0m x 1.37m)
• Typical Hopper Size: Base: 39.5” x 39.5” (1.0m x 1.0m)
• Top: 63” x 63” (1.6m x 1.6m)
• Height: 41.5” (1.05m)
• PLC- controlled operation for optimized performance with auto start & stop (Siemens)
• Capacitive drum level sensor (paddle level sensor available as an option)
• Automatic sizing feature based on material density
