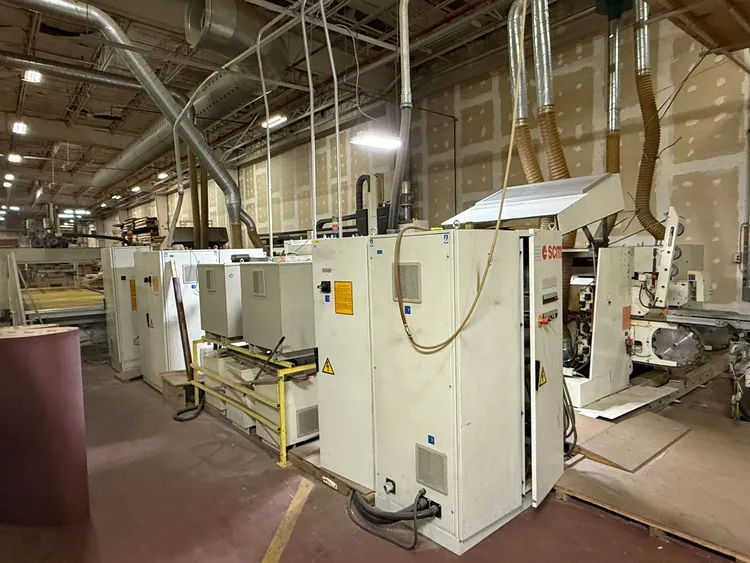

2005 SCM CONCEPT NT/L DOUBLE-END TENONING LINE

Panel length: 200–2 600 mm (8"–102")

Panel width: ≤ 3 000 mm (118")

Panel thickness: 4–90 mm

Scoring head motor: ≈2.2 kW (3 hp) each

Trim/hogging motor: 5.6–7.5 kW (7.5–10 hp) each

Coping/station motor: ≈6.3 kW (8.5 hp) each

Feed speed: 4–32 m/min (13–105 ft/min)

Opening system: Motorized, LED/digital readout

Jump cope (electropneumatic): Yes

Required air pressure: 8–10 bar dry air

Dust extraction: Multiple ports: Ø100 mm, Ø80 mm

Laydown support: ~600 mm in/out (24")

Minimum width support: ~170 mm (6.7")

CONVEYOR WIDTH: 64''

SPEED (MIN.): 7 PANELS/MIN

*COMPONENTS*

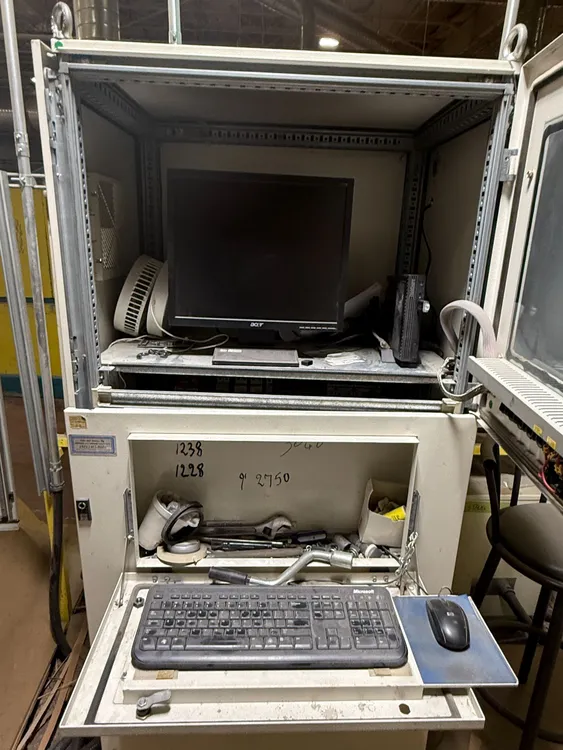

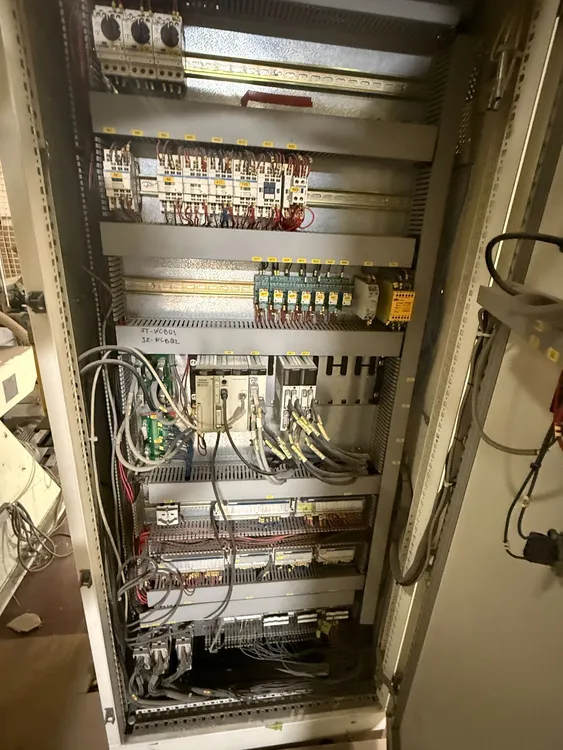

PLC CONTOLS

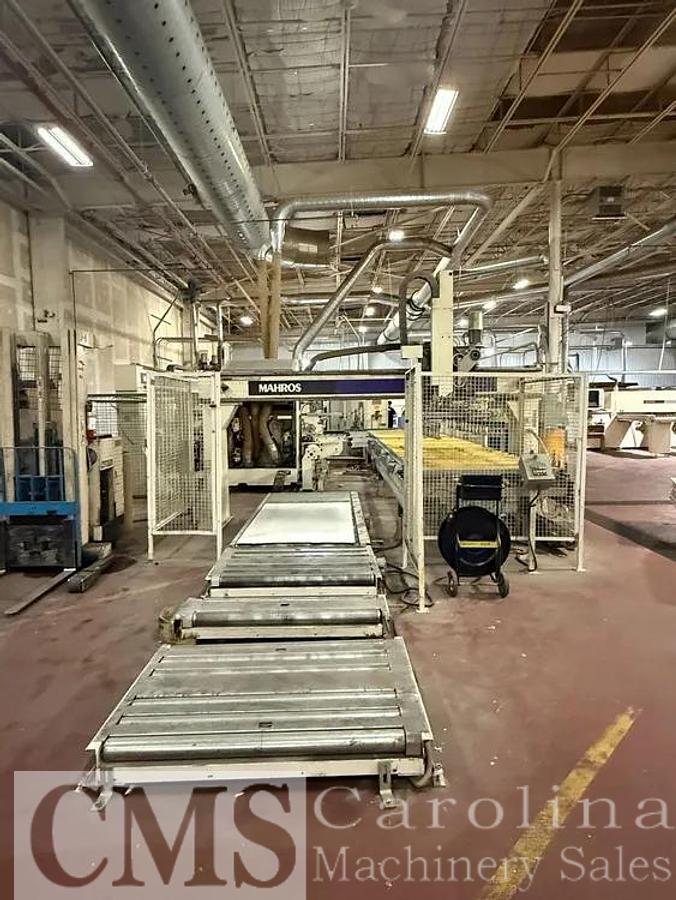

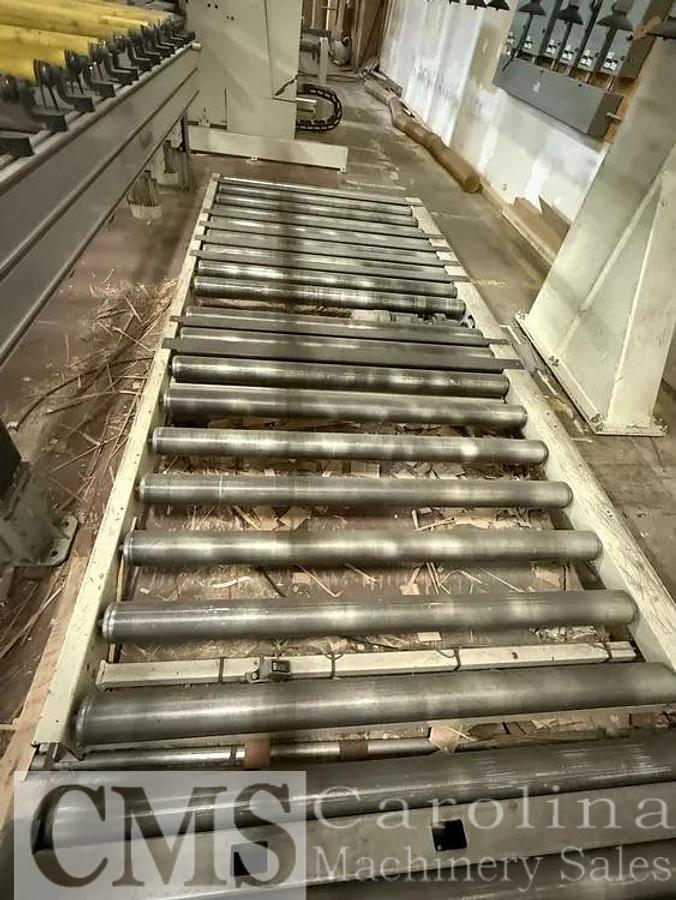

POWERED ROLLER CONVEYORS (~60” wide)

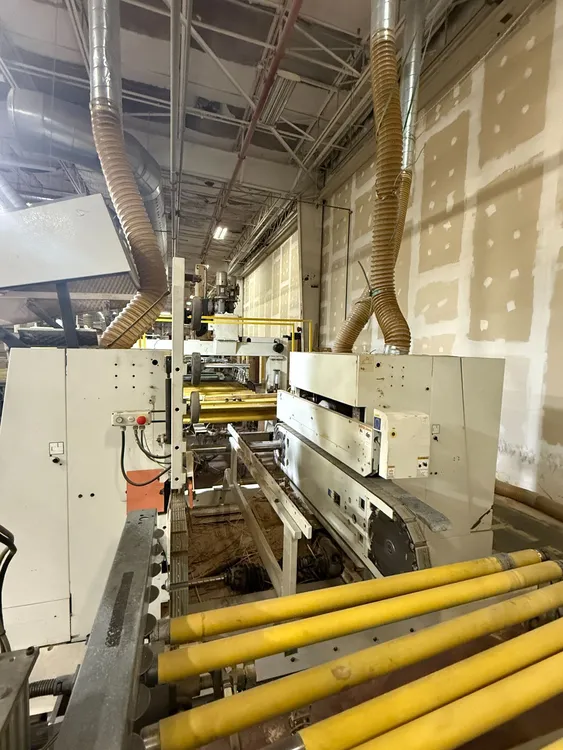

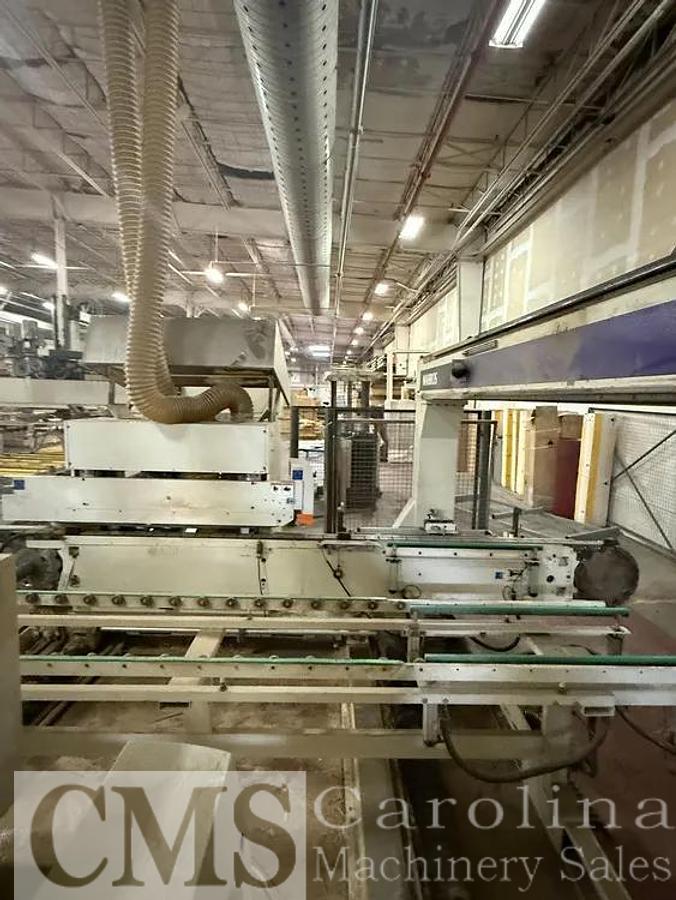

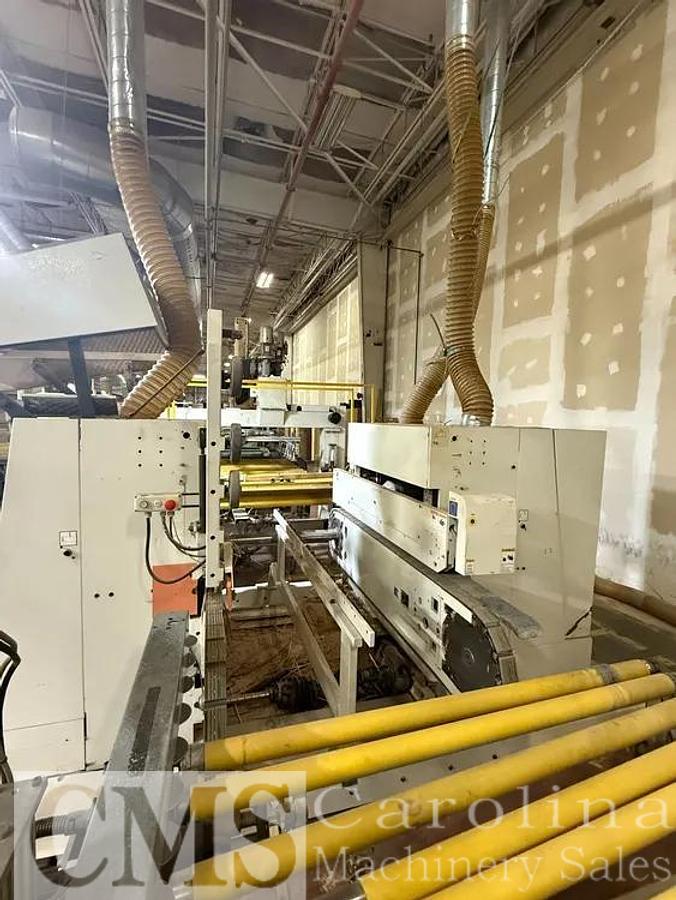

TRIMMING AND SCORING HEADS

VACCUUM FEEDER STACKERS

POWER TRANSFORMERS

SAFETY ENCLOSURES

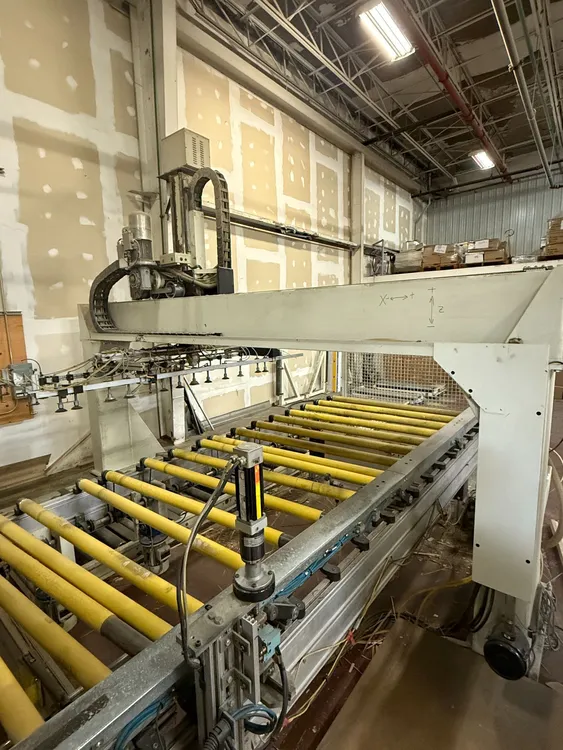

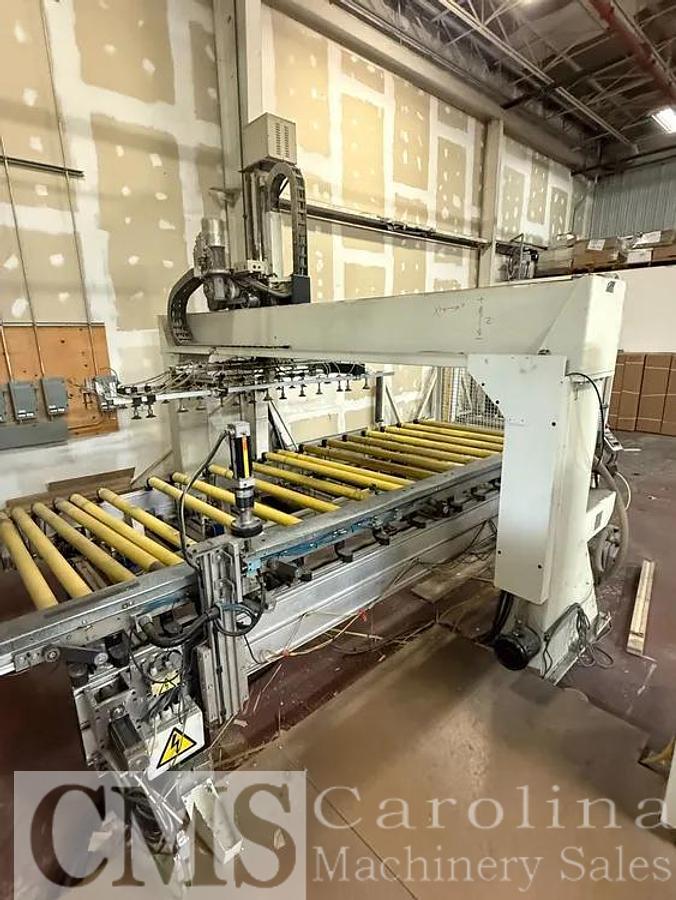

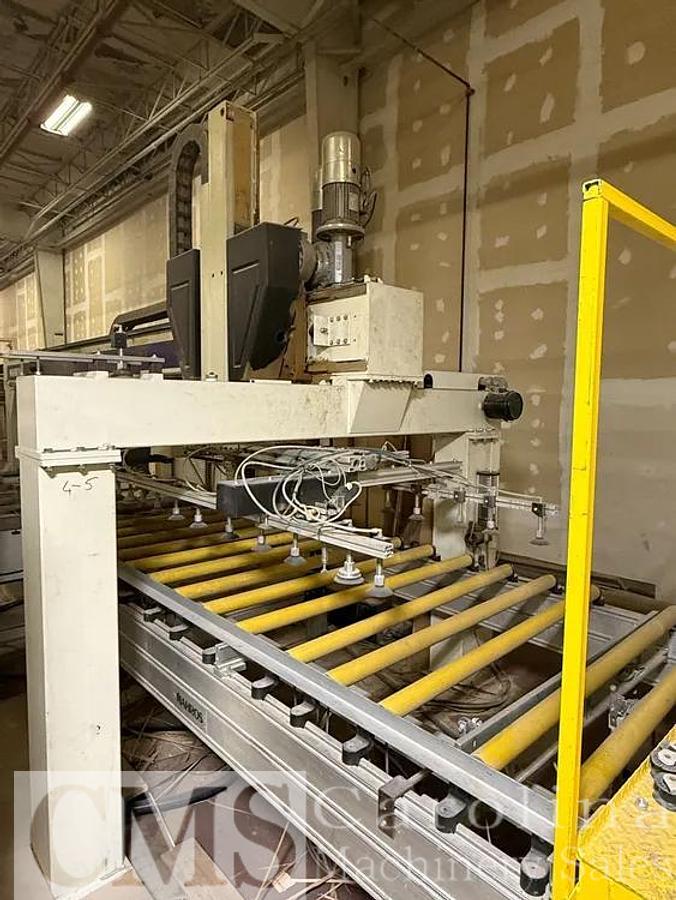

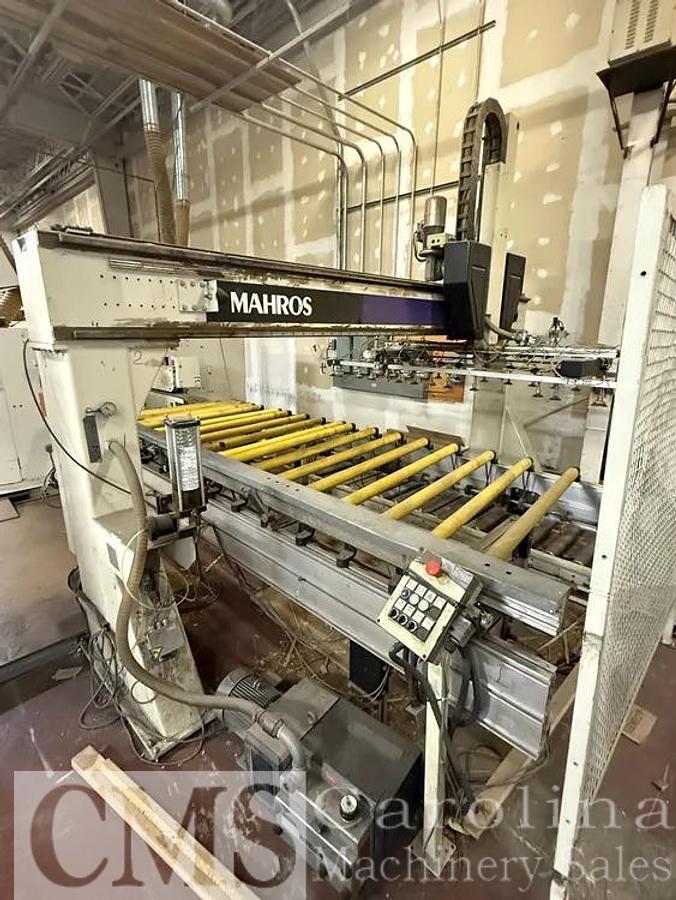

VACCUUM FEEDERS:

2005 MAHROS RUNNER/S

WEIGHT: 5500KG

2006 MAHROS RUNNER/D-CSL

SERIAL NO.: SI00113/01

WEIGHT: 5300 KG

2005 MAHROS RUNNER/D-SSL

5000KG
