Hundegger K2 Industry Timber Machining Center

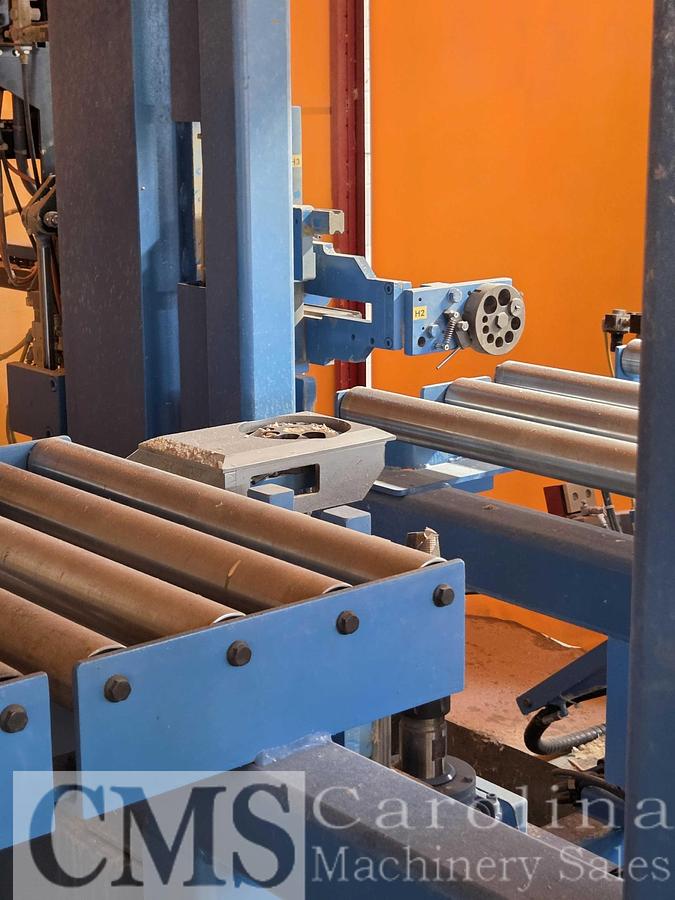

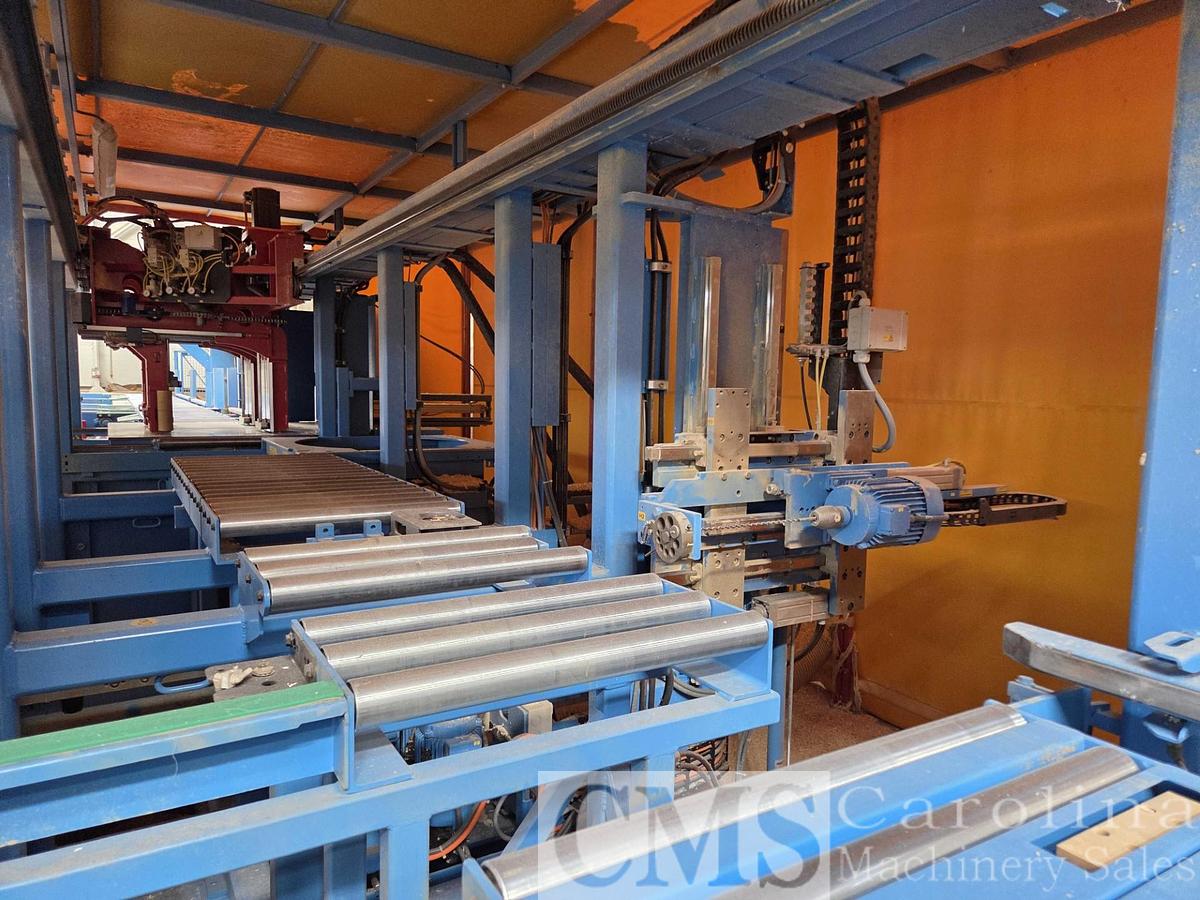

Hundegger K2i machining center: Fully automatic wood input with input roller conveyor and

input and sliding cross conveyor

Working width / Also Working thickness 20 -  450mm.

Max. Element length 13,56m

Under-table tilting cross-cut saw

Universal milling unit – 4-axis (UF4)

Combi support for vertically working tools

Drilling device (2.2 kW) – drilling direction vertical

Combi support for horizontally working tools

Drilling device (2.2 kW) – drilling direction horizontal

Marking tool (rear or on the user side)

Fully automatic element rotation – hydraulic

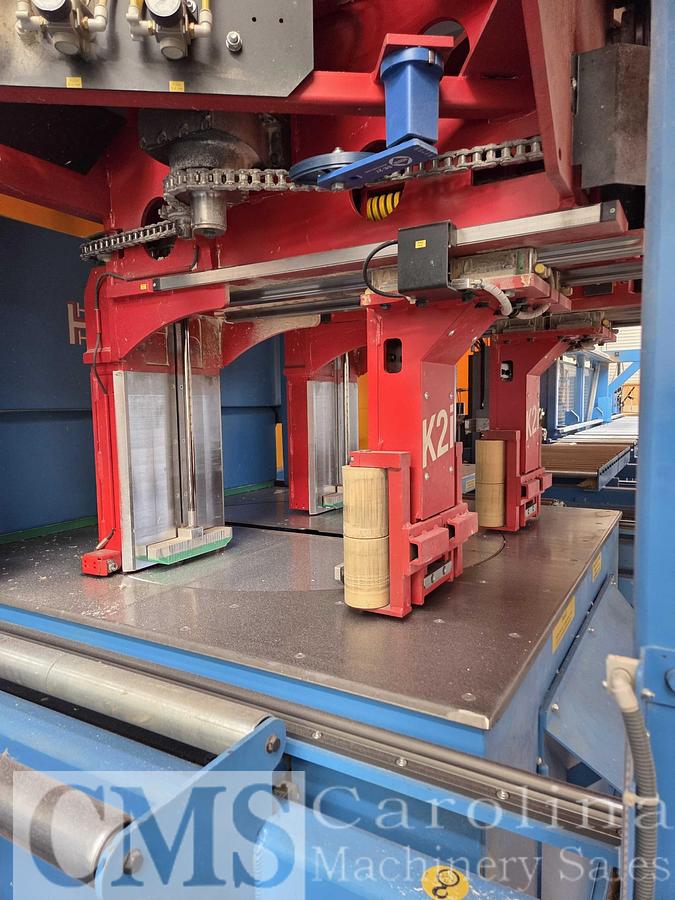

Transport and positioning system “two-hand system”

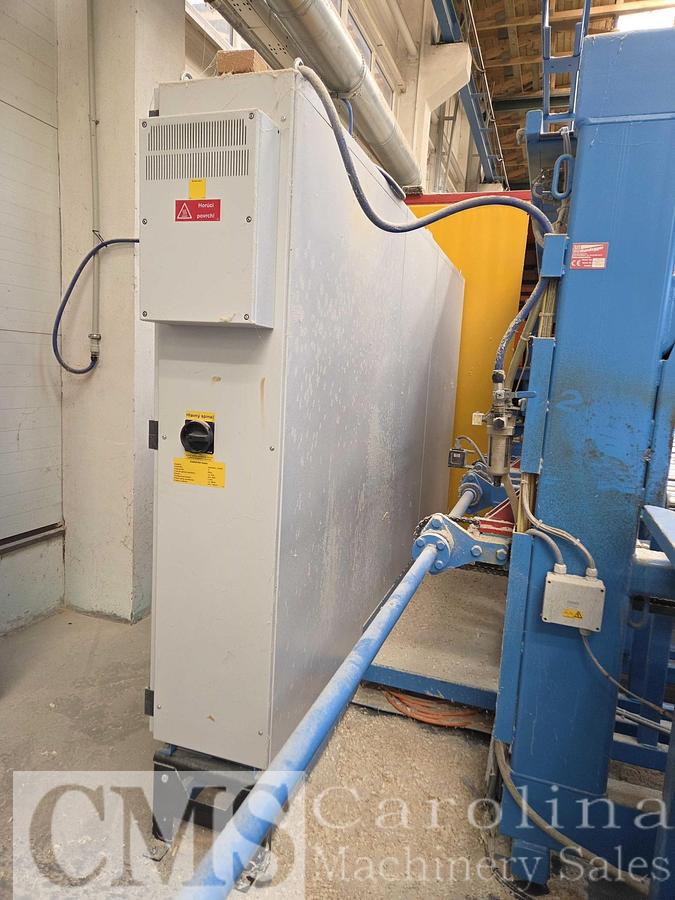

Electronic connection

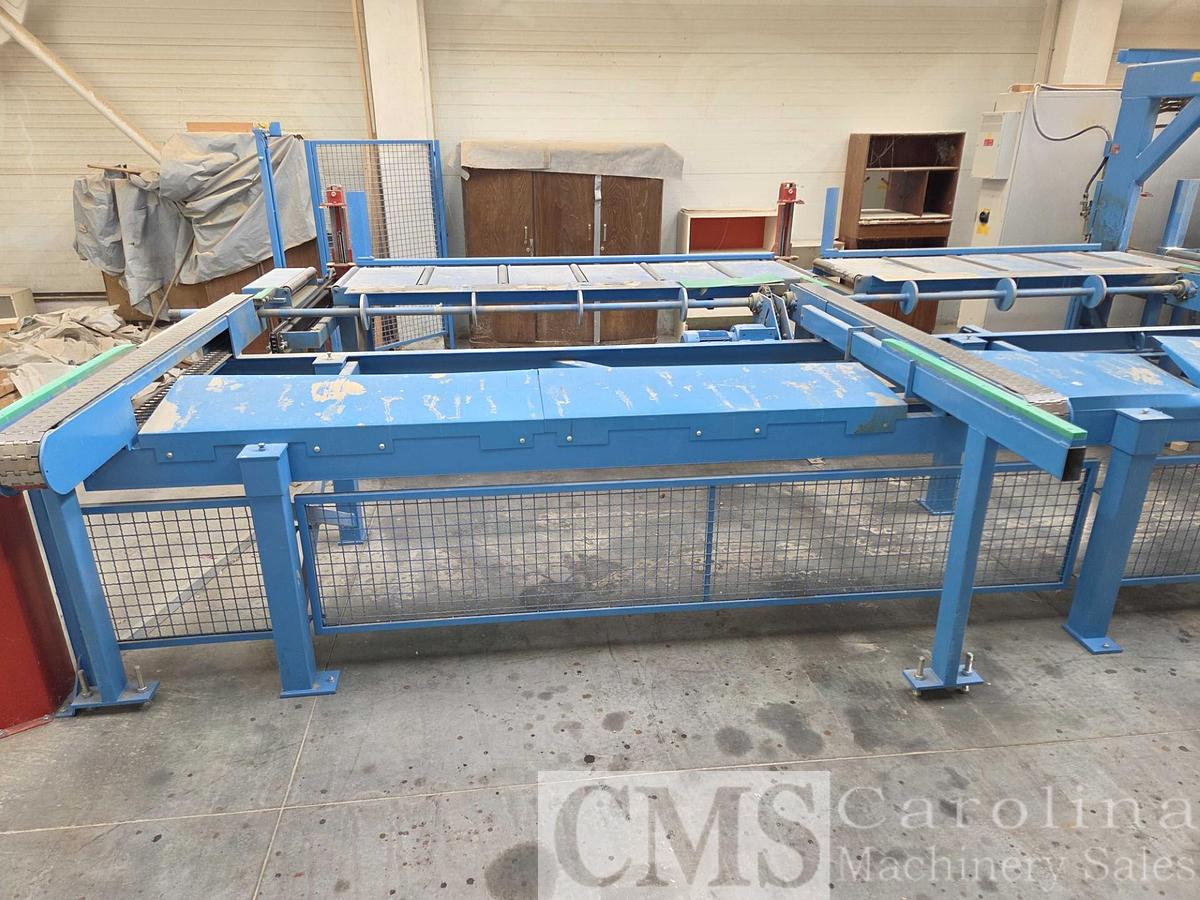

Roller conveyor for removing wooden elements with punch

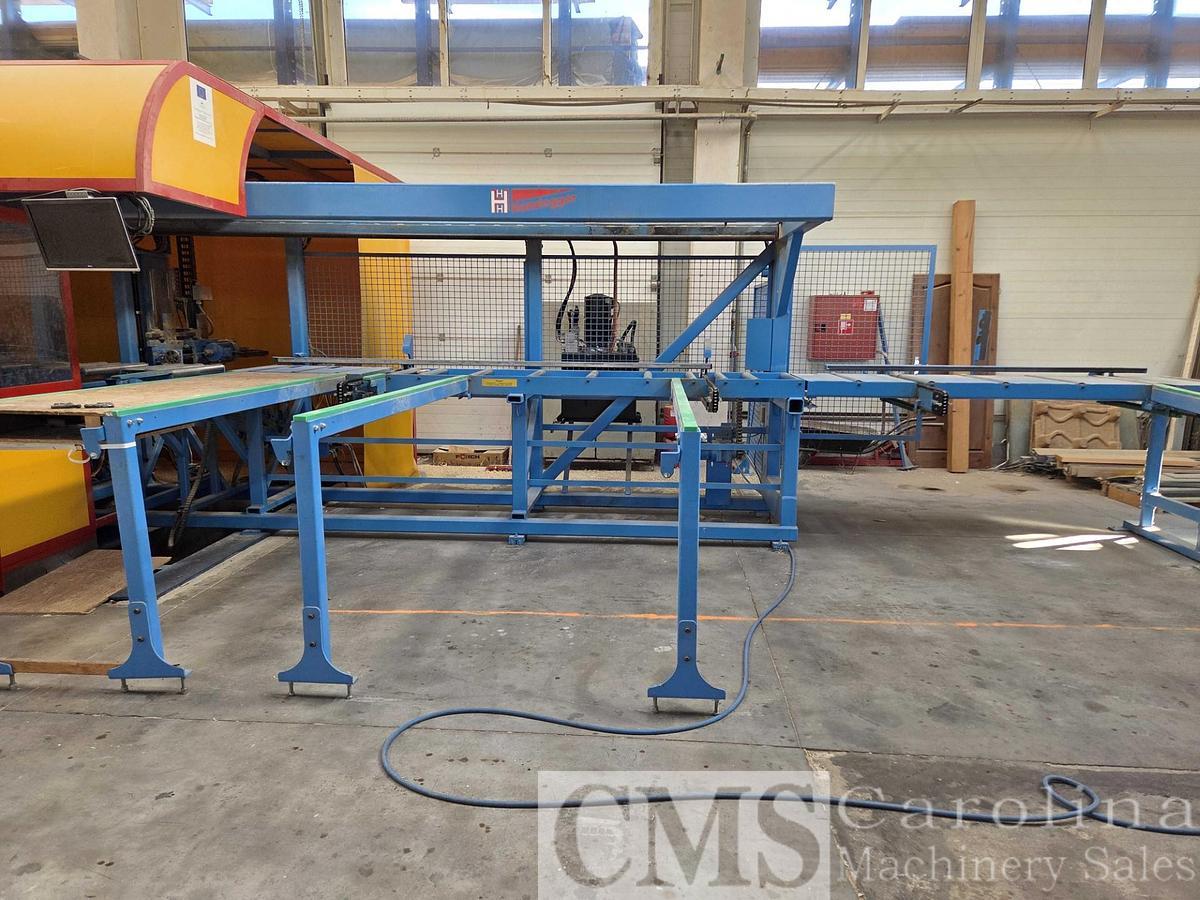

5-arm storage table

Safety device

Higher quality upper surface of the machine

Extension of the K2i frame to 13.56 m

5-axis universal milling unit - UF5 (upgrade to 4-axis)

Remote maintenance (including portable video camera)

Dovetail milling machine (with rotating knives) 60x28x16.5

Under-table rotary saw with saw blade from 750 mm to 800 mm, 360 degree rotation, servohydraulic tilting 0 – 65 degrees

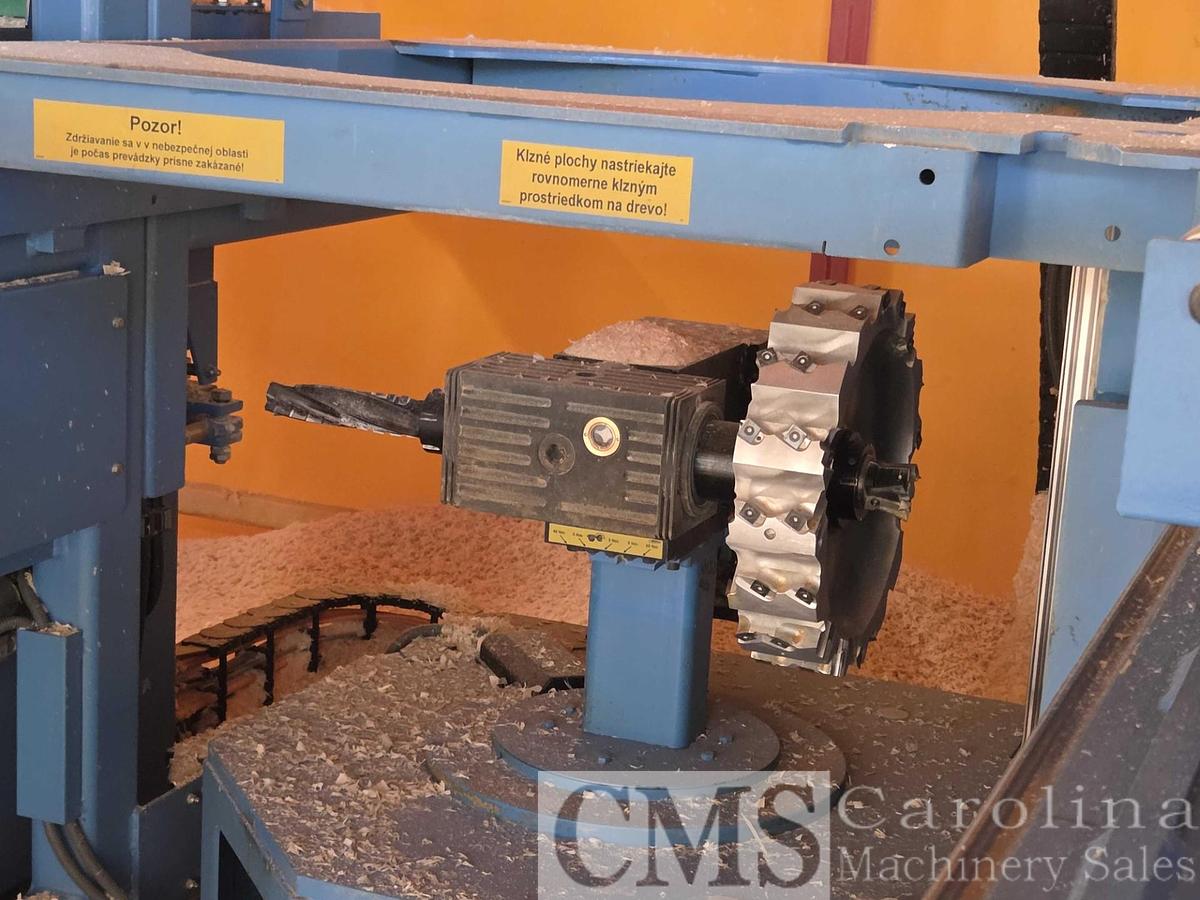

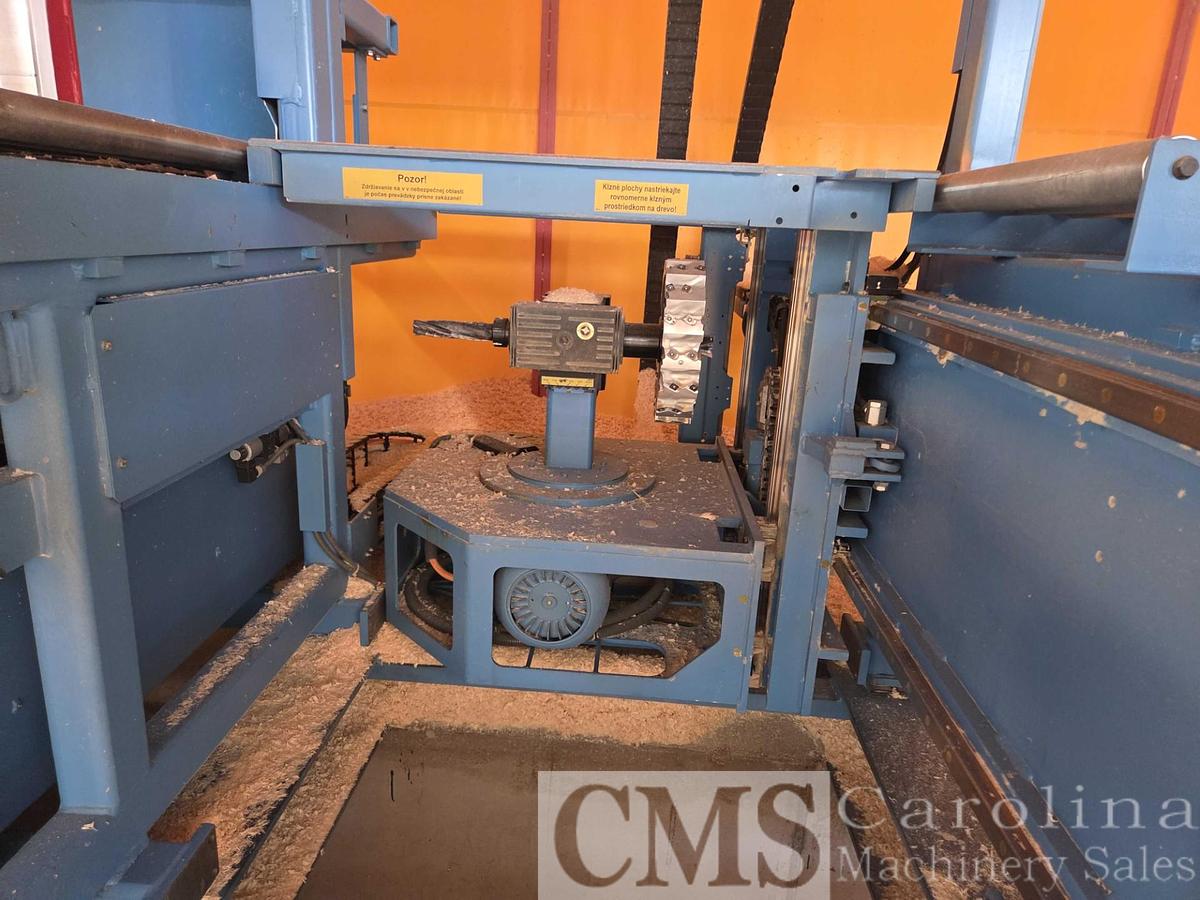

Universal 5-axis unit equipped with cylindrical milling cutter, end mill and end mill, milling head diameter 350 mm x 100 mm end mill

 Combi support for at least 5 tools with horizontal drilling device up to power from 2.5 to 3.0 kW, drilling diameter max 24 mm, drill length min 460 mm, machining depth min 300 mm

 Combi support for at least 5 tools with horizontal drilling device up to power from 2.5 to 3.0 kW, drilling diameter max 24 mm, drill length min. 460 mm, machining depth min. 300 mm

 Positioning and gripping of the material using arms, which, while the material is measured, transported to the desired location, the arms keep the processed element as close as possible to the tool that processes it for stability.

The processed material can be automatically rotated

Tolerance +/- 2 mm over a length of 13 m
